120 SPS Build

CKinLA

Community Member
View Badges
Joined
Oct 1, 2020
Messages
68
Reaction score
74
Review score
+0 /0 /-0
Location
New Orleans, La
Been posting about my build on the local reef club, but thought I’d put it on R2R as well now that I’ve made some progress. This is the cliff notes version.

Bought a used tank and stand.


Regretted the purchase. (haha)


Bought KP Aquatics live rock.



Kept the rock in a trash can for “two weeks” in the living room (that’s what I told the wife…whoops), which was really two months.


Finally got the paint stripped and the stand ready for paint.



Gained a new respect for hard plumbing a system.

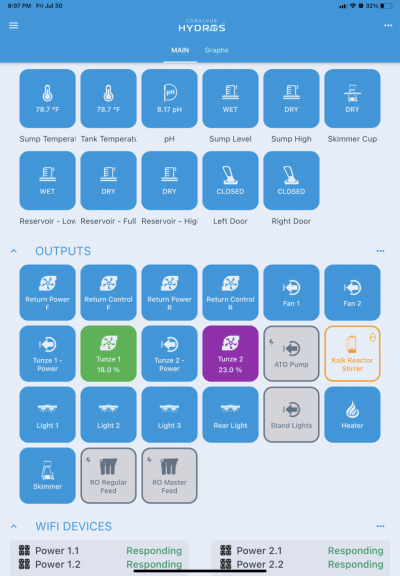

Got knee deep into Hydros.


Added some fans to the stand.


Wrecked the house. Said I’d have the tank up and running and the house clean before the wife got home…that didn’t happen.


Filled the tank with water.


Added the live rock.


Took a nighttime picture.


Added SPS on day one, two and three.

AS

mike550

Valuable Member
View Badges
Joined
Oct 13, 2019
Messages
1,579
Reaction score
1,860
Review score
+0 /0 /-0
Location
Chicago
Been posting about my build on the local reef club, but thought I’d put it on R2R as well now that I’ve made some progress. This is the cliff notes version.

Bought a used tank and stand.


Regretted the purchase. (haha)


Bought KP Aquatics live rock.



Kept the rock in a trash can for “two weeks” in the living room (that’s what I told the wife…whoops), which was really two months.


Finally got the paint stripped and the stand ready for paint.



Gained a new respect for hard plumbing a system.


Got knee deep into Hydros.


Added some fans to the stand.


Wrecked the house. Said I’d have the tank up and running and the house clean before the wife got home…that didn’t happen.


Filled the tank with water.


Added the live rock.


Took a nighttime picture.


Added SPS on day one, two and three.
That’s awesome!

OP
C

CKinLA

Community Member
View Badges
Joined
Oct 1, 2020
Messages
68
Reaction score
74
Review score
+0 /0 /-0
Location
New Orleans, La
Did a little work on the RO manifold last night. The bypass is there in the event of a solenoid failure. All someone has to do is isolate the solenoids and open the other valve to fill the reservoir. The reservoir has a float and three sensors (low, full and high) for redundancy; final backup is a time limit on the fill time. Also there is a 40 psi regulator on the RO line to the tank so the solenoids or float don’t have to work against the higher house pressure.

Fritz
OP
C

CKinLA

Community Member
View Badges
Joined
Oct 1, 2020
Messages
68
Reaction score
74
Review score
+0 /0 /-0
Location
New Orleans, La
PBT that was added on day 2.


As expected the PBT was aggressive towards new fish. He was tearing up the newly added golden angel; took a few chucks out of his fins. So, I tried the mirror trick for 15-20, and no more aggression towards the golden. Hopefully this works going forward. Video shows the tang going after the mirror; golden was already in this area when the PBT came to attack him, and that’s when I put the mirror up.


Added a few snails too…

OP
C

CKinLA

Community Member
View Badges
Joined
Oct 1, 2020
Messages
68
Reaction score
74
Review score
+0 /0 /-0
Location
New Orleans, La
The snails made quick work of the algae. 60 are for someone else’s tank, the numbers will drop at the end of the week. With reeftopia’s pricing you’re kinda pushed to ordering snails in lots of 100. With the discount for big orders, free shipping and free snails I definitely got a few more than needed.

The two lines on the outsides are the return lines; I’m setup for dual return pumps. The two inside lines connected together are the overflow lines.

The rise in the return line doesn’t cause any issues with the pumps; I did test this prior to gluing everything up. I had to put the rise in to clear the gate and to keep it out of the way when working in the sump.

The biggest concern I had with the overflow lines was handling the volume and the noise coming back up the secondary overflow without the gate valve. Flow wasn’t a problem. The noise was fixed by putting two 90s on the secondary to keep the inlet under the water; there is a hole drilled on the 90 to prevent siphon. I do have continuous flow going into the secondary overflow.

Top Shelf Aquatics

NowGlazeIT

Happy to help, Ask away.
View Badges
Joined
Oct 28, 2017
Messages
3,419
Reaction score
3,972
Review score
+0 /0 /-0
Location
Palm Springs area
Been posting about my build on the local reef club, but thought I’d put it on R2R as well now that I’ve made some progress. This is the cliff notes version.

Bought a used tank and stand.


Regretted the purchase. (haha)


Bought KP Aquatics live rock.



Kept the rock in a trash can for “two weeks” in the living room (that’s what I told the wife…whoops), which was really two months.


Finally got the paint stripped and the stand ready for paint.



Gained a new respect for hard plumbing a system.


Got knee deep into Hydros.


Added some fans to the stand.


Wrecked the house. Said I’d have the tank up and running and the house clean before the wife got home…that didn’t happen.


Filled the tank with water.


Added the live rock.


Took a nighttime picture.


Added SPS on day one, two and three.
Great work!

OP
C

CKinLA

Community Member
View Badges
Joined
Oct 1, 2020
Messages
68
Reaction score
74
Review score
+0 /0 /-0
Location
New Orleans, La
Next little project…

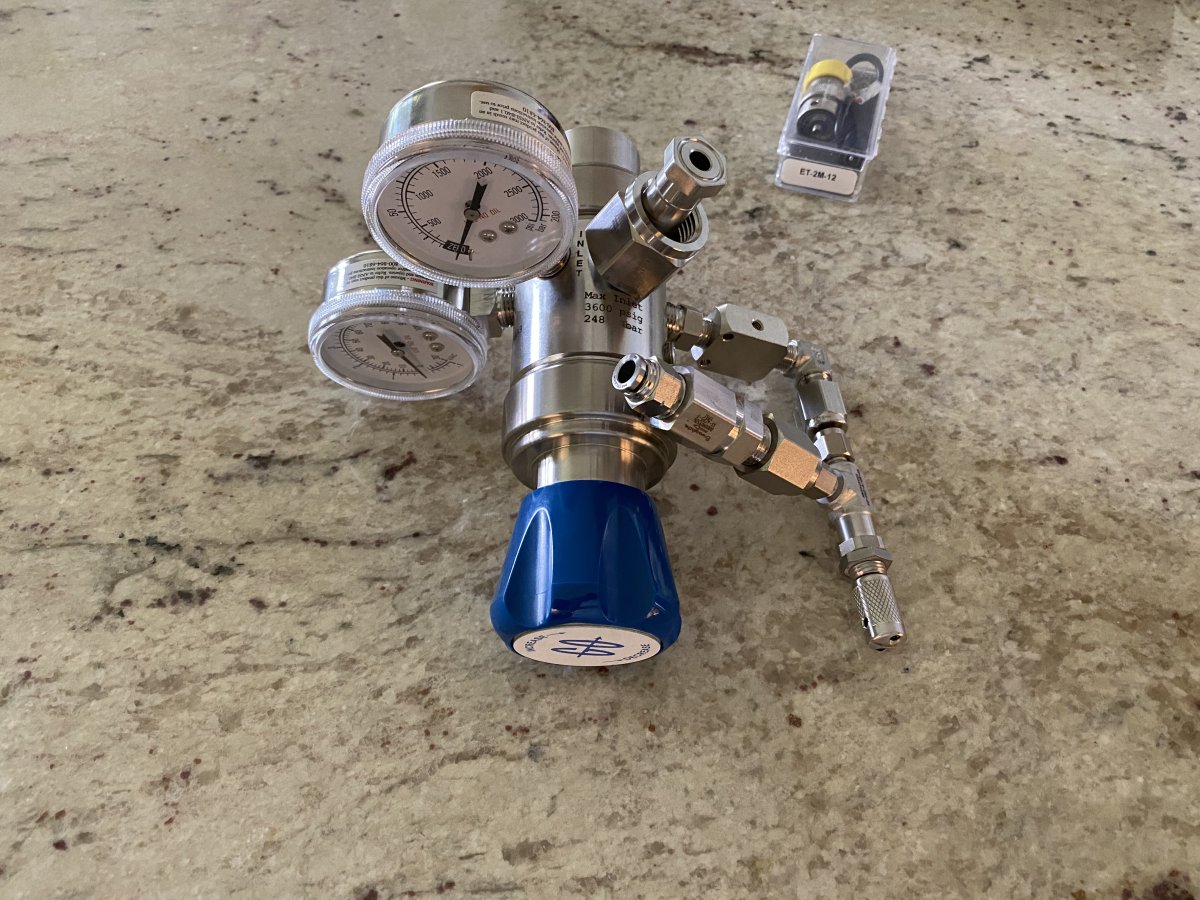

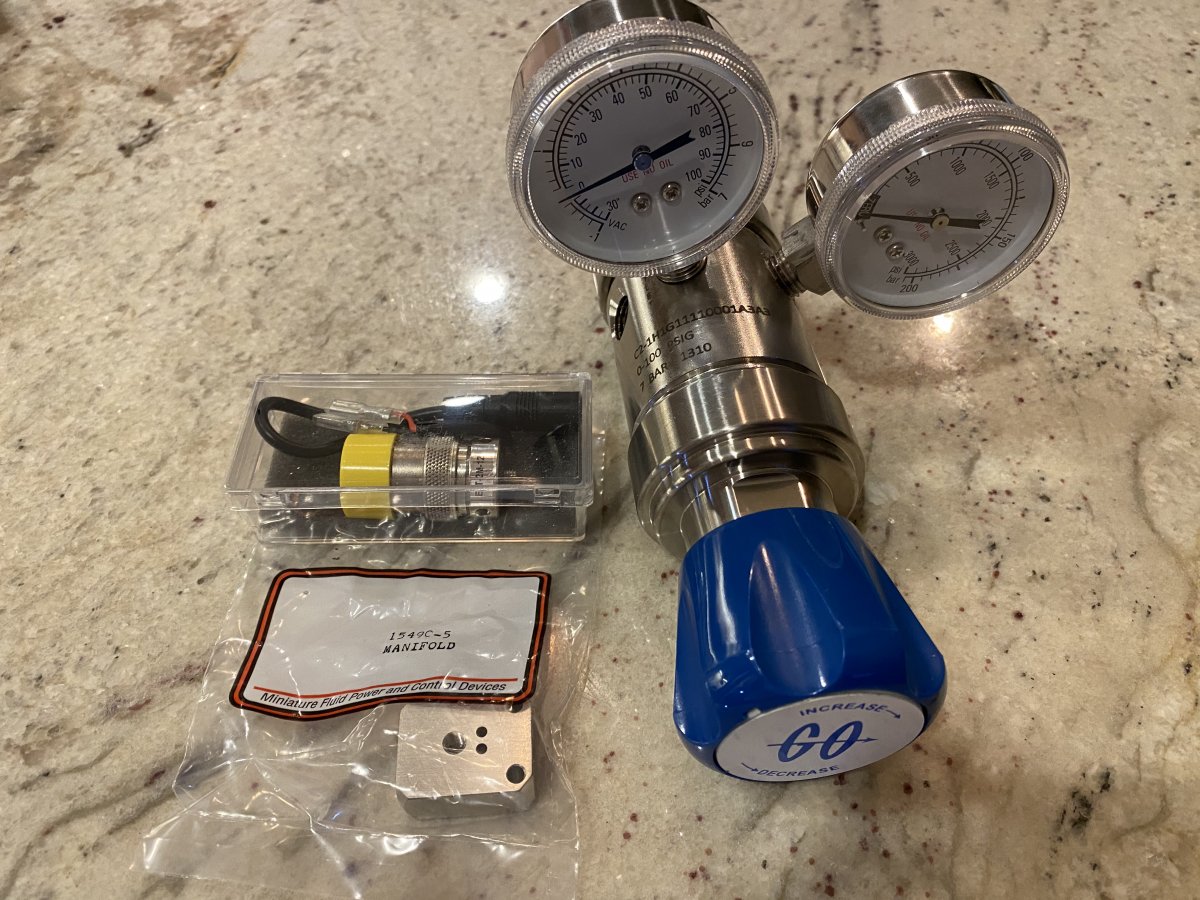

Feel like it was a pretty good deal at under $70 for a new stainless dual stage regulator with gauges. Could have gotten it a little cheaper used and without gauges, but the small premium seemed like a no brainer to me. Solenoid was a different order; went new there too because I couldn’t find the manifold used at the time.

Next up are the fittings and metering valve.

OP
C

CKinLA

Community Member
View Badges
Joined
Oct 1, 2020
Messages
68
Reaction score
74
Review score
+0 /0 /-0
Location
New Orleans, La

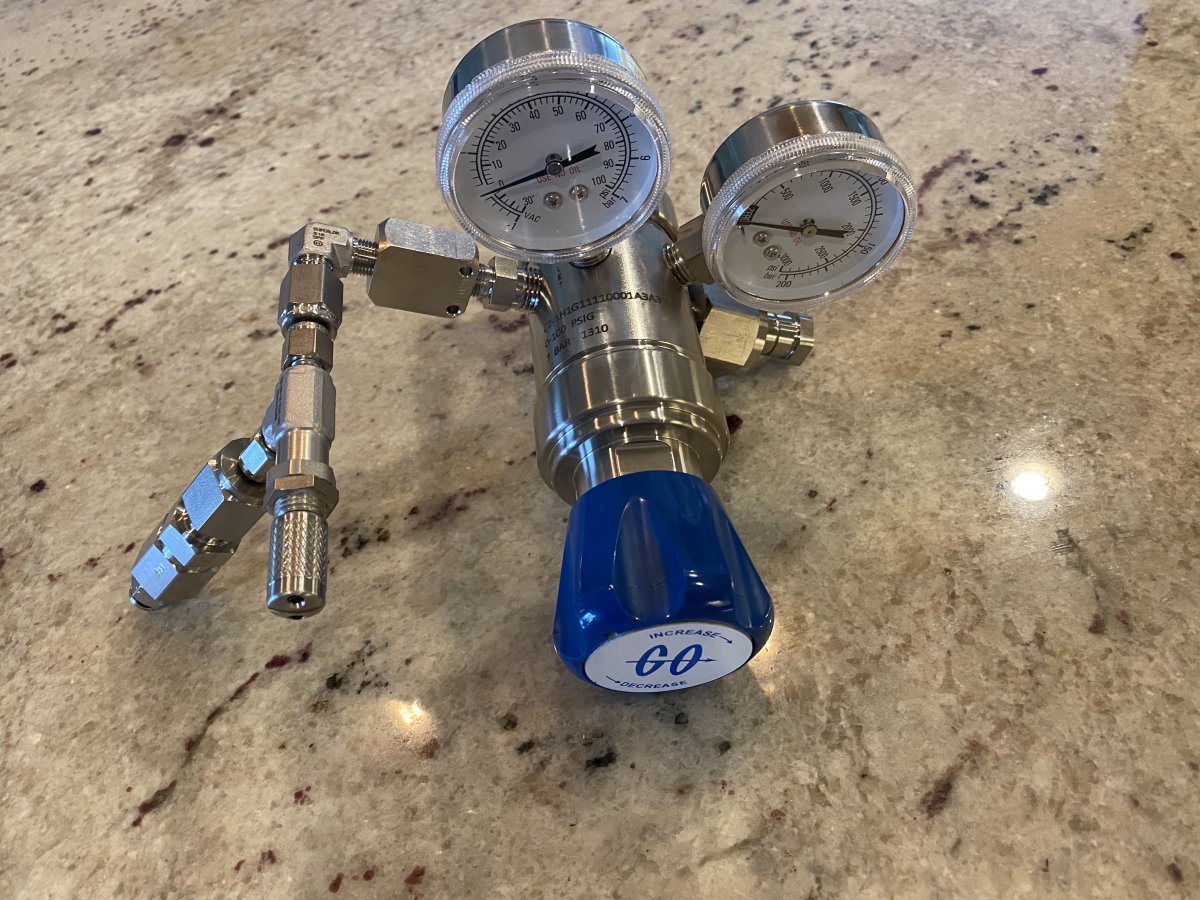

Well after a week or so delay due to the hurricane, the remaining parts arrived.



Thinking about using the bottom outlet, which originally I didn’t want. Using it and going at an oddball angle will save some space in the stand.


Alternatively I may still use the left outlet.
