Advice on Plumbing

Ecotech Marine

mattshell81

Community Member
Review score
+0 /0 /-0
View Badges
Joined
Jun 30, 2020
Messages
35
Reaction score
10
Review score
+0 /0 /-0
Location
Northern Cambria

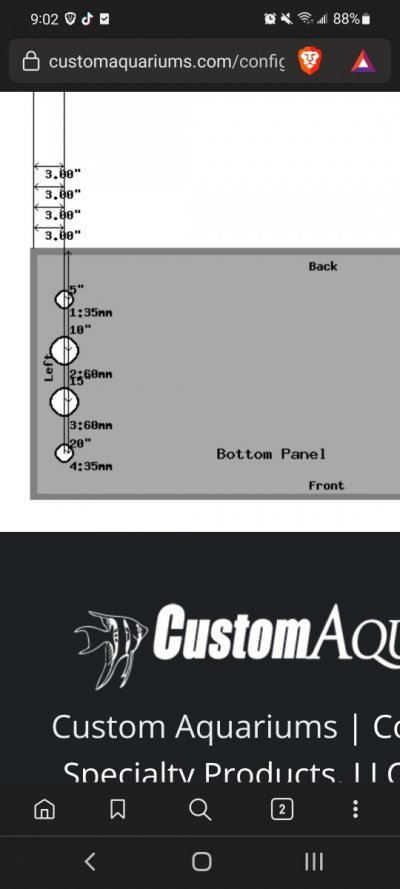

Looking to have a custom tank made for our dining room. It's open to the living room and has these window cutouts on each side where there's a small wall. This will sit in front of that wall so the tank with be visible from 3 side but only half of the tank will be visible from the back through this window. Original plan was internal overflow with an acrylic wall with teeth cut on the table saw. This is the placement of holes on the bottom left that I'm working with so far for the drains and returns. Should I be going closer or further from the due of the glass? I'm really trying to maximize my internal volume here and it almost feels like I'd have more tabk in the end if I just cut it from 58" to 54" and used a normal overflow box and just squeezed some plumbing in to the left of the tank and made something come up on the left side of the stand to hide the plumbing.



Eagle_Steve

Way too many tanks!!!!!
Review score
+0 /0 /-0
View Badges
Joined
Jan 30, 2018
Messages
8,657
Reaction score
46,829
Review score
+0 /0 /-0
Location
Eagleville, TN
Looking to have a custom tank made for our dining room. It's open to the living room and has these window cutouts on each side where there's a small wall. This will sit in front of that wall so the tank with be visible from 3 side but only half of the tank will be visible from the back through this window. Original plan was internal overflow with an acrylic wall with teeth cut on the table saw. This is the placement of holes on the bottom left that I'm working with so far for the drains and returns. Should I be going closer or further from the due of the glass? I'm really trying to maximize my internal volume here and it almost feels like I'd have more tabk in the end if I just cut it from 58" to 54" and used a normal overflow box and just squeezed some plumbing in to the left of the tank and made something come up on the left side of the stand to hide the plumbing.

I do not have an answer on this, but can bump it and add someone who might be able to answer this for ya.

@Joe Glass Cages thoughts on this?


Joe Glass Cages

Passionate Glass Cages’s Team Member
Review score
+0 /0 /-0
View Badges
Joined
Dec 13, 2019
Messages
903
Reaction score
4,429
Review score
+0 /0 /-0
Location
Dickson, TN
I do not have an answer on this, but can bump it and add someone who might be able to answer this for ya.

@Joe Glass Cages thoughts on this?
for sure. Thanks for looping me in @Eagle_Steve

@mattshell81 looks like your are working with Custom Aquariums. They make great tanks and should be help you with this design and their glass specs for safety and tank strength.

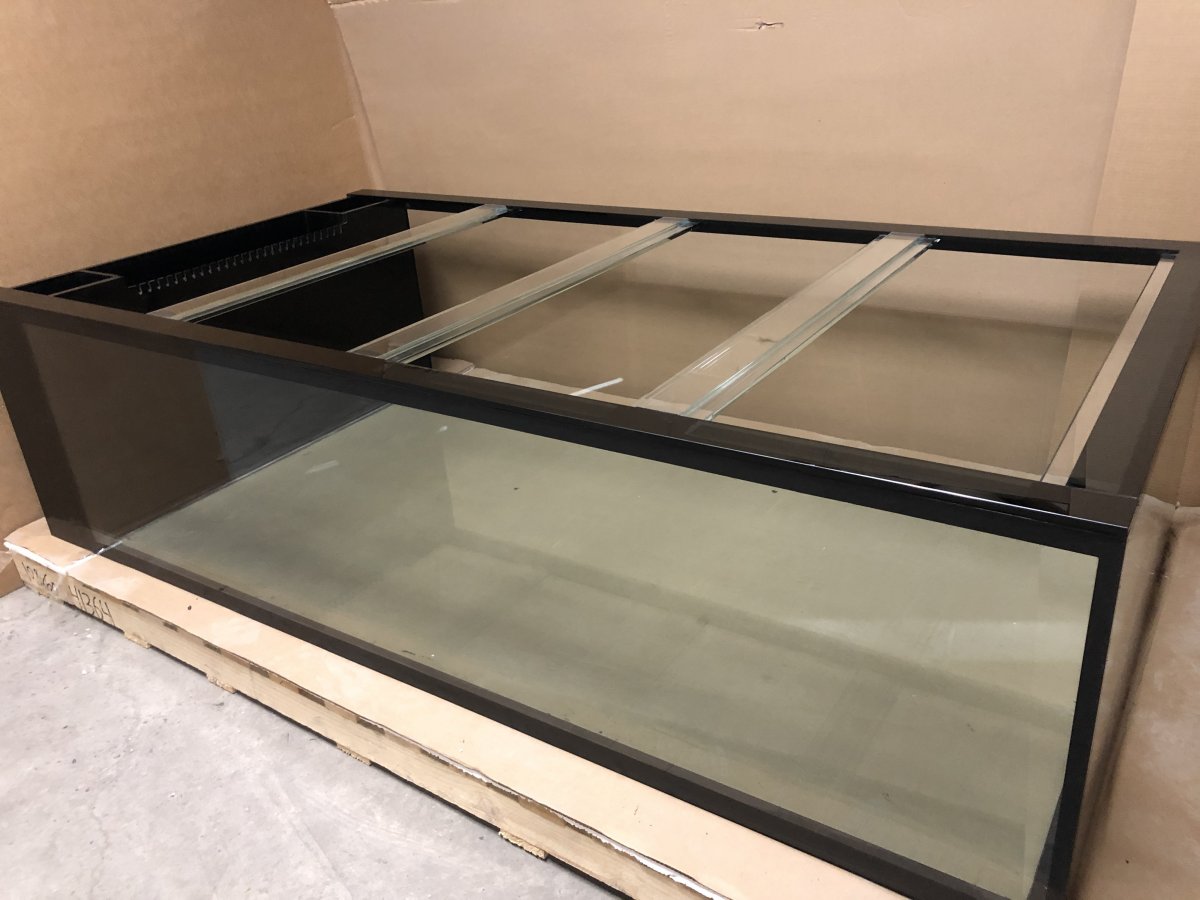

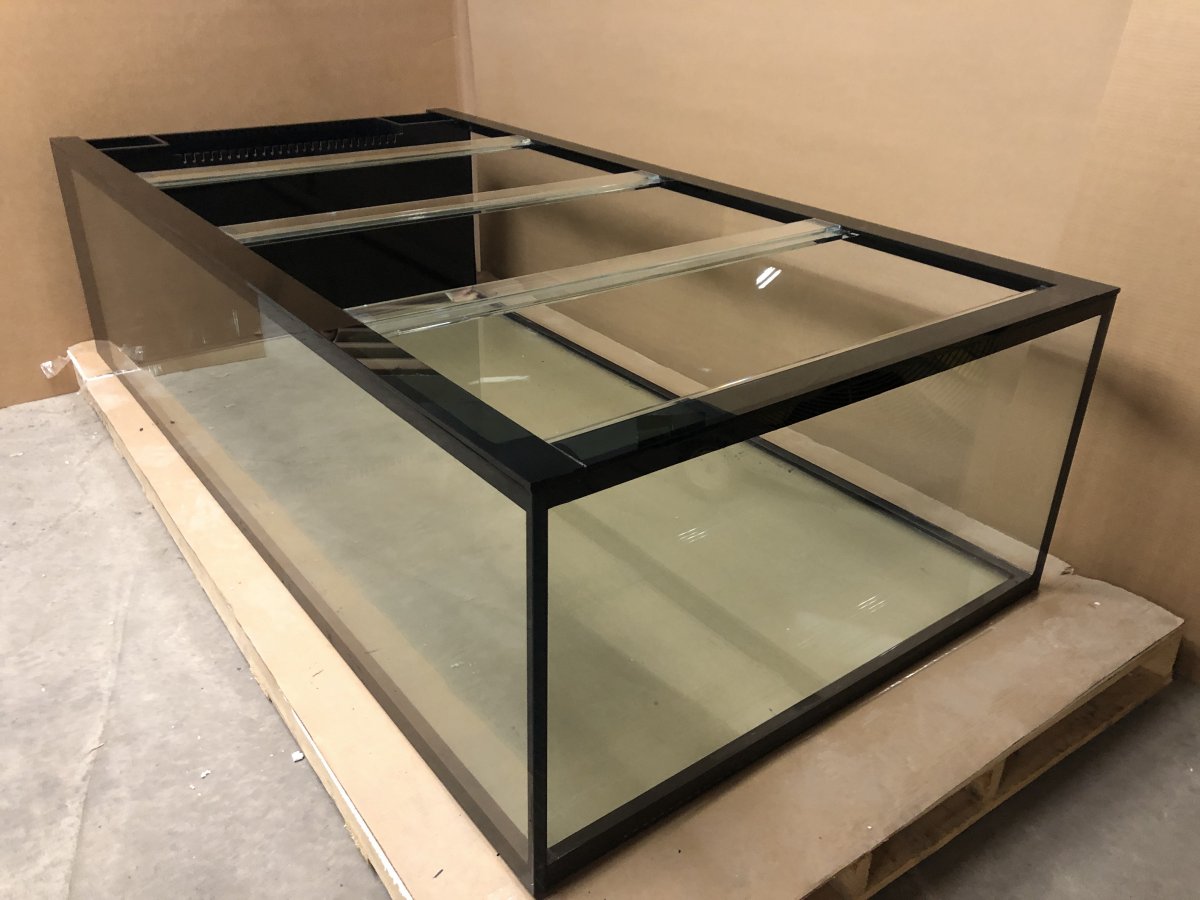

I can share our specs. For a divider wall overflow (i think that is what you are working on) the closest we would put the holes is 2" from the edge of the glass to the edge of hole. Same if it is a box style overflow. Below are a few pictures of our divider wall overflow. this one has 2 dry boxes for wave makers. the overflow is wrapped with black vinyl to conceal the overflow visually from the outside of the tank. there is one picture looking down into the overflow. this one may be helpful to look at. let me know if have any question. really like to help get the tank of your dreams and custom aquariums can do it for sure for you. if you are they have questions, let me know. My pleasure to help.





loglew

New Member
Review score
+0 /0 /-0
View Badges
Joined
Oct 30, 2021
Messages
2
Reaction score
2
Review score
+0 /0 /-0
Location
Blackfot, ID 83221, USA
for sure. Thanks for looping me in @Eagle_Steve

@mattshell81 looks like your are working with Custom Aquariums. They make great tanks and should be help you with this design and their glass specs for safety and tank strength.

I can share our specs. For a divider wall overflow (i think that is what you are working on) the closest we would put the holes is 2" from the edge of the glass to the edge of hole. Same if it is a box style overflow. Below are a few pictures of our divider wall overflow. this one has 2 dry boxes for wave makers. the overflow is wrapped with black vinyl to conceal the overflow visually from the outside of the tank. there is one picture looking down into the overflow. this one may be helpful to look at. let me know if have any question. really like to help get the tank of your dreams and custom aquariums can do it for sure for you. if you are they have questions, let me know. My pleasure to help.



@Joe Glass Cages why am I loving this design? ;Happy
