Apogee mq-510 vs. ITC Parwise issue?

cubalibre79

New Member
View Badges
Joined
Jul 29, 2023
Messages
21
Reaction score
27
Location
Germany
Rating - 0%
0   0   0
Need help again,

try to handle 4 radion xr30 pro over my 132gallon tank.

my problem, wich par meter should i trust?

my apogee mq-510 with blue sensor read 360 par ~ 16“ under the light. Parwise reads a lot lower and try to tell me 360 par @ 100% intensity

maybe someone can compare to my screenshot.



exnisstech

Grumpy old man
View Badges
Joined
Feb 11, 2019
Messages
10,777
Reaction score
15,624
Location
Ashland Ohio
Rating - 0%
0   0   0
I can't really help because I only own the 510. There is some info on both below that may help.


Upvote 0

Dburr1014

10K Club member
View Badges
Joined
May 8, 2016
Messages
11,422
Reaction score
11,094
Location
CT
Rating - 0%
0   0   0
PARwise does read lower.
360 is a good par and use the parwise to dial in the color channels.

Edit: if you follow the link to the link on humble.fish, telegram talks about the different meters. He says use a multiplier of 1.26 on the parwise. Makes sense.

Last edited:
Upvote 0
OP
OP
cubalibre79

cubalibre79

New Member
View Badges
Joined
Jul 29, 2023
Messages
21
Reaction score
27
Location
Germany
Rating - 0%
0   0   0
PARwise does read lower.
360 is a good par and use the parwise to dial in the color channels.

Edit: if you follow the link to the link on humble.fish, telegram talks about the different meters. He says use a multiplier of 1.26 on the parwise. Makes sense.
yes I’m fine with 360 par.

but should i trust in apogee and set it to 65% intensity? or should i try in Parwise and set it to 100% intensity?

maybe someone can help who uses also multiple xr30 over his tank is 65% a good point to be ?

Upvote 0

Dburr1014

10K Club member
View Badges
Joined
May 8, 2016
Messages
11,422
Reaction score
11,094
Location
CT
Rating - 0%
0   0   0
yes I’m fine with 360 par.

but should i trust in apogee and set it to 65% intensity? or should i try in Parwise and set it to 100% intensity?

maybe someone can help who uses also multiple xr30 over his tank is 65% a good point to be ?
Set it to the apogee @ 65%.

I assume you get a reading of about ~285 par with parwise?
I think I'm about 200ish with my parwise at the top of my rock, I'll have to check.

Upvote 0
OP
OP
cubalibre79

cubalibre79

New Member
View Badges
Joined
Jul 29, 2023
Messages
21
Reaction score
27
Location
Germany
Rating - 0%
0   0   0
Set it to the apogee @ 65%.

I assume you get a reading of about ~285 par with parwise?
I think I'm about 200ish with my parwise at the top of my rock, I'll have to check.
I‘m off work & check it out.

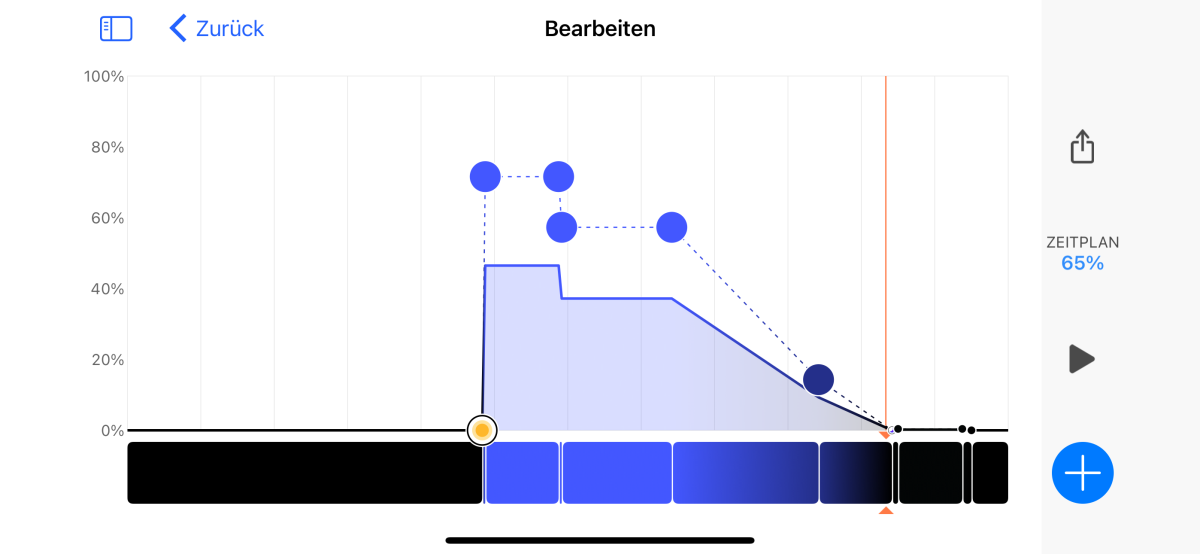

You are close, if i set intensity with a wwc schedule to 65%, my apogee reads ~ 360 par and the ParWise reads ~ 250 to 270 par.., in the first phase, before it turns into blue period.


Last edited:
Upvote 0

Hooz

Valuable Member
View Badges
Joined
Aug 16, 2020
Messages
1,629
Reaction score
1,705
Location
Heath, OH
Rating - 100%
1   0   0
I think I remember that @telegraham tested both and if you multiply the PARwise number by 1.26 you basically get the Apogee number (i.e. it reads that much lower than the Apogee).

If that's the case, then your PARwise's 270 x 1.26 = 340 which is pretty darn close to the Apogee's 360.

Upvote 0
OP
OP
cubalibre79

cubalibre79

New Member
View Badges
Joined
Jul 29, 2023
Messages
21
Reaction score
27
Location
Germany
Rating - 0%
0   0   0
I think I remember that @telegraham tested both and if you multiply the PARwise number by 1.26 you basically get the Apogee number (i.e. it reads that much lower than the Apogee).

If that's the case, then your PARwise's 270 x 1.26 = 340 which is pretty darn close to the Apogee's 360.
I‘m just a private user, so I have no lab here. But if i turn my intensity to 100% the apogee 510 show me ~ 580 par and the parwise 360.

Feels like so higher the par is, so wider the angle between both. 360 x 1.26 is ~ 450 range and not 580.

and 100% is way too much here, and definitely burn corals, one Hysterix bleached out very fast

Upvote 0

telegraham

Well-Known Member
View Badges
Joined
May 20, 2017
Messages
608
Reaction score
806
Rating - 0%
0   0   0
Feels like so higher the par is, so wider the angle between both. 360 x 1.26 is ~ 450 range and not 580.
1.26X is at something similar to AB+. You're challenging the PARwise with all channels. There's also the issue of holding the PARwise level. I'm just a private user, too. I've compared the PARwise to two different 500-series Apogees and the VBR. I don't trust the PARwise readings. The VBR is a better budget meter. And don't get me started on the PARwise as a spectrometer. Even ITC will tell you it's not a spectrometer.

Upvote 0
OP
OP
cubalibre79

cubalibre79

New Member
View Badges
Joined
Jul 29, 2023
Messages
21
Reaction score
27
Location
Germany
Rating - 0%
0   0   0
1.26X is at something similar to AB+. You're challenging the PARwise with all channels. There's also the issue of holding the PARwise level. I'm just a private user, too. I've compared the PARwise to two different 500-series Apogees and the VBR. I don't trust the PARwise readings. The VBR is a better budget meter. And don't get me started on the PARwise as a spectrometer. Even ITC will tell you it's not a spectrometer.
Thank you very much, this helps a lot. So the ParWise is just more a toy than a tool!!

After i adjust to the apogee the tank looks good and the corals react very well, polyps came slowly back out

I think it was way too much before.

Upvote 0

Hurricane Aquatics

Valuable Member
View Badges
Joined
Oct 17, 2013
Messages
1,405
Reaction score
951
Location
TN
Rating - 100%
7   0   0
I personally trust the PARwise more than I did the Apogee. I wasn't getting great results with my Apogee PAR readings in my Acro system and when I noticed the 100 PAR difference between the two, I adjusted to the PARwise to see and the Acros responded very nicely.

So which one is accurate? I obviously don't know that from a scientific level, but I use the PARwise to adjust.

Upvote 0
OP
OP
cubalibre79

cubalibre79

New Member
View Badges
Joined
Jul 29, 2023
Messages
21
Reaction score
27
Location
Germany
Rating - 0%
0   0   0
I personally trust the PARwise more than I did the Apogee. I wasn't getting great results with my Apogee PAR readings in my Acro system and when I noticed the 100 PAR difference between the two, I adjusted to the PARwise to see and the Acros responded very nicely.

So which one is accurate? I obviously don't know that from a scientific level, but I use the PARwise to adjust.
I'm just annoyed by these differences. I think a par meter should show par! There are comparisons between LiCor / Apogee / and ParWise, and there are also ITC videos where it is explained to us that Apogee uses old technology and therefore Parwise would be more accurate in relation to the respective spectrum. There are also videos from BRS about 4 radions where around 1000 pars are achieved with 100% and 6" deep. I don't know what I can believe anymore. And the fact that there are animals under the lamps takes some of the fun out of the differences.

Upvote 0
OP
OP
cubalibre79

cubalibre79

New Member
View Badges
Joined
Jul 29, 2023
Messages
21
Reaction score
27
Location
Germany
Rating - 0%
0   0   0
If I trust Apogee and set about 360 par with 4 xr30's over my 63" tank, up by the acropores... then it consumes about 300 watts. A little bit, in my opinion. If I trust the ParWise I have to go to 100% intensity to achieve this 360 par. All 4 lamps then consume ~ 460 watts. Since they are the Pro ones and they lose performance anyway, I think 100% is realistic. Maybe someone can compare this with me? Please.

Upvote 0

JoJosReef

10kW Club member
View Badges
Joined
Sep 27, 2021
Messages
11,993
Reaction score
41,248
Location
Orange County, CA
Rating - 0%
0   0   0
Edit: omg that was long. TL;DR, it's complicated.

I understand the frustation on differences in measurements between instruments. Note that this is a common frustration in many different scientific instruments. Personally, I think what is important is understanding your instrument and the measuements relative to how your corals respond. If your acros do well at 260 PAR on a Parwise, then that works as a point of reference for that meter (whereas a 360 on an apogee may be your benchmark). With that knowledge, you can plan your coral scaping. The belief that "PAR is PAR is PAR" may be a mistake. If the apogee were a perfect instrument, perhaps that would be true, but lets imagine that it is more sensitive to a certain bandwidth of the spectrum, thus overestimating PAR with spectra heavy in that range or maybe underestimating PAR for the rest. I don't know if this is possible or not. But let's also imagine that 360 PAR coming from Radions might affect your Walt Disney Acro differently than 360 PAR from an AI Hydra. If that were the case, the PAR 360 benchmark is only relevant for the Radion that you know works well at that intensity for your Walt Disney (and likely also the spectrum you choose). How about an old Radion vs a new one? Would be lovely if we knew for fact that 360 PAR from any spectrum you choose from any light works well for an Acro, but I just don't know if that is true. En fin, I consider these instruments imperfect and use them as a tool (not a toy) for adjusting my lights to the needs of the corals for the levels I know work through trial and error, also considering the state of my tank regarding nutrition and hospitable environment, and maintianing those levels over time.

Upvote 0

telegraham

Well-Known Member
View Badges
Joined
May 20, 2017
Messages
608
Reaction score
806
Rating - 0%
0   0   0
Thank you very much, this helps a lot. So the ParWise is just more a toy than a tool!!
I have four PAR meters, three of which align. That excludes the UPRtek and Hopoocolor spectrometers. Three of those PAR meters are two 500-series Apogee and one VBR. The outlier is the PARwise.
I'm just annoyed by these differences.
Testing suggests that if you set up lighting using the PARwise, you're in good shape. If you set up lighting with an Apogee 500-series, then move to the PARwise, that could be, and has been, bad for some. The PARwise will read low when compared to the 500-series Apogees.

Your corals don't care about accuracy. Don't mix PARwise and Apogee readings.

Upvote 0
OP
OP
cubalibre79

cubalibre79

New Member
View Badges
Joined
Jul 29, 2023
Messages
21
Reaction score
27
Location
Germany
Rating - 0%
0   0   0
I have four PAR meters, three of which align. That excludes the UPRtek and Hopoocolor spectrometers. Three of those PAR meters are two 500-series Apogee and one VBR. The outlier is the PARwise.

Testing suggests that if you set up lighting using the PARwise, you're in good shape. If you set up lighting with an Apogee 500-series, then move to the PARwise, that could be, and has been, bad for some. The PARwise will read low when compared to the 500-series Apogees.

Your corals don't care about accuracy. Don't mix PARwise and Apogee readings.
Then I’ll adjust to the parwise and give it some time. Maybe 4 weeks, and I’ll see if it works better.

Upvote 0
OP
OP
cubalibre79

cubalibre79

New Member
View Badges
Joined
Jul 29, 2023
Messages
21
Reaction score
27
Location
Germany
Rating - 0%
0   0   0
I have four PAR meters, three of which align. That excludes the UPRtek and Hopoocolor spectrometers. Three of those PAR meters are two 500-series Apogee and one VBR. The outlier is the PARwise.

Testing suggests that if you set up lighting using the PARwise, you're in good shape. If you set up lighting with an Apogee 500-series, then move to the PARwise, that could be, and has been, bad for some. The PARwise will read low when compared to the 500-series Apogees.

Your corals don't care about accuracy. Don't mix PARwise and Apogee readings.
Hello again,

some scary things happened to me and my parwise.. but today it happens the second time, i pick up my parwise and wanna see if there is something new, maybe an update or something else.
So i take some readings with my apogee mq 510 and with the parwise.

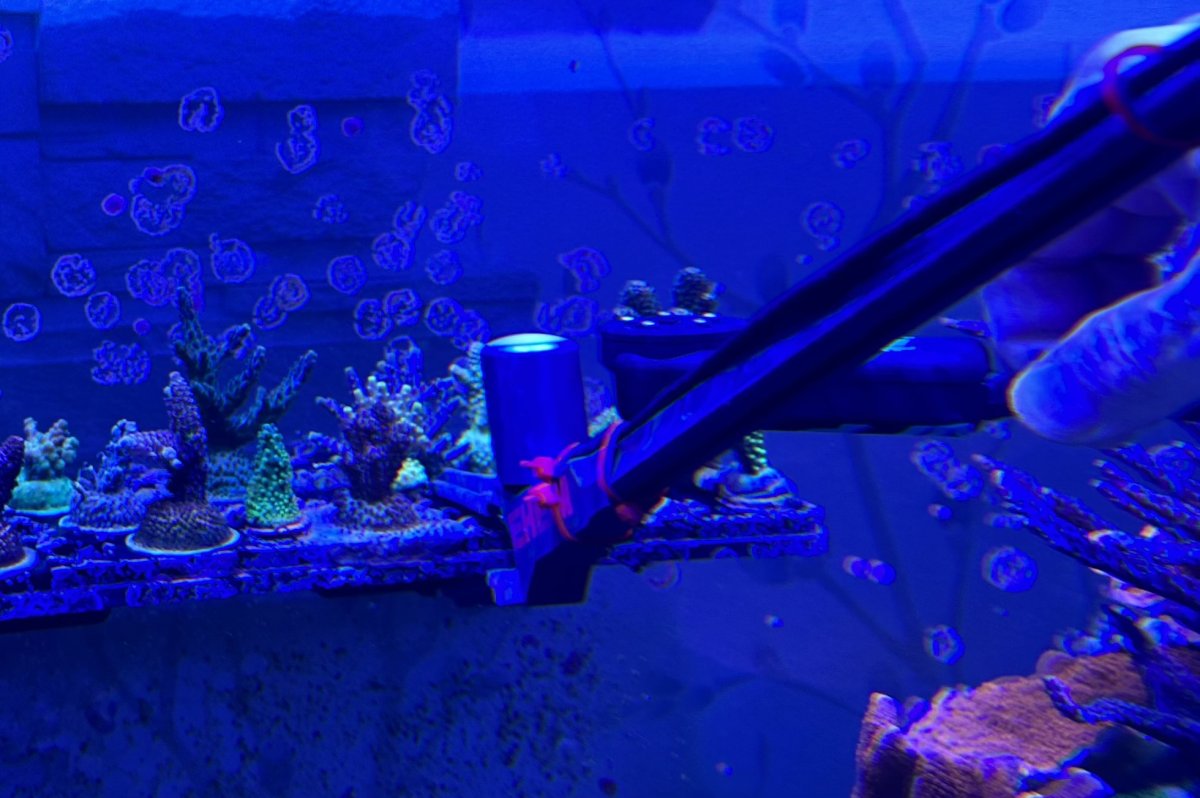

I read 75 Par difference at the same spots. Then i let the parwise hanging in the water for maybe 1 minute.. and my wife say, oh look some air bubbles leave the parwise!! maybe it’s not sealed anymore, it’s weak!

I saw that and I’m confused …

I try to measure the same spots again and what should i say ‍♂️ completely the same readings as to my apogee … and no! I need no doctor, it’s all fine with me

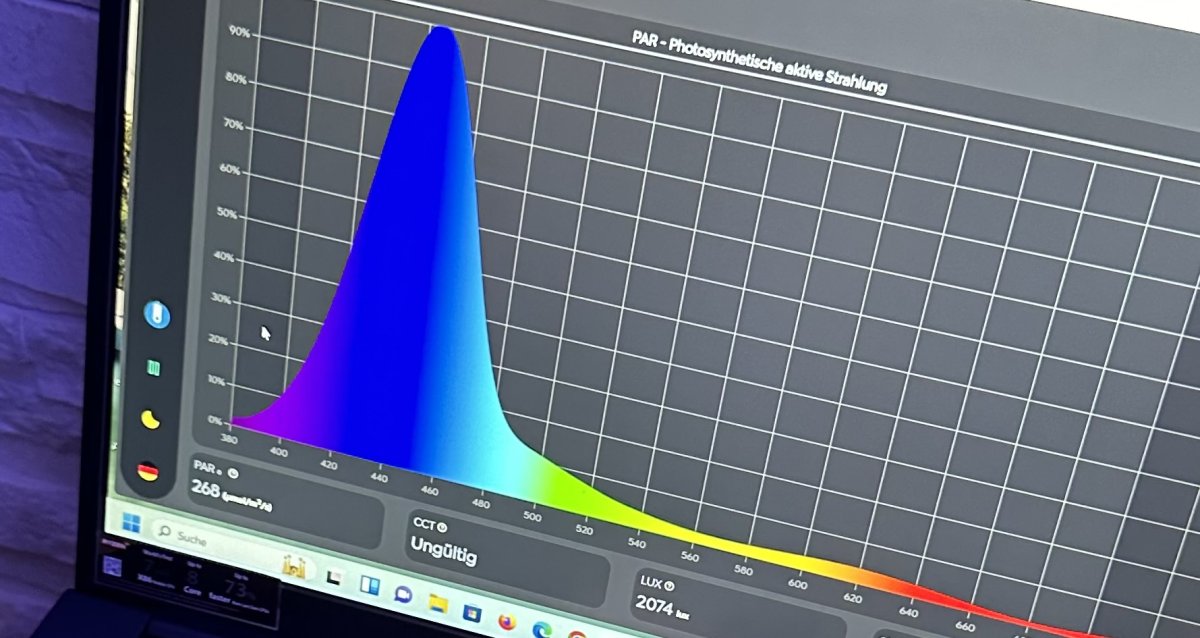

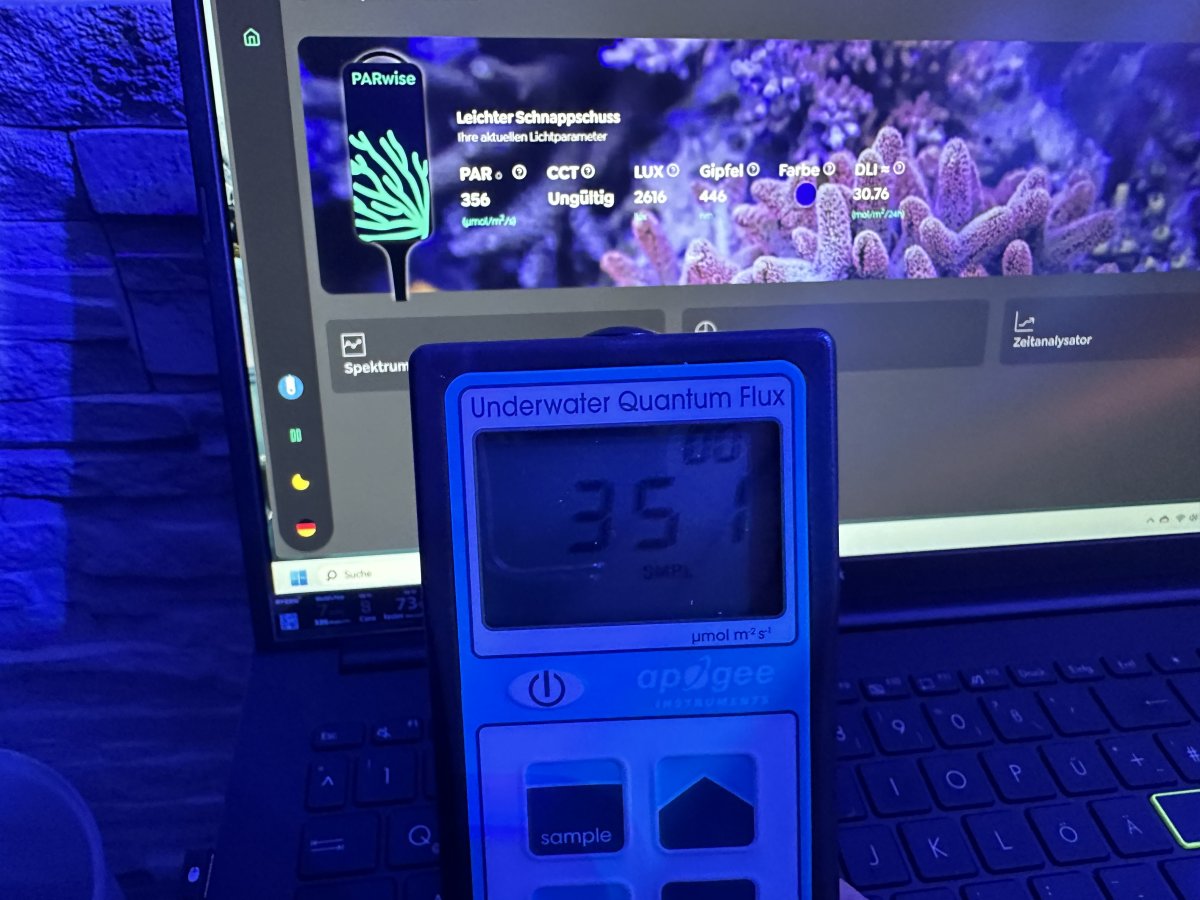

But take a look my wife try to fix that on a few screenshots…

ℹ can’t explain that, but I have never seen such a close reading before ‍♂️


Attachments

  • IMG_3164.jpeg
    130 KB · Views: 29
  • IMG_3165.jpeg
    151.8 KB · Views: 29
Upvote 0
