Brand new Aquamaxx RODI system broke

AI Nero 5

saullman

Well-Known Member
View Badges
Joined
Feb 9, 2018
Messages
506
Reaction score
205
Review score
+0 /0 /-0

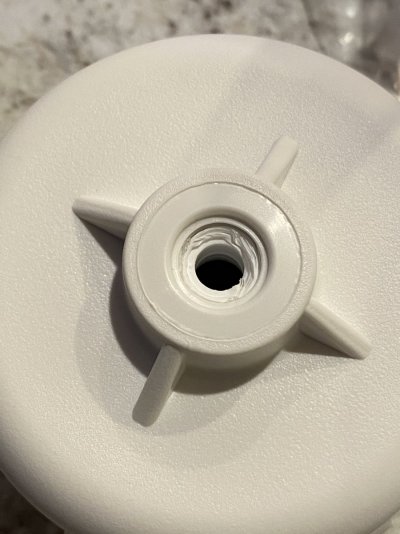

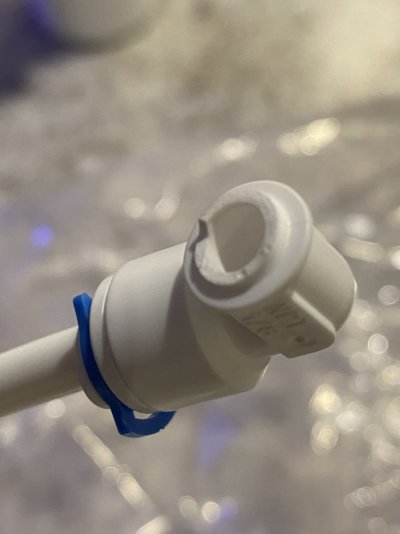

I am in despirate need of help. I just bought a brand new Aquamaxx Puratek RODI unit. As I was unboxing it and putting it together, I broke a 90 degree connector which connects to the cap of the RO membrane. It is completely my fault because I didn't read the directions all the way through. I was supposed to disconnect the line going into the membrane before unscrewing the cap. Now I have a broken connector and a part of it is stuck in the cap. I will provide pics below so you can see what I'm talking about. Now, to make matters worse I purchased the unit from Marine Depot just before they merged with BRS. Being a brand new unit, I am trying to get help through the manufacturer, but I have not received any replies. Nor do I know if I will get any at all with the merger which is why I'm reaching out to this community for help.

Thanks in advance,
Kenny G.

85713A37-9484-4F71-B2F1-2C0F87AFA731.jpeg D58A63A6-F6CB-4AEC-8DED-E35C98FEC650.jpeg

Top Shelf Aquatics

lapin

7500 Club Member
View Badges
Joined
Dec 16, 2017
Messages
9,587
Reaction score
16,727
Review score
+0 /0 /-0
Location
Austin
OP
saullman

saullman

Well-Known Member
View Badges
Joined
Feb 9, 2018
Messages
506
Reaction score
205
Review score
+0 /0 /-0
To get the piece out use an easy out (screw extractor)
You dont need any lube and there is no need to drill it since it has a hole in the middle.
It works by screwing it in ( in reverse ). As it gets tighter in the hole it will unscrew the stuck part.

While at the hardware get another John Guest 90
Ok. I will do that. What is a John Guest 90?

Top Shelf Aquatics

vetteguy53081

Well known Member and monster tank lover
View Badges
Joined
Aug 11, 2013
Messages
48,794
Reaction score
110,734
Review score
+0 /0 /-0
Location
Wisconsin - Florida in several months
I had this happen and stuck a screwdriver in it and pressed the ring and it came right out. Very easy and cheap repair !!


stevolough

New Member
View Badges
Joined
Jul 31, 2021
Messages
14
Reaction score
17
Review score
+0 /0 /-0
Location
charlton
I guarantee there are a dozen ways to get it out. The easy out is the best solution so no damage happens to the treads. And when you put the new one in use a little Teflon tape on the treads and don’t over tighten it.

OP
saullman

saullman

Well-Known Member
View Badges
Joined
Feb 9, 2018
Messages
506
Reaction score
205
Review score
+0 /0 /-0
Thanks guys for all of your help. I picked up a screw extractor from HD and it came right out. Now I just have to locate the part that broke. However, I have a few questions:

1- I'm not sure what I need to ask for? Is it called a John guest 90 like lapin mentioned
2- what size am I looking for on both ends? I think the end with the tubing is 1/4", but I'm not sure about the other end that screws in to the cap?
3- Is this going to be a specialty part that I need to order or can I find it locally?
