Mounting question

Brew12

Electrical Gru
View Badges
Joined
Aug 14, 2016
Messages
19,560
Reaction score
46,987
Location
Decatur, AL
I'm considering getting an L4 but I have one concern. How would I mount it in my system? I'm fairly space constrained with my Trigger Sapphire 39 sump and a lot of "stuff" around it. I've searched all over and can't find any mounting or installation instructions.

Can you point me in the right direction @Turbo's Aquatics ?


Turbo's Aquatics

Super Duper Member
View Badges
Joined
Jun 7, 2011
Messages
2,291
Reaction score
3,245
Location
West Des Moines, IA
Got a pic of your sump? In the stand, with equipment, etc. or is this a new build? If so I can just pull up a stock pic

OP
Brew12

Brew12

Electrical Gru
View Badges
Joined
Aug 14, 2016
Messages
19,560
Reaction score
46,987
Location
Decatur, AL
Got a pic of your sump? In the stand, with equipment, etc. or is this a new build? If so I can just pull up a stock pic
I don't have one convenient but I can take one later if that helps. Some of the stuff that is in there would go away with an ATS (one of the goals). Here is a stock picture.

My skimmer compartment is pretty well full with the skimmer and a reactor pump. I have a Oxydator W that takes up around 1/2 my refugium area. Ideally, I would want it on the back half of the refugium section which is where I am currently making a feeble attempt to grow chaeto.


saf1

Valuable Member
View Badges
Joined
Jan 15, 2018
Messages
3,495
Reaction score
4,838
I do not own one but wouldn't you want the L4 has close to the drain drain line or compartment that it enters? At least that is where I would install it. My guess is your skimmer is also there but at least that is where I would start. This way it direct access to the display tanks water before the skimmer gets it. At least that is my thinking...

OP
Brew12

Brew12

Electrical Gru
View Badges
Joined
Aug 14, 2016
Messages
19,560
Reaction score
46,987
Location
Decatur, AL
I do not own one but wouldn't you want the L4 has close to the drain drain line or compartment that it enters? At least that is where I would install it. My guess is your skimmer is also there but at least that is where I would start. This way it direct access to the display tanks water before the skimmer gets it. At least that is my thinking...
I have an Ehiem pump that I believe would fit nicely right below my filter socks and the hose could run behind the skimmer. With a few 90's I can get the discharge out the opening in the bottom of that section to feed the L4. I know that will cause increased headloss but the pump should be able to handle it with no problems.

I'm concerned about finding a solid way to mount it that won't block the front half of the refugium section for when I need to pull the Oxydator.


saf1

Valuable Member
View Badges
Joined
Jan 15, 2018
Messages
3,495
Reaction score
4,838
I have an Ehiem pump that I believe would fit nicely right below my filter socks and the hose could run behind the skimmer. With a few 90's I can get the discharge out the opening in the bottom of that section to feed the L4. I know that will cause increased headloss but the pump should be able to handle it with no problems.

I'm concerned about finding a solid way to mount it that won't block the front half of the refugium section for when I need to pull the Oxydator.
Makes sense. So if I recall from when I was looking at them they are pretty simple to install, right? Barb, union, 90 elbow to the device itself. Drain is on the bottom somewhere. Was there a stand offered or a base that it connects to?

OP
Brew12

Brew12

Electrical Gru
View Badges
Joined
Aug 14, 2016
Messages
19,560
Reaction score
46,987
Location
Decatur, AL
Makes sense. So if I recall from when I was looking at them they are pretty simple to install, right? Barb, union, 90 elbow to the device itself. Drain is on the bottom somewhere. Was there a stand offered or a base that it connects to?
That is what I am wondering. I don't see any mounting information or dimensions. When I've searched, everything I have found looked to be 3d printed custom mounts.

OP
Brew12

Brew12

Electrical Gru
View Badges
Joined
Aug 14, 2016
Messages
19,560
Reaction score
46,987
Location
Decatur, AL
OP
Brew12

Brew12

Electrical Gru
View Badges
Joined
Aug 14, 2016
Messages
19,560
Reaction score
46,987
Location
Decatur, AL
You are welcome. I hope it helps to give you some ideas to work with.
Absolutely. The 24" rails will work very well. I didn't dig into the support section. I figured that was for people who have had issues.


Turbo's Aquatics

Super Duper Member
View Badges
Joined
Jun 7, 2011
Messages
2,291
Reaction score
3,245
Location
West Des Moines, IA
https://support.turbosaquatics.com/portal/kb/articles/support-mounting-brackets

I found these on their site. Not sure if you saw these already if so sorry.
You beat me to it, thanks!
Absolutely. The 24" rails will work very well. I didn't dig into the support section. I figured that was for people who have had issues.
Sorry about that, my website does suck but it won't for long (of course I've been saying that for a year....I do have a plan!!)

The rails can be cut/notched so they sit on the euro. You can orient the scrubber either parallel or perpendicular to the rails.

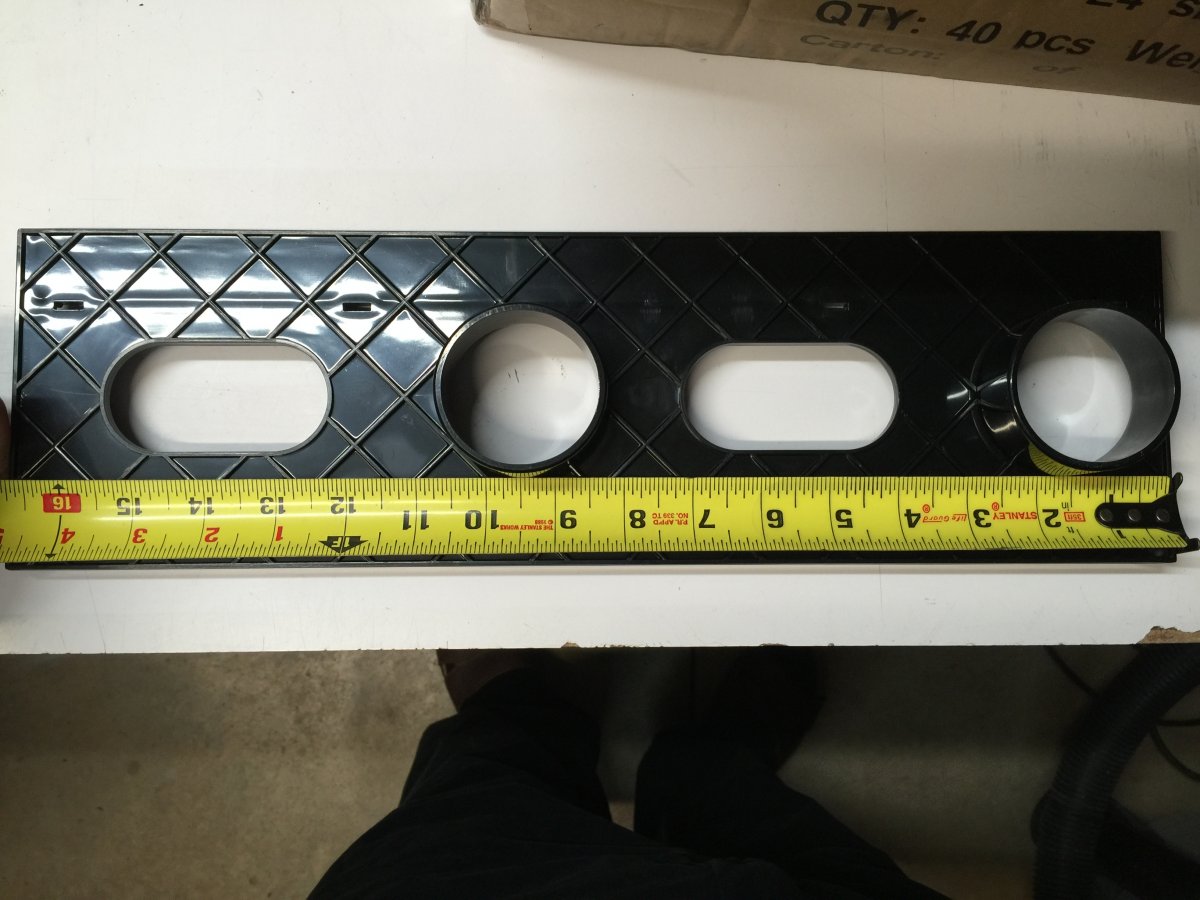

Here are some dimensions of the L4/8 base and the drain positions:







saf1

Valuable Member
View Badges
Joined
Jan 15, 2018
Messages
3,495
Reaction score
4,838
You beat me to it, thanks!

Sorry about that, my website does suck but it won't for long (of course I've been saying that for a year....I do have a plan!!)

The rails can be cut/notched so they sit on the euro. You can orient the scrubber either parallel or perpendicular to the rails.

Here are some dimensions of the L4/8 base and the drain positions:





You are welcome. I was on a conference call and surfing at the same time (don't rat me out! :D ).

OP
Brew12

Brew12

Electrical Gru
View Badges
Joined
Aug 14, 2016
Messages
19,560
Reaction score
46,987
Location
Decatur, AL
You beat me to it, thanks!

Sorry about that, my website does suck but it won't for long (of course I've been saying that for a year....I do have a plan!!)

The rails can be cut/notched so they sit on the euro. You can orient the scrubber either parallel or perpendicular to the rails.

Here are some dimensions of the L4/8 base and the drain positions:





No worries about the website. I understand that life happens!

Those dimensions will work exactly how I hoped. I really wanted a more traditional refugium but it just isn't happening with my setup. I'm tired of compensating for a poorly performing refugium with chemicals so it's time to up my game.

I'll be shooting you an email.

OP
Brew12

Brew12

Electrical Gru
View Badges
Joined
Aug 14, 2016
Messages
19,560
Reaction score
46,987
Location
Decatur, AL
I have Bud’s L2 Rev4 over my Trigger Sapphire 26 sump. It fits nicely over the refugium section. I made a mounting frame out of 3/4“ sch 80 PVC. Fits quite well! :)

Nice clean look!


Maacc

Valuable Member
View Badges
Joined
Apr 26, 2016
Messages
1,143
Reaction score
1,509
Brew,
I did a pvc pipe platform with expanded pve for the base and it is stable and completely non-corrosive. I can even pull the whole setup if needed, but I haven't had to in 2 years.
I am a huge fan of the turbo scrubber. I have a high fish load and with my fuge I have moderate nutrients 0.04 phosphate and 10 nitrate with no water changes.

You may want to dose iron and iodine for the chaeto. I didn't grow at first but now it explodes.


Maacc

Valuable Member
View Badges
Joined
Apr 26, 2016
Messages
1,143
Reaction score
1,509
Absolutely per Adam from battlecorals.


Have you ever been accused of talking to much about your tank?

  • Yes (tell us about it)

    Votes: 176 53.3%
  • No

    Votes: 154 46.7%
