Hi guys,

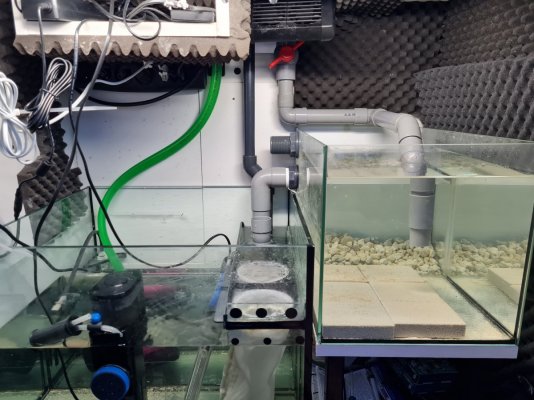

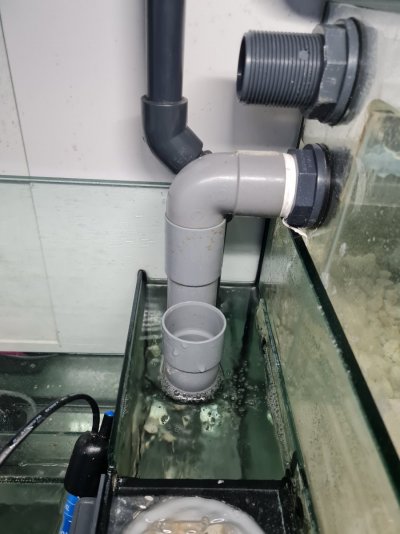

I bought a secondhand reefer 250. The previous owner rebuild the sump. Now there is extra space for more water on te right side, very lovely. However, on the spot where the water goes down into the pre-existing sump section there's a lot of noise. Does anyone have any suggestions on how I can make it more silent?

Thank in advance!

20210919_171550.jpg 20210919_171600.jpg

OP
D

Daan

New Member
Review score
+0 /0 /-0
View Badges
Joined
Sep 19, 2021
Messages
5
Reaction score
0
Review score
+0 /0 /-0
Location
GRONINGEN, Netherlands
Consider re-plumbing it so the majority of the overflow goes direct to the pre-sock chamber, and tee a valve from the overflow down pipe to the fuge. Then you can slow down the fuge to a trickle
I wil try to make the end go deeper in to the water maybe that wil help. If not, being able to slow down the stream is a good plan. Thank you verry much.

Upvote 0

RocketEngineer

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Sep 3, 2019
Messages
432
Reaction score
450
Review score
+0 /0 /-0
The water exiting that upper chamber is likely going airborn inside the elbow because of the sudden change in direction, then falling into the water below, again still inside the pipe. I suggest you angle the grey pipe slightly so the water can flow down the inside of the pipe instead of going off a cliff inside the elbow.

Upvote 0

Greg P

Valuable Member
Review score
+0 /0 /-0
View Badges
Joined
Oct 4, 2019
Messages
1,806
Reaction score
1,630
Review score
+0 /0 /-0
Location
Burnaby BC
I don't feel you need the drain pipe any lower than an inch below the water level in the sump. The noise is most likely from air entering in the fuge drain.

Maybe an easy fix will be to put a 90 inside the fuge where the water exits - inside the bulkhead facing down.
With full flow it should flush out any air after each restart.

Upvote 0

SteveMM62Reef

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Sep 21, 2020
Messages
399
Reaction score
278
Review score
+0 /0 /-0
Location
La Plata
If you have a Whirlpool at the outlet from your high sump. You may need to cut a piece of pipe in half lengthwise. Place the half pipe in the top of the inlet, to break the Whirlpool. Also I recommend you pipe from the unused bulkhead and directly over to the lower sump, in case the filter sock pipe gets blocked, or restricted.


Attachments

  • 5D25DD75-F461-422F-9751-8BB95E379B36.png
    837.4 KB · Views: 4
