Man, this thread is huge.
I really want to get into this because I have experience making toasters into reflow ovens and thats fairly easy with the right gear and training.
But, man.......Almost 900 pages?

It might have already been addressed, but, is all the code you guys and gals make on github (or something similar)
To be blunt, I dont even want to start down this road if Im going to code. Ill do everything else.
Coding makes me mental.

rock on reefers.

-cap


Tom Bishop

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Jan 1, 2019
Messages
847
Reaction score
1,290
Review score
+0 /0 /-0
Location
Missouri
Man, this thread is huge.
I really want to get into this because I have experience making toasters into reflow ovens and thats fairly easy with the right gear and training.
But, man.......Almost 900 pages?

It might have already been addressed, but, is all the code you guys and gals make on github (or something similar)
To be blunt, I dont even want to start down this road if Im going to code. Ill do everything else.
Coding makes me mental.

rock on reefers.

-cap
It's all Opensource and on github, but @Ranjib and others have published the software you just have to make the hardware or purchase one of the pre-built units...pretty much plug and play.


OP
Ranjib

Ranjib

7500 Club Member
Review score
+0 /0 /-0
View Badges
Joined
Apr 16, 2016
Messages
9,426
Reaction score
16,280
Review score
+0 /0 /-0
Location
Pleasant Hill, Concord
Man, this thread is huge.
I really want to get into this because I have experience making toasters into reflow ovens and thats fairly easy with the right gear and training.
But, man.......Almost 900 pages?

It might have already been addressed, but, is all the code you guys and gals make on github (or something similar)
To be blunt, I dont even want to start down this road if Im going to code. Ill do everything else.
Coding makes me mental.

rock on reefers.

-cap
As Tom mentioned , everything is GitHub . You can find the starting guides on the very first page of this thread. For sustained help, start a build thread and we can help you on the way


Tom Bishop

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Jan 1, 2019
Messages
847
Reaction score
1,290
Review score
+0 /0 /-0
Location
Missouri
Lookie what showed up from Blueacro today, Big thanks to @theatrus...


These are the viparspectra adapter boards that @Michael Lane designed, @theatrus had some built and I have some being built and own there way. Will be a couple of days before I get to test one of them but looks pretty good to me. Really appreciate @theatrus putting the order in and sending me some to kick around.

If anyone is interested in these boards reach out to me or @theatrus, I am short on JST connectors at the moment and need to order some but give me a PM if you are interested.

See this thread for all the details - https://www.reef2reef.com/threads/controlling-viparspectra-lights.698216/

:)

Click to join now!

GaryE

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Mar 12, 2020
Messages
991
Reaction score
1,366
Review score
+0 /0 /-0
Location
Coatesville, Indiana

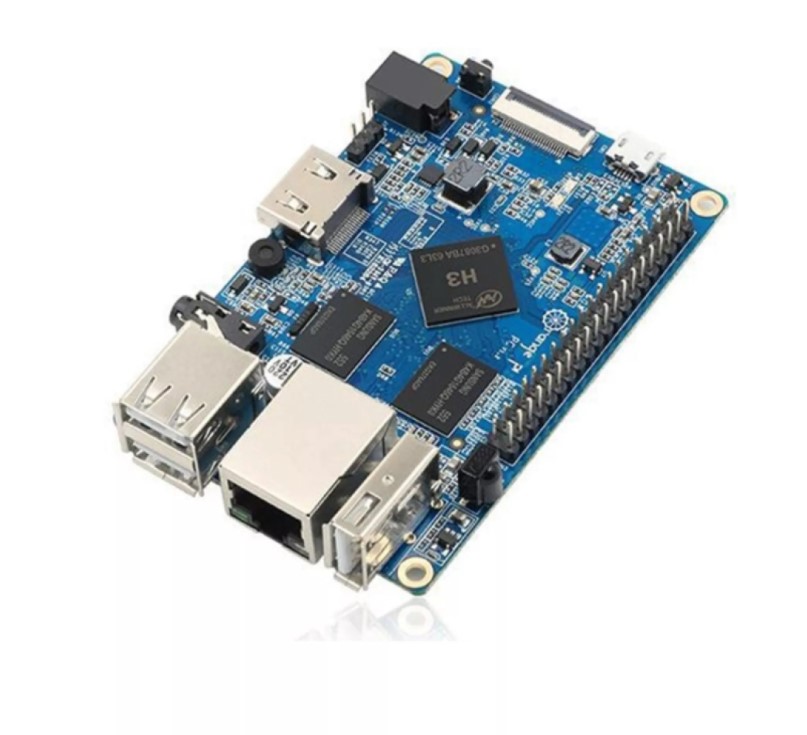

Hello . Raspberry pi difficult to buy in our country. And long delivery. But I can buy orange pi today. Is it possible to use this board instead of raspberry pi?


I'm willing to buy an orange pi and try it out. Can always use another board for playing with.. ;)

OP
Ranjib

Ranjib

7500 Club Member
Review score
+0 /0 /-0
View Badges
Joined
Apr 16, 2016
Messages
9,426
Reaction score
16,280
Review score
+0 /0 /-0
Location
Pleasant Hill, Concord
Since we have a question about macro's I know in order to call them from a timer they need to be marked reversible but I never fully understood why that was the case. Can anyone enlighten me as to why that is the only way that it will work?

Thanks
A timer, requires any an reef-pi entity (like ato, temperature, equipment etc) to act like a digital output (i.e. on/off) that can take two state, "On" and "Off" . Macros emulate this by running sequentially as their specification in "On" state, and in reverse order in "Off" state. Thus a reversible macro can simulate On/Off mechanism, making it controllable via timers.

I don't know if this makes sense or not, but its this trick in software that allowed me to integrate timers and macros.

OP
Ranjib

Ranjib

7500 Club Member
Review score
+0 /0 /-0
View Badges
Joined
Apr 16, 2016
Messages
9,426
Reaction score
16,280
Review score
+0 /0 /-0
Location
Pleasant Hill, Concord
Hello . Raspberry pi difficult to buy in our country. And long delivery. But I can buy orange pi today. Is it possible to use this board instead of raspberry pi?
I dont know actually. It might work as it is, without any modification, assuming the GPIO pin map is same and arm architecture is same. If that's not the case we might have to make some software changes either by building it specifically for orange pi (if the arch is different) or by allowing an alternate pin map(if gpio pins are different). Hard to say without trying out, but i think it should not be a lot of work to get it working, and if we are lucky, either zero or 3 builds will work as it is.

Tidal Gardens

Tom Bishop

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Jan 1, 2019
Messages
847
Reaction score
1,290
Review score
+0 /0 /-0
Location
Missouri
A timer, requires any an reef-pi entity (like ato, temperature, equipment etc) to act like a digital output (i.e. on/off) that can take two state, "On" and "Off" . Macros emulate this by running sequentially as their specification in "On" state, and in reverse order in "Off" state. Thus a reversible macro can simulate On/Off mechanism, making it controllable via timers.

I don't know if this makes sense or not, but its this trick in software that allowed me to integrate timers and macros.
Thanks, yeah I will have to read it a few time and see if it sinks in, lol. It works when labeled as reversible and in this case its an easy macro but I can see where making a complex one more fun thinking in reverse order. :)


Jason Judd

Community Member
Review score
+0 /0 /-0
View Badges
Joined
Jul 8, 2018
Messages
28
Reaction score
13
Review score
+0 /0 /-0
I dont know actually. It might work as it is, without any modification, assuming the GPIO pin map is same and arm architecture is same. If that's not the case we might have to make some software changes either by building it specifically for orange pi (if the arch is different) or by allowing an alternate pin map(if gpio pins are different). Hard to say without trying out, but i think it should not be a lot of work to get it working, and if we are lucky, either zero or 3 builds will work as it is.
I'm in the same boat. I just burned out my raspberry pi and finding that there's no rpi to be found without price gouging. Does anyone know where I can pickup a rpi without needing to buy the 4 for $150? My old B+ cost me $35...


GaryE

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Mar 12, 2020
Messages
991
Reaction score
1,366
Review score
+0 /0 /-0
Location
Coatesville, Indiana
I'm in the same boat. I just burned out my raspberry pi and finding that there's no rpi to be found without price gouging. Does anyone know where I can pickup a rpi without needing to buy the 4 for $150? My old B+ cost me $35...
I went a couple weeks ago to a few sites that sell them and put myself in on the "notify me" deals, I was able to stock up.. picked up 2 Zero 2 W's and two Pi4 2gb all in one week..

I also have an ancient Raspberry PI clone called a Roseapple Pi. I fired it up this AM and am getting it updated so I can test Reef-PI on it. Should be interesting.. It runs a debian release and I believe it to be pin compatible with the RPi GPIO..
We shall see..


GaryE

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Mar 12, 2020
Messages
991
Reaction score
1,366
Review score
+0 /0 /-0
Location
Coatesville, Indiana
Did some updates on one of my controllers this week.

Old setup




after a lot of head scratching and burning myself with the soldering iron...



Much cleaner.. still can't get one of my temp sensors working though. I think I know why...


Mikeneedsahobby

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Sep 16, 2018
Messages
516
Reaction score
921
Review score
+0 /0 /-0
Hey guys,

I've been away for quite a while. But my 2 reef pi's continue to run without any hiccups. Perfecto!

I just updated one of them from v4.1 to v5.1. Upgrade went almost too easy.

I wanted to ask if there was someone I could copy to control a brushless motor. My perilistic pump is using a brushless motor. My wife complains about how noisy it is. I'm running it like a normal motor but I can't control it's speed like a normal motor. It's 100% or 0%. If I could slow it down it would be quieter.

If not no worries. I'll get her ear plugs.
And thanks again!!!

Last edited:
REEFTIDE
OP
Ranjib

Ranjib

7500 Club Member
Review score
+0 /0 /-0
View Badges
Joined
Apr 16, 2016
Messages
9,426
Reaction score
16,280
Review score
+0 /0 /-0
Location
Pleasant Hill, Concord
Hey guys,

I've been away for quite a while. But my 2 reef pi's continue to run without any hiccups. Perfecto!

I just updated one of them from v4.1 to v5.1. Upgrade went almost too easy.

I wanted to ask if there was someone I could copy to control a brushless motor. My perilistic pump is using a brushless motor. My wife complains about how noisy it is. I'm running it like a normal motor but I can't control it's speed like a normal motor. It's 100% or 0%. If I could slow it down it would be quieter.

If not no worries. I'll get her ear plugs.
And thanks again!!!
Do you have a link for the pump ? Can you use pwm or a hardware based speed controller to set the speed manually ?


GaryE

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Mar 12, 2020
Messages
991
Reaction score
1,366
Review score
+0 /0 /-0
Location
Coatesville, Indiana
I also have an ancient Raspberry PI clone called a Roseapple Pi. I fired it up this AM and am getting it updated so I can test Reef-PI on it. Should be interesting.. It runs a debian release and I believe it to be pin compatible with the RPi GPIO..
We shall see..


It runs, but it chokes on the i2c, drivers and I get a 404 error on the UI.


2022/01/27 05:59:58 ERROR: Failed to initialize i2c. Error: open /dev/i2c-1: no such file or directory
2022/01/27 05:59:58 Initializing DB for drivers bucket
2022/01/27 05:59:58 ERROR: failed to initialize drivers. Error: can't build hal pin 8: embd: your host ": ARMv7 Processor rev 1 (v7l)" is not supported at this moment. request support at https://github.com/reef-pi/embd/issues
2

I'm not sure how to initialize i2c on this board as it's 7 years out of production and the company that made is out of business..


Mikeneedsahobby

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Sep 16, 2018
Messages
516
Reaction score
921
Review score
+0 /0 /-0
Do you have a link for the pump ? Can you use pwm or a hardware based speed controller to set the speed manually ?

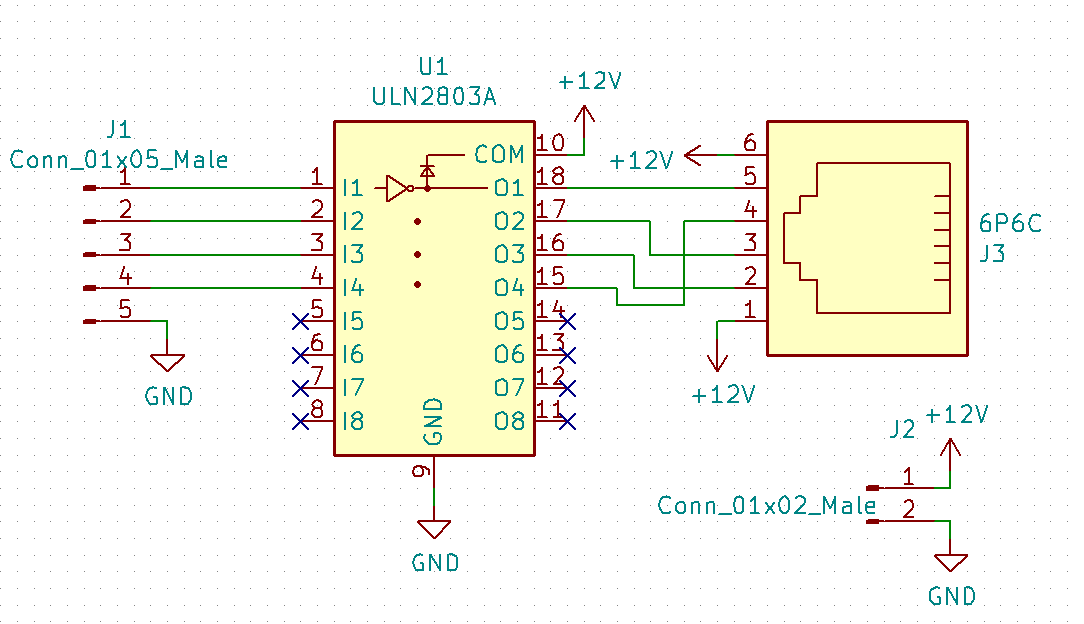

I think this will help. First image is the motor. 2nd image is the adaptor board this connects to in the reef pi (Mike Lanes doser adaptor.
