Sensor cables remain such a huge bogeyman.

So, I bought another set of 20 sensor cables. Same supplier and same seller (Drok). Physically, they look the same.

Start powering them up....



Low and behold, a fake. It also doesn't work on parasitic power at all like the earlier batch of cables did. And the out of box temperature performance is out of spec (not 0.5C).

Is it too much to ask for to have a product be real? :(

OP
theatrus

theatrus

Valuable Member
View Badges
Joined
Mar 26, 2016
Messages
1,319
Reaction score
2,551
Location
Sacramento, CA area
Stuffed those sensors back into the box they came in, and now back at figuring out my "other cabling" problems as we do some R&D on the power strip controller concept.

First off is the connection point for sensors to the controller. Previously, I was standardizing on

- TRS stereo connectors for 1-wire temp devices
- Phoenix Combicon PTSM poke-in wire terminal blocks (pluggable and fixed). These work great for LEDs, but they were a pain to use with a variety of random cables people like to poke in.

Other controllers (like @robsworld78 ) make use of Buchanan pluggable terminal blocks. Like the PTSM, just with a screw instead of poke in. Also a solid choice - millions of industrial devices use them.

I'd like to "fall back" and pick a single type of connector, and I'm tempted to use JST "XA" series of connectors. Its a crimped terminal style, so its much easier to pre-fab cables for, it has the distinct advantage of being a board mount and in-line variants (extenders, etc). And most importantly, its a locking connector, e.g. its very resistant to pulling out of the socket, and the sockets are reinforced.



I've been playing around with the connector on-board and as wires, and think its pretty manageable, and not too small and flimsy. It doesn't have the appeal of a fully over-molded connector, but lets be honest there is no way thats in budget..

Here I am mocking up a float sensor assembly - the float is (missing connectors since I didn't buy a 2 pin yet) disconnectable from the extender cable, which allows you to get the mounting nut over the wire. The 3-pin main cable is plugged into a board socket. All crimping using the official crimp tools so nothing weird and bent. If you wanted to DIY cables, you can even buy pre-crimped wire leads of various lengths.




On the controller end it would look like this:



Some astute readers will notice the little cute mono OLED panel, and that the connectors are all three pin instead of two.

I have mocked up switchable sensor input circuit under software control to provide both a simple contact open/close sense, and full 3/5/12V power and 1-wire communication support for complex sensors. By making sure each connector is isolated, a single bad 1-wire sensor won't bring down the other sensor ports. This is me taking the prior PicoMod "plug in card" concept, and slamming it into a cable (with one less pin over I2C!)

I'm still working on a good source of temperature probes - that part is super annoying.

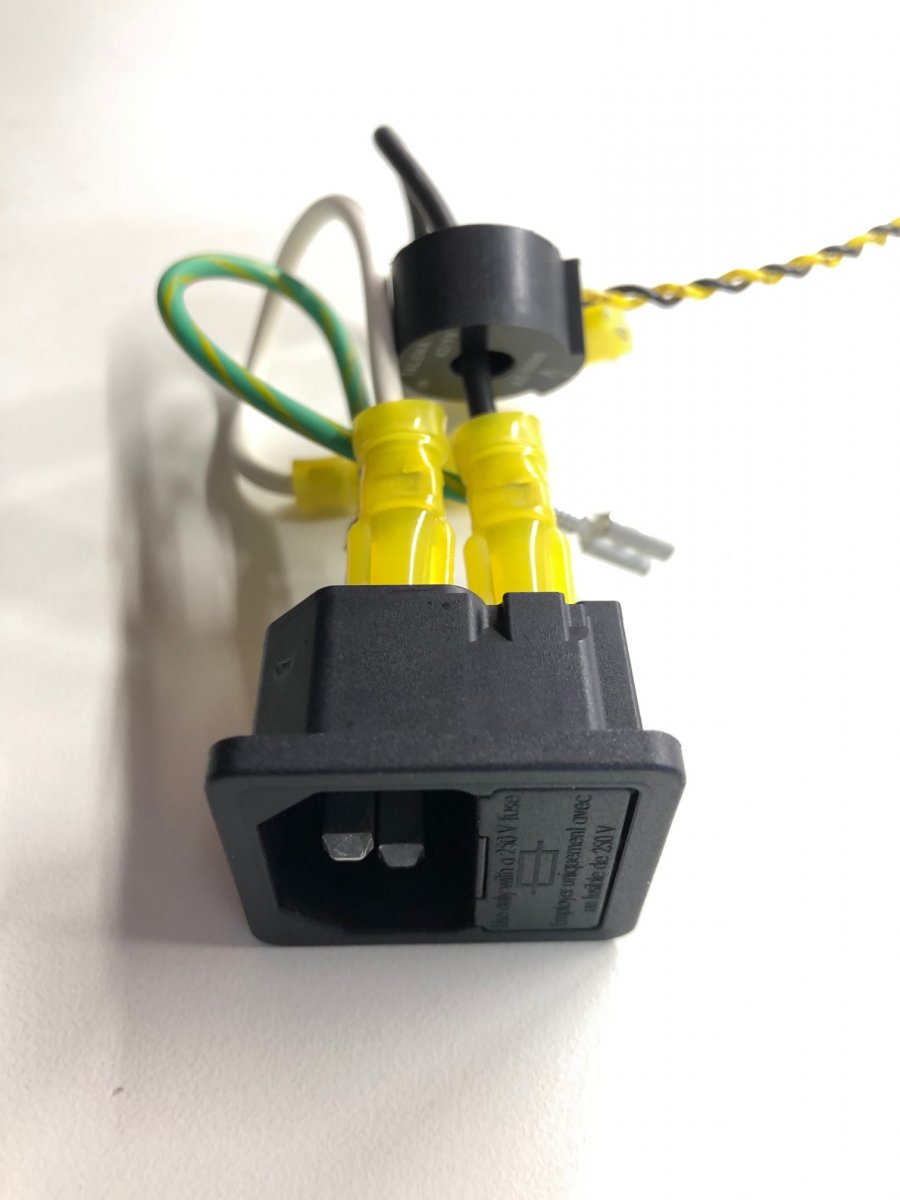

And finally, I'm testing cable layouts and connectors for the power inlet jack. I'm using quick connect wire leads from the inlet port since they're more durable, and allow for the use of a CT sense transformer (vs a soldered to board inlet, and less poking erratically inside a small space for solar tab inlets). The inlet is pre-fused, so all the wiring has to run through that before going anywhere else. Once again, crimping with the official ratcheting Molex crimp tools for each style of contact to make sure the pressure and shape is correct. I probably own more in crimp tools than my old commuter car is worth :scream:





Looking forward to getting the relay boards in and installed before milling out the case "cap" and designing end-caps.
