reefbrite repair.

mickeysreef <*))))<

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Apr 6, 2019
Messages
365
Reaction score
235
Review score
+0 /0 /-0
hey I'm fixing a reefbrite 60 xho blue bar. date of manufacture 2/18/15

trying to figure out what LEDs to order. need to replace 24 of them

16161858074148381942218833537798.jpg 16161858447283580087300294460958.jpg 16161858651971021574644237811964.jpg


oreo5457

2500 Club Member
Review score
+0 /0 /-0
View Badges
Joined
Sep 18, 2017
Messages
2,926
Reaction score
1,771
Review score
+0 /0 /-0

oreo5457

2500 Club Member
Review score
+0 /0 /-0
View Badges
Joined
Sep 18, 2017
Messages
2,926
Reaction score
1,771
Review score
+0 /0 /-0
Oh and don't forget thermal adhesive for the center bit.
One of the easiest ways to have them fail is the center lifting off the heat sink.
So simple thermal compounds don't really seem to be the best thing.
Not sure I'd go as far as the 2 part epoxies, thermal silicone is probably good enough.

BTW the diodes below those browned lenses may still work. Removing the lens (and the now wider beam angle) is a possibility.

10000k whites here:

Not sure about beam angles overall. Should all be between 90-120

Last edited:
OP
mickeysreef <*))))<

mickeysreef <*))))<

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Apr 6, 2019
Messages
365
Reaction score
235
Review score
+0 /0 /-0
Oh and don't forget thermal adhesive for the center bit.
One of the easiest ways to have them fail is the center lifting off the heat sink.
So simple thermal compounds don't really seem to be the best thing.
Not sure I'd go as far as the 2 part epoxies, thermal silicone is probably good enough.

BTW the diodes below those browned lenses may still work. Removing the lens (and the now wider beam angle) is a possibility.

10000k whites here:

Not sure about beam angles overall. Should all be between 90-120


thanks there seems to be plenty thermal adhesive on there but will get some more. I found some blues here 50pcs for $11 + shipping.


Top Shelf Aquatics
OP
mickeysreef <*))))<

mickeysreef <*))))<

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Apr 6, 2019
Messages
365
Reaction score
235
Review score
+0 /0 /-0
looks like every other lens is burned. they all function though. just got the first one off. definitely going to be a lot of work to get them all off. I'm not even sure how to solder the back side of the new ones to the plate.


Attachments

  • 16161966286984854018772763041621.jpg
    40.9 KB · Views: 38

oreo5457

2500 Club Member
Review score
+0 /0 /-0
View Badges
Joined
Sep 18, 2017
Messages
2,926
Reaction score
1,771
Review score
+0 /0 /-0
looks like every other lens is burned. they all function though. just got the first one off. definitely going to be a lot of work to get them all off. I'm not even sure how to solder the back side of the new ones to the plate.
You don't, just clean the center pad off and use thermal glue like "heatsink plaster".

Yea removing the soldered ones manually is a pretty destructive process.
Some twist them off ..some do this:

OP
mickeysreef <*))))<

mickeysreef <*))))<

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Apr 6, 2019
Messages
365
Reaction score
235
Review score
+0 /0 /-0
ok so I'm very happy at the moment. every other bulb was melted but functioning. probably the light bar overheated. I'll get my order in for the bulbs and the thermal adhesive and the thermal glue. idk if they're the same I don't think so - the silver paste definitely wasn't stuck on like the bulbs.

everything looks good. thanks for your help super appreciate it.

Last edited:

oreo5457

2500 Club Member
Review score
+0 /0 /-0
View Badges
Joined
Sep 18, 2017
Messages
2,926
Reaction score
1,771
Review score
+0 /0 /-0
ok so I'm very happy at the moment. every other bulb was melted but functioning. probably the light bar overheated. I'll get my order in for the bulbs and the thermal adhesive and the thermal glue. idk if their the same I don't think so - the silver paste definitely wasn't stuck on like the bulbs.

everything looks good. thanks for your help super appreciate it.
Well technically the photon flux "burned" organic compounds (contaminants or solvents) in the lens material.
I assume melting was from the now created brown hotspots..

AHHH now I see why you were referring to 2 seperate places. You removed both the diodes and the diode boards..

OP
mickeysreef <*))))<

mickeysreef <*))))<

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Apr 6, 2019
Messages
365
Reaction score
235
Review score
+0 /0 /-0
Well technically the photon flux "burned" organic compounds (contaminants or solvents) in the lens material.
I assume melting was from the now created brown hotspots..

AHHH now I see why you were referring to 2 seperate places. You removed both the diodes and the diode boards..

yeah the diodes were working but I wasn't able to get off just the lens. maybe I could have popped them off? eh too late now


[email protected]

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Aug 17, 2018
Messages
113
Reaction score
60
Review score
+0 /0 /-0
there are 2 parts which need thermal glues
1, the bottom of each bulb to the aluminum PCB.
2, the bottom of the aluminum PCB to aliminum sheel

Please I also suggest you ensure the spectrum of the blue bulb. the best is a mixed of
1, 400-410nm 10%
2, 430-450nm 40%
3, 450-470nm 40-50%
4, 470-500nm 10% if you like cycan blue color for you tank to decrease the deep dark feeling.

Aquarium Specialty - dry goods & marine livestock
OP
mickeysreef <*))))<

mickeysreef <*))))<

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Apr 6, 2019
Messages
365
Reaction score
235
Review score
+0 /0 /-0
yeah I figured just better to replace the whole thing.

do you have some LEDs you want to sell me for this? the color I believe is royal blue

I bought 2. one was good


Attachments

  • 20210319_154503.jpg
    48.6 KB · Views: 21

oreo5457

2500 Club Member
Review score
+0 /0 /-0
View Badges
Joined
Sep 18, 2017
Messages
2,926
Reaction score
1,771
Review score
+0 /0 /-0
yeah you are right I could have just popped off those lenses.

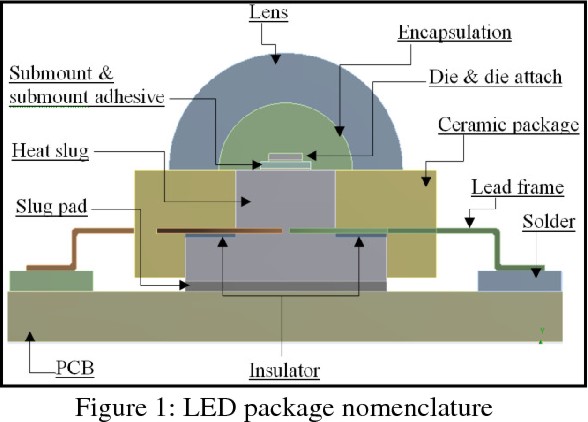

In case you were curious, how those old school packages were made.
Some under that lens have a sort of silicone "goo". The encapsulation part.
To increase LED stability the space between the crystal and the plastic lens is filled with transparent silicon
Theoretically one could reseal w/out lens w/ clear high temp silicone.
But at like 25 cents each best to just replace it.


If it wasn't for repair work or DIY ease this type of cheap assembly shouldn't be used... anymore.

Last edited:

nly04

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Jul 8, 2013
Messages
812
Reaction score
66
Review score
+0 /0 /-0
Location
Union City, CA
I bought a 48” and just received it today. The 48” Has three section, one of the section only has half of the led are on, the other two section all led are on. Do you know how to fix it?

Click to watch best scape method in 5 easy steps!

Do you keep "Reef Safe with Caution" fish?

  • YES (tell us what in the thread)

    Votes: 294 62.6%
  • NO

    Votes: 161 34.3%
  • Other (please explain)

    Votes: 15 3.2%
Top
