Apex moon lighting with MXM radions

[iiluisii]

Hi,
My apex is not following moon phasing with different percentage. Today is supposed to be waxing crescent and my moon lights are at 100 percent. I added the if moon code and it created a program but it’s at 85% schedule intercity and 100% for both moon light Leds.



[Matty Ice]

I’m interested to know this as well



[Matty Ice]

Did you put this code in the basic configuration?



[iiluisii]

Did you put this code in the basic configuration?

I did.



[iiluisii]

Anyone here has it working ? Mine just won’t do moon phases it just turn on or off the radion moon light to what ever percentage setting I set it to and theres is no phases with different light percentage



[Matty Ice]

I have a Neptune Sky and it works as long as you don’t click ok on the wizard tile and allow it to make a schedule. Your code should be in the basic view configuration:

Set Off
If Moon 000/000 Then ON



[iiluisii]

I have a Neptune Sky and it works as long as you don’t click ok on the wizard tile and allow it to make a schedule. Your code should be in the basic view configuration:

Set Off
If Moon 000/000 Then ON

if I do that code the moon lights will be on at 100 percent during the moon schedule.



[iiluisii]

I have a Neptune Sky and it works as long as you don’t click ok on the wizard tile and allow it to make a schedule. Your code should be in the basic view configuration:

Set Off
If Moon 000/000 Then ON

where did you insert it the code and what do you mean about the wizard tile.



[RoanokeReef]

if I do that code the moon lights will be on at 100 percent during the moon schedule.

That code should follow whatever the lunar schedule is, it just may well be 100% currently. Is the problem it is too bright for you ?



[RoanokeReef]

Click the basic view button and put -
Set Off
If Moon 000/000 Then ON

as your only code in the configuration box.



[iiluisii]

it has been at the same brightness for over a week

That code should follow whatever the lunar schedule is, it just may well be 100% currently. Is the problem it is too bright for you ?



[Thales]

it has been at the same brightness for over a week

Where are you seeing the brightness percentage?



[iiluisii]

Click the basic view button and put -
Set Off
If Moon 000/000 Then ON

as your only code in the configuration box.

Thats where i added the code. But it does not work.



[RoanokeReef]

it has been at the same brightness for over a week

I maybe miss remembering as I haven't used it in a long time but I thought it changed monthly not daily/weekly.

Edit here's a screen shot from the old interface, this cannot be modified via Fusion -



[iiluisii]

I maybe miss remembering as I haven't used it in a long time but I thought it changed monthly not daily/weekly.

Edit here's a screen shot from the old interface, this cannot be modified via Fusion -

So where in this chart are the percentages



[RoanokeReef]

I don't believe you view the percentage. I was wrong and the above is based on days. In this guide is a section on the moon light. https://www.neptunesystems.com/downloads/docs/Comprehensive_Reference_Manual.pdf



[Thales]

I bet it is working just fine and you are looking at the wrong place.
You see the intensity of the moon in the slider and in the season table sheet which isn't really accessable anymore.



[Thales]

Anyone here has it working ? Mine just won’t do moon phases it just turn on or off the radion moon light to what ever percentage setting I set it to and theres is no phases with different light percentage

I have done this on many systems, including radions

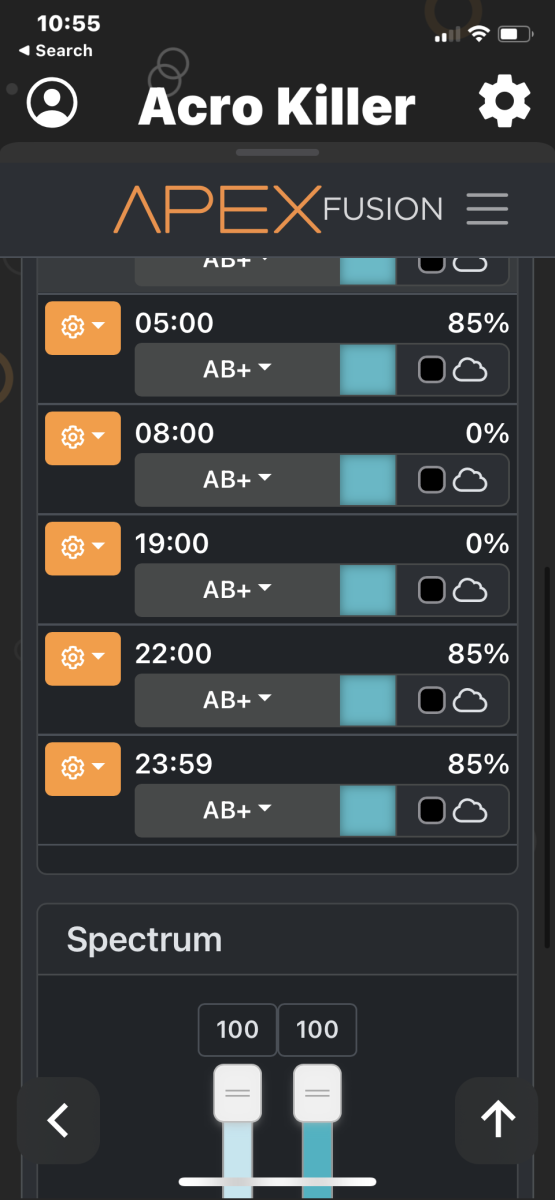

In the image in the post i just quoted you are using
Set Off
If Moon 000/000 Then 5

If that is code you are actually using, you won't get intensity changes because you are telling it to be at 5%, not to follow the season table

Set Off
If Moon 000/000 Then ON

Is the code you want, but if you have messed with the season table in APEX local things might be weird. The APEX itself makes the calculations for you behind the scenes.

I am not understanding where you are getting that they are at intensity of 100% - none of the screenshots you have posted show the percentage, and once you put in code, the graph defaults to a standard that has nothing to do with what the moon code is doing. The code overrides all of the GUI. The only place to see the intensity of the moon is on the slider, and that will change as the intensity changes, or on the season table sheet which is hard to access from APEX local..
