![3231260959_859c185063_o.png](/proxy.php?image=https%3A%2F%2Ffarm4.static.flickr.com%2F3337%2F3231260959_859c185063_o.png&hash=42e3629d8af5c572acf2180dcbdd03ce)

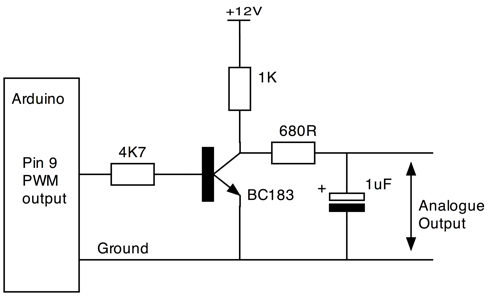

AFAICT most are basically like the above w/ its R/C filter circuit to smooth the output to analog..
Problem is it's reversed if I remember correctly..
Increasing duty cycle decreases voltage out..
0-10v LED driver control with Microcontroller - Page 1
0-10v LED driver control with Microcontroller - Page 1
www.eevblog.com
retail..
Amazon product
It's confusing..
Arduino Pulse-Width Modulation Digital Analog Conversion
Using an Arduino microcontroller with a LM358 for digital to analog conversion. Includes code examples.
www.bristolwatch.com
