Greetings of the Day,

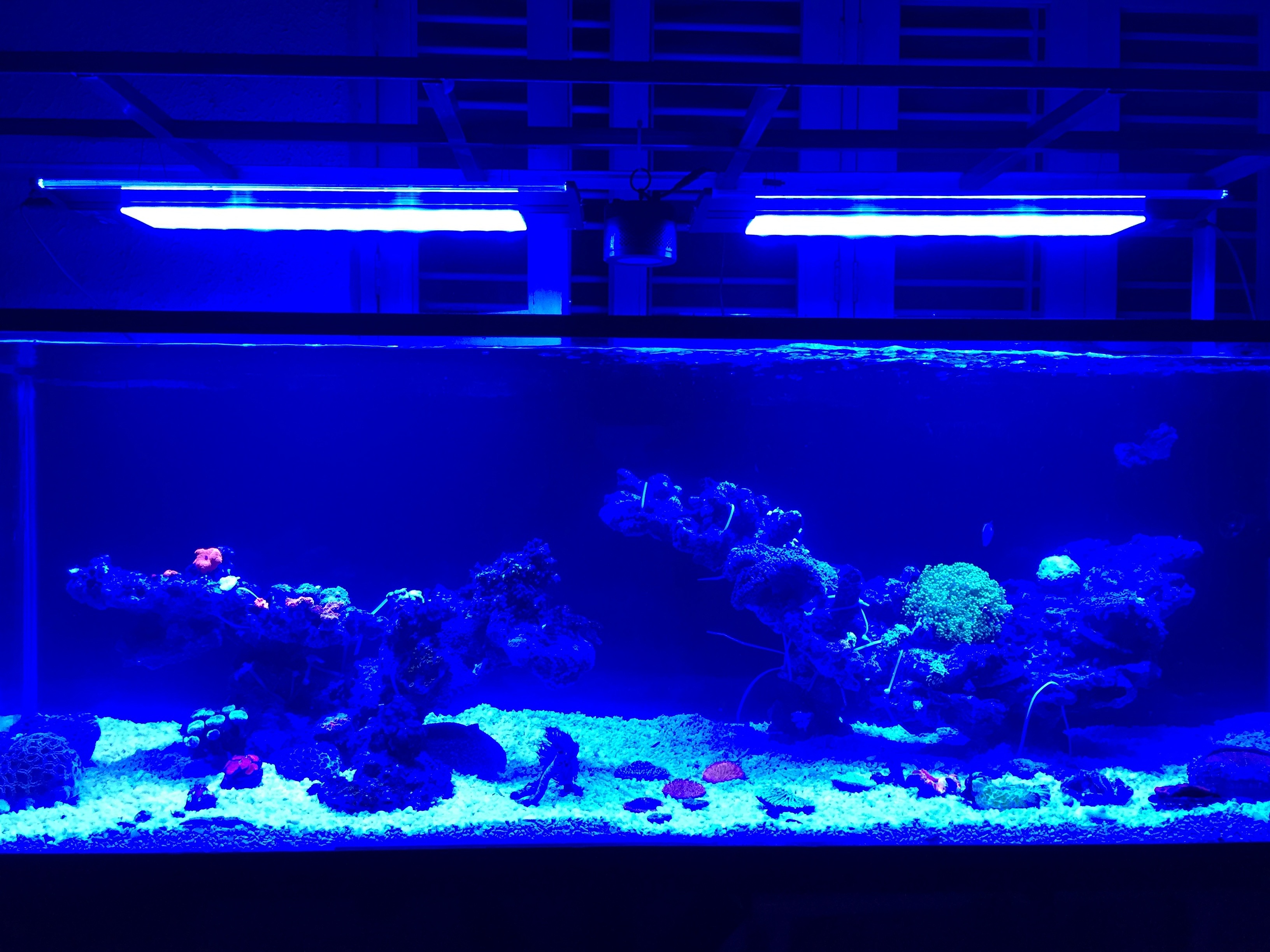

Been quite long am planning to upgrade my tank, my old tank the link attached here with, was just a trial to start reefing and to know the basics.
https://www.reef2reef.com/forums/member-tanks/184923-jacks-large-polyp-stony-have-large-soft-polyps-dominated-reef.html
This old tank has lots of flaws and errors so this time with a slow speed want to make a proper tank with proper planning.
This is what so far i have planned.
Display Tank: 48 X 24 X 21 Inches (approx 100 gallons) (6 X 24 X 19.5 overflow for bean animal)
overflow: full tank size overflow on the left side of the tank, with bean animal system.
sump: 36 X 24 X 21 with 3 partitions (attaching the picture for reference) (approx 60 Gallons)
return pump: what would be the advisable return pump for this tank size ?
display light : Zetlight 6600 full day with more blue lights, 2 nos of Kessils A350W for day light for 2 hours in afternoon
Flow : Gyre 130, LPS Dominated
Stand : Iron fabricated stand
Hood : closed hood
Salt : Red Sea Coral Salt Pro
water Change : 20 to 40 Ltrs Every alternate day, depending the size of tank i can fit in the sump area
skimmer : Reef Octopus XP 2000 INT or 3000 INT
ATO : Will get ATO automated for more stability this time
ATS : want to get Santa Monica but no links found and here its not available.
Controller : Not available at the moment but plans are to buy Neptune Apex Controller
any info left ?
Would like suggestions on the Scaping as well. i am planning scape with more branch type dead or artificial rocks with few live rocks to seed the tank. (any suggestions to use dead/artificial rocks is much appreciated)
How should i design my plumbing for the return pump, should i drill it ?
These are the drawings of my planning. Please suggest if anything needs to be changed.
