OR Bar LED Light

This versatile high performance LED bar lights will blow your mind! Not only that, our OR LED bar lights are ideal for the harsh saltwater...
  1. OR Bar LED Light

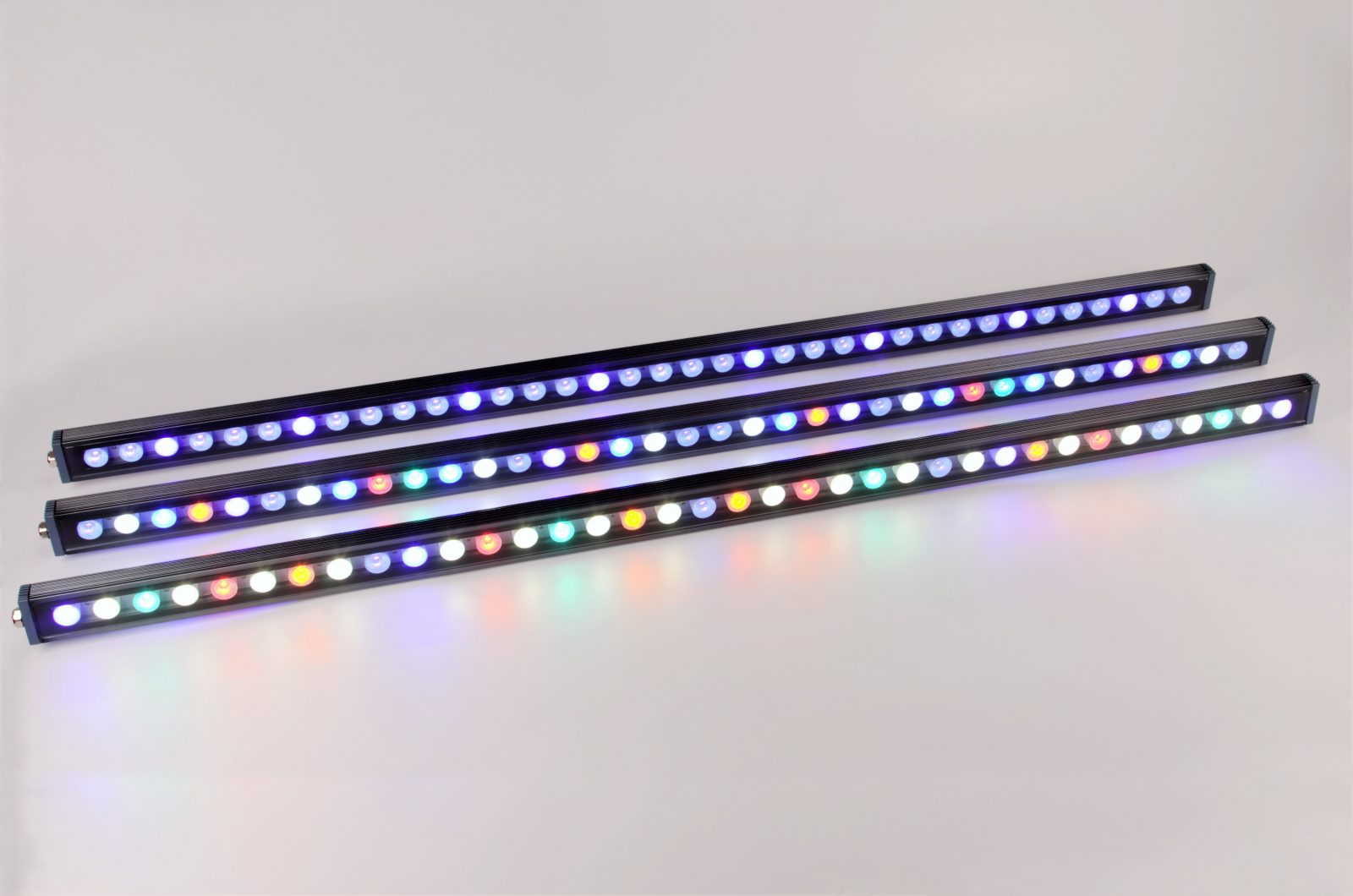

    OR 120, 90 and 60 – LED Lighting Bars for Aquariums

    Orphek OR series are the coolest LED Lighting Bars for aquariums.
    For optimal SPS/LPS coral growth, color and illumination, replacing T5/T8 lighting technology for aquariums.


    This versatile high performance LED bar lights will blow your mind! Not only that, our OR LED bar lights are ideal for the harsh saltwater environments: Splash, water, and dust resistant/tested under controlled laboratory conditions with a rating of IP67



    WHAT ARE THE DIMENSIONS AVAILABLE?
    OR 120 – 120cm /48″ / 36 x 3Watt LED – 108Watt

    OR 90 – 90 cm / 35″ / 24 x 3Watt LED – 72Watt

    OR 60 – 60 cm /24″ / 18 x 3Watt LED – 55Watt

    PAR, SPECTRUM & EFFICIENCY
    Check out our OR 120, 90 & 60 LED Bars versatility! We have 5 Spectrums Available:
    • Reef Day Light – Full Spectrum Day Light 18,000K (380nm- 700nm ) for both marine or reef aquariums, with SPS/ LPS or soft corals.
    • Freshwater Planted – Full Spectrum Day Light 7000K (380nm- 750nm ) for fresh water & planted aquariums.
    • Blue sky – Blue /Cyan Spectrum (450-500 nm) for better coral growth & color and fluorescence.
    • UV/Violet – UV/Violet (380- 440nm) for maximum coral growth & color and fluorescence.
    • Refugium & Grow Light – Full Spectrum Grow Light is the most complex spectrum for macro algae or other flourish plants.
    DO YOU WANT TO SEE MORE DETAILS?
    OR 120, 90 & 60 – Reef Day Light

    The Full Spectrum Day Light 18000K (380nm- 700nm ) is developed for both marine or reef aquariums, with SPS/ LPS or soft corals. Check out the graphs!

    [​IMG]
    LEDs LAYOUT & QUANTITY
    [​IMG]
    OR 120, 90 & 60 – Freshwater Planted
    The Full Spectrum Day Light -7000K (380nm- 750nm ) is also developed for both fresh water & planted aquariums. Check out the graphs!

    [​IMG]
    LEDs LAYOUT & QUANTITY
    [​IMG]

    OR 12, 90 & 60 – Blue sky
    The Blue /Cyan Spectrum (450-500 nm) is developed for better coral growth & color and fluorescence. Check out the graphs!

    LEDs LAYOUT & QUANTITY
    [​IMG]

    OR 120/90/60 – UV/Violet
    The UV/Violet (380- 440nm) is developed for maximum coral growth & color and fluorescence. Check out the graphs!

    [​IMG]

    LEDs LAYOUT & QUANTITY
    [​IMG]

    OR 120/90/60 – Refugium & Grow Light
    The Full Spectrum Grow light is the most complex spectrum for macro algae or other flourish plants. Check out the graphs!



    [​IMG]

    LEDs LAYOUT & QUANTITY
    [​IMG]

    WHAT CAN I DO WITH 5 DIFFERENT SPECTRUMS AND 3 DIFFERENT SIZES?
    Remember back in the days of the T5s where you could customize your tank by grouping T5 bars with many different spectrums to reach the optimal color of your choice?

    Now you can do same but with LED technology! Orphek has developed for you 5 different spectrums and 3 different lens degrees! Not only that. We are offering you 3 different sizes of bars.

    The number of options to build your very own combination is huge!

    Also, if you paid close attention to these products you will see that the spectrums are coming from our successful Atlantik LED solution!

    • Achieve a Kelvin temperature between 18k and 30k: Channels 1 and 2.
    • Achieve that deep blue/purple actinic look that causes coral to fluoresce and show color that are not visible in the higher range of the visible spectrum: Channels 2 and 3.
    • Achieve a warm shallow sunlit reef and extend the range from 10K to 18K: combining Channel 4 with 1.
    • Increase the overall range of the light to 10k-30k: combining all 4 channels and adjusting to your preferences.
    One more thing! If you like to take amazing photos of your corals and share them, Channel 4 is also great for photographing.

    DO YOU NEED MORE DETAILS BEFORE PURCHASING?
    Here you can have all the specifications:

    Color/Materials

    • Light Bar Unit Body Material: Grey high quality extruded aluminium housing/Tempered glass cover
    Dimensions available

    • OR 120: Length: 47.2″(1200mm)/Width: 1.97″ (50 mm)/Height:1.97″(28.8 mm)
    • OR 90: Length: 35.4″(900mm)/Width: 1.97″ (50 mm)/Height:1.97″(28.8 mm)
    • OR 60: Length: 23.6″(600mm)/Width: 1.97″ (50 mm)/Height:1.97″(28.8 mm)
    Weight

    • OR 120 Bar Light Unit Weight: 4.4lbs (2kg)/Power supply Weight: 1.1 lbs (0.5kg)
    • OR 90 Bar Light Unit Weight: 5.5lbs (2.5kg)/Power supply Weight: 1.1 lbs (0.5kg)
    • OR 60 Bar Light Unit Weight: 2.2lbs (1kg)/Power supply Weight: 1.1 lbs (0.5kg)
    CHECK WHAT COMES WITH YOUR LIGHT! (INCLUDED)

    • 59″ (1.5m) Power cord with switch
    • 78.7″ (2m) extension cord, with waterproof connector from unit to power supply
    • Stainless steel hanging kit
    • Driver
    • Fan-less IP65 power supply
    • 2 Installation Options ,Hang Kit /Mounting brackets


    Electrical

    OR 120

    Driver: Isolated Driver
    Input Voltage: 100-240VAC
    227VAC for North America only Frequency: 50-60Hz
    Power Consumption: 108 watts
    PF (Power Factor) >0.95
    Input Current (Amps) 1.1
    Output Voltage (V) 35-60
    Electrical outlet: Region appropriate

    OR 90

    Driver: Isolated Driver
    Input Voltage: 100-240VAC
    227VAC for North America only Frequency: 50-60Hz
    Power Consumption: 72 watts
    PF (Power Factor) >0.95
    Input Current (Amps) 0.55
    Output Voltage (V) 40-80
    Electrical outlet: Region appropriate

    OR 60

    Driver: Isolated Driver
    Input Voltage: 100-240VAC
    227VAC for North America only Frequency: 50-60Hz
    Power Consumption: 54 watts
    PF (Power Factor) >0.95
    Input Current (Amps) 0.55
    Output Voltage (V) 40-80
    Electrical outlet: Region appropriate

    [​IMG]

    More Information :

    OR120 product brief / OR90 product brief / OR60 product brief

    CAN I WATCH/READ REVIEWS OF THE PRODUCT?
    YES! Although it is rather new people around the world are already showing interest!

    REEFBUILDERS ANNOUNCEMENT – USA

    [​IMG]

    DANIREEF – ITALY
