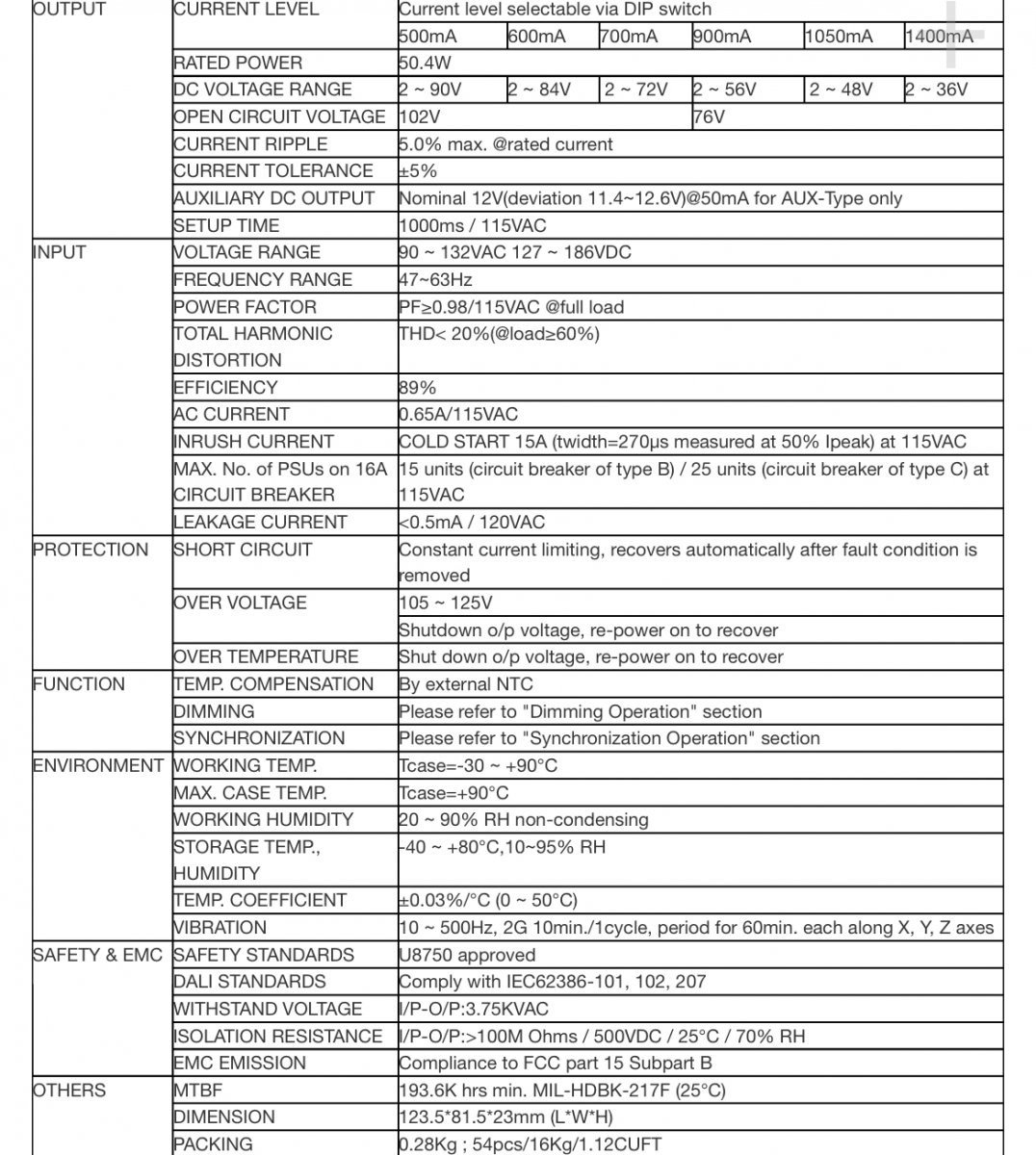

How many Cree leds can this power? Min and max?


Zoanthids

SPR1968

No, it wasn’t expensive dear....
View Badges
Joined
Feb 21, 2017
Messages
14,502
Reaction score
92,478
Location
Nottinghamshire England
I can’t answer the specific question, but I can bump the thread to see if we can get you some help


Diyreef8401

Active Member
View Badges
Joined
Apr 19, 2020
Messages
124
Reaction score
85
Basically take the drivers voltage range and divide it by the turn on voltage of the leds you want to drive. You also need to make sure the current matches the leds current. You would want to select a current that is a little lower than the max of the led.

Top Shelf Aquatics

Galvano

Community Member
View Badges
Joined
Apr 5, 2020
Messages
60
Reaction score
42
Location
Bavaria
I don’t see how that is a problem. Metal halides are 130 volts. T5s have 120 ac. Your going to have a bad day no matter what light you dunk in your tank.
Sure, MH and T5 fixtures are implicitly dangerous. But with a DIY LED device you do have the chance to decide for a less life-threatening implementation.


blasterman

Valuable Member
View Badges
Joined
Feb 14, 2019
Messages
1,730
Reaction score
1,906
Newer Cree provided they are not ambers or reds have a forward voltage of 2.85 to 3 volts. So, just divide by the total voltage capacity of the driver.

However, this is not ideal. Maxing a driver in terms of both current and forward voltage can significantly reduce its lifespan. You want some free room of about 25% in terms of not maxing the drivers current or not maxing its forward voltage.

I'm not thrilled about high voltages with DIY either. If you are soldering any irregularity with solder connections gets amplified with higher voltage. All it takes is one tiny loose solder joint and that will cause the driver to reset and potentially blow your entire string.


Yodeling

New Member
View Badges
Joined
Jan 15, 2021
Messages
14
Reaction score
8
Location
Atlanta
Here's a potentially more complete answer.

1) Check the specs on the LEDs you want to use. They will list a forward current and voltage (e.g. 500mA, 3.0V, etc)
2) Make sure the LEDs forward current one of the selectable currents on your driver (listed at the top).
3) Then take the 50.4W (driver's maximum output wattage) and divide it by the LED's current and then divide it again by LED's voltage. For example, if the LED is 500mA and 3.0v, the calculation would be 50.4W / 0.5A / 3.0v = 33.6 LEDs. This is the theoretical maximum.
4) Take the theoretical maximum from the above calculation and reduce it by 10% (multiply it by 0.9). Then round down, and you have the number of LEDs to use safely. In the above example, you would end up with 30 LEDs.
5) If you want to double-check your math, just take the number of LEDs, multiply by the LEDs forward current in amps and forward voltage. You should end up with about 45 Watt or less.
