Building a tank stand

[HRBP]

I have a 120 gallon that's 48 x 24 x 25 with 2 overflows and I wanted to build a custom stand for it. I want to have as much access to under the stand as possible for my sump. Ideally a large, single door that opens in the front and a smaller door that opens on one side. The other side and the back will be up against a wall.

Has anyone built a stand before that can share some tips, pics, or plans on the wood I'll need?



[tonto95]

I have about the same setup and i used two kitchen cabinets mounted together.

i need to see if i can find a better picture

this isn't mine but it's close



[jgvergo]

You can check out my build thread here. I got my basic design from Joey, who has the "King of DIY" YouTube Channel. He has some excellent instructional videos. Even though my sump is one floor down from my display tank, I maximized the space under my DT. I also made all three of my finished cabinet "walls" on the stand removable. They are held on with catch brackets and magnets so I can get easy and full access to my plumbing if needed.



[cromag27 Verified Sponsor]

Use high quality 3/4" plywood only. no 2xs! I would recommend at least two doors on the front with heavy duty, marine grade hinges.



[cromag27 Verified Sponsor]



[dbl]

See post #7 of the thread below. It's a very popular and rather easy to build plan, with no center brace needed. I'm not remotely saying you have to use 2x4's as I've built several without them, but it's an easy to follow plan.

Just another suggestion.

https://www.reef2reef.com/threads/diy-tank-stand-question.206590/#post-2361011



[Flippers4pups]

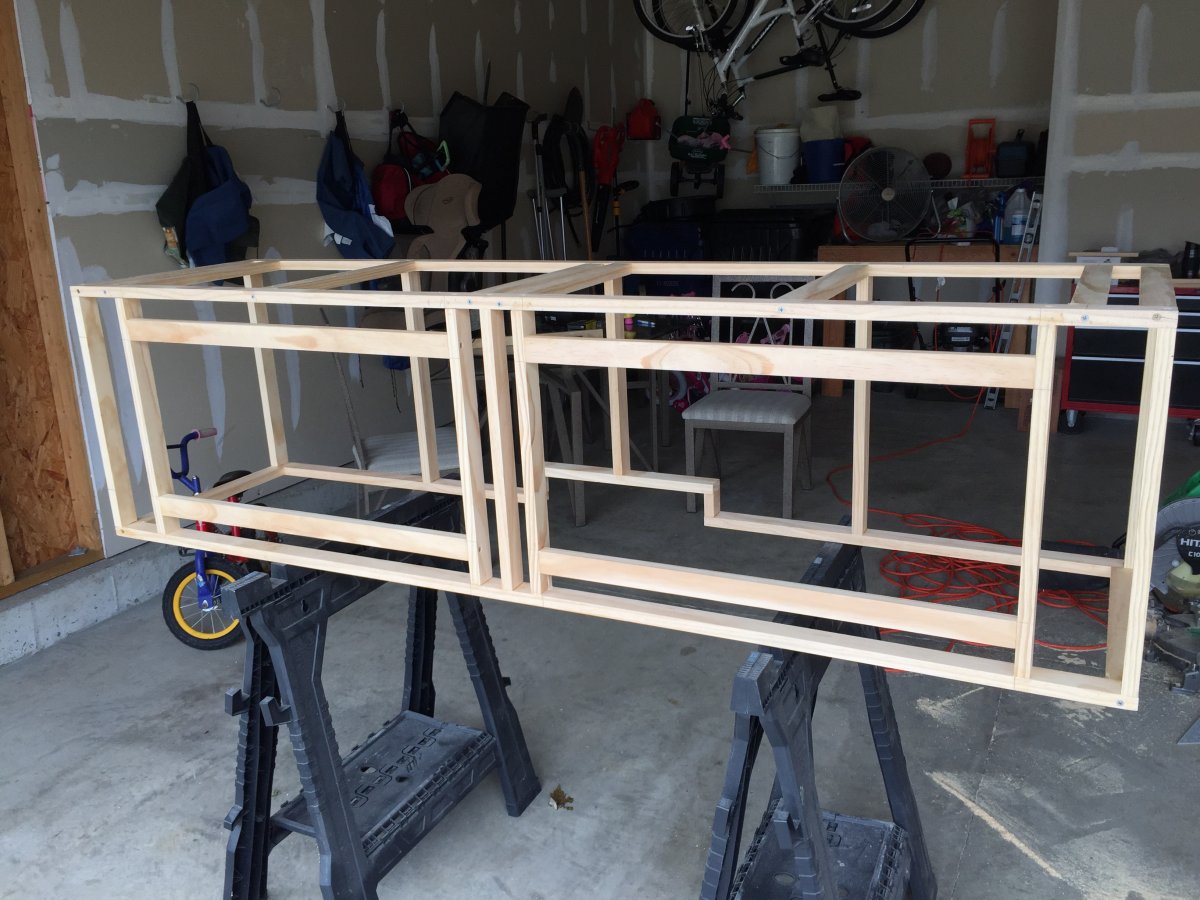

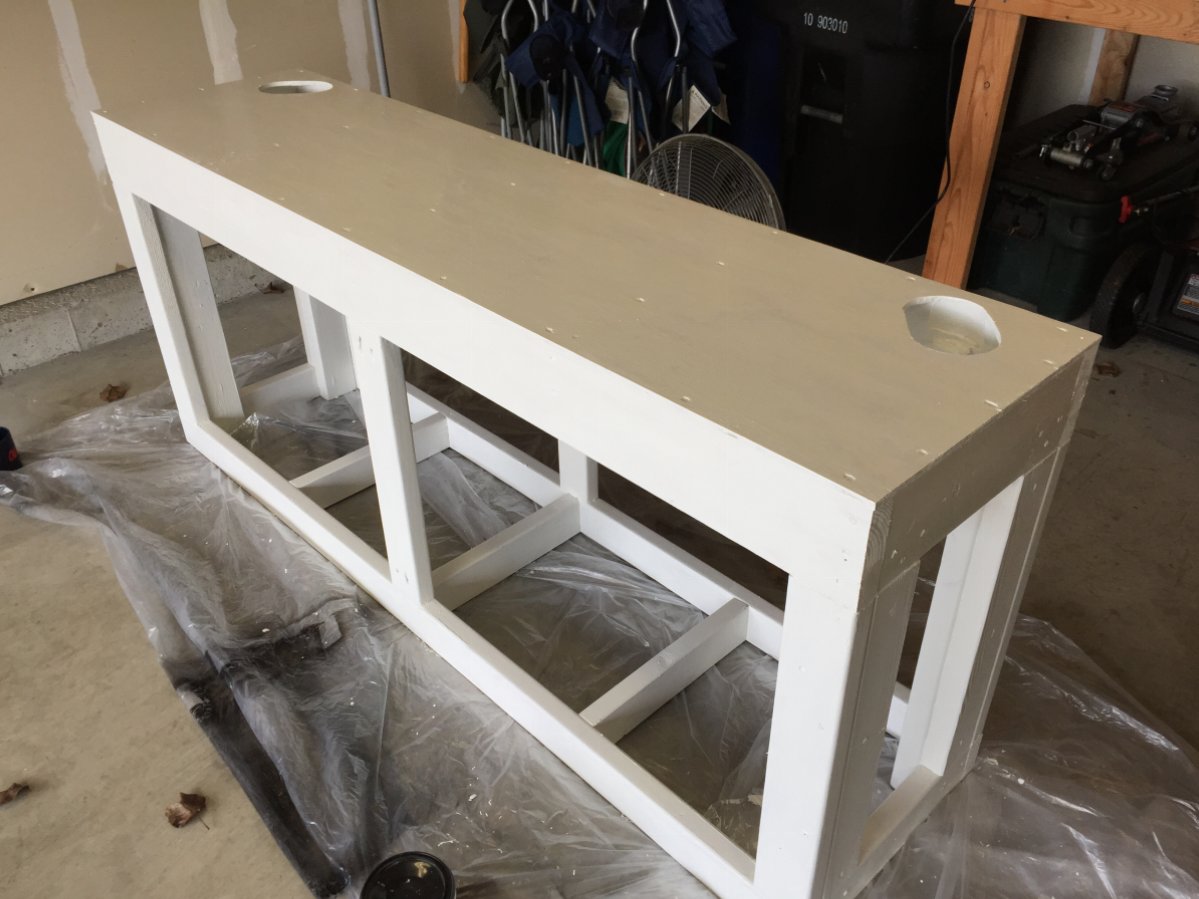

Here's mine on a 6ft 125.



[cromag27 Verified Sponsor]

2x4s are for those who like to sacrifice floor space, and don't know how to cut plywood properly. :)

They can work but you still need straight, even cuts. and I would recommend using planer and joiner.



[Flippers4pups]

Google " rocket engineer aquarium stand", that's what I used.

Used a miter saw, circular saw, wood glue, screws and trim nails. 2x4's and 1/4" plywood.

I've built many stands similar to this design since 1993.

Funny cromag, I seem to have no problems cutting plywood. Lol (Former union trim carpenter)

Canopy framed



[Flippers4pups]

Basement sump stand



[Gustavo Martinez]

Awesome work!



[ryanncully]

Use high quality 3/4" plywood only. no 2xs! I would recommend at least two doors on the front with heavy duty, marine grade hinges.

i would like to build one similar to this
