Can you have overflow plumbing under water?

ajremington68

Well-Known Member
View Badges
Joined
Jul 22, 2023
Messages
868
Reaction score
375
Location
Illinois
Rating - 0%
0   0   0

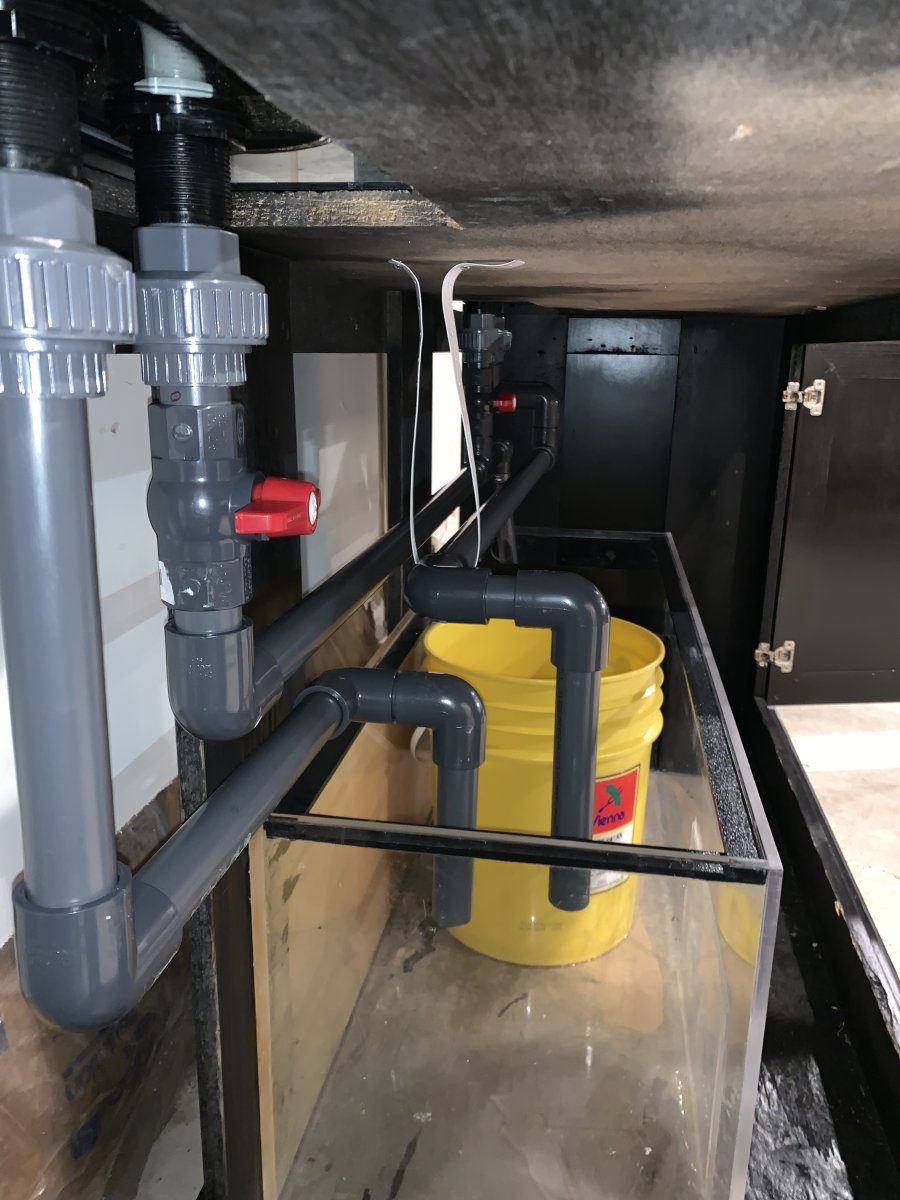

Will the plumbing being under the waterline in my sump make it quieter? Also will this allow my overflow to naturally start again? This is the current plumbing but I wonder if I can have the overflows go down more into the water. Water level will be at 10 in and one is at like 11 and almost 10. But my dad said something about the overflow won’t start again when you turn the return pump back on for the drain. How does this work can anyone weigh in please.


rhitee93

Well-Known Member
View Badges
Joined
Feb 21, 2023
Messages
704
Reaction score
1,265
Location
West Central Indiana, USA
Rating - 0%
0   0   0
I suspect I am missing something important about why you are asking, but yes you can run your drain lines so they exit under the surface of the water in your sump.

Both my main drain and emergency drain pipes terminate below the water level. However, most would tell you the best practice is to leave the emergency drain above the water level so that it makes noise to alert you something is wrong when water flows down it.


Serpentman2024

Back at it after a 12yr hiatus
View Badges
Joined
Mar 6, 2024
Messages
372
Reaction score
414
Location
Cleveland, OH
Rating - 100%
1   0   0
Technically, it doesn't matter whether your outflow is submerged or not. However, it will splash and make more noise if it's not submerged. For the most quiet option, research "Bean Animal" aka "Herbie" drains.


DCR

Well-Known Member
View Badges
Joined
Jan 3, 2018
Messages
881
Reaction score
752
Rating - 0%
0   0   0
Your dad is partially correct in that it does make it more difficult and take longer to expel the air out of the pipe when you start-up, but a small amount of depth under the water level is almost always acceptable provided it is not excessively deep. That acceptable depth will ultimately depend on the diameter of the pipe and the flow rate of the water.


EeyoreIsMySpiritAnimal

Just another girl who likes fish
View Badges
Joined
May 14, 2019
Messages
13,752
Reaction score
20,414
Location
Spring, Texas
Rating - 0%
0   0   0
Also will this allow my overflow to naturally start again?
I don't understand what you are asking.
Your overflow /drains are gravity fed and will drain water once the overflow box is filled.
*unless I'm missing something about the overflow box... is it a HOB?

**Regardless of the type of overflow box having the pipes terminate under water won't affect anything but (possibly) the noise level.


EeyoreIsMySpiritAnimal

Just another girl who likes fish
View Badges
Joined
May 14, 2019
Messages
13,752
Reaction score
20,414
Location
Spring, Texas
Rating - 0%
0   0   0
Your dad is partially correct in that it does make it more difficult and take longer to expel the air out of the pipe when you start-up, but a small amount of depth under the water level is almost always acceptable provided it is not excessively deep. That acceptable depth will ultimately depend on the diameter of the pipe and the flow rate of the water.
How would air get into the pipe?


DCR

Well-Known Member
View Badges
Joined
Jan 3, 2018
Messages
881
Reaction score
752
Rating - 0%
0   0   0
How would air get into the pipe?
Whenever you turn off your return pump, the water will drain down out of the pipe to the sump, and it will initially be filled with air when you restart the pump. You have to expel all that air to restart the siphon and having it sealed on the bottom end can make it more difficult to expel that air.


EeyoreIsMySpiritAnimal

Just another girl who likes fish
View Badges
Joined
May 14, 2019
Messages
13,752
Reaction score
20,414
Location
Spring, Texas
Rating - 0%
0   0   0
Whenever you turn off your return pump, the water will drain down out of the pipe to the sump, and it will initially be filled with air when you restart the pump. You have to expel all that air to restart the siphon and having it sealed on the bottom end can make it more difficult to expel that air.
I was assuming no siphon needed.
Thanks.

OP
OP
ajremington68

ajremington68

Well-Known Member
View Badges
Joined
Jul 22, 2023
Messages
868
Reaction score
375
Location
Illinois
Rating - 0%
0   0   0
I don't understand what you are asking.
Your overflow /drains are gravity fed and will drain water once the overflow box is filled.
*unless I'm missing something about the overflow box... is it a HOB?

**Regardless of the type of overflow box having the pipes terminate under water won't affect anything but (possibly) the noise level.

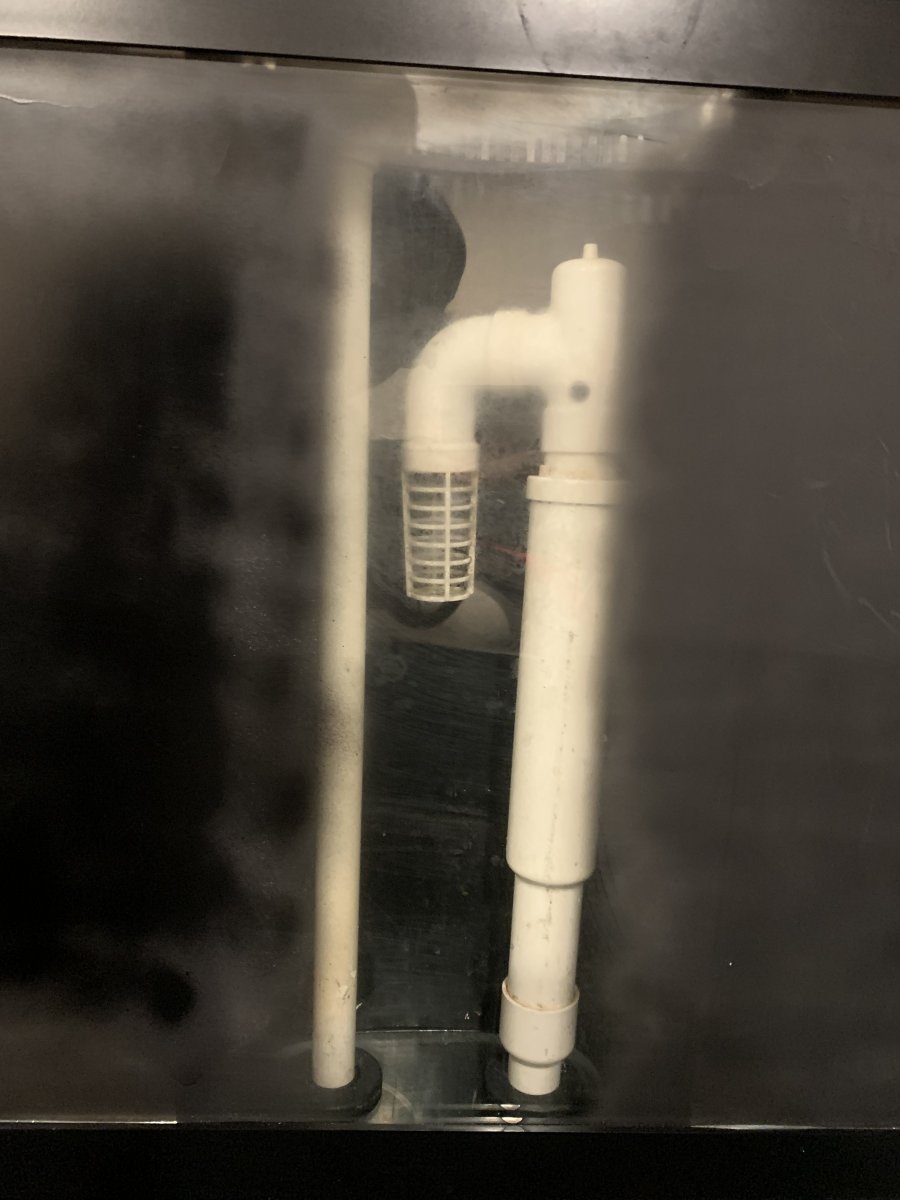

This is the type of overflow. Also never had one like this, that’s why I have no clue


EeyoreIsMySpiritAnimal

Just another girl who likes fish
View Badges
Joined
May 14, 2019
Messages
13,752
Reaction score
20,414
Location
Spring, Texas
Rating - 0%
0   0   0

This is the type of overflow. Also never had one like this, that’s why I have no clue
So, this is an internal overflow... a box inside the tank. You don't need to worry about a siphon the way you would on a HOB overflow box.

Personally, I would make the following changes:
1. It looks like the pipes are 2 different sizes -- you want the larger diameter pipe to be the emergency drain
2. Ditch the Durso (elbow) on the main drain and just use a strainer (I prefer the flat ones, but the one you have is fine)
