Couple Metal Halide Questions:

WhatCouldGoWrong71

Valuable Member
View Badges
Joined
May 19, 2023
Messages
1,449
Reaction score
863
Location
Memphis
Rating - 100%
3   0   0
I have Reef Bright 250W lights with electronic ballasts. The kind with the VHOs on the side. I am late to the game, but plan to use some metal halides on a tank. I like daylight vs blue and want to try this. I just am not sure if these will work. Are electronic ballasts "pulse start ballasts"?


OP
OP
W

WhatCouldGoWrong71

Valuable Member
View Badges
Joined
May 19, 2023
Messages
1,449
Reaction score
863
Location
Memphis
Rating - 100%
3   0   0
I'll be using 3 fixtures. One is double ended. This feels really inexpensive. Would this work on a 250W double ended fixture that has a electronic ballast?


Reefering1

2500 Club Member
View Badges
Joined
May 20, 2022
Messages
3,127
Reaction score
4,829
Location
Usa
Rating - 0%
0   0   0
If I'm understanding your question correctly, yes those ushio bulbs will work with e-ballast

OP
OP
W

WhatCouldGoWrong71

Valuable Member
View Badges
Joined
May 19, 2023
Messages
1,449
Reaction score
863
Location
Memphis
Rating - 100%
3   0   0
If I'm understanding your question correctly, yes those ushio bulbs will work with e-ballast
Thank you. It didn't state e-ballast, but it said "pulse start". If they are one in the same, I am unaware of that. Let me ask you, if it says the bulb life is 6K hours, is that pretty close to accurate? I read where people mostly change bulbs after a year. I am asking as, I am deciding on how may I should purchase.


Backreefing

Valuable Member
View Badges
Joined
Nov 29, 2018
Messages
1,307
Reaction score
1,177
Rating - 0%
0   0   0
You can easily get 2 years of use out of a set of bulbs. Most of us run our halides at 6-8 hours a day.


Reefering1

2500 Club Member
View Badges
Joined
May 20, 2022
Messages
3,127
Reaction score
4,829
Location
Usa
Rating - 0%
0   0   0
Thank you. It didn't state e-ballast, but it said "pulse start". If they are one in the same, I am unaware of that. Let me ask you, if it says the bulb life is 6K hours, is that pretty close to accurate? I read where people mostly change bulbs after a year. I am asking as, I am deciding on how may I should purchase.
They are not the same but electronic ballasts are pulse start and will fire the bulbs. And yes, you can get 2 years out of the bulbs.
In cases you're un aware- aquabrightsolutions.com


Backreefing

Valuable Member
View Badges
Joined
Nov 29, 2018
Messages
1,307
Reaction score
1,177
Rating - 0%
0   0   0
One more interesting thing about halides with selectable e ballasts is they are dimmable. Example say you think the 14k bulbs are a bit to much intense. You can switch to a lower setting like 175 watts . Many electric ballasts have a 150,175,250,250 super lumuns . I make certain it’s off when I turn the knobs. Anyway when you turn them down the color does shift to the blue just a bit . Good luck with your halides they really are the best lighting.

OP
OP
W

WhatCouldGoWrong71

Valuable Member
View Badges
Joined
May 19, 2023
Messages
1,449
Reaction score
863
Location
Memphis
Rating - 100%
3   0   0
One more interesting thing about halides with selectable e ballasts is they are dimmable. Example say you think the 14k bulbs are a bit to much intense. You can switch to a lower setting like 175 watts . Many electric ballasts have a 150,175,250,250 super lumuns . I make certain it’s off when I turn the knobs. Anyway when you turn them down the color does shift to the blue just a bit . Good luck with your halides they really are the best lighting.
No-poop!?!? I am pretty sure these ballasts had a switch on them. I’ll look tonight. I need a connector for one of then lights too, I’ll post other pics.


irischan

Community Member
View Badges
Joined
Aug 12, 2017
Messages
41
Reaction score
48
Rating - 0%
0   0   0
i think it will work greatly on growing coral, the only problems may be heat generated by the halide and power consumption.

OP
OP
W

WhatCouldGoWrong71

Valuable Member
View Badges
Joined
May 19, 2023
Messages
1,449
Reaction score
863
Location
Memphis
Rating - 100%
3   0   0

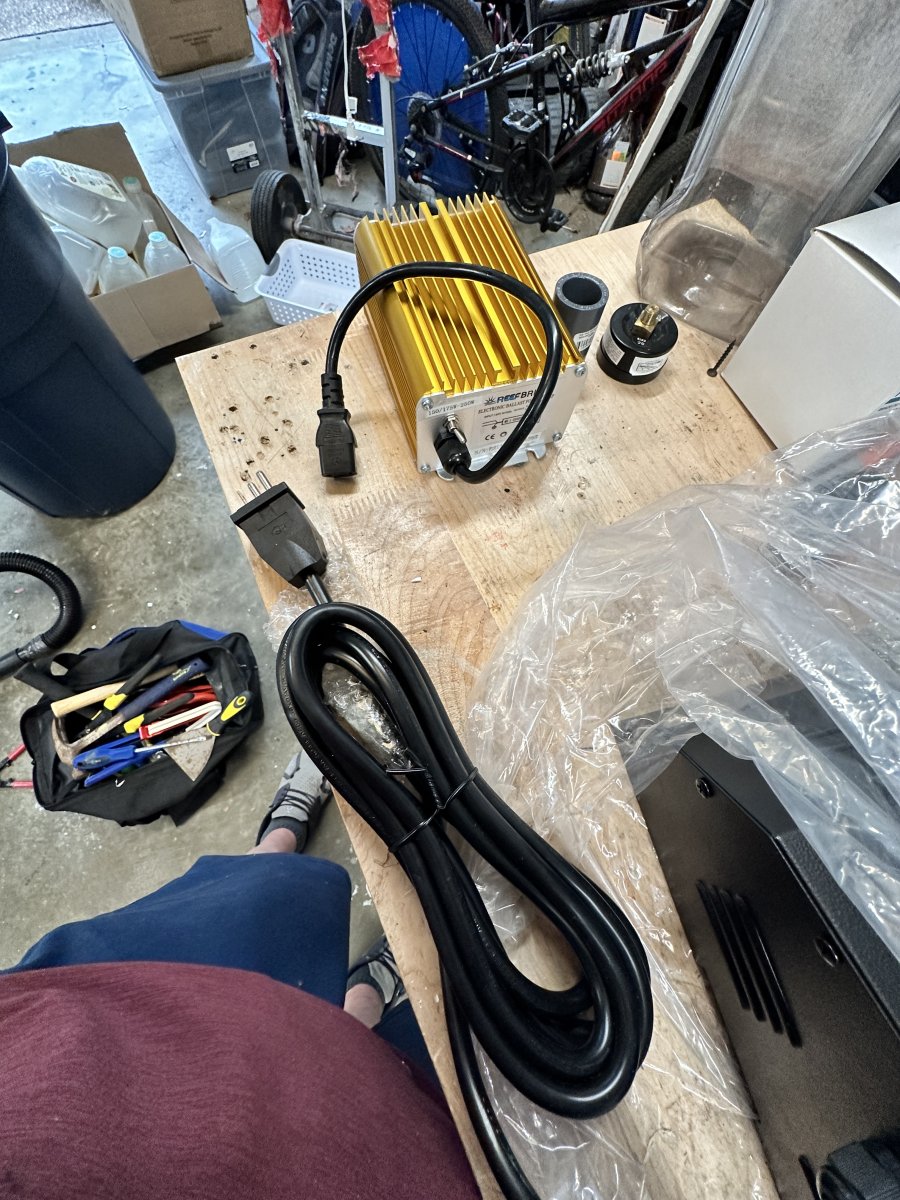

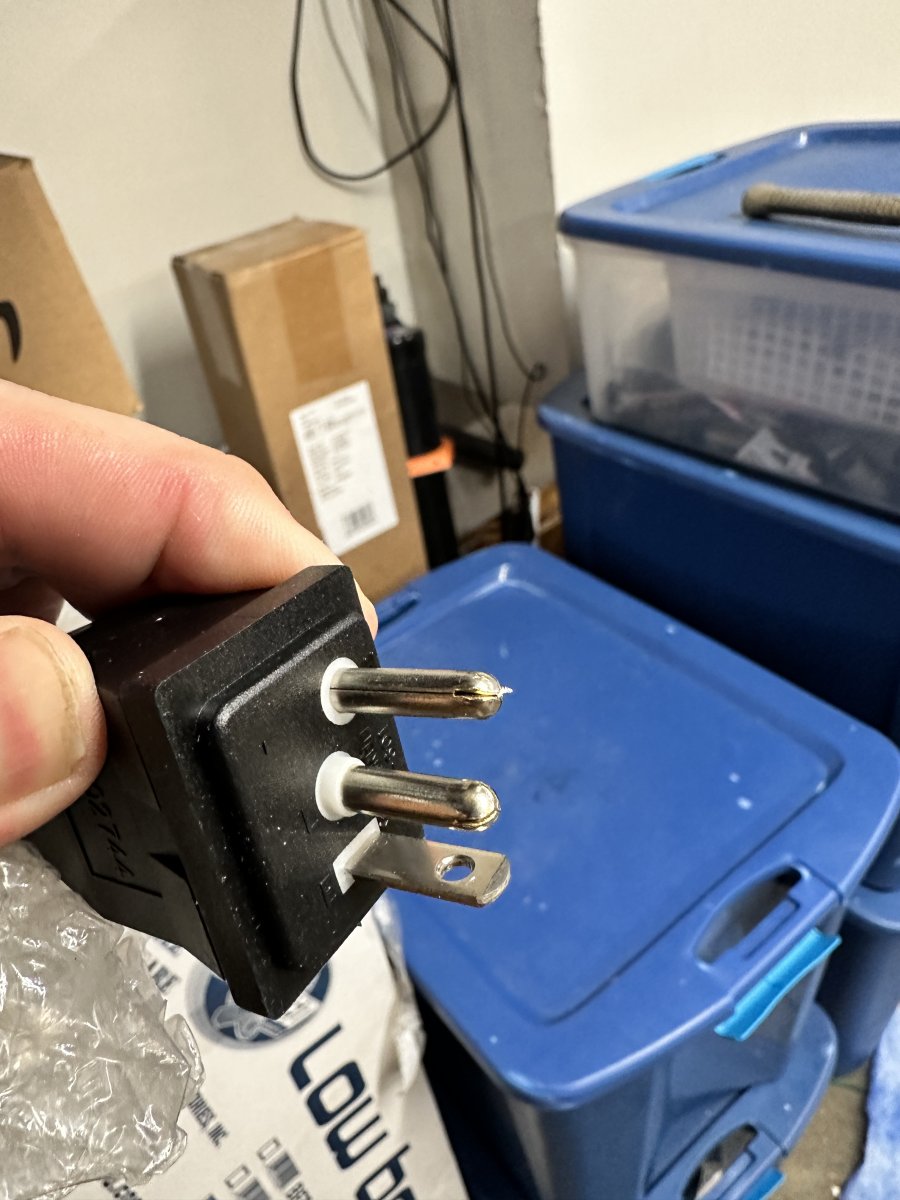

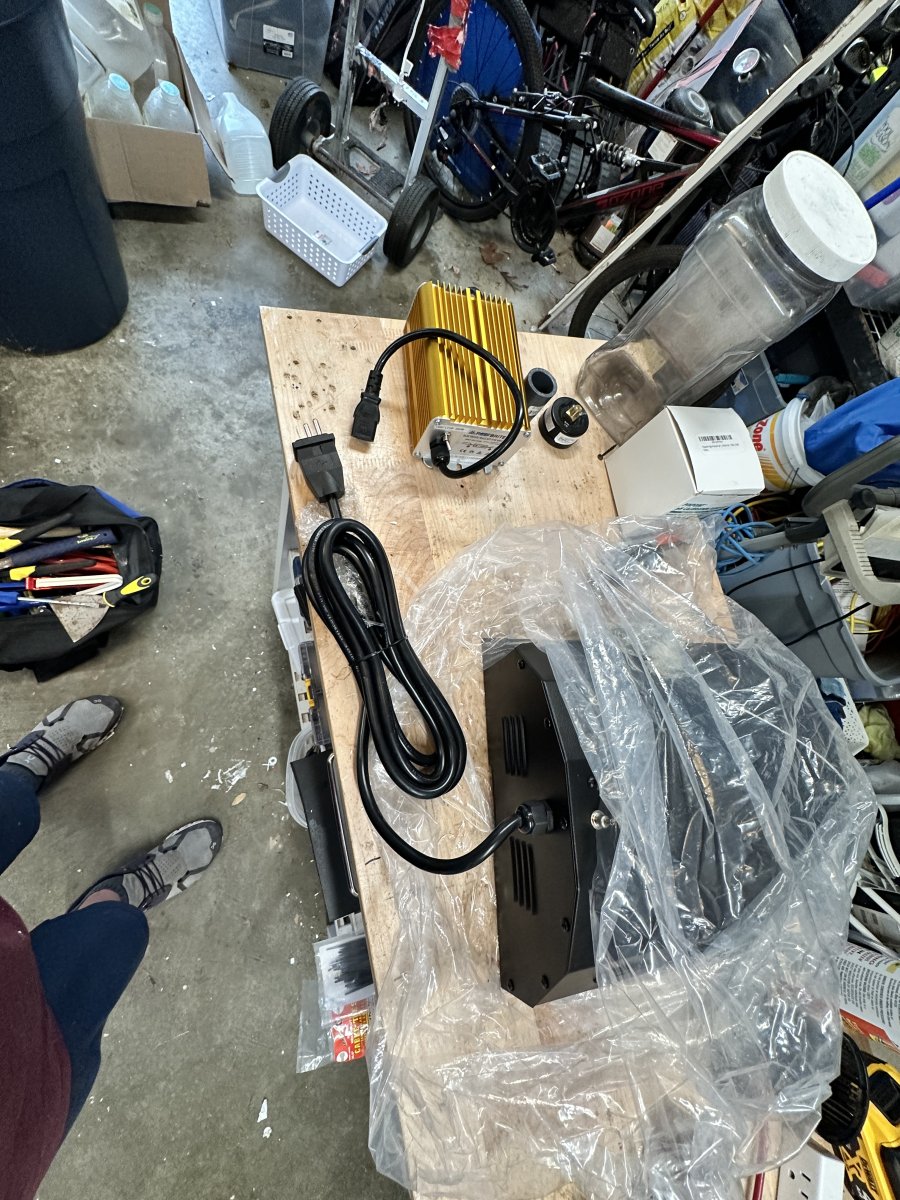

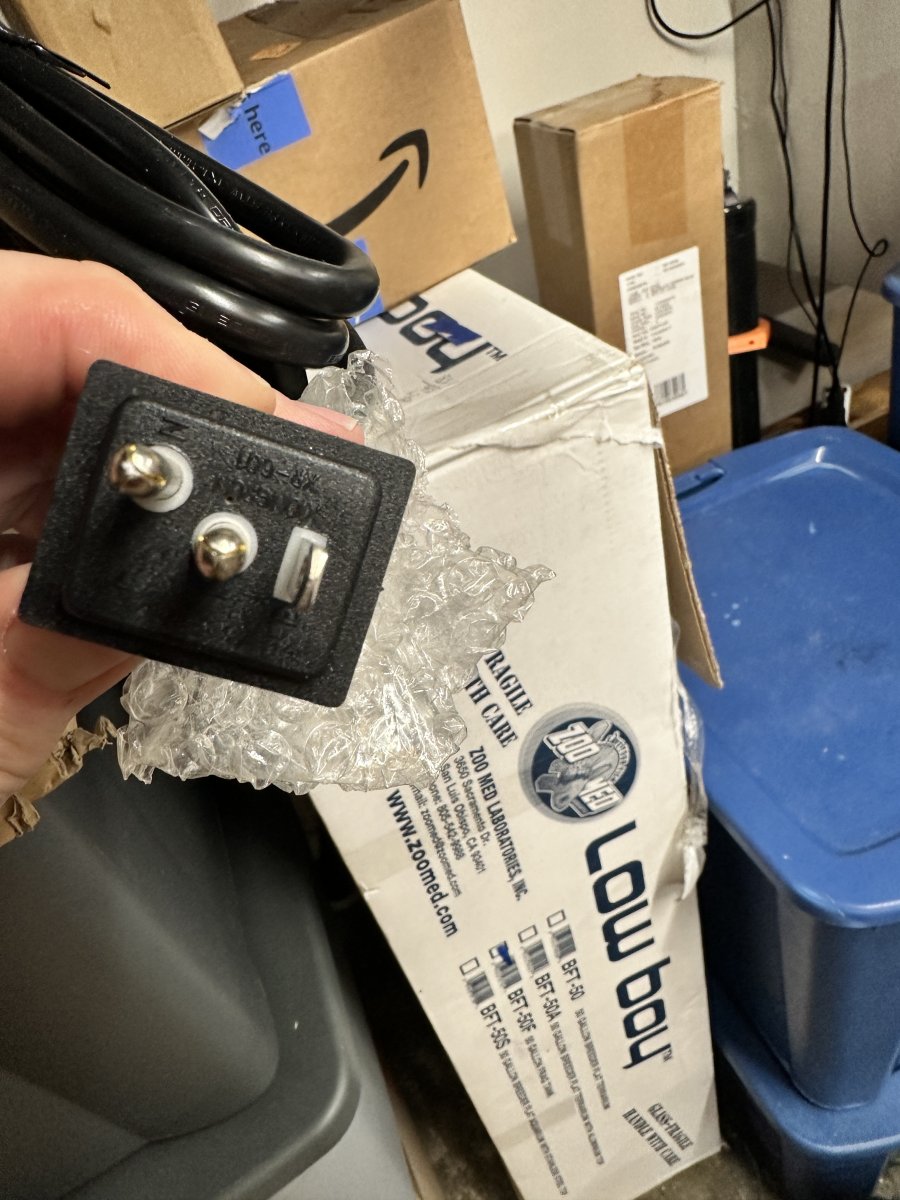

While some one lets me know about @56longroof ’s thoughts, I assume I will have to cut this cord, find a female that this will work with and splice it in?


Attachments

  • IMG_4367.jpeg
    265.4 KB · Views: 39
  • IMG_4366.jpeg
    287.4 KB · Views: 39

56longroof

Active Member
View Badges
Joined
Mar 23, 2023
Messages
346
Reaction score
1,310
Location
Durham Missouri USA
Rating - 100%
1   0   0
While some one lets me know about @56longroof ’s thoughts, I assume I will have to cut this cord, find a female that this will work with and splice it in?
I double checked Ushios specs. They are rated M58/E so they are fine with electronic ballast. Sorry for the confusion.

OP
OP
W

WhatCouldGoWrong71

Valuable Member
View Badges
Joined
May 19, 2023
Messages
1,449
Reaction score
863
Location
Memphis
Rating - 100%
3   0   0
@56longroof Both the fixture and the ballast are brand new and were in unopened packages. The seller thought it was going to be pretty easy to get an adapter, but he also was kind of surprised.

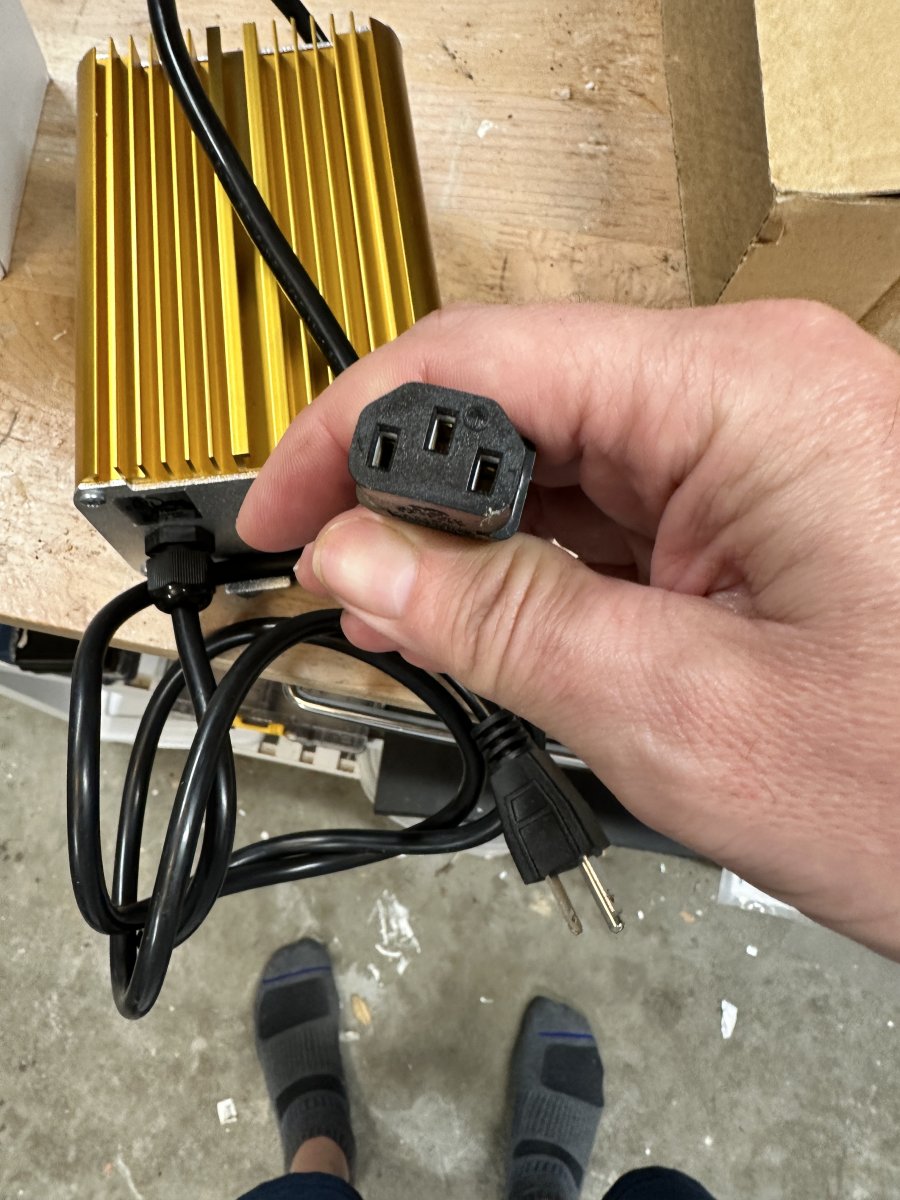

Please see the attached photo of the ballast. If there isn’t a connector available for this config, perhaps I buy the correct adapter and rework the ballast? I e never taken one of these apart. I guess the the ends of the power cord to the fixture are attached via screws inside? It would be a matter of determine what wire does what? I am for sure out in front of my skis on reworking a metal halide system. But I am sure posting pics on here wouldn’t be the first cat to have to do this.


Attachments

  • IMG_4384.jpeg
    185 KB · Views: 27

Reefering1

2500 Club Member
View Badges
Joined
May 20, 2022
Messages
3,127
Reaction score
4,829
Location
Usa
Rating - 0%
0   0   0
Show both the connector in the ballast and fixture. Do they not match or does it need to be longer,


Reefering1

2500 Club Member
View Badges
Joined
May 20, 2022
Messages
3,127
Reaction score
4,829
Location
Usa
Rating - 0%
0   0   0
A spice may not be the most elegant way to do it but if done properly it is perfectly safe. Can you find a connector that fits the ballast?


djf91

Valuable Member
View Badges
Joined
Jul 12, 2019
Messages
1,032
Reaction score
879
Location
St. Louis, Mo
Rating - 0%
0   0   0
One more interesting thing about halides with selectable e ballasts is they are dimmable. Example say you think the 14k bulbs are a bit to much intense. You can switch to a lower setting like 175 watts . Many electric ballasts have a 150,175,250,250 super lumuns . I make certain it’s off when I turn the knobs. Anyway when you turn them down the color does shift to the blue just a bit . Good luck with your halides they really are the best lighting.
I would not run the 250 watt bulbs at 175 watts. The bulb isn’t designed for that and will likely cause failure.


56longroof

Active Member
View Badges
Joined
Mar 23, 2023
Messages
346
Reaction score
1,310
Location
Durham Missouri USA
Rating - 100%
1   0   0
@56longroof Both the fixture and the ballast are brand new and were in unopened packages. The seller thought it was going to be pretty easy to get an adapter, but he also was kind of surprised.

Please see the attached photo of the ballast. If there isn’t a connector available for this config, perhaps I buy the correct adapter and rework the ballast? I e never taken one of these apart. I guess the the ends of the power cord to the fixture are attached via screws inside? It would be a matter of determine what wire does what? I am for sure out in front of my skis on reworking a metal halide system. But I am sure posting pics on here wouldn’t be the first cat to have to do this.
Is there a electrician near you? I had a friend of mine convert my dual 175 watt to dual 250 watt. He's a industrial electrician so it was a cake walk for him.
