Ecotech 3 - up controller holder

howme127 · Aug 26, 2020

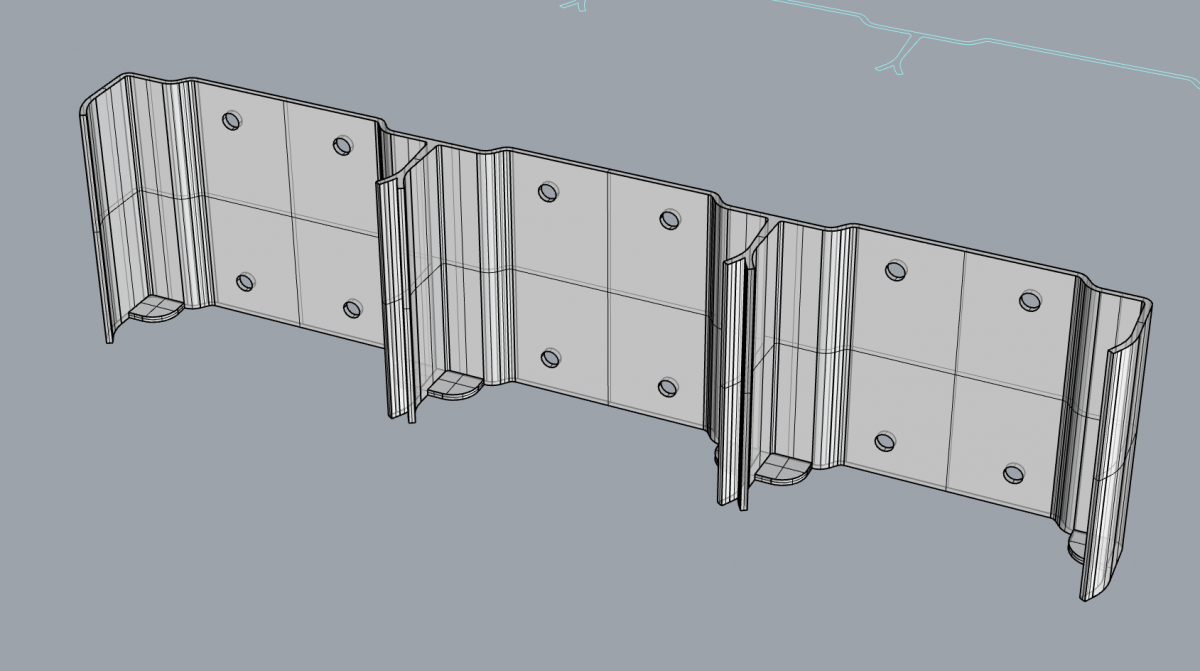

I had a friend ask if I could make a 3up holder for the ecotech controllers so that they didn't have to put so many holes in their stand. I'm posting the stl file here in case someone wants to use. I'm printing now, so I've not tested, but I do this for a living and I'm pretty confident it will work for anyone. I will remove after the print is tested in a couple of hours. It is modeled off the original holder that comes with the QuietDrive. I'm including the Rhino file as well.

susan ingram · Aug 26, 2020

howme127 said:
I had a friend ask if I could make a 3up holder for the ecotech controllers so that they didn't have to put so many holes in their stand. I'm posting the stl file here in case someone wants to use. I'm printing now, so I've not tested, but I do this for a living and I'm pretty confident it will work for anyone. I will remove after the print is tested in a couple of hours. It is modeled off the original holder that comes with the QuietDrive. I'm including the Rhino file as well.

AEESOME!! Thanks for the upload@!!!

howme127 · Aug 27, 2020

If anyone needs a variation of this, just let me know!

susan ingram · Aug 27, 2020

Ranjib · Aug 27, 2020

Very nice. thank you for sharing

howme127 · Aug 27, 2020

Getting close. I might change some basic setting but looks like a match to the original mount but times 3.

lakai · Aug 27, 2020

What percent do you scale it to ? the model is 9mmx 10mm in cura

Also can you do a 2-up and 4-up ?? :) thanks

howme127 · Aug 27, 2020

lakai said:
What percent do you scale it to ? the model is 9mmx 10mm in cura

Also can you do a 2-up and 4-up ?? :) thanks

Ugh Cura never understands imperial measurements! Give me about 15 mins I can post the 2/3/4 ups in Metric.

howme127 · Aug 27, 2020

Ok I've included 6 files, 2up, 3up, and 4up in both the Rhino files and the stls. In case Cura is still giving you troubles with the sizes here are the width extents:
2up - 168.58mm
3up - 252.49mm
4up - 335.89mm

Feel free to reach out with anything.
