Starting build thread for my first Reef build. This will be an ongoing project as parts are still in route.


Part list;

Fiji 32 gallon EXT

Fiji Stand (White)

Fiji 12 sump (9 gallon)

6 gallon glass ATO reservoir

Mighty jet 538 return pump

BRS 100w titanium heater with Inkbird controller

200 Micron Felt filter socks

MarinePure Biofilter 1.5'' Spheres

CaribSea Special grade Arag-alive sand 20lb

18lbs Dry rock from LFS

Tropic Marin Pro reef salt

BRS 5 Stage RO/DI premium plus 100GPD

Ecotech XR15 with RMS

Sicce voyager Nano 1000 270gpd (Bought for salt mixing, using in tank temporarily)

Powerhead Redsea reefwave gyre 25 ( Good deal at local fish show)

ATO Osmolator Nano 3152 ( LFS had one for a good deal)


Kraken reef custom lid with feed hole and RMS mount cut (In production)








Update:

This build has been nothing but delays and frustration. However it's not breaking my spirits.

After finally getting the tank and stand in. Fiji only sent it with two brackets instead of three. Making it a royal PIA to get the door level. It's not perfect but I'll call CS in the AM for a replacement.


Last edited:
Avast
OP
lagnew904

lagnew904

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Aug 9, 2021
Messages
117
Reaction score
99
Review score
+0 /0 /-0
Location
Jacksonville

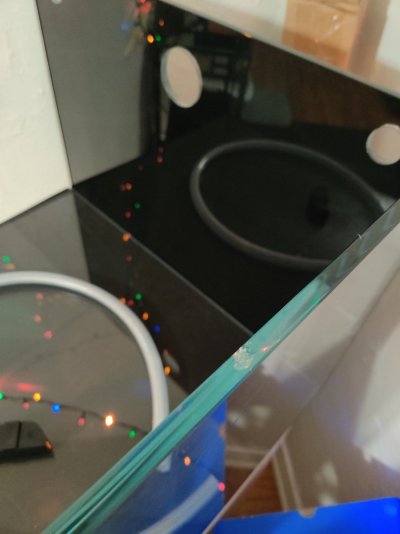

RMS mount for the XR15 doesn't fit well. Using it as suggested without the spacer caused it to droop and be unlevel. Trying to tighten the mount resulting in my tank glass cracking.


Attachments

  • IMG_20210919_213241.jpg
    145.1 KB · Views: 32
  • IMG_20210919_201158.jpg
    98.1 KB · Views: 31
BRS
OP
lagnew904

lagnew904

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Aug 9, 2021
Messages
117
Reaction score
99
Review score
+0 /0 /-0
Location
Jacksonville
Update: Bit behind schedule due to work. Finished the return plumbing and glued all fittings except the final connection to the bulkhead in the sump. Glued the tank bulkheads into the 90 and thinking I probably shouldn't have. Any issues ill have to cut it out to remove the bulkhead from the tank. That's why I left about an inch of pipe exposed between the bulkhead and the 90.

Fiji Cube cut the return hole on the sump to fit 3/4'' bulkhead an also included the 3/4'' bulkhead but didn't send the 3/4'' to 1/2'' reducer. Not sure why they do this? Either cut the sump for the 1/2'' or make the tank return holes 3/4''. Fiji is supposed to send out the reducers but being impatient, I went to homedepot.

Having already purchased 1/2'' barbs and hose for the pump to return, I wanted to make them work. Not being able to find a 3/4'' slip to 1/2'' female thread for my barb fitting lead me to get creative. I went 3/4'' to 1/2'' then 1/2'' to 1/2'' female thread then to 1/2'' barb. This dropped it pretty low into the sump forcing me to loop the hose into the pump barb. Overall I'm not really happy with this because I'm not sure if it will add to head loss and it's harder to get the pump out for maintenance. I left all of those pieces unglued so I can change it when I find the right fitting. In the meantime if they leak it should be minor and right back into the return chamber on the sump. Hard to see in this picture so I'll add a better one tonight.


OP
lagnew904

lagnew904

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Aug 9, 2021
Messages
117
Reaction score
99
Review score
+0 /0 /-0
Location
Jacksonville
Update: Dry fitted all of the drain lines in last night. Tonight I'll go home and glue them and possibly do a leak test tonight if time permits.

I'm leaving the final piece into the sump bulkhead unglued. Everything else will be glued together. I also glued the main drain into the overflow bulkhead and probably shouldn't have done that. On the emergency side the blue pipe is actually what comes to be used as the E-Pipe in the overflow. I put it on backwards when dry fitting it and for the life of me can't get it back out. So I just used it for the other end and cut a piece of red pvc for the overflow. Since I couldn't get it back apart that means its not glued. But I seriously doubt its going to leak since its so tight. I didn't glue the red E-Pipe into the bulkhead inside the overflow. The blue pipe between the bulkhead and the union is also not glued so we will see how it does.


Last edited:
OP
lagnew904

lagnew904

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Aug 9, 2021
Messages
117
Reaction score
99
Review score
+0 /0 /-0
Location
Jacksonville
Update Friday 9/24/2021: preformed leak test tonight and ran until Saturday afternoon. No leaks detected and overall happy with the plumbing and flow.

Tuned the overflow a bit to learn the basics. Will have to dial it in more when the saltwater goes in.

Tested the lights and heater. All work well so far.


Attachments

  • IMG_20210924_204944.jpg
    79.8 KB · Views: 26
  • IMG_20210924_204955.jpg
    117.7 KB · Views: 24
  • IMG_20210924_205039.jpg
    125.6 KB · Views: 28
OP
lagnew904

lagnew904

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Aug 9, 2021
Messages
117
Reaction score
99
Review score
+0 /0 /-0
Location
Jacksonville

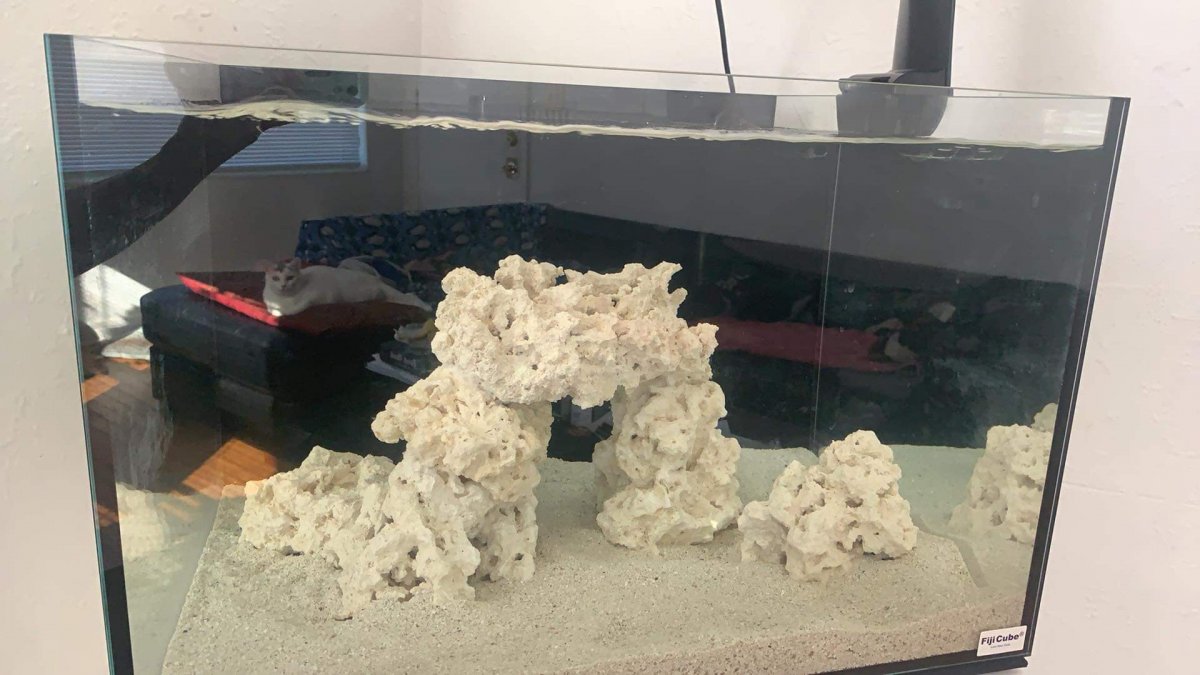

Kitty photo bomb

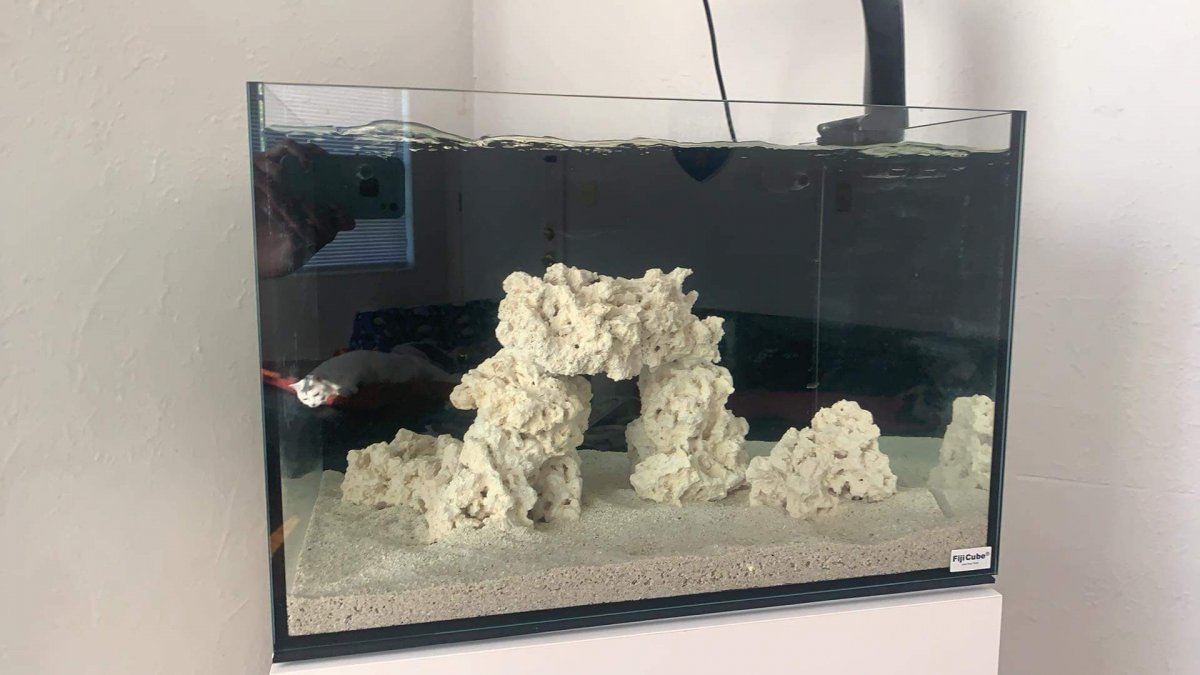

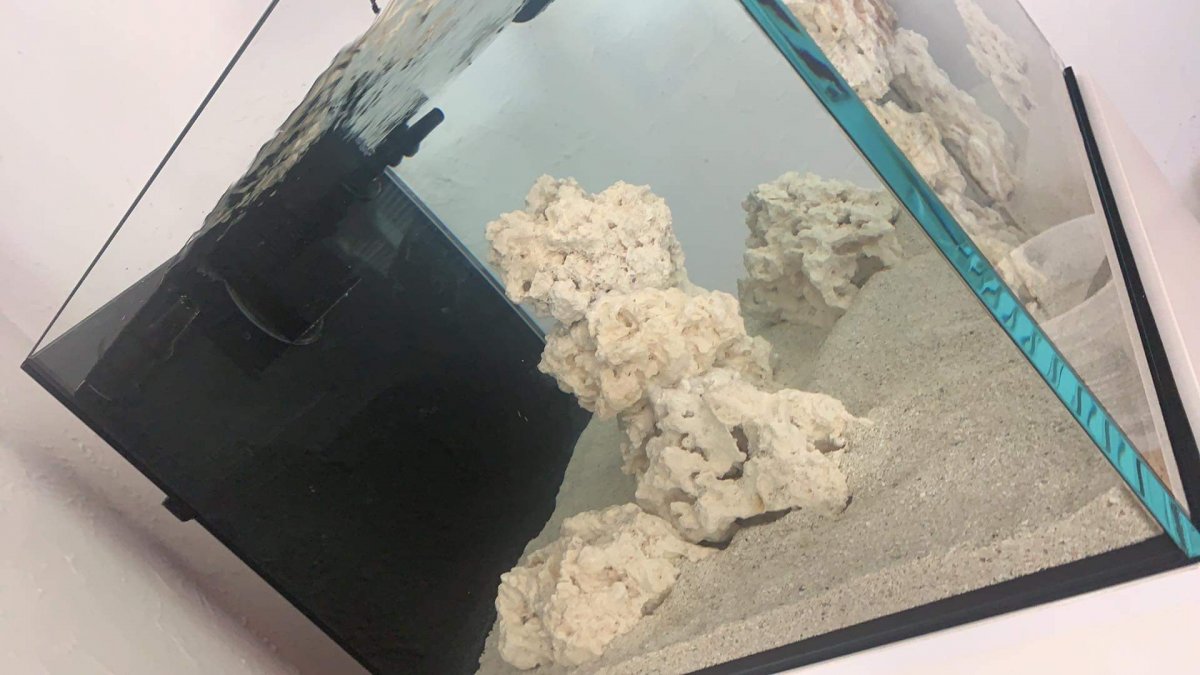

Update Sunday 9/27/2021: Rock, Sand, and Saltwater added today. I'm not 100% sure I'll keep the rockscape this way but my lady did design a cool cave on the left side. Should be awesome for the YWG I plan to add.

The foundation and arch are all glued together. The rock on the front right and back left are slightly away from the main arch. I plan to use one as a zoa garden and the other for anything in the future that needs isolation.

I have it slightly angled so water should be able to flow around circular and through the pass through. Still haven't decided on the power head. MP40 or Nero 5. Any suggestions?


Attachments

  • received_1002302213946415.jpeg
    98 KB · Views: 27
  • received_876809129609968.jpeg
    110.3 KB · Views: 23
  • received_1174731326348515.jpeg
    120.3 KB · Views: 22
AS
OP
lagnew904

lagnew904

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Aug 9, 2021
Messages
117
Reaction score
99
Review score
+0 /0 /-0
Location
Jacksonville
Day two following the Dr. Tim's chart. First test came back and follows. Cycle has been ran without lights on so far. PH is lower than when tested on salt mixture.

All taken on Red Sea marine care test kit except for the DKH on the Hanna.

PH 7.6
akalinity 7.2 DKH (Hanna)
NH3/NH4 ammonia 1.2 - 2.0 (1.5)
No3 nitrate 2 - 5 (3)
NO2 Nitrite 0.1
salinity 1.26 - 35 ppt
temp 77.5

Edit: had a brain fart and remembered tropic Marin pro reef has lower the average Akalinity.

Last edited:

ks2509

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Nov 10, 2018
Messages
332
Reaction score
346
Review score
+0 /0 /-0
I'll check it out. I wish I could have gone larger but size is limited till we buy our house next year.

Have you seen any pH or DKH drops like mine?
I wanted to do a 6 ft tank but didn't have a good spot for one so got this one. Honestly the only things I have tested so far have been temp salinity ammonia nitrates and nitrites.

OP
lagnew904

lagnew904

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Aug 9, 2021
Messages
117
Reaction score
99
Review score
+0 /0 /-0
Location
Jacksonville
Update: day 7 of cycle. Added half dose ammonia per Dr. Tim's chart on day 1 (Monday) and day 3 (Wednesday) I skipped day 6 (Saturday) does as my total ammonia is still off the red sea chart.

TAN by temperature 78.1 and pH of 7.6 shows roughly 0.05 which is exactly concurrent with my ammonia alert badge that monitors free ammonia.


Today's parameters show the cycle is continuing but the red sea test kit is maxed on total ammonia at 2.0, maxed nitrite at 1.0 and maxed nitrate at 50.


pH- 7.6 - 7.8
No3 nitrate - maxed 50+
Nh3/Nh4 ammonia - maxed 2+
ammonia badge green 0.02
No2 nitrite - 1+ maxed
salinity - 1.025 34ppt
temp - 78.1

Top Shelf Aquatics
OP
lagnew904

lagnew904

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Aug 9, 2021
Messages
117
Reaction score
99
Review score
+0 /0 /-0
Location
Jacksonville
Update 10-16-2021 bonus entry

Added ceviche the yellowtail damsel last week 10-10-2021. The yellow tail damsel is the first fish I ever saw snorkeling and will always be a favorite of mine. I actually mimic the cave in my tank after a yellowtail damsel in a cave when snorkeling Fort Jefferson in Dry Tortuga national park 70 miles west of key west.

Added jenkem the tiger conch today!


Attachments

  • IMG_20211016_105409.jpg
    133.1 KB · Views: 19
  • IMG_20211011_182501.jpg
    163 KB · Views: 18
