Frag rack for 40g breeder

[cylon032]

So I’m making a 40 gallon frag/grow out tank and I was looking for some racks for it. I was gonna do the egg crate but I remembered I had some acrylic from another project that I was gonna attempt but never ended up doing, never really worked with acrylic this is my second time working with it. Don’t have pictures of cutting the pieces but I made some stencils out of cardboard and cut the acrylic to shape then I used a magnetic frag rack to space the holes

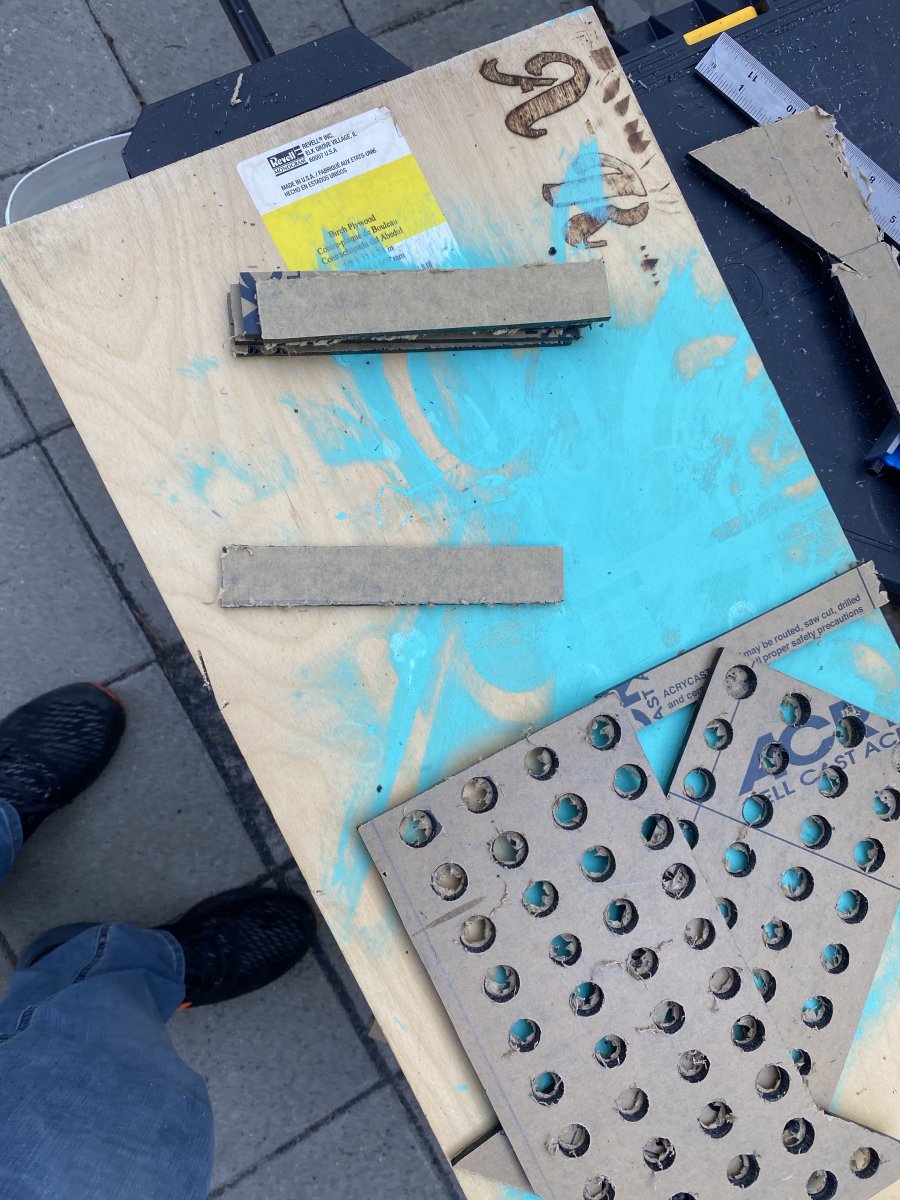

Then used a step drill bit for the holes didn’t make the cleanest holes but didn’t come out to bad. Cut out 1” strips for the legs and used weld on 4 to attach them

The three different platforms are 3” 6” and 9” high. Together it’s 30”x15” and holds about 300 frags depending on the frag plug, each rack is 10”x5”



[Ryde]

So I’m making a 40 gallon frag/grow out tank and I was looking for some racks for it. I was gonna do the egg crate but I remembered I had some acrylic from another project that I was gonna attempt but never ended up doing, never really worked with acrylic this is my second time working with it. Don’t have pictures of cutting the pieces but I made some stencils out of cardboard and cut the acrylic to shape then I used a magnetic frag rack to space the holes

Then used a step drill bit for the holes didn’t make the cleanest holes but didn’t come out to bad. Cut out 1” strips for the legs and used weld on 4 to attach them

The three different platforms are 3” 6” and 9” high. Together it’s 30”x15” and holds about 300 frags depending on the frag plug, each rack is 10”x5”

Looks really good!



[cylon032]

Looks really good!

Thank you



[Elson26]

Nice rack you've got there!



[prdubois]

Nice Rack!
