Ghl kh director issue.

ulferik · Nov 12, 2022

Hi Guys!

need som assistance!

bought a second hand kh director, said it was in good condition.

new calibrated probe. Followed installation/programming.

all 4 doser are running in manual through gcc.

the problem is that it wont start a test. Doesent seem too respond too eiter, venting measurement cell, flush or start a measurement.
What am i missing?

wmb0003 · Nov 12, 2022

Post some screenshots of the setup menu from the kh director page in app or GCC.

ulferik · Nov 13, 2022

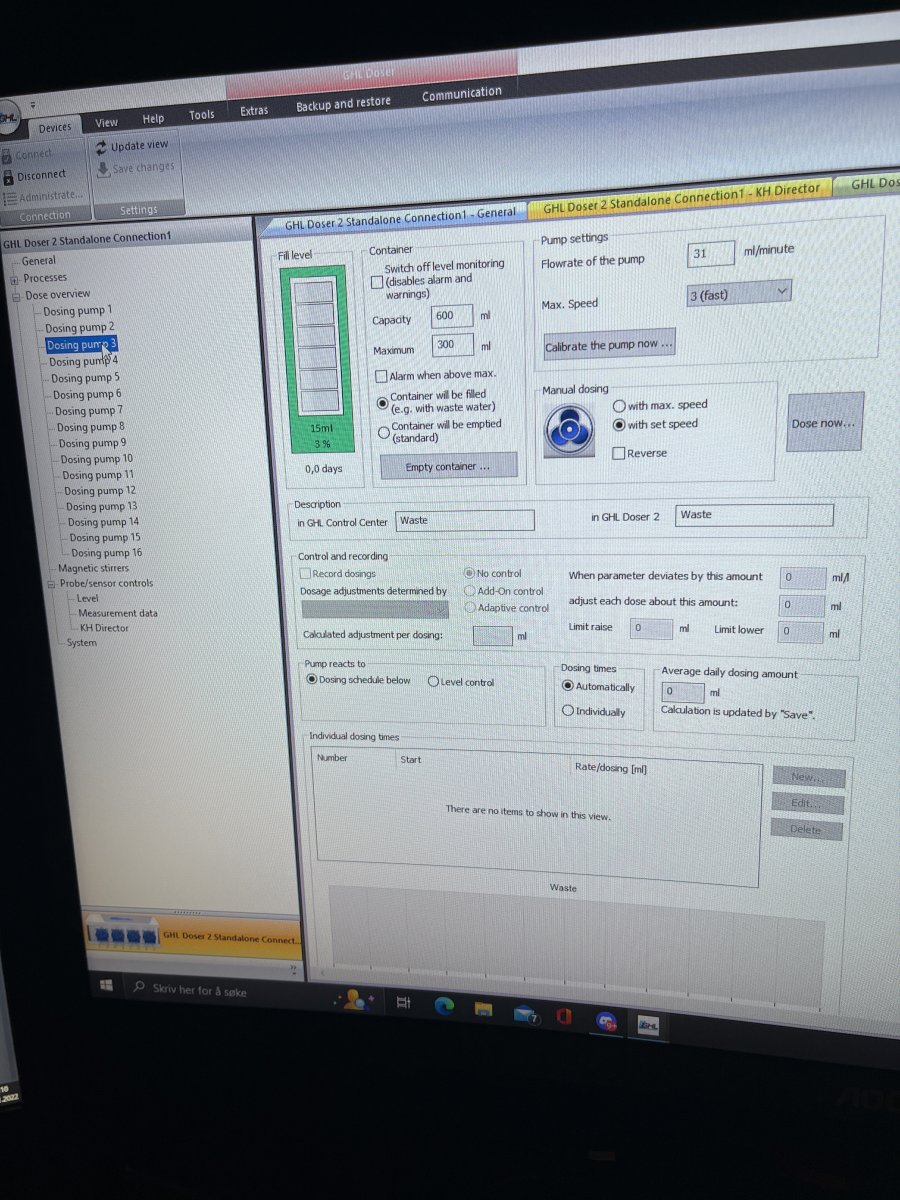

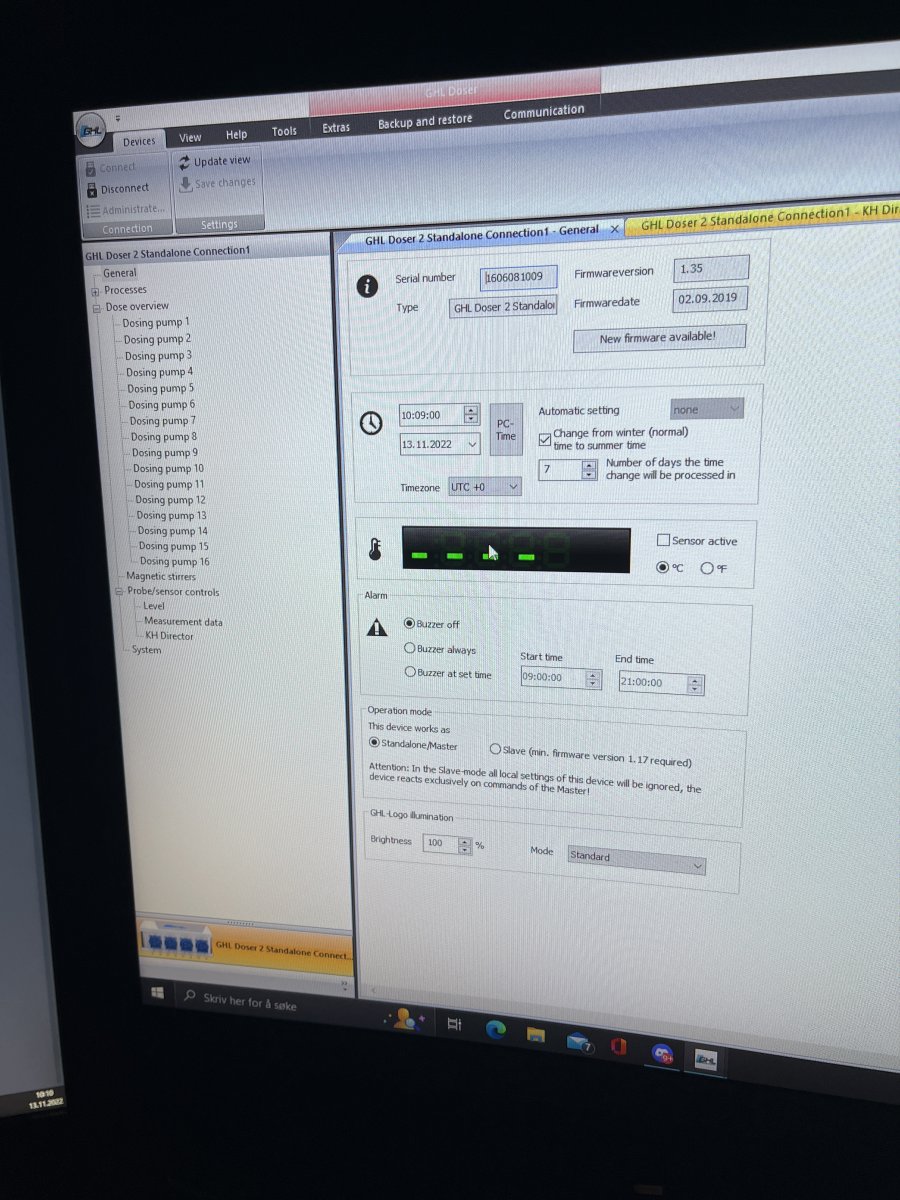

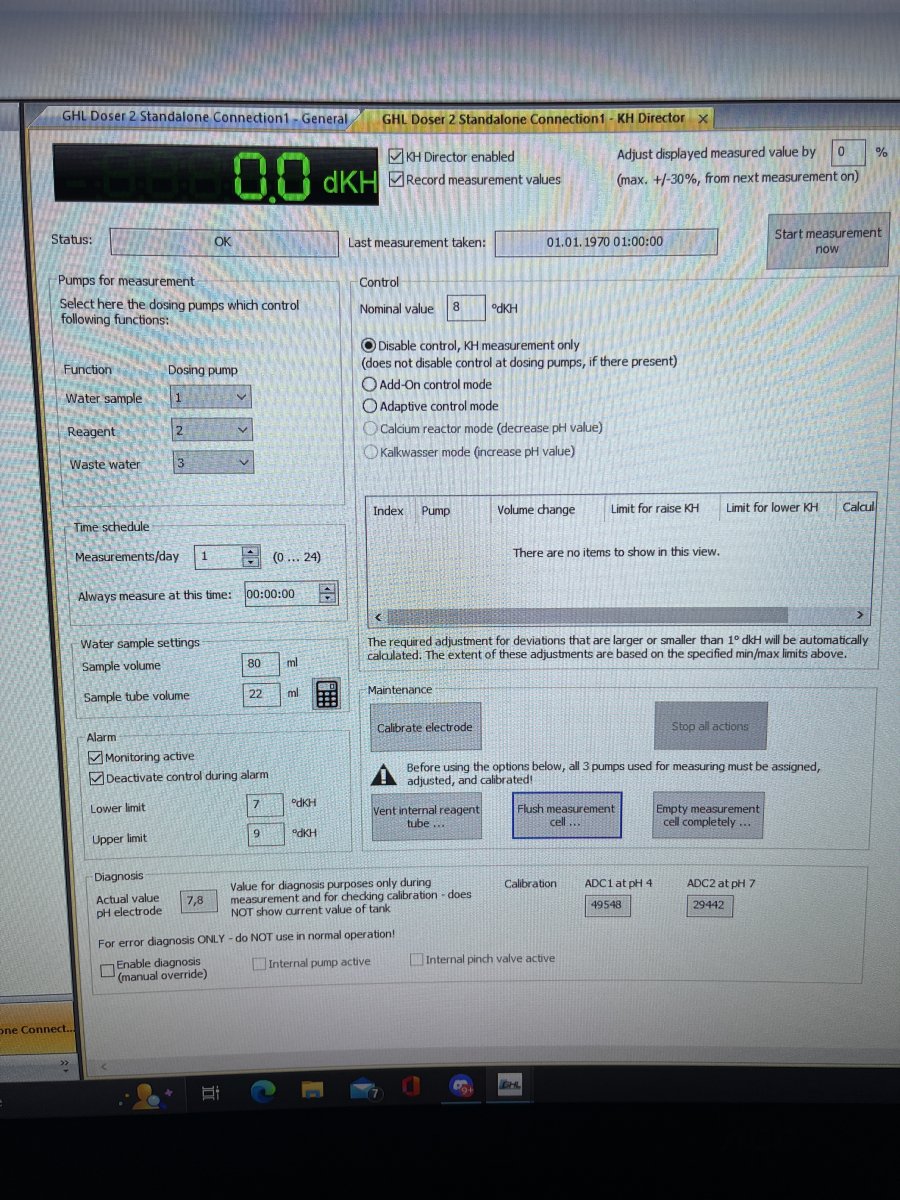

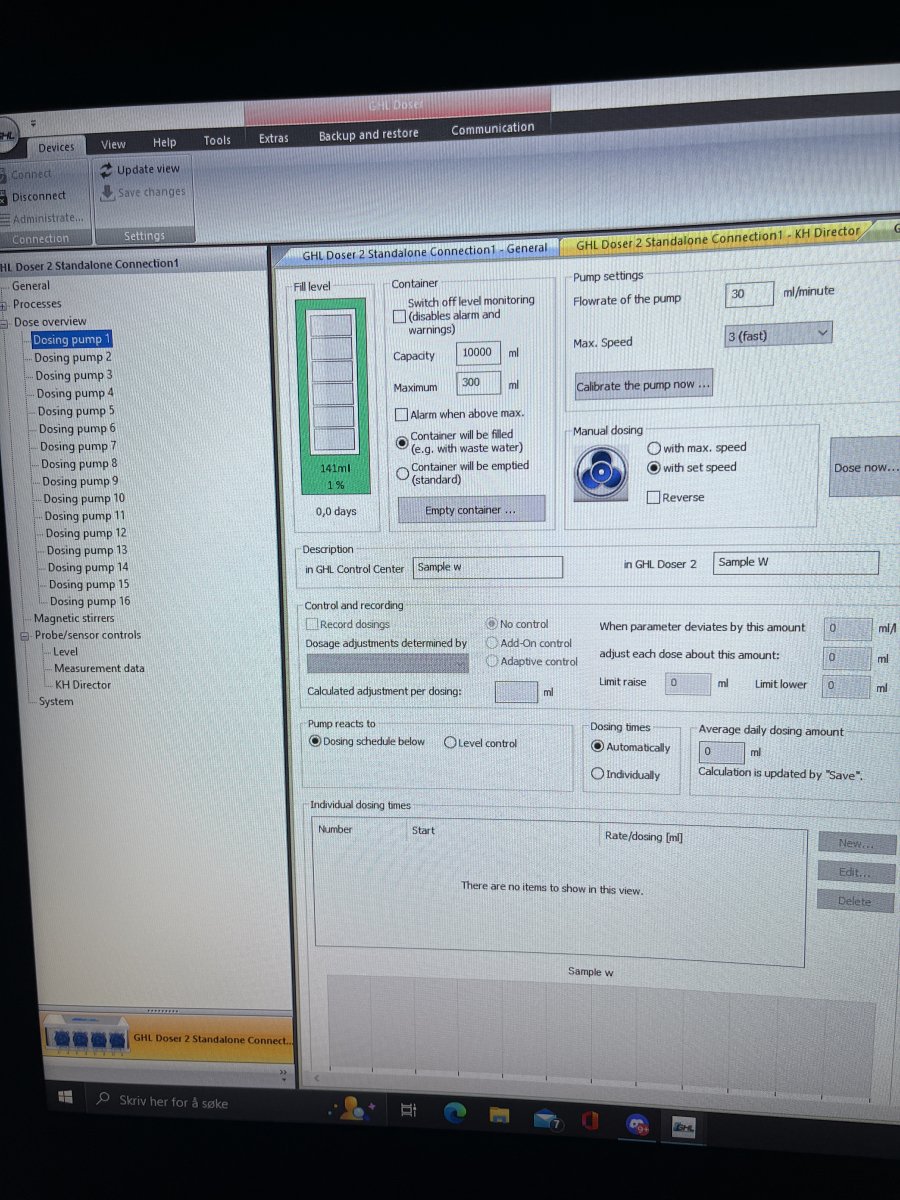

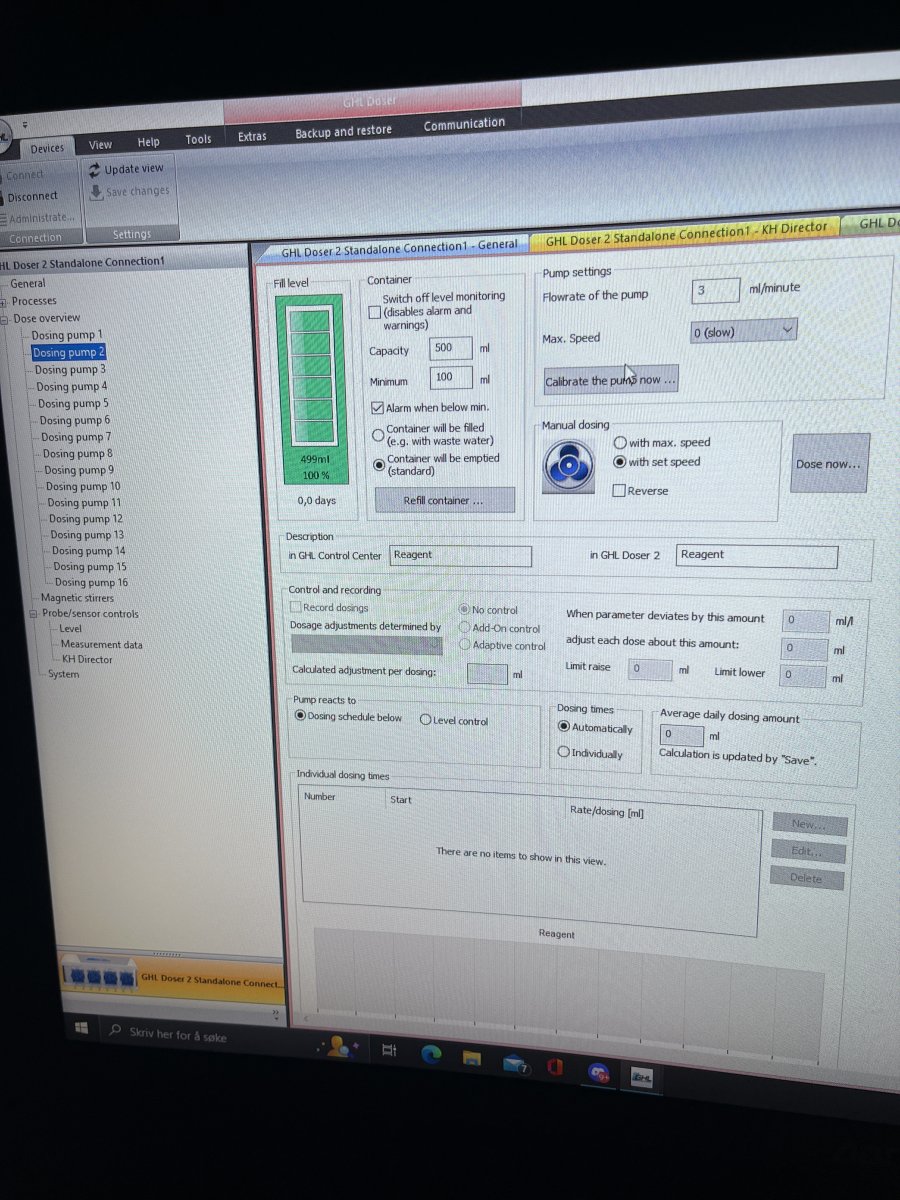

First pic, kh director. Then the pumps. After that. The general page for the doser.

Gaël · Nov 13, 2022

Hi,
What happen when you start test?
Error is displayed?

Gaël

Ps: you should also update firmware.

ulferik · Nov 13, 2022

No error, no nothing..
only thing that i cant acces is the «Control and recording» menu in the doserpump setting. It is grayed out.

ulferik · Nov 13, 2022

What is latest firmware?

Gaël · Nov 13, 2022

ulferik said:
No error, no nothing..
only thing that i cant acces is the «Control and recording» menu in the doserpump setting. It is grayed out.

This because firmware is too old.

Gaël · Nov 13, 2022

ulferik said:
What is latest firmware?

Last GCC is 1.1.3.9 and last firmware for doser SA is 1.43

ulferik · Nov 13, 2022

Ok, the gcc is freshly downloaded from ghl page. But it says 1.1.3.7.
The doser says 1.35

there is no newer update available that i can see

Gaël · Nov 13, 2022

ulferik said:
Ok, the gcc is freshly downloaded from ghl page. But it says 1.1.3.7.
The doser says 1.35

there is no newer update available that i can see

GHL Control Center V1.1.3.9 - GHL (International)

« » Download Info Views: 2379 File size: 29.90 MB Downloads: 934 Updated: 10/17/2022 Categories: Software, Tools & Driver Download Description Changelog PC software (Windows Vista, 7, 8, 10, 11), suitable for these devices: Mitras LX6 up to firmware 1.21 Read More ... Read More ...

www.aquariumcomputer.com
