Ghl temp control HeLP

[Aeb1419]

What am I doin wrong?

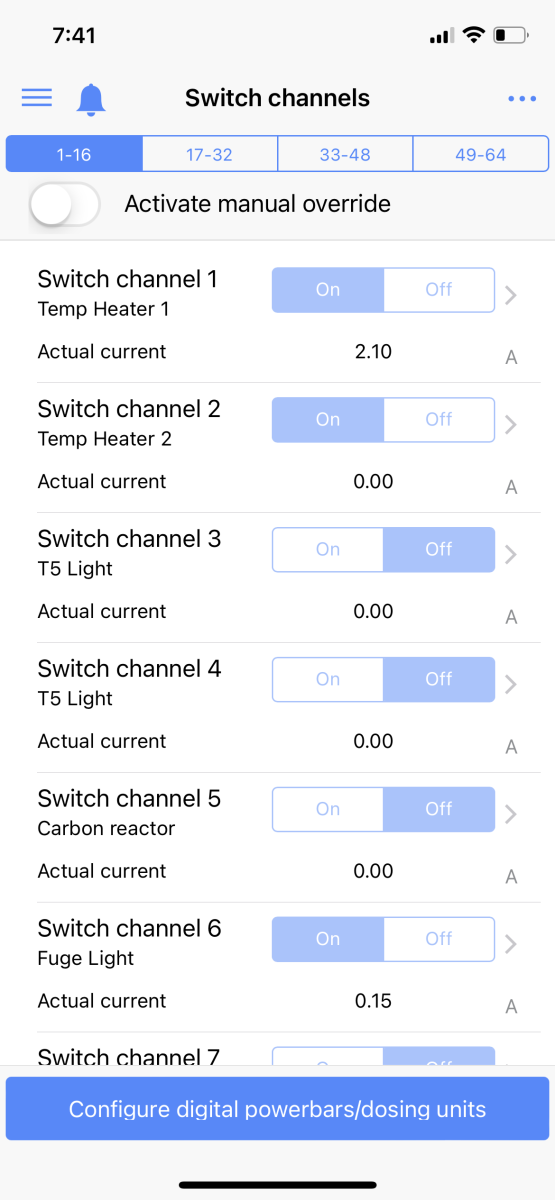

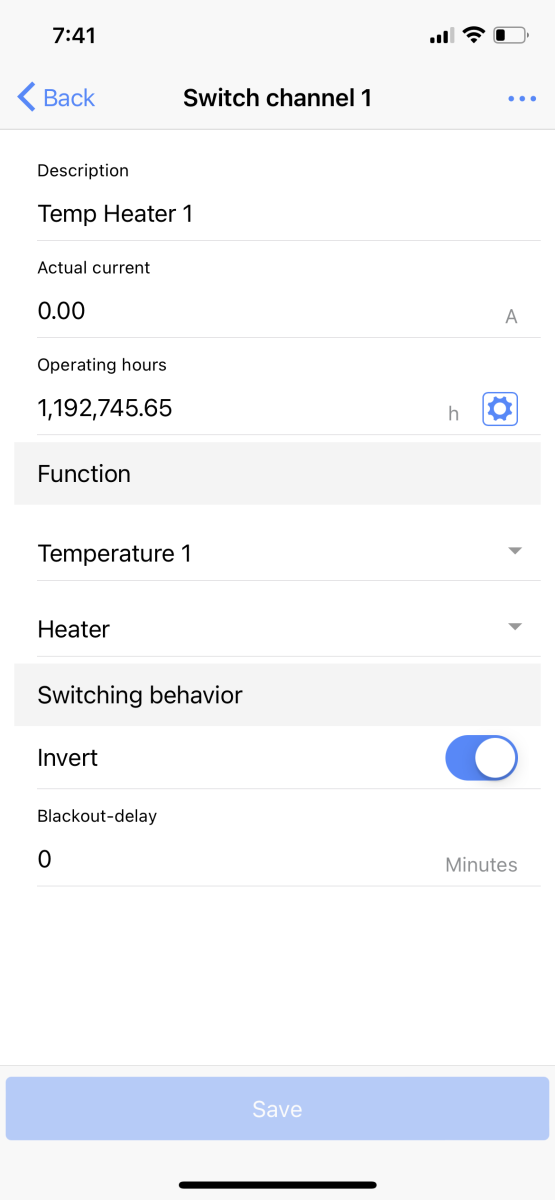

I want the heaters to turn off when it gets too hot. I followed the instructions and Im not sure what I am doing wrong. I do think its wierd that I have to select “invert” to keep the outlet on though.



[ingchr1]

When say the heather did not turn off, what was the temperature where the heater was still on?

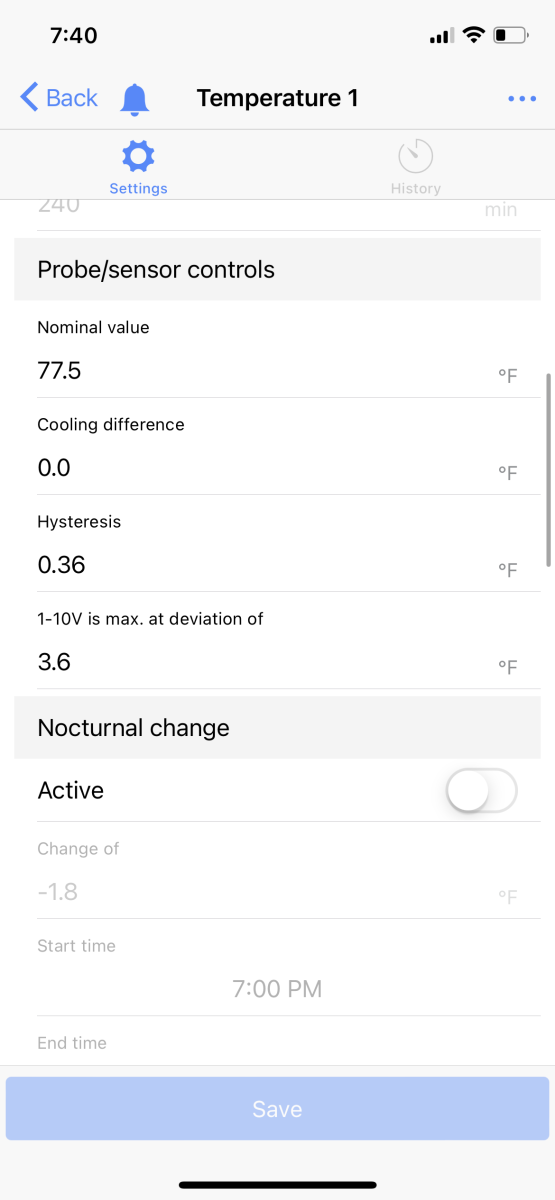

With your settings the outlet should turn on at ~77.3F of decreasing temperature and off at ~77.6F of increasing temperature. You might not see off until 77.7F is displayed though.

Invert should be off.



[Aeb1419]

When say the heather did not turn off, what was the temperature where the heater was still on?

With your settings the outlet should turn on at ~77.3F of decreasing temperature and off at ~77.6F of increasing temperature. You might not see off until 77.7F is displayed though.

Invert should be off.

I put hot water in a cupand out the sensor in there and it went to 88F and the outlets didnt turn off.

I set the deviation to 3.0 degrees so I assume once it reaches 80.6 it should turn off.

I think the invert should be off as well. But if I turn it iff the outlet turns off. I dont know why. I know im doing something wrong



[d2mini]

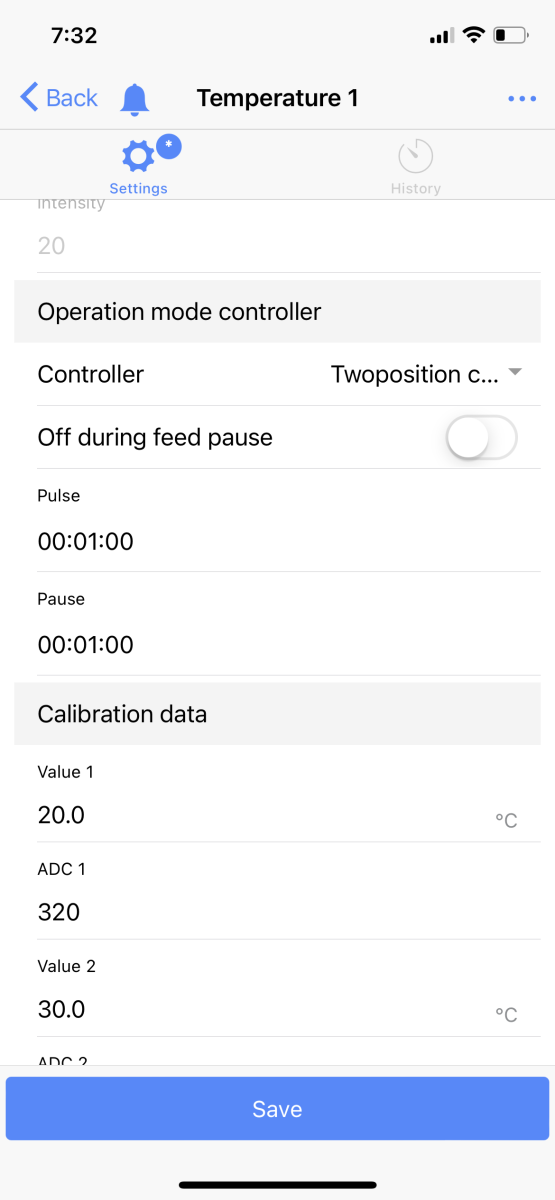

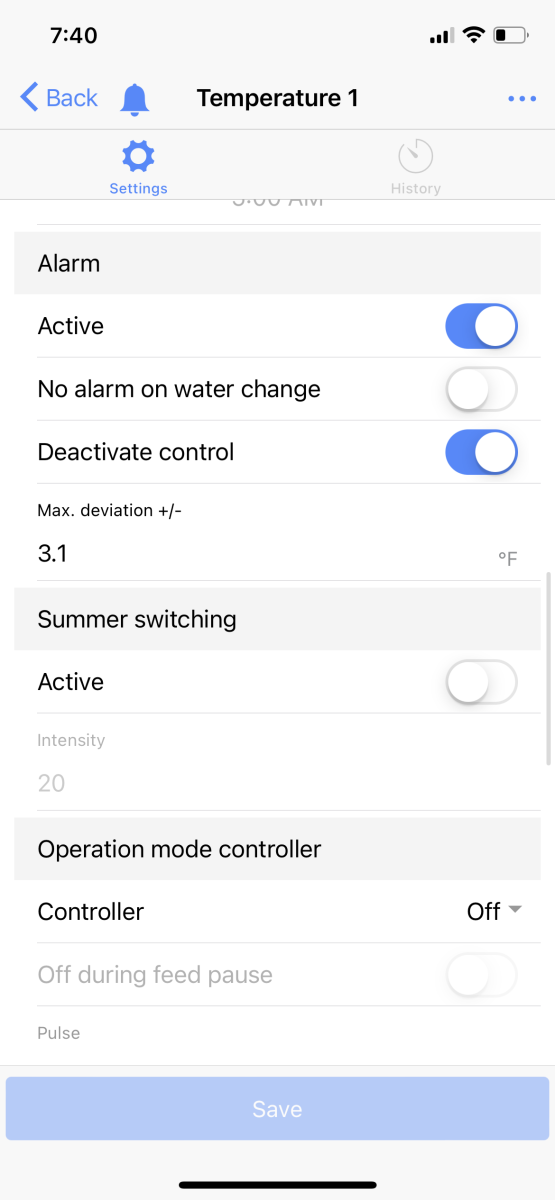

Operation Mode Controller.... Yours is set to off. Mine is set to Two Position. I never noticed this before but maybe try that?

Invert should be off.



[ingchr1]

Missed that, yes set the Operation Mode Controller to Two Position.



[Aeb1419]

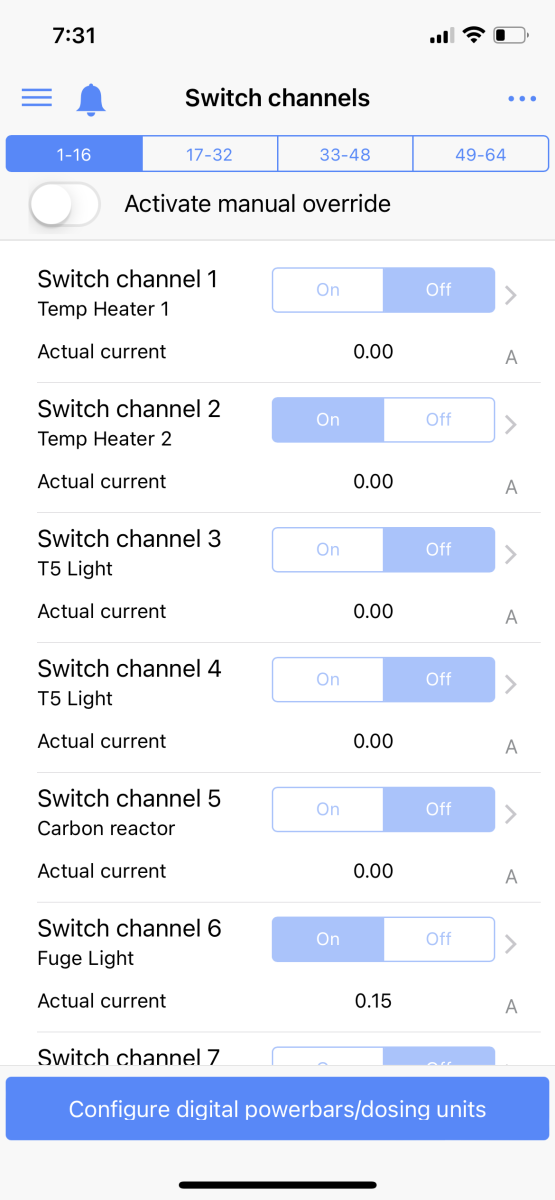

Ok tried it and still the outlet shuts off once I turn invert off.



[ingchr1]

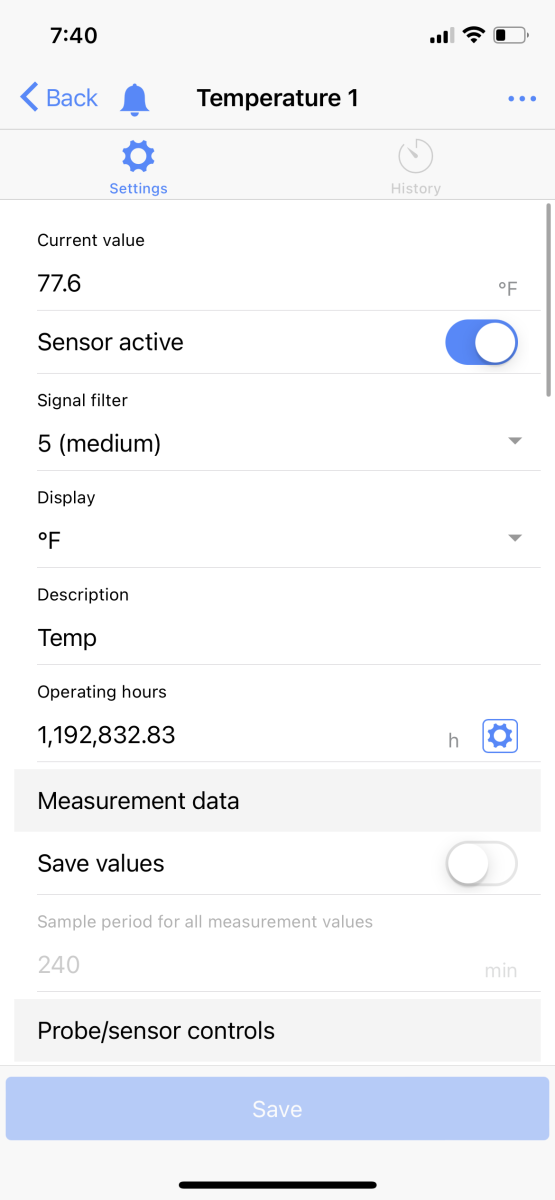

When it turned off, what was the temperature sensor reading?



[Aeb1419]

77.5F



[ingchr1]

77.5F

The outlet turns on with decreasing temperature. With the settings you posted the outlet will not turn on until temperature decreases to ~77.3F. It will turn off at ~77.6F on increasing temperature. Watch it for a cycle of on/off. From what I can see, off is the correct state at the moment.



[gbroadbridge]

Operation Mode Controller.... Yours is set to off. Mine is set to Two Position. I never noticed this before but maybe try that?

Invert should be off.

Have you read the instructions?

How to setup heater control - GHL Advanced Technology

www.aquariumcomputer.com



[d2mini]

Have you read the instructions?

How to setup heater control - GHL Advanced Technology

www.aquariumcomputer.com

Not in about 12 years. :grinning-face-with-smiling-eyes: Why do you ask?



[gbroadbridge]

Not in about 12 years. :grinning-face-with-smiling-eyes: Why do you ask?

lol. I quoted the wrong post.
Was pointing out the setup instructions to the OP.



[Aeb1419]

Yea I suck at that.

I get it now. Thanks alot for all the help.
