Help with 1-10V interface

mx36 · Dec 22, 2019

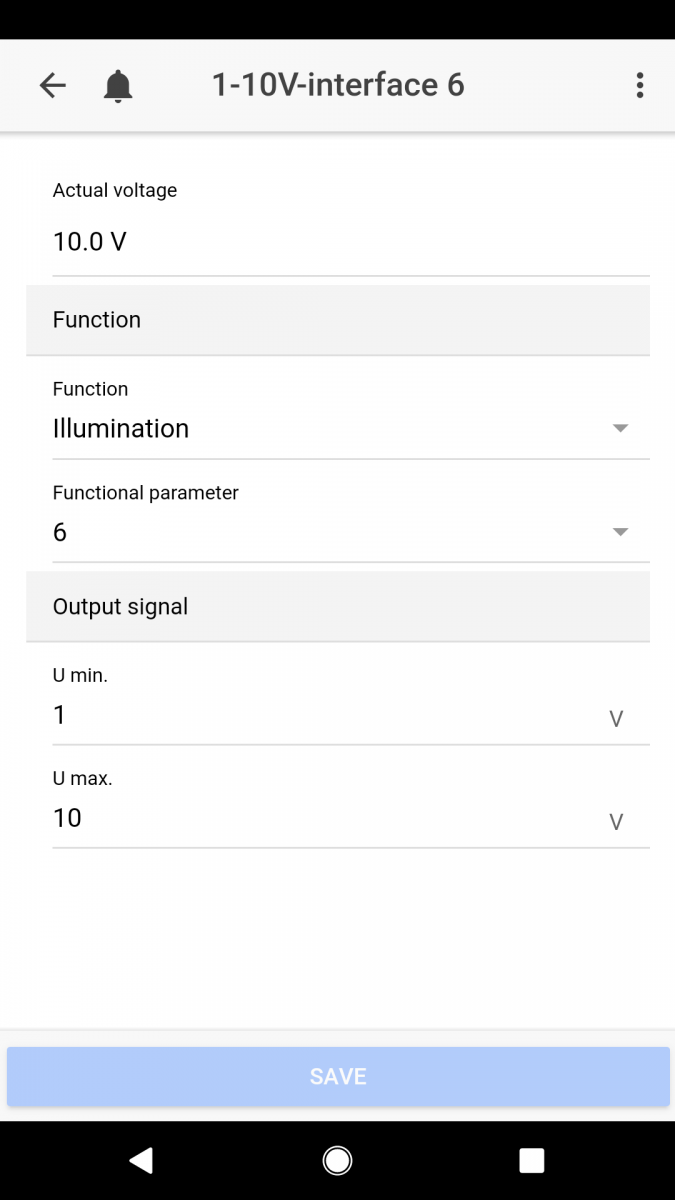

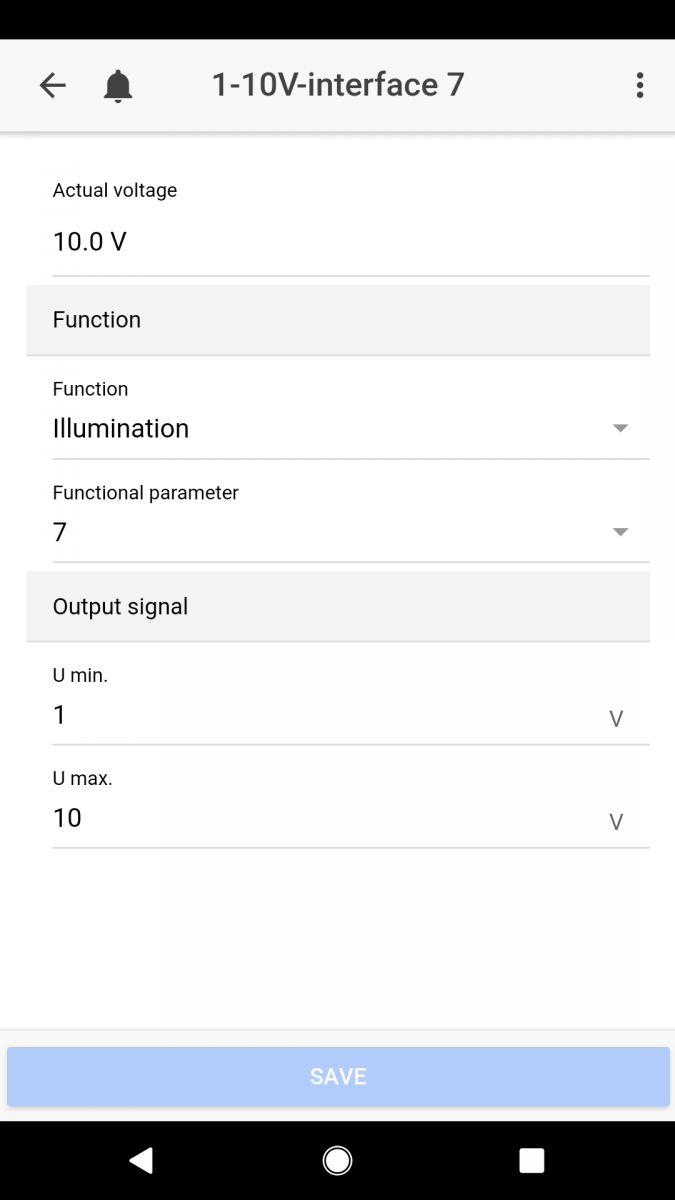

Trying to run a Kessil A160 with the 1-10V interface but can't seem to get the color to change. It always stays on blue even when set to 100%. I am using a profilux 4 and is hooked to an expansion box 2. I have a profilux 3 and it seems to work fine with that. Not sure if I am missing something on the set up? Interface and Illumination 6 should be color and 7 should be brightness.

Ditto · Dec 23, 2019

Here my video on the Kessil light setup.

Are you using the correct 1-10v port for the color change? If you go into the 1-10v port and adjust the voltage min and max do you see it change there?

mx36 · Dec 23, 2019

Thanks got it figured out, interface 6 was running on the profilux 4, since the cable from the breakout box was hooked to the expansion box 1-10v port I should have been using interface 7 and 8, instead of 6 & 7.
