In search of a nozzle

AI Nero 5

Carolina79

Community Member
Review score
+0 /0 /-0
View Badges
Joined
Mar 9, 2022
Messages
69
Reaction score
25
Review score
+0 /0 /-0
Location
apollo beach
Rating - 0%
0   0   0
@Vivid Creative Aquatics hi I recently did an 80g build. The output is not a nozzle but PVC. I would like to get a nozzle but not sure what attachments to get. I will send pics of the size that I would need. The first picture is where I would put the new VCA nozzle, and second pic is the pvc that is currently there. Thanks in advance

7B50C1CF-D08F-468F-AF55-FBC41F3EDC33.jpeg 2D07854F-7B28-4AC3-ACB2-9BCCC7318817.jpeg

Tidal Gardens

Vivid Creative Aquatics

Upgrade Your Flow!
Review score
+0 /0 /-0
View Badges
Joined
Oct 12, 2017
Messages
1,126
Reaction score
1,536
Review score
+0 /0 /-0
Location
Phoenix, AZ
Rating - 0%
0   0   0
@Vivid Creative Aquatics hi I recently did an 80g build. The output is not a nozzle but PVC. I would like to get a nozzle but not sure what attachments to get. I will send pics of the size that I would need. The first picture is where I would put the new VCA nozzle, and second pic is the pvc that is currently there. Thanks in advance

7B50C1CF-D08F-468F-AF55-FBC41F3EDC33.jpeg 2D07854F-7B28-4AC3-ACB2-9BCCC7318817.jpeg
I'm sur we have an adapter that would fit this - we make a various pipe-Loc-Line adapters

I'm assuming tis is Schl40 PVC - what size is it 1/2in or 3/4in?

Tidal Gardens
OP
Carolina79

Carolina79

Community Member
Review score
+0 /0 /-0
View Badges
Joined
Mar 9, 2022
Messages
69
Reaction score
25
Review score
+0 /0 /-0
Location
apollo beach
Rating - 0%
0   0   0
I'm sur we have an adapter that would fit this - we make a various pipe-Loc-Line adapters

I'm assuming tis is Schl40 PVC - what size is it 1/2in or 3/4in?

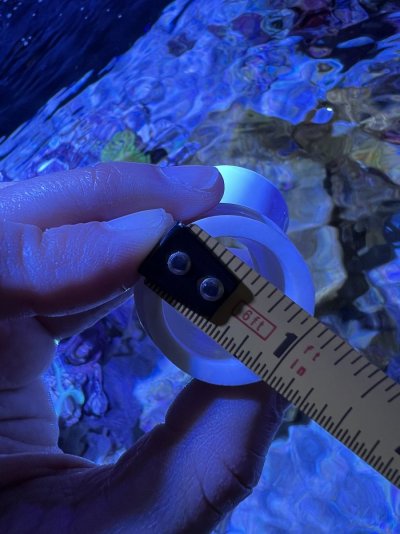

Not too sure, my LFS owner did the build. But the pic with the measuring tape is the male part that goes into the first pic…. Sorry I’m terrible at this stuff . So that’s 1 inch diameter that goes into the female lol ( geez)


Vivid Creative Aquatics

Upgrade Your Flow!
Review score
+0 /0 /-0
View Badges
Joined
Oct 12, 2017
Messages
1,126
Reaction score
1,536
Review score
+0 /0 /-0
Location
Phoenix, AZ
Rating - 0%
0   0   0
Not too sure, my LFS owner did the build. But the pic with the measuring tape is the male part that goes into the first pic…. Sorry I’m terrible at this stuff . So that’s 1 inch diameter that goes into the female lol ( geez)
That second image looks like the 45deg elbow FEMALE part - in which case i would call this 1/2in PVC, but if that is in fact a MALE fitting, then I would call it closer to 3/4in PVC - LOL

Are there any marking on the part? there will ussualy be some indication what size PVC it is.

Either way - we do have schl 40 PVC pipe adapters that work

Tidal Gardens
OP
Carolina79

Carolina79

Community Member
Review score
+0 /0 /-0
View Badges
Joined
Mar 9, 2022
Messages
69
Reaction score
25
Review score
+0 /0 /-0
Location
apollo beach
Rating - 0%
0   0   0
That second image looks like the 45deg elbow FEMALE part - in which case i would call this 1/2in PVC, but if that is in fact a MALE fitting, then I would call it closer to 3/4in PVC - LOL

Are there any marking on the part? there will ussualy be some indication what size PVC it is.

Either way - we do have schl 40 PVC pipe adapters that work
Ok let’s see if these pics are better for you. There are 2 parts. You are correct, they are schl 40 pvc 45 degree. The female would need a 1 inch male nozzle. The piece that is currently attached is a one inch male. Im not sure what is all that I need from you guys but it would need to be 1 inch male. I hope this makes better sense and I appreciate the help. If you could tell me exactly what to buy from your site that’d be awesome!


Attachments

  • 22CCD8D0-8BAD-417A-8483-9411770EC752.jpeg
    114.3 KB · Views: 9
  • 2550CDC5-FF83-40A8-81C9-ACC69DCAFBCE.jpeg
    136.9 KB · Views: 8
  • 9C99B475-ECE8-453B-87BA-8A5CE91DF7E3.jpeg
    86.4 KB · Views: 7
  • C46DD79A-1B05-40BF-AD33-832600E33C62.jpeg
    125.2 KB · Views: 7

Vivid Creative Aquatics

Upgrade Your Flow!
Review score
+0 /0 /-0
View Badges
Joined
Oct 12, 2017
Messages
1,126
Reaction score
1,536
Review score
+0 /0 /-0
Location
Phoenix, AZ
Rating - 0%
0   0   0
Ok let’s see if these pics are better for you. There are 2 parts. You are correct, they are schl 40 pvc 45 degree. The female would need a 1 inch male nozzle. The piece that is currently attached is a one inch male. Im not sure what is all that I need from you guys but it would need to be 1 inch male. I hope this makes better sense and I appreciate the help. If you could tell me exactly what to buy from your site that’d be awesome!
That las image did the trick - so definitely 3/4in Schl 40 PVC.

We actually just released a brand new line of adapters called a "Multidapter" that is a perfect fit for this plumbing scenario - so your time in good.

The Multidapter™ will allow you to add a modular hose connector directly to pipes, pipe sockets, bulkheads and other fittings, without glue, tape or modifications to the pipe.


1674616279831.png 1674616301519.png

Specifically , for your 3/4in PVC pipe socket, you can use our Multidpater 2530 Series. These are available in both 3/4in and 1in Modular hose sizes. My guess is you will want the 3/4in Loc-Line size.

The Multidapter will inset directly into the female pipe socket as indicated below. You can keep that extra elbow you're holding in your photos or eliminate it for simplicity



Once the Multidapter is installed, you can then add Loc-Line.

For instance if you wanted to add a single 3/4in RFG Nozzles - this is what you would need:

Multidpater™ 2530LL075

1 stick of 3/4in Loc-Line

1 3/4in Random Flow Generator

Let me know what your return pump is rated for, and I can make some recommendations as to what size (and how many) RFGs you can run on that outlet.

Regardless of which size RFG you go with, the Multidapter 2530 is the way to go to get the plumbing ready for the RFG

OP
Carolina79

Carolina79

Community Member
Review score
+0 /0 /-0
View Badges
Joined
Mar 9, 2022
Messages
69
Reaction score
25
Review score
+0 /0 /-0
Location
apollo beach
Rating - 0%
0   0   0
That las image did the trick - so definitely 3/4in Schl 40 PVC.

We actually just released a brand new line of adapters called a "Multidapter" that is a perfect fit for this plumbing scenario - so your time in good.

The Multidapter™ will allow you to add a modular hose connector directly to pipes, pipe sockets, bulkheads and other fittings, without glue, tape or modifications to the pipe.


1674616279831.png 1674616301519.png

Specifically , for your 3/4in PVC pipe socket, you can use our Multidpater 2530 Series. These are available in both 3/4in and 1in Modular hose sizes. My guess is you will want the 3/4in Loc-Line size.

The Multidapter will inset directly into the female pipe socket as indicated below. You can keep that extra elbow you're holding in your photos or eliminate it for simplicity



Once the Multidapter is installed, you can then add Loc-Line.

For instance if you wanted to add a single 3/4in RFG Nozzles - this is what you would need:

Multidpater™ 2530LL075

1 stick of 3/4in Loc-Line

1 3/4in Random Flow Generator

Let me know what your return pump is rated for, and I can make some recommendations as to what size (and how many) RFGs you can run on that outlet.

Regardless of which size RFG you go with, the Multidapter 2530 is the way to go to get the plumbing ready for the RFG
THANK YOU SO MUCH, how confusing, it says 3/4 but when I measure it’s a 1 inch diameter on the skinny end of that fitting (male end) Any how this is super helpful and much apppreciated. Here is a picture of my return pump. I have an 80g DT AND 40 g breeder sump. THANKS AGAIN!


Attachments

  • E7896A0D-A4DF-47E0-9149-E01DF13D34D1.jpeg
    207.2 KB · Views: 4

Vivid Creative Aquatics

Upgrade Your Flow!
Review score
+0 /0 /-0
View Badges
Joined
Oct 12, 2017
Messages
1,126
Reaction score
1,536
Review score
+0 /0 /-0
Location
Phoenix, AZ
Rating - 0%
0   0   0
THANK YOU SO MUCH, how confusing, it says 3/4 but when I measure it’s a 1 inch diameter on the skinny end of that fitting (male end) Any how this is super helpful and much apppreciated. Here is a picture of my return pump. I have an 80g DT AND 40 g breeder sump. THANKS AGAIN!
Yeah - plumbing can be confusing. As a rule of thumb - schel 40 PVC dimensions, generally refer to the inner diameter of the pipe. 3/4in PVC pipe will have an inner diameter (ID) off 3/4in. the OD, or outer diameter will vary. Pipe sockets (or female fitting) like on the elbow part you have where the pipe fits into it, will then have an ID that matches the OD of the pvc pipe it fits – so that’s not a reliable way of measuring schl 40 PVC

Metric pip on the other hande is different. Matric pipe is used in most of Europe and on most of the manufactured tanks (Red Sea, Cade, Waterbox, etc) that are not made here in the US. Metric pipe dimensions generally refer the OD, or outer diameter. For example, 25mm pipe will have an outer diameter of 25mm. The ID will vary based on it’s pressure rating.

All very confusing, and there is more to it, but I’m sure that more than you really want to o know anyway – LOL

So – based on your pump you could run the single 3/4in RFG for a softer, less punchy flow, or you could step down to the 1/2in RFG for a stronger, more punchy randomized flow. Either one will work. if you doing mostly softies, then I would suggest the 3/4in in this case.

If however you do want that stronger wave-make like flow, then the 1/2in is the way to go here, based on your pump.

This is what you would need:

Multidpater™ 2530LL075


3/4in to 1/2in Loc-Line Reducer

Some 1/2in Loc-Line

the 1/2in Flex-Series Random Flow Generator® Nozzle

This will add a single 1//2in RFG nozzle and with your pump size, you will be bale to overdrive it a bit for that strong punchy flow.

OP
Carolina79

Carolina79

Community Member
Review score
+0 /0 /-0
View Badges
Joined
Mar 9, 2022
Messages
69
Reaction score
25
Review score
+0 /0 /-0
Location
apollo beach
Rating - 0%
0   0   0
Yeah - plumbing can be confusing. As a rule of thumb - schel 40 PVC dimensions, generally refer to the inner diameter of the pipe. 3/4in PVC pipe will have an inner diameter (ID) off 3/4in. the OD, or outer diameter will vary. Pipe sockets (or female fitting) like on the elbow part you have where the pipe fits into it, will then have an ID that matches the OD of the pvc pipe it fits – so that’s not a reliable way of measuring schl 40 PVC

Metric pip on the other hande is different. Matric pipe is used in most of Europe and on most of the manufactured tanks (Red Sea, Cade, Waterbox, etc) that are not made here in the US. Metric pipe dimensions generally refer the OD, or outer diameter. For example, 25mm pipe will have an outer diameter of 25mm. The ID will vary based on it’s pressure rating.

All very confusing, and there is more to it, but I’m sure that more than you really want to o know anyway – LOL

So – based on your pump you could run the single 3/4in RFG for a softer, less punchy flow, or you could step down to the 1/2in RFG for a stronger, more punchy randomized flow. Either one will work. if you doing mostly softies, then I would suggest the 3/4in in this case.

If however you do want that stronger wave-make like flow, then the 1/2in is the way to go here, based on your pump.

This is what you would need:

Multidpater™ 2530LL075


3/4in to 1/2in Loc-Line Reducer

Some 1/2in Loc-Line

the 1/2in Flex-Series Random Flow Generator® Nozzle

This will add a single 1//2in RFG nozzle and with your pump size, you will be bale to overdrive it a bit for that strong punchy flow.
Thanks so much, I’ll get on the site and order !

OP
Carolina79

Carolina79

Community Member
Review score
+0 /0 /-0
View Badges
Joined
Mar 9, 2022
Messages
69
Reaction score
25
Review score
+0 /0 /-0
Location
apollo beach
Rating - 0%
0   0   0
Thanks so much, I’ll get on the site and order !
Ok I have one more question, so sorry. I forgot I had this piece sitting around never used. I’m interested in using this, I’m guessing I can attach your RFG nozzles to this, but would need a piece to attach to my current 3/4 pvc. Pics below


Attachments

  • 1309435C-8DF9-46C0-8BED-A28413E5BAB6.jpeg
    96.8 KB · Views: 2
  • 6EA2F2E9-061F-4C5D-A162-8A906B5404C4.jpeg
    81.2 KB · Views: 3
  • 51B12BC0-7292-4D83-872B-3A1CAE5FCCFB.jpeg
    147.7 KB · Views: 2
  • DD555124-CBBD-4DEB-BC55-8AA74BFCF429.jpeg
    155.6 KB · Views: 2
www.dinkinsaquaticgardens.com

Vivid Creative Aquatics

Upgrade Your Flow!
Review score
+0 /0 /-0
View Badges
Joined
Oct 12, 2017
Messages
1,126
Reaction score
1,536
Review score
+0 /0 /-0
Location
Phoenix, AZ
Rating - 0%
0   0   0
Ok I have one more question, so sorry. I forgot I had this piece sitting around never used. I’m interested in using this, I’m guessing I can attach your RFG nozzles to this, but would need a piece to attach to my current 3/4 pvc. Pics below
That looks like Innovative Marine Dual outlet setup - our 1/2in Flex Series should attach to the end (where the flare nozzles are), but we don't have an adapter that will work in your scenario from the 3/4in PVC pipe to that sort of fitting. if it where genuine Loc-Line, then we could do it, but unfortunately it is not.

based on your pump, I honestly think you would be better off with a single RFG, but if you do want to split it, its easy enough to do using genuine Loc-Line parts

This is what you would need:

Multidpater™ 2530LL075

3/4in to 1/2in Loc-Line Y Reducer

1/2in Loc-Line - 1 to 2 stick

two, 1/2in Flex-Series Random Flow Generator® Nozzle
