Innovative Marine Nuvo-INT 50 Build

[mark7x77]

Hello fellow reefers, it's been a while since I've been serious about this hobby, but I'm going all in again! Since I've not seen much info on other guys using the Nuvo-INT 50 in their build, I figured I'll share what I'm currently building.

Equipment used;
Tank = Innovative Marine NUVO-INT 50 with Internal Overflow Aquarium
Stand = Innovative Marine APS Cabinet Stand
Sump = Trigger Systems Emerald CUBE Sump - 20x20 inch
Skimmer = Bubble Magus Curve 5
Return Pump = For now, a Jabeo DCP-2500 (Will probably upgrade this to a Current USA eFlux6009, unless anyone recommends differently)
Light = I'll be using a single Radion XR15

Everything came in about a week ago, plumbed over this past weekend, and water in as of yesterday. Couple little challenges I experienced in this build so far.

1.) The 20" Trigger sump only had one return line originally, so I had to drill out a 2nd hole to support the Bean Animal Drain.
2.) The sump fits perfectly in the IM stand, but I did have to remove the bottom magnets for the two doors. This is not a problem since there are also two magnets on the top to support the doors closing and locking in place.

I'll do my best to provide updates on a monthly basis.

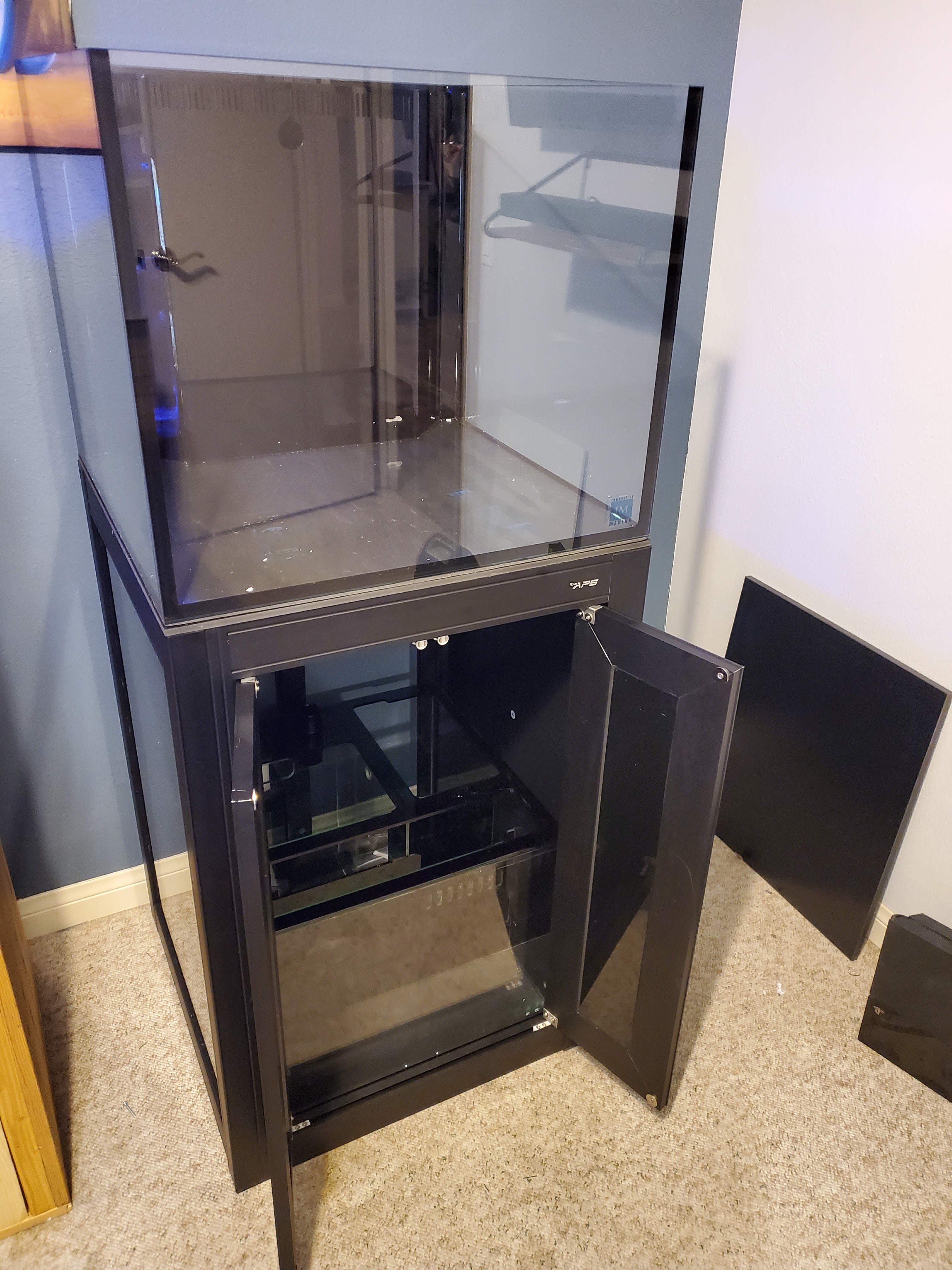

Here's some pics of my progress so far.



[S.Pepper]

looking good so far. following!



[mark7x77]

50 Lbs Dry Live Rock from AquaMaxx added over the weekend.. now the waiting game



[AlexKintner]

Following... and looking forward to your progress.

I was looking at pretty much the exact same setup. Was thinking there would be a little room to spare with the 20" Trigger sump... I guess not so much!



[mark7x77]

Following... and looking forward to your progress.

I was looking at pretty much the exact same setup. Was thinking there would be a little room to spare with the 20" Trigger sump... I guess not so much!

I'm very happy with this setup so far. The 20" Trigger fit perfectly and I have zero complaints. Posting a few progress photos in a few.



[mark7x77]

Tank has been up and running since December. Cycled very quickly with the help of BioDigest Live Bacteria and a a little live rock from my nano tank. Moved over the few frags I had left from the Nano about a month ago. Gotta say, I sure missed having a good skimmer.



[Crazypirate]

Thank you for sharing! I am thinking about the same build in a couple of months! The only concern I have is the IM int 50's stand inner dimension is 19.3 x 19.3 which is just a hair short of the trigger 20 x 20 sump, but it looks just fine! Do you have to slide the sump in from top before you put tank on?



[mark7x77]

Thank you for sharing! I am thinking about the same build in a couple of months! The only concern I have is the IM int 50's stand inner dimension is 19.3 x 19.3 which is just a hair short of the trigger 20 x 20 sump, but it looks just fine! Do you have to slide the sump in from top before you put tank on?

Hello, yes I installed the sump before putting the top on. I also had to remove the lower magnets of the doors to allow them to close correctly (upper magnets work fine by themselves).



[DARTHROB]

Your post was an inspiration and a huge help for my very first build. Check out my post for the pics. Thank you!



[mark7x77]

Your post was an inspiration and a huge help for my very first build. Check out my post for the pics. Thank you!

You're absolutely welcome, happy to help! Looks like I need to post some updates on how my tank been doing. I'll put that on my task list.



[fugitiveALiEN]

Any updates to the tank? It appears that Trigger Systems discontinued the 20g Emerald Cube Sump (EMERALD20C) at least that's what the BRS website has said versus Trigger's website still listing the emerald series on this page: https://www.triggersys.com/ts/emerald_sumps/



[mark7x77]

Any updates to the tank? It appears that Trigger Systems discontinued the 20g Emerald Cube Sump (EMERALD20C) at least that's what the BRS website has said versus Trigger's website still listing the emerald series on this page: https://www.triggersys.com/ts/emerald_sumps/

Tank is still up and was doing great, up until I got a little lazy with maintenance these past couple months. Now battling some hair algae, should have it back to presentable soon. I'll post some pics when I feel it's good to share again.

As far as Trigger discontinuing the 20G Emerald series, that sucks, it's a great sump for this setup. Here's a couple alternatives from Trigger that should work also as a FYI.

Lagoon 50 APS Cabinet Aquarium Stand

The New Standard For Aquarium Stands Innovative Marine APS (Aluminum Profile Series) cabinet stands are made of lightweight aluminum and can be assembled in minutes! Available in a beautiful wood grain or matte black finish. Dimensions - 30" L x 24" W x 36" H Compatible with the Innovative...

www.marinedepot.com

Triton 20 V2 Sump

The perfect sump design for reef tanks that use the Triton Method! The Triton 20 V2 Sump is great for aquariums up to 90 gallons and specially made to have a large refugium that meets the 10% volume recommendation for the Triton Method of reefing. Now with optional filter sock holders...

www.marinedepot.com

Platinum Sump Cube 20

Trigger Systems has been testing its Platinum series for over a year and a half to make sure they have a solid, proven design. This series includes an automated, continuous mechanical filtration that replaces filter socks. Trigger has tested several different designs and found that having the...

www.marinedepot.com



[fugitiveALiEN]

Definitely understand, our family room 75g has some hair algae as well. Hoping to pickup an algae scrubber to address the issue soon. I saw DarthRob's INT 50 thread and he got the newer sapphire sump from Trigger, so one of those should do the trick in that stand just fine.



[Cmp1985]

I just got this tank and finished the plumbing. I have a question in regards to the overflow pipes and keeping it silent. My full siphon drain is fine, but when the slightest bit of water goes down the secondary drain its loud. How do you make that drain silent also?



[lostinreef]

I just got this tank and finished the plumbing. I have a question in regards to the overflow pipes and keeping it silent. My full siphon drain is fine, but when the slightest bit of water goes down the secondary drain its loud. How do you make that drain silent also?

The secondary drain is loud by design to let you know the primary is blocked. Open the primary up a bit until the water level is below your emergency drain



[mark7x77]

I just got this tank and finished the plumbing. I have a question in regards to the overflow pipes and keeping it silent. My full siphon drain is fine, but when the slightest bit of water goes down the secondary drain its loud. How do you make that drain silent also?

T

The secondary drain is loud by design to let you know the primary is blocked. Open the primary up a bit until the water level is below your emergency drain

The secondary drain should very minimal water going through it to keep it quite.

To confirm, do you have a Gate Valve on your main drain to be able to control the flow accurately?



[Cmp1985]

T


The secondary drain should very minimal water going through it to keep it quite.

To confirm, do you have a Gate Valve on your main drain to be able to control the flow accurately?

Yes I do. The water level in the overflow is never perfectly consistent. The slightest trickle of water goes down the second pipe and it is very loud.i ever so slightly open the gate valve more and after a half hour or so the overflow level is too low and its trickling down the overflow. So I slightly close the valve to allow it to rise up over time and it get to the point where its going down the second pipe. Its been a back and forth go at this for 2 days



[mark7x77]

Yes I do. The water level in the overflow is never perfectly consistent. The slightest trickle of water goes down the second pipe and it is very loud.i ever so slightly open the gate valve more and after a half hour or so the overflow level is too low and its trickling down the overflow. So I slightly close the valve to allow it to rise up over time and it get to the point where its going down the second pipe. Its been a back and forth go at this for 2 days

That's odd, mine hasn't need any adjustment as soon as it was dialed in. When tinkering with your gate valve, are you doing very *minor* adjustments?

If not that, I wonder if your return pump might not be consistent.



[Cmp1985]

That's odd, mine hasn't need any adjustment as soon as it was dialed in. When tinkering with your gate valve, are you doing very *minor* adjustments?

If not that, I wonder if your return pump might not be consistent.

Yes it feels like I'm not even moving it. My pump in undersized and I have a new one coming tomorrow that will help deal with the head pressure better(apparently). That may be my problem



[mark7x77]

Yes it feels like I'm not even moving it. My pump in undersized and I have a new one coming tomorrow that will help deal with the head pressure better(apparently). That may be my problem

Got it, hopefully your new pump fixes the issue, good luck!
