Jesse's Deep Blue 80g Rimless Build

Jessebaker199

New Member
View Badges
Joined
Nov 30, 2015
Messages
3
Reaction score
4

Jesse’s​

80g Rimless Build​


Tank:

80g Deep Blue Rimless 48” x 24” x 16”

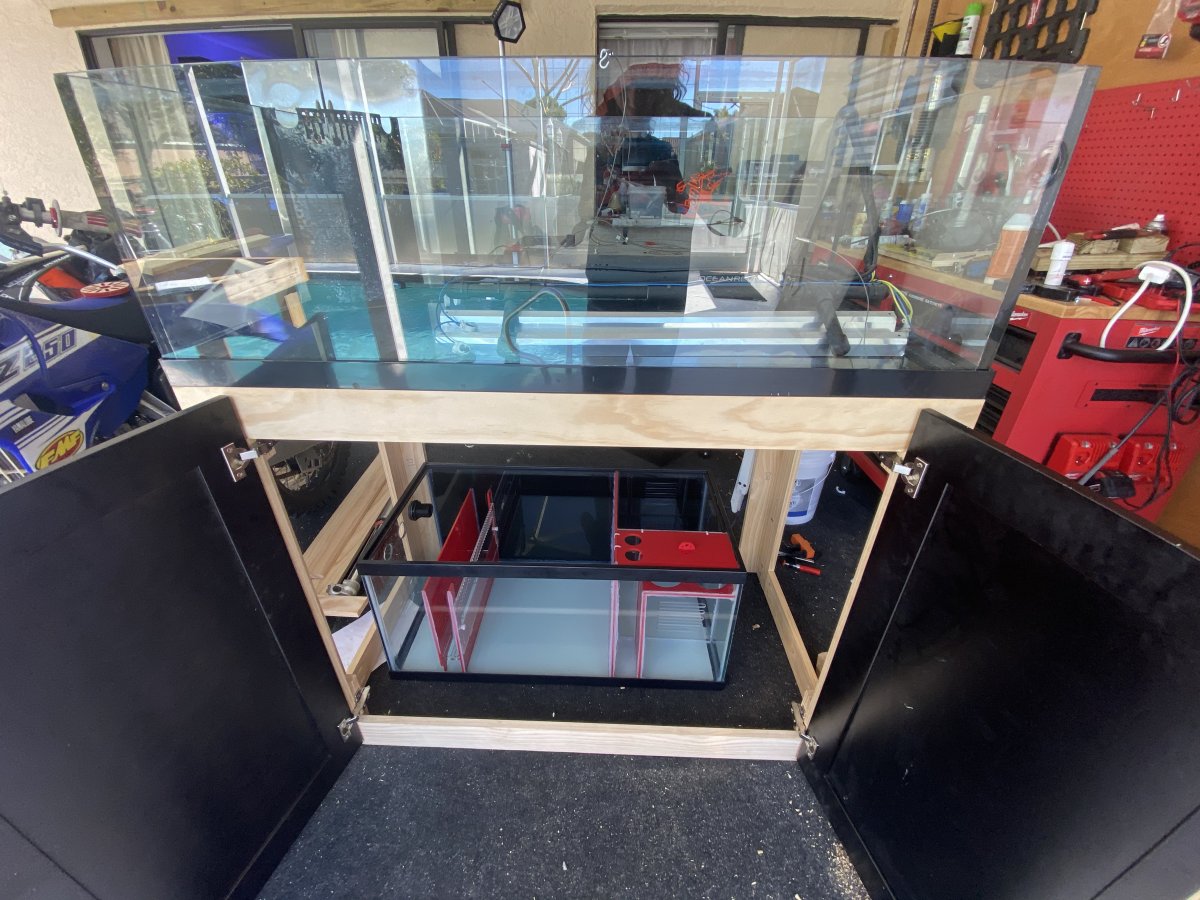

(I didn't know it at the time but I was far from done when I took that photo lol)

Stand:

Select Finished Pine 48” x 25½” x 36”




Sump:

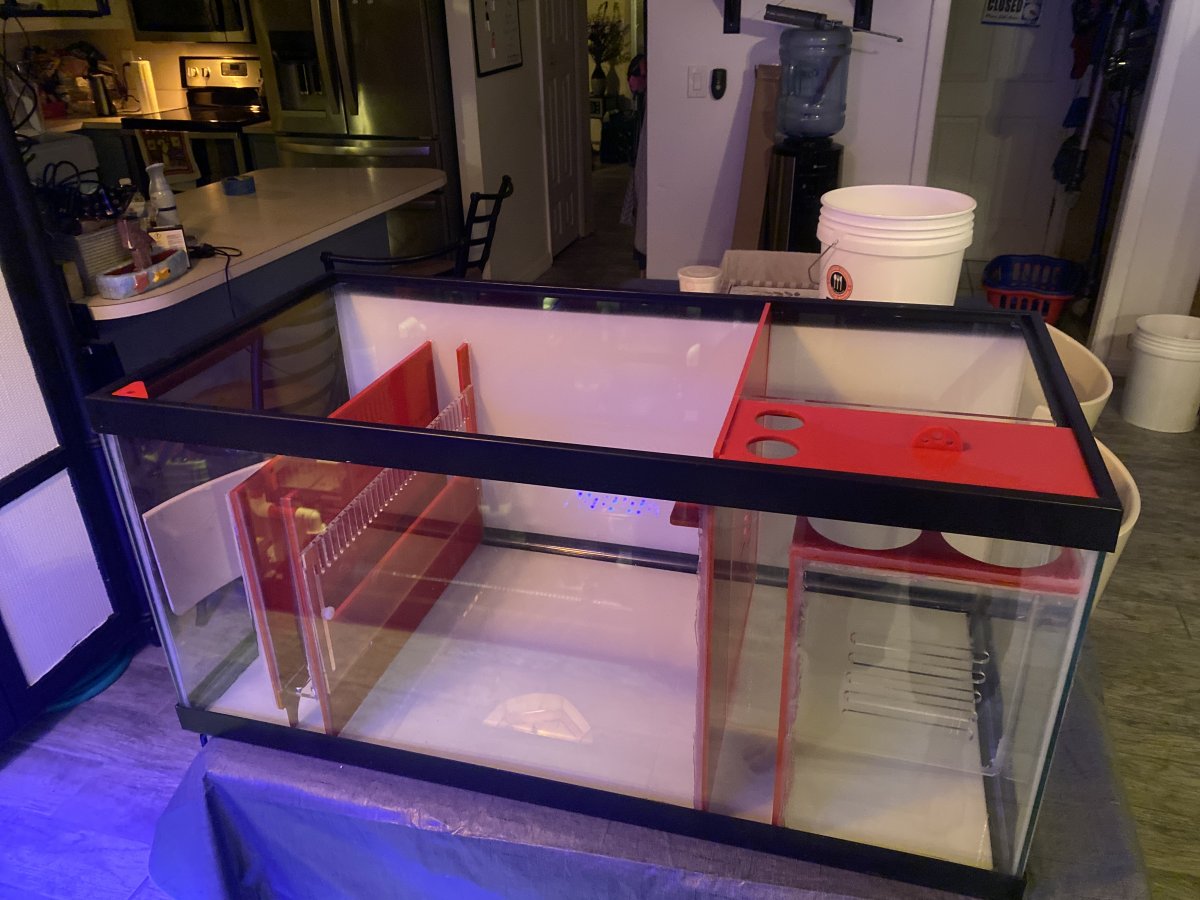

Custom 40g Breeder with Triton Refugium baffles 36” x 18” x 16”



Rock:

LifeRock Dry Live Rock – Caribsea 80Lbs




Sand:

Real Dry Live Sand – Cayo Costa




ATO Container:


Trigger System 10 Gallon ATO 8″ x 18″ x 18″ Clear



Filtration:

  • Reef Octopus Regal 200INT 8" Internal Protein Skimmer
  • Reef Octopus BioChurn 90INT Biopellet Reactor with HOB Bracket
  • Pentair Aquatics Smart UV 40 Watt

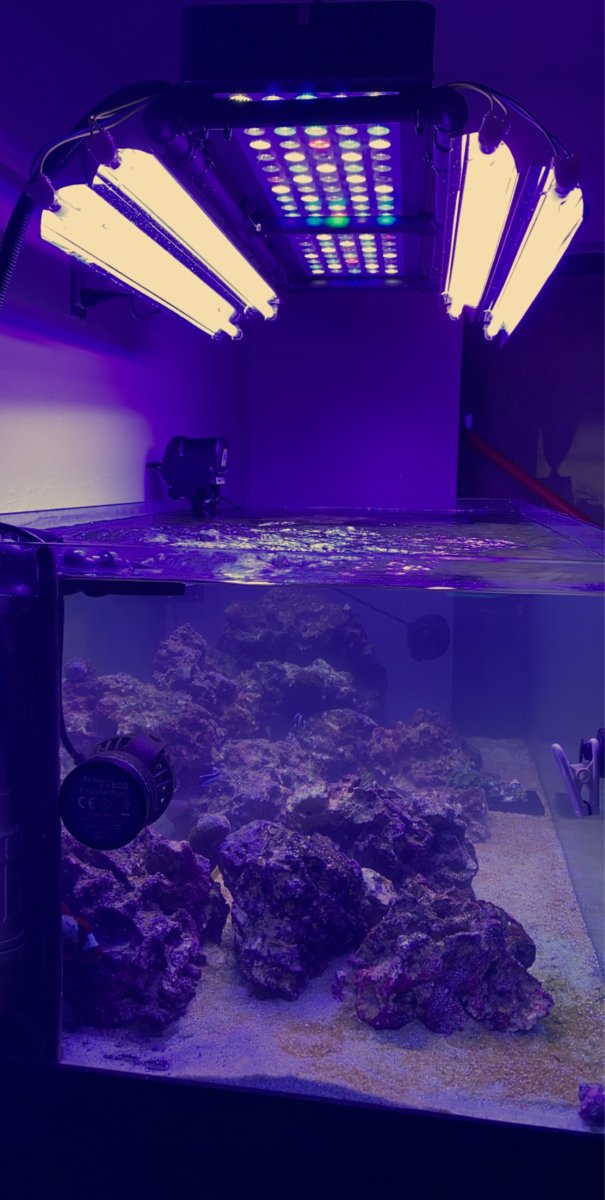

Lights:

  • ATI 39W 36” T5 BLUE PLUS
  • ATI 39W 36” T5 CORAL PLUS
  • ATI 39W 36” T5 CORAL PLUS
  • ATI 39W 36” T5 PURPLE PLUS
  • VIPARSPECTRA 300W Dual Channel LED
  • Neptune Systems Lunar Simulator Lunar LED Strings






















Tank Control:


  • Neptune Systems Apex Base Controller
  • Neptune Systems EB8 ENERGY BAR 8
  • Neptune Systems EB8 ENERGY BAR 8
  • Neptune Systems ATS Automatic Feeding System
  • Neptune Systems Breakout Box
  • Neptune Systems Breakout Box
  • Neptune Systems PM2 Salinity Module
  • Neptune Systems Dosing and Fluid Metering System
  • Neptune Systems DOS Dual Reservoir
  • Neptune Systems LSM Lunar Simulator Module
  • BRS Double Junction Lab Grade PH Probe


Return Pumps:

  • JEBAO MDC-10000: 2642gph, 6.0M
  • JEBAO MDC-10000: 2642gph, 6.0M
  • JEBAO MDC-10000: 2642gph, 6.0M


Wavemakers:

  • JEBAO RW8/PP8 Wavemaker 180-2100GPH (Old)
  • JEBAO RW8/PP8 Wavemaker 180-2100GPH (Old)
  • Reef Octopus Octo Pulse 2 Wave Pump (1600 GPH)
  • Reef Octopus Octo Pulse 2 Wave Pump (1600 GPH)





Plumbing:

  • Pipes:
  • 1/2" x 46" Red Schedule 40 Pipe
  • 3/4" x 46" Red Schedule 40 Pipe
  • 1" x 46" Red Schedule 40 Pipe
  • Valves:
  • 3x 1/2” Cepex Ball Valves
  • 3x 3/4” Cepex Ball Valves
  • 3x 1” Cepex Ball Valve
  • 2x 1/2” Spears Gate Valve Slip x Slip
  • 1” Spears Gate Valve Slip x Slip
Source Water Filtration:

  • BRS 5 Stage Premium RO/DI System 200gpd
  • Aquatec 1/4" 8800 Booster Pump Kit
  • Dual Inline TDS Meter DM-1 - HM Digital


Additives:

  • Brightwell Aquatics Phosphat-E - Liquid Phosphate Remover
  • BRS Bulk GFO HC Granular Ferric Oxide
  • BRS Bulk Premium ROX 0.8 Aquarium Carbon
  • Polyplab Polyp-Booster
  • Polyplab Reef-Roids Coral Food
  • Korallen-Zucht Amino Acid Concentrate Fish
  • Brightwell Aquatics Lugol's Solution - Advanced Iodine






Testing:


  • Hanna Instruments
  • Hanna Calcium PPM
  • Hanna Alkalinity PPM
  • Hanna Phosphate Ultra Low Range PPM
  • Hanna Nitrate Low Range PPM
  • Red Sea
  • Red Sea Iodine Pro (I2)
  • Red Sea Magnesium Pro (Mg)
  • Red Sea Nitrate Pro (NO3)
  • Red Sea Calcium Pro (Ca)
  • Red Sea Ammonia (NH3/NH4)
  • Salifert
  • Salifert Potassium PPM

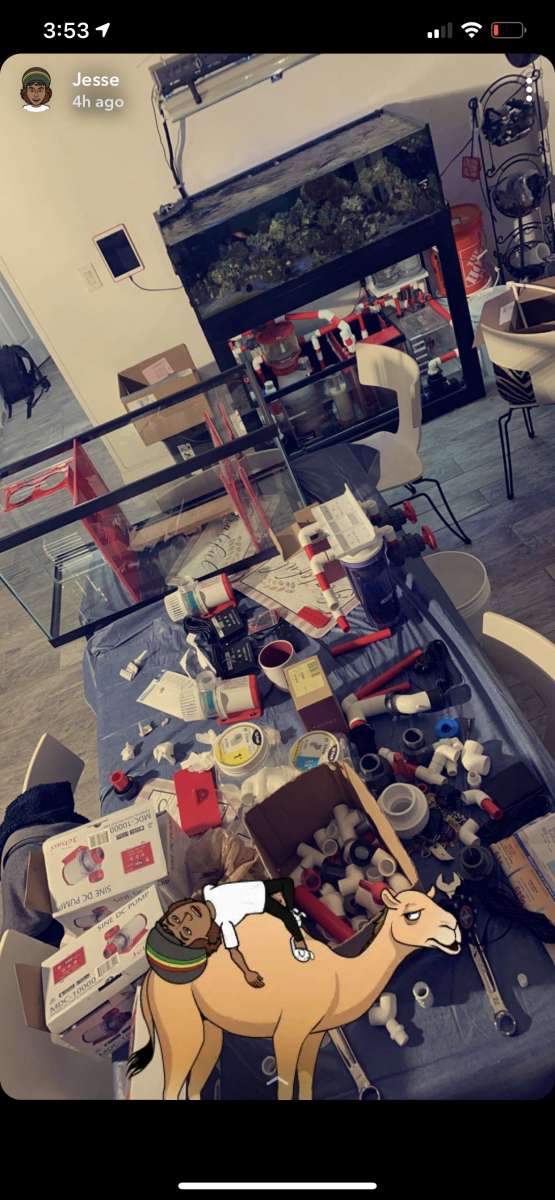

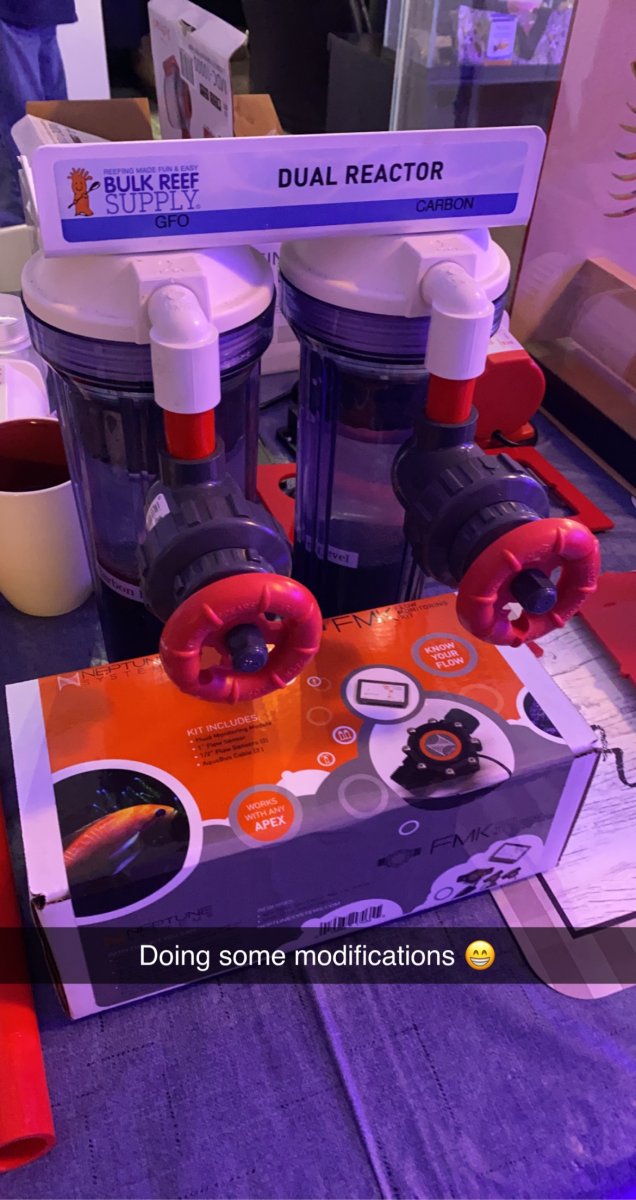

I ran this set up for 8 months and recently cracked the sump and rebuilt everything and made a few modifications in the process. Many photos listed below. :)

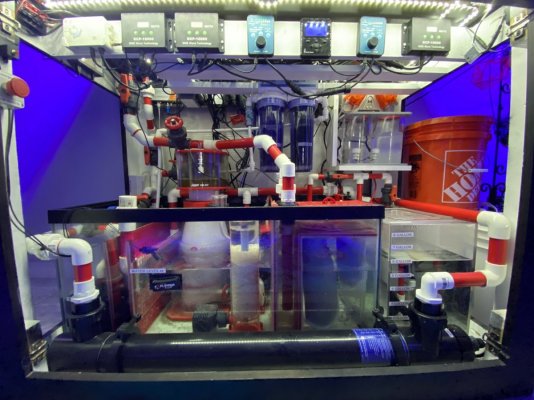

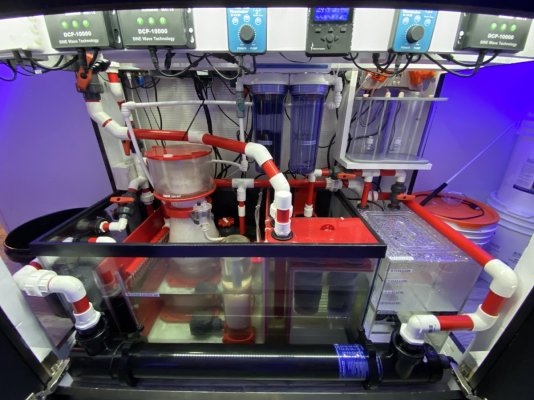

Also did a bunch of wire management!

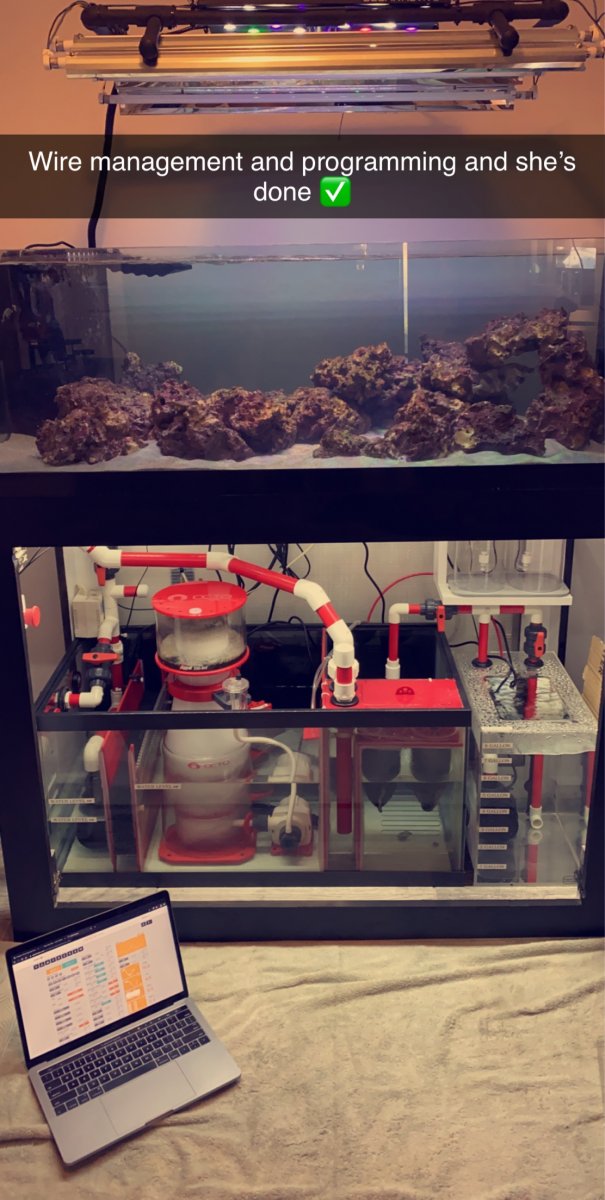

Wire Management finally done and getting ready to swap out the cracked sump and make a few more modifications tomorrow. will post more updates then.
61628031268__D6AFD23F-D0FD-4048-98F3-ED1B8D2EE1B9.JPG IMG_1894(1).jpg IMG_2005.PNG


Attachments

  • MOV_0559.MOV
    63.9 MB · Views: 0
Fritz
OP
Jessebaker199

Jessebaker199

New Member
View Badges
Joined
Nov 30, 2015
Messages
3
Reaction score
4
That's a nice setup! Looks like it's going to be a great SPS tank if that's your end goal :)
Thank you for checking it out! I’m actually a huge fan of Lps so my end goal is a bunch of colorful lps corals with some high end torches. I love lots of visual movement and the torches are so captivating.

CORAL MANIA After Sale
OP
Jessebaker199

Jessebaker199

New Member
View Badges
Joined
Nov 30, 2015
Messages
3
Reaction score
4
I love the deep blue 80 profile. Was close to picking one up a few months ago until I realized I have nowhere to put it :(

Nice tank!
This is my smallest tank I’ve ever had coming from a 6 year old 180 and I must say I’m loving the smaller tank. I’m way more inclined to keep it maintained being able to reach anywhere in the tank. Hopefully you can get some more space. You’d really enjoy this footprint I believe.
