Korallin Replacement Fittings

[LavenderTi]

Looking for leads on replacement fitting for the DN16 pvc to 1/4 tubing. My reactor got pushed and the fitting snapped. Can’t seem to find a replacement that will fit. The threading is not English/imperial.

This is on a korallin 1502 reactor but I’m pretty sure it’s the same for the other sizes.

Help needed! Thanks!



[bluemon]

The fitting should have some markings on it. Do you have pictures? You should be able to find metric fittings



[Reign1]

Looking for leads on replacement fitting for the DN16 pvc to 1/4 tubing. My reactor got pushed and the fitting snapped. Can’t seem to find a replacement that will fit. The threading is not English/imperial.

This is on a korallin 1502 reactor but I’m pretty sure it’s the same for the other sizes.

Help needed! Thanks!

What fitting do you need?. I had one crack that i have had sitting for years. LMK (pic) what you are missing. I may be able to help.



[LavenderTi]

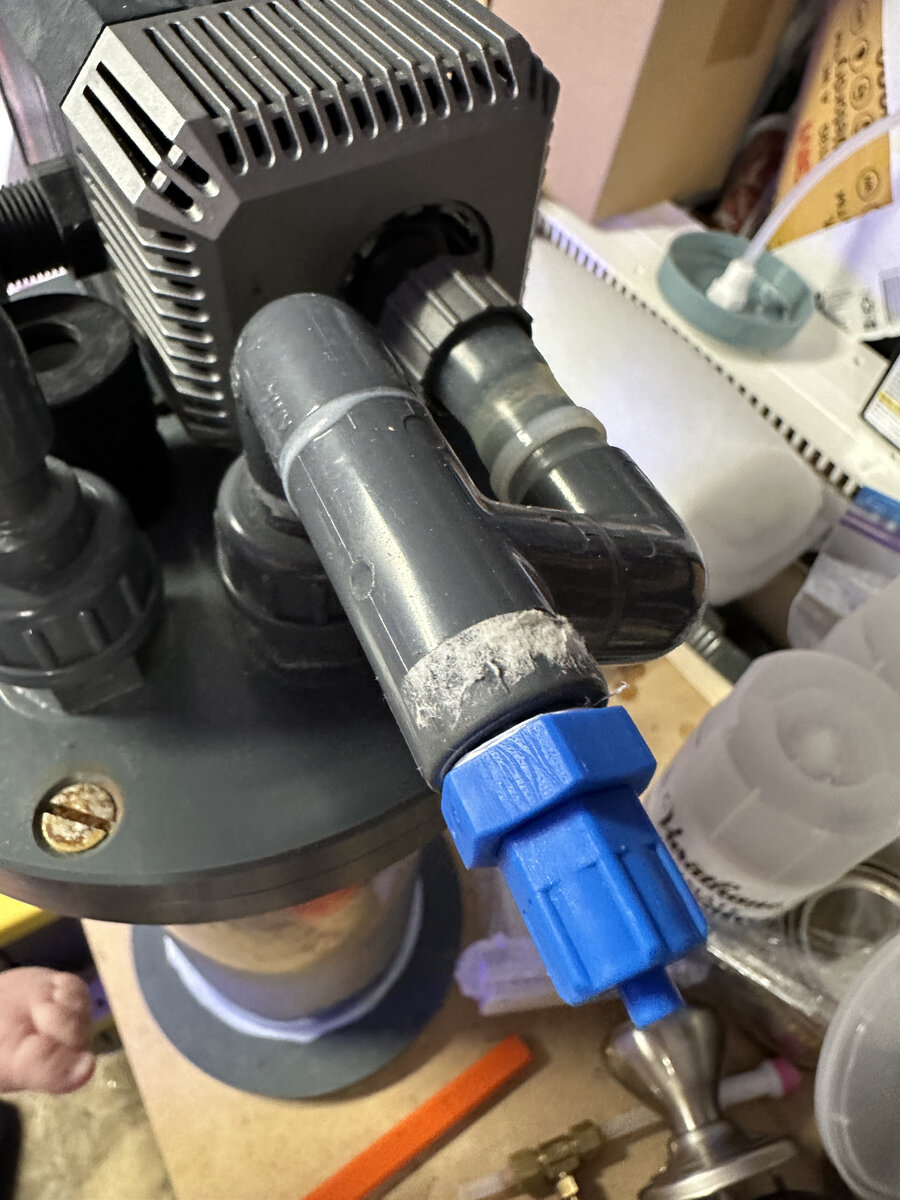

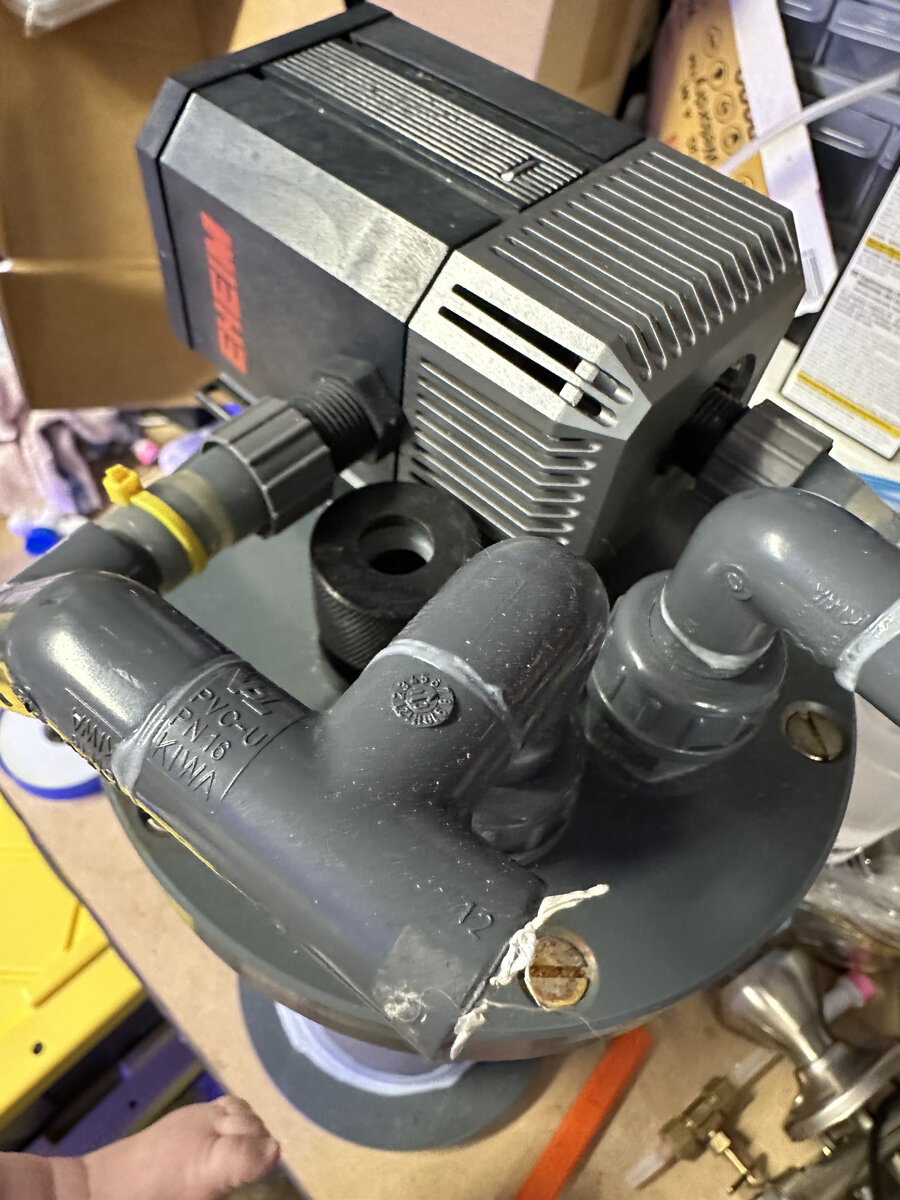

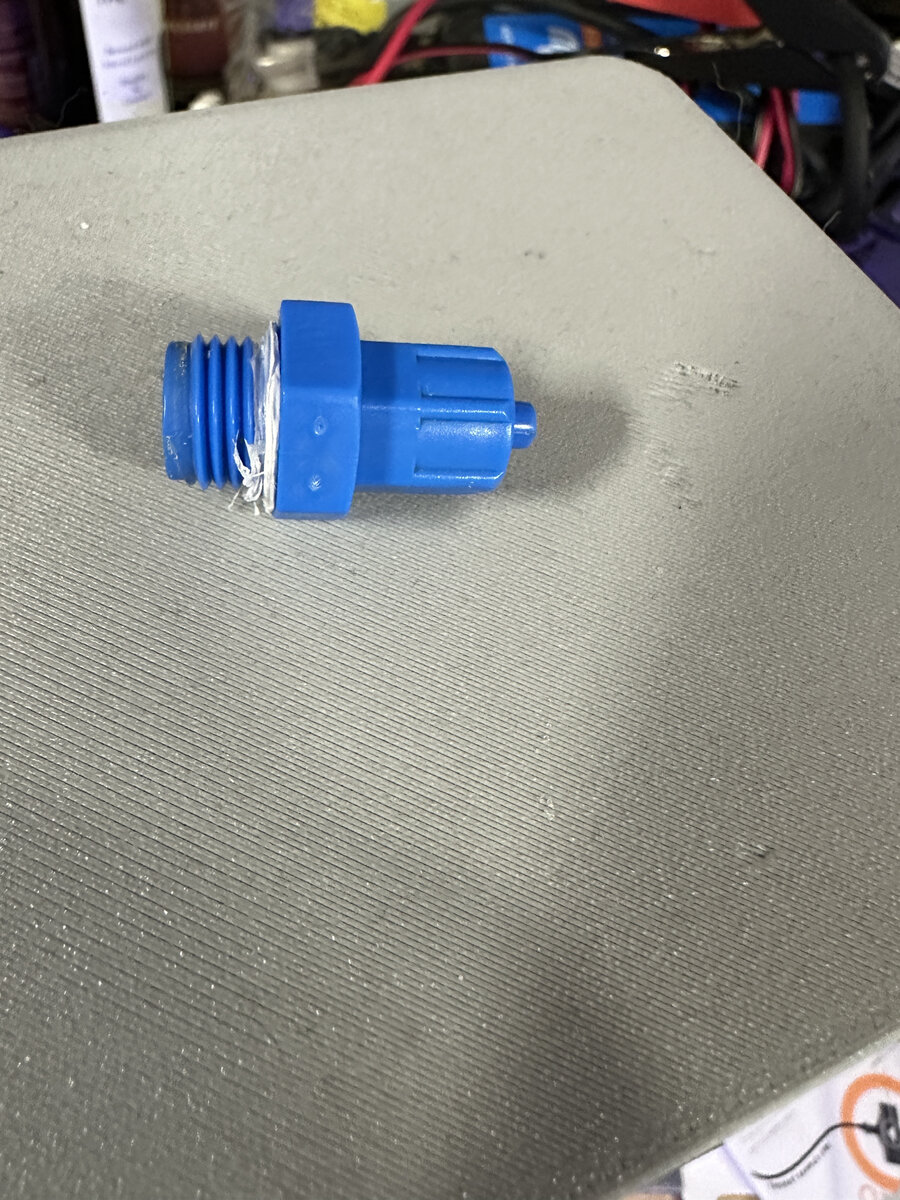

Here are pics to better explain. One of the two blue fittings snapped. Half is still in the fitting but won’t be difficult to remove.



[LavenderTi]

What fitting do you need?. I had one crack that i have had sitting for years. LMK (pic) what you are missing. I may be able to help.

It’s the blue fitting in the picture above.



[bluemon]

It’s the blue fitting in the picture above.

Does the blue fitting or the pvc have any markings to indicate OD/ID size?



[LavenderTi]

Does the blue fitting or the pvc have any markings to indicate OD/ID size?

The blue fitting has no markings.

The PVC says 12 on it. I’ve been looking for 12mm fittings but no luck for a threaded connection.



[bluemon]

Does the blue fitting or the pvc have any markings to indicate OD/ID size?

The blue fitting has no markings.

The PVC says 12 on it. I’ve been looking for 12mm fittings but no luck for a threaded connection.

Looks too big to be 12mm? Do you have a caliper to measure ID?

Not sure what the 12 represents on a metric PVC, I’ve only ran across markings on Imperial PVC



[LavenderTi]

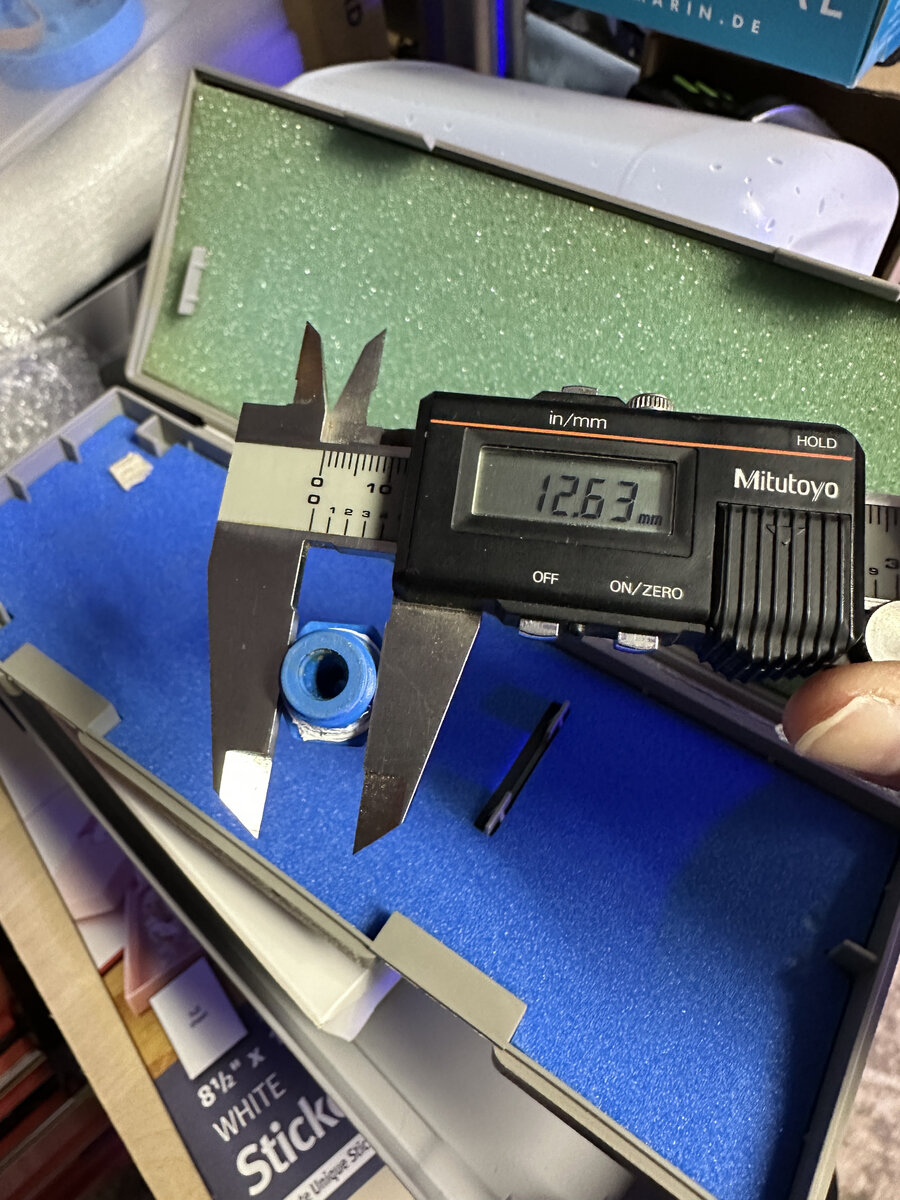

Here’s the threads OD
