Sump build

36boo

Active Member
View Badges
Joined
Jun 7, 2016
Messages
178
Reaction score
17
Location
Atmore Alabama
Rating - 0%
0   0   0
I want to build a 40 gallon breeder tank into a sump for my 100 gallon new build but I need ya help on the design and some pic please help


sundog101

Well-Known Member
View Badges
Joined
Sep 7, 2014
Messages
994
Reaction score
651
Rating - 0%
0   0   0
This is a good article.
http://www.melevsreef.com/articles/what-sump

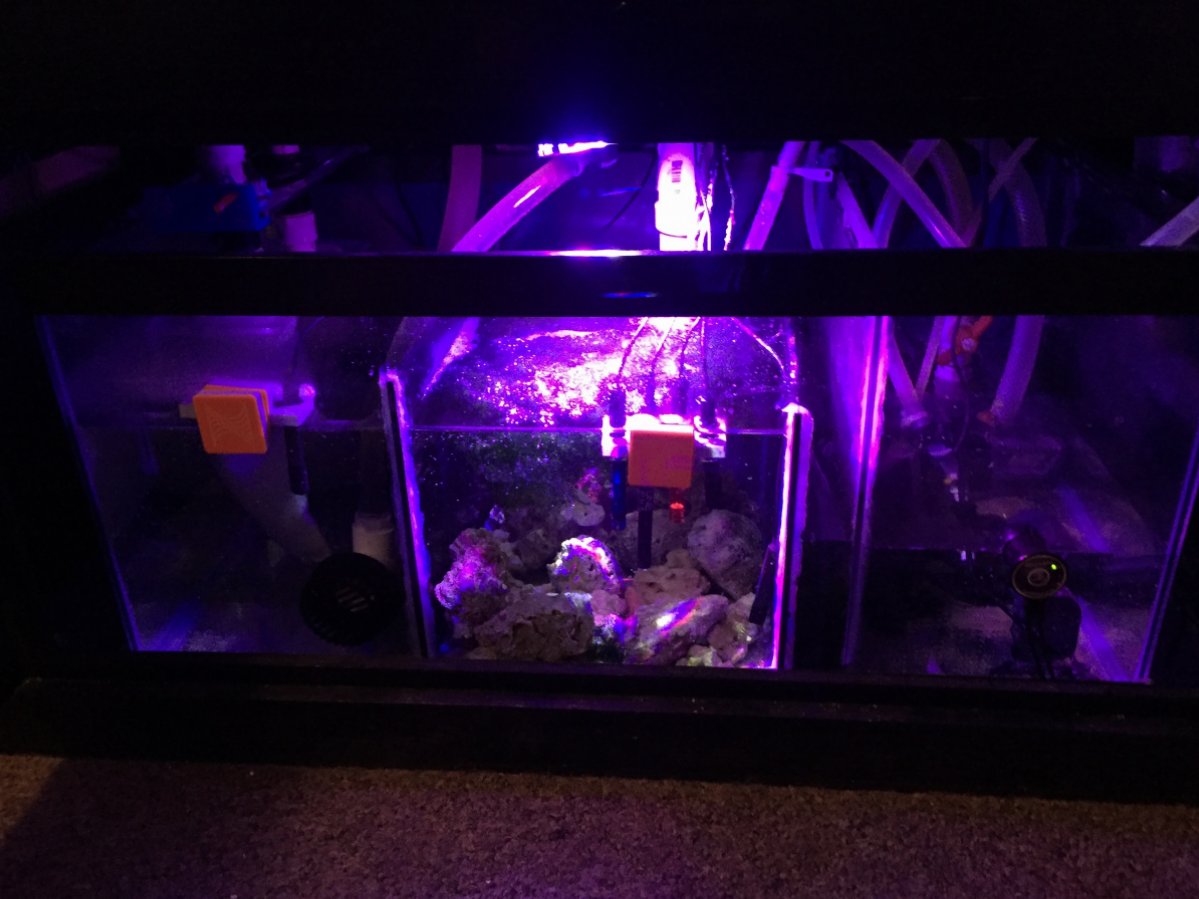

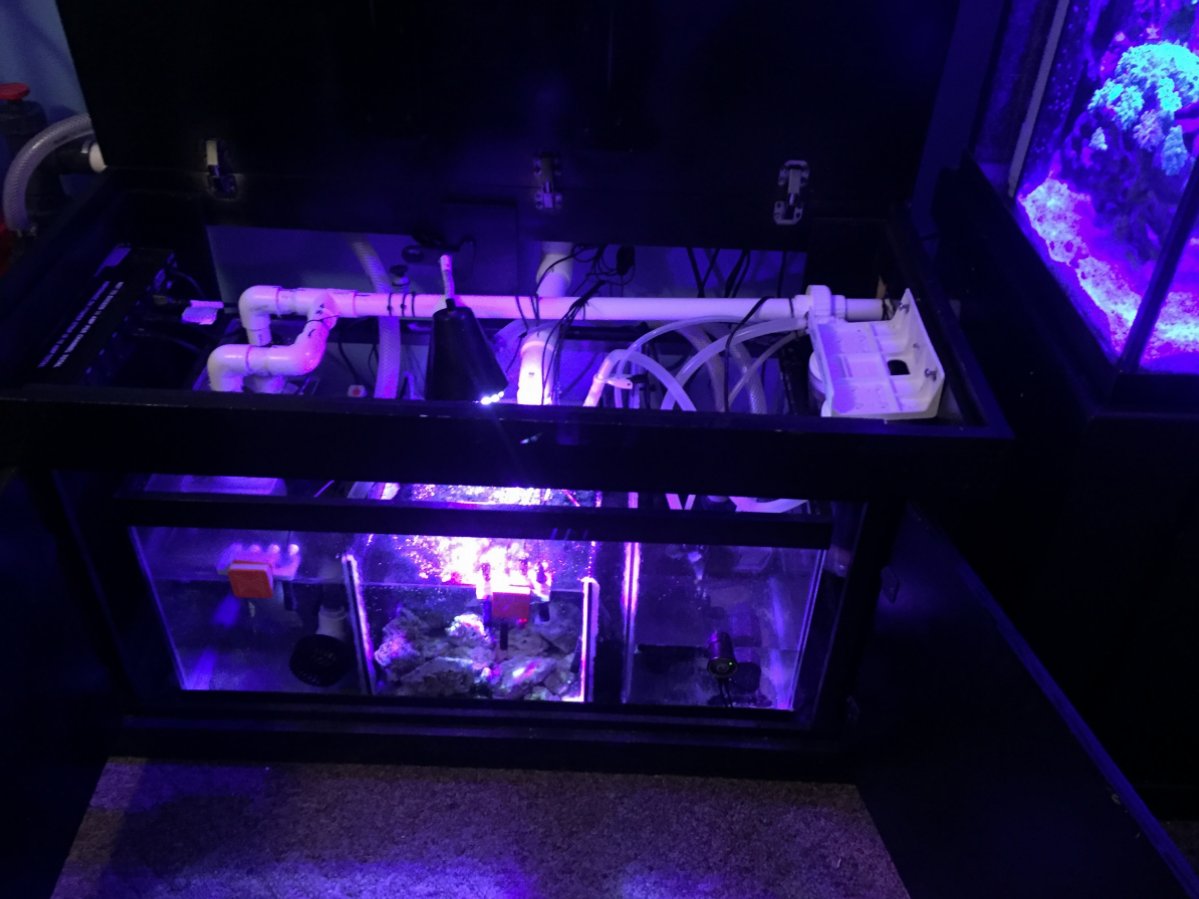

Here's a photo of mine, but if I did it again I would add a bubble trap with the second baffle.


HRBP

Community Member
View Badges
Joined
Sep 22, 2016
Messages
28
Reaction score
7
Rating - 0%
0   0   0
I have the same breeder tank i need to make a sump out of. I was thinking of using glass sheets and a glass cutter to make the baffles. How did you make your baffles and what silicone did you use?


sundog101

Well-Known Member
View Badges
Joined
Sep 7, 2014
Messages
994
Reaction score
651
Rating - 0%
0   0   0
I had a glass shop cut the baffles, but you could use a glass cutter. I used 1/4 glass. Most glass sheets at hardware stores are a lot thinner, so make sure it's the right thickness. I just used 100% silicone from ace. I know that's not the best, but for baffles it works.


thejuice24

Well-Known Member
View Badges
Joined
Sep 24, 2016
Messages
542
Reaction score
721
Rating - 0%
0   0   0

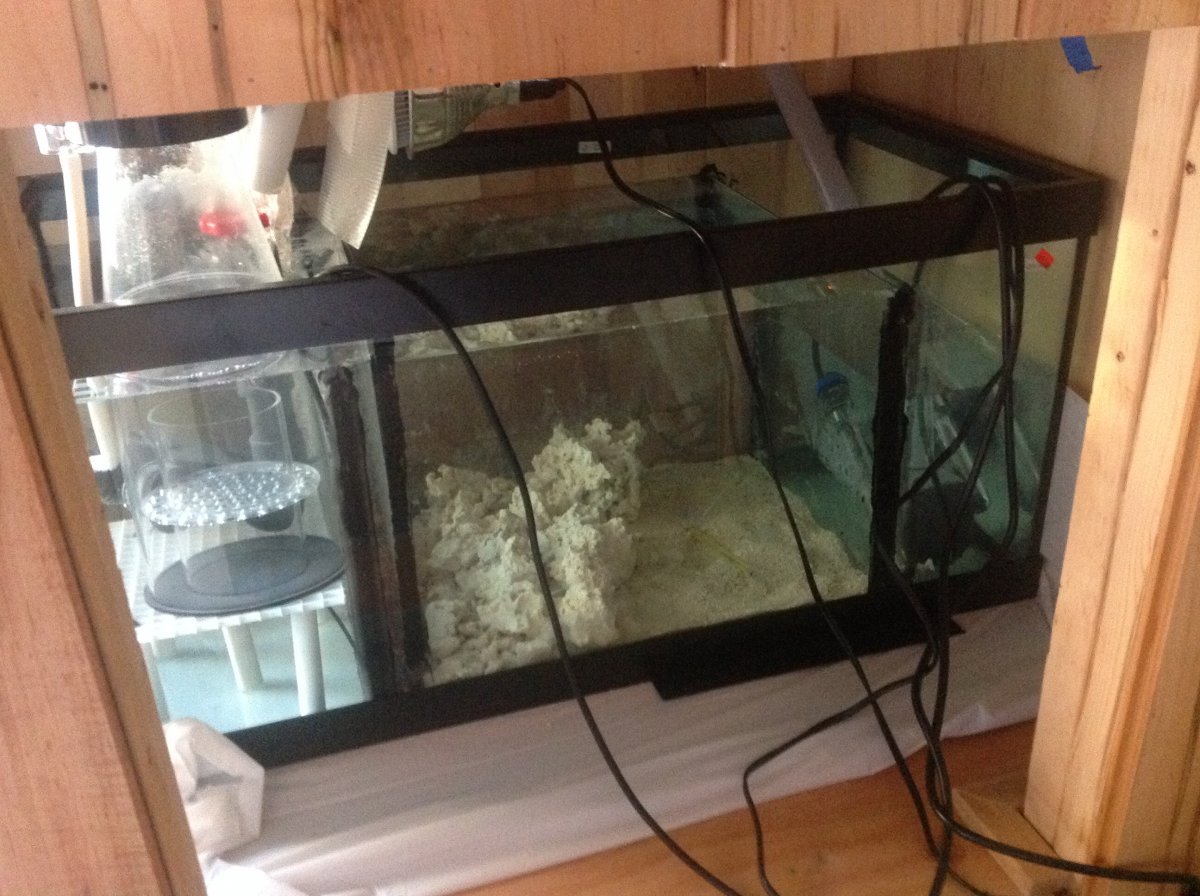

Mine is not a 40, it's a 20. But just finished the leak teat tonight successfully.


jsker

Reefing is all about the adventure
View Badges
Joined
Apr 11, 2015
Messages
25,093
Reaction score
77,773
Location
Saint Louis
Rating - 0%
0   0   0
Make sure to let the silicone setup of at least 4 days before use, just to make sure the silicone is dry.


stevo01

R33F!N @DD!CT
View Badges
Joined
Jan 27, 2016
Messages
3,412
Reaction score
3,319
Location
Lebanon, NH
Rating - 0%
0   0   0
I went to a local glass shop and had 5 pieces cut and safety edged for my baffles. 17 3/8" X 11" and that's 1/4" thick glass. I was left with a 14L" X 18W" X 11T" for a frag tank. Total cost for baffles and silicone $44.


rainmaker

Well-Known Member
View Badges
Joined
Apr 24, 2012
Messages
571
Reaction score
237
Location
Tennessee
Rating - 0%
0   0   0
You know I saw these and thought I should use this and then totally forgot. Thanks for reminding me!

This is my side sump also got that idea from Melves reef. I put the refugium kit in the 40 center is refuge
