WATERBOX 25G PEN "Acropora Garden" Build
- Thread starter magallonbuckinbulls
- Start date
- Tagged users None
OP
OP
OP
OP
OP
OP
Rockwork soaking in bleach.
OP
OP
Gumbies R Us
Certified Noob
Following along!
kevgib67
10K Club member
Hospitality Award
Midwest Reefer
Rock Pool Reef Keepers
Ohio Reefer
My Tank Thread
My Aquarium Showcase
Can’t wait to see this with water and full of life!
OP
OP
lol, no just looks that way lol
Floss pad and plastic bio balls. I’ll have pic soon
Thanks
OP
OP

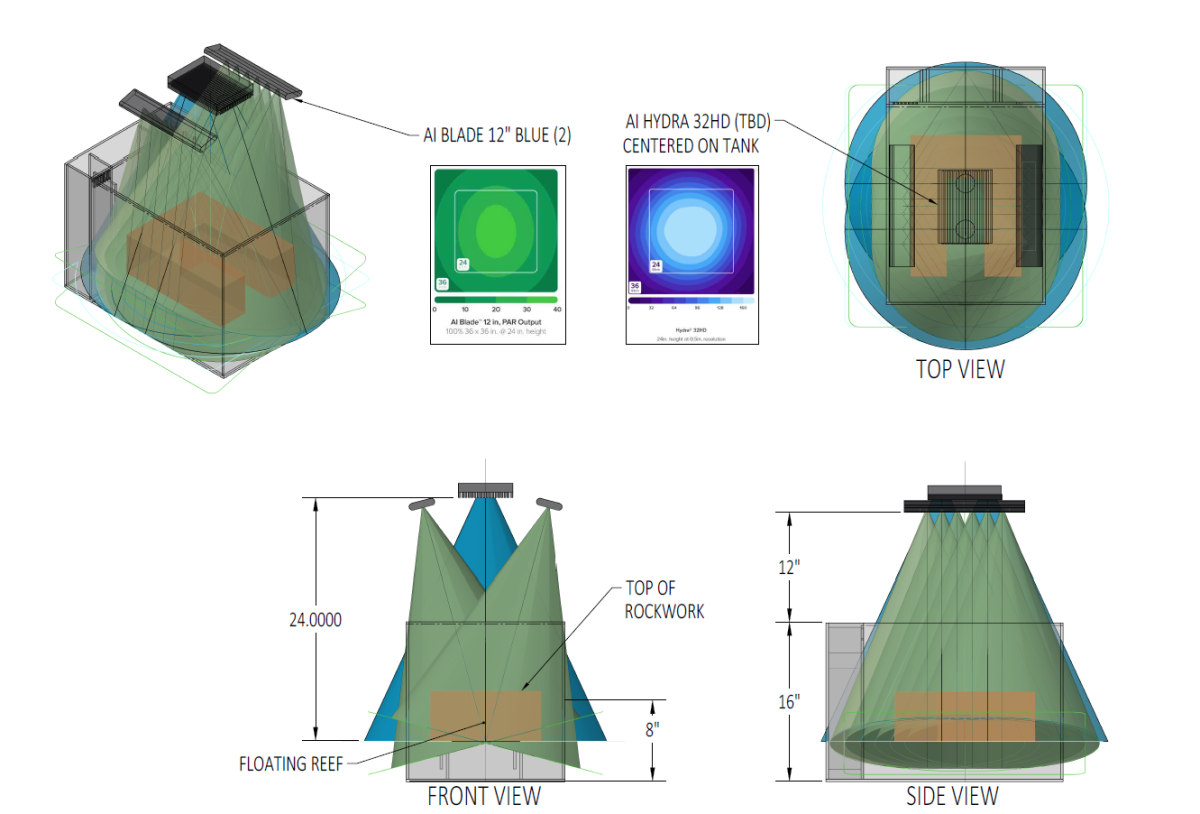

Decided to go with the Radion G6 BLUE, and staying with AI Blades for now.
Need to update drawing. This drawing shows the AI Hryda 32HD
Lights are placed 12" above tank rim. Blades are angled @ 15 deg. inward.
****note: I drew these light cones based off the info on the AI website. For reference only****
Need to update drawing. This drawing shows the AI Hryda 32HD
Lights are placed 12" above tank rim. Blades are angled @ 15 deg. inward.
****note: I drew these light cones based off the info on the AI website. For reference only****
Last edited:
OP
OP
lol, thanks brother. Keeping it simple
OP
OP

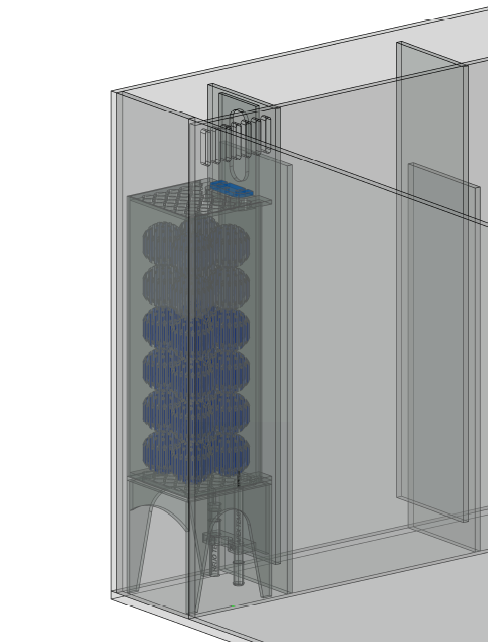

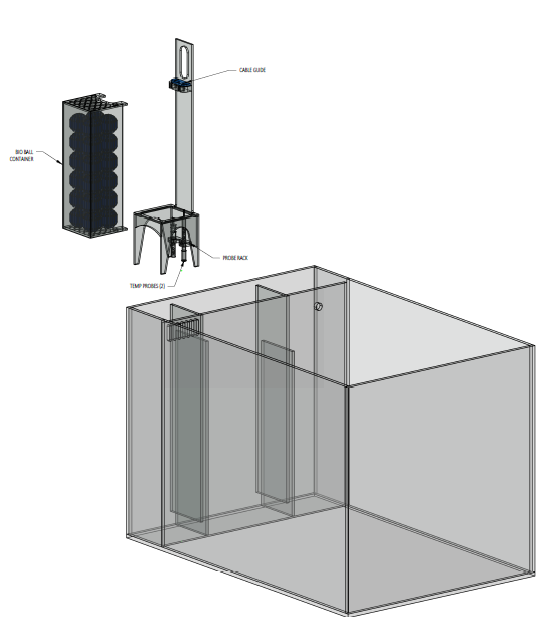

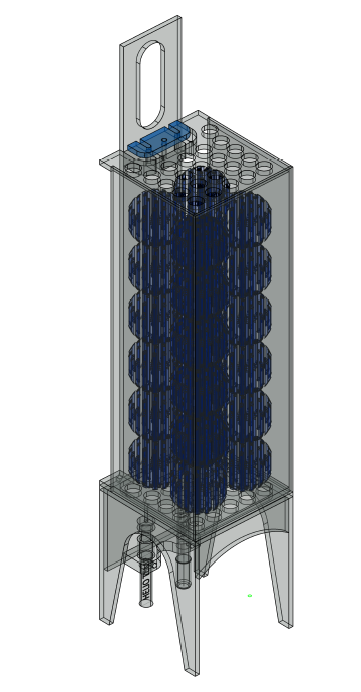

2-pc first chamber filter system w/ temp probe holders.
Last edited:
OP
OP
I position the temp probes so they would get sufficient water flow.
OP
OP
OP
OP
thanks brother. Lol, taking my time on this one lolHey- Are you making all this with 3d printing?
Very impressive, take the next few days off work so you can get it finished
CNC acrylic pcs.
OP
OP
Thank you
. Treating it like a work project lol.
OP
OP
Still need to make the adjustable mount for the skimmer. But will have to wait until it's in my hand so I can model accurately.
