150g tank on the 2nd floor.

[cba191]

Where i want the 150g tank is on the 2nd floor. It's 2x10 or 12 I joists on 18" centers. I believe there is a joist right up aganst the wall. And the span support beam is 6x16"(?).
The tank would straddle the support beam almost dead center.

The tank is 48x24x30 and the welded steel stand is 60x24x41 tall.



[ndrwater]

Better than in the middle of the room for sure.
I would suggest a stand that has a solid perimeter base. Not something with feet.
A solid perimeter base would help spread the load.



[cba191]

Better than in the middle of the room for sure.
I would suggest a stand that has a solid perimeter base. Not something with feet.
A solid perimeter base would help spread the load.

He has 2 of these welded steel stands. (I only want one) They are 60x24x41 tall.



[ndrwater]

He has 2 of these welded steel stands. (I only want one) They are 60x24x41 tall.

Does the stand have leveling feet?
The issue with feet is the weight of the tank is focused on a very small area under the feet.
A solid perimeter base spreads the load in to a greater area and across multiple joists



[cba191]

He has 2 of these welded steel stands. (I only want one) They are 60x24x41 tall.

Does the stand have leveling feet?
The issue with feet is the weight of the tank is focused on a very small area under the feet.
A solid perimeter base spreads the load in to a greater area and across multiple joists

The feet are removable. I was also thinking about placing it on a wood 3x6 sheet of plywood.



[cba191]

The engineer came out today. He needs to crunch some numbers, but he's optimistic that the tank will work where I want it. He just needs to crunch numbers to make sure.



[cba191]

Just got what I think was a screaming deal on an Octo 202-s, a reefmat 500, a hydros wave engine le, and 2 icecap 4k gyres.



[Tcook]

Why is the stand 60”? Are the bases of the 24” panels unsupported?



[cba191]

It was part of a MUCH bigger system. The 150, a 225, and a 1200.there were 2 of these stands for the 150 and the 225 that were next to each other. The 1200 was in a different room.



[littlefoxx]

Where i want the 150g tank is on the 2nd floor. It's 2x10 or 12 I joists on 18" centers. I believe there is a joist right up aganst the wall. And the span support beam is 6x16"(?).
The tank would straddle the support beam almost dead center.

The tank is 48x24x30 and the welded steel stand is 60x24x41 tall.

My 300 gallon tank has been on my first floor above the basement for almost 3 years now.



[cba191]

Where i want the 150g tank is on the 2nd floor. It's 2x10 or 12 I joists on 18" centers. I believe there is a joist right up aganst the wall. And the span support beam is 6x16"(?).
The tank would straddle the support beam almost dead center.

The tank is 48x24x30 and the welded steel stand is 60x24x41 tall.

My 300 gallon tank has been on my first floor above the basement for almost 3 years now.

I figured it was better to be safe than really sorry.



[littlefoxx]

I figured it was better to be safe than really sorry.

Oh for sure! My grandpa who wrote specs looked at it and was like its good. And he had been doing that job for about 70 years so I trusted him!



[jsmkmavity]

Just make sure the i-joists have crush blocks where they sit on the beam.



[cba191]

Just make sure the i-joists have crush blocks where they sit on the beam.

The engineer said it wasnt going to need them.



[jsmkmavity]

All i joists need them when they sit on a beam or a wall. This is required by the manufacturer because their engineers who design the i joists know better. It can be 2x4 (or larger) standing upright or plywood added to the web. Most framers know this and do it but not all.



[jsmkmavity]

Web stiffeners shall be installed in pairs – one to each
side of the web. Web stiffeners are always required
for the "Bird’s Mouth" roof joist bearing detail.
2. Web stiffeners shall be cut to fit between the
flanges of the LP® SolidStart® I-Joist, leaving a
minimum 1/8" gap (1" maximum). At bearing
locations, the stiffeners shall be installed tight to
the bottom flange. At locations of concentrated
loads, the stiffeners shall be installed tight to the
top flange.
3. Web stiffeners shall be cut from APA Rated OSB
(or equal) or from LP SolidStart LVL, LSL or OSB Rim
Board. 2x lumber is permissible. Do not use 1x lumber,
as it tends to split, or build up the required stiffener
thickness from multiple pieces.
4. Web stiffeners shall be the same width as the
bearing surface, with a minimum of 3-1/2."
5. See Web Stiffener Requirements for minimum
stiffener thickness, maximum stiffener height
and required nailing



[Kooma]

For the spreading of load, I put a 225 with steel stand and sump, all weighing probably 3500lbs on a floating vinyl floor. The trick is to spread the load. I put the feet of my stand 72x30 with 6 feet on six 3/4” thick steel plates, and then under that is a 2x6 laying face down. The psi calculated is reduced from 600lbs to around 12psi. For me the floors capacity is 70psi dead. I’m on a basement slab, but the idea of spreading load is similar.



[jsmkmavity]

This is just 1 manufacturer, but they all have the same basic requirements. Some have different specifics for various series of joists. I can send a link if you want it but its easily found on each manufacturers website.



[cba191]

This is just 1 manufacturer, but they all have the same basic requirements. Some have different specifics for various series of joists. I can send a link if you want it but its easily found on each manufacturers website.

That was a lot of stuff.

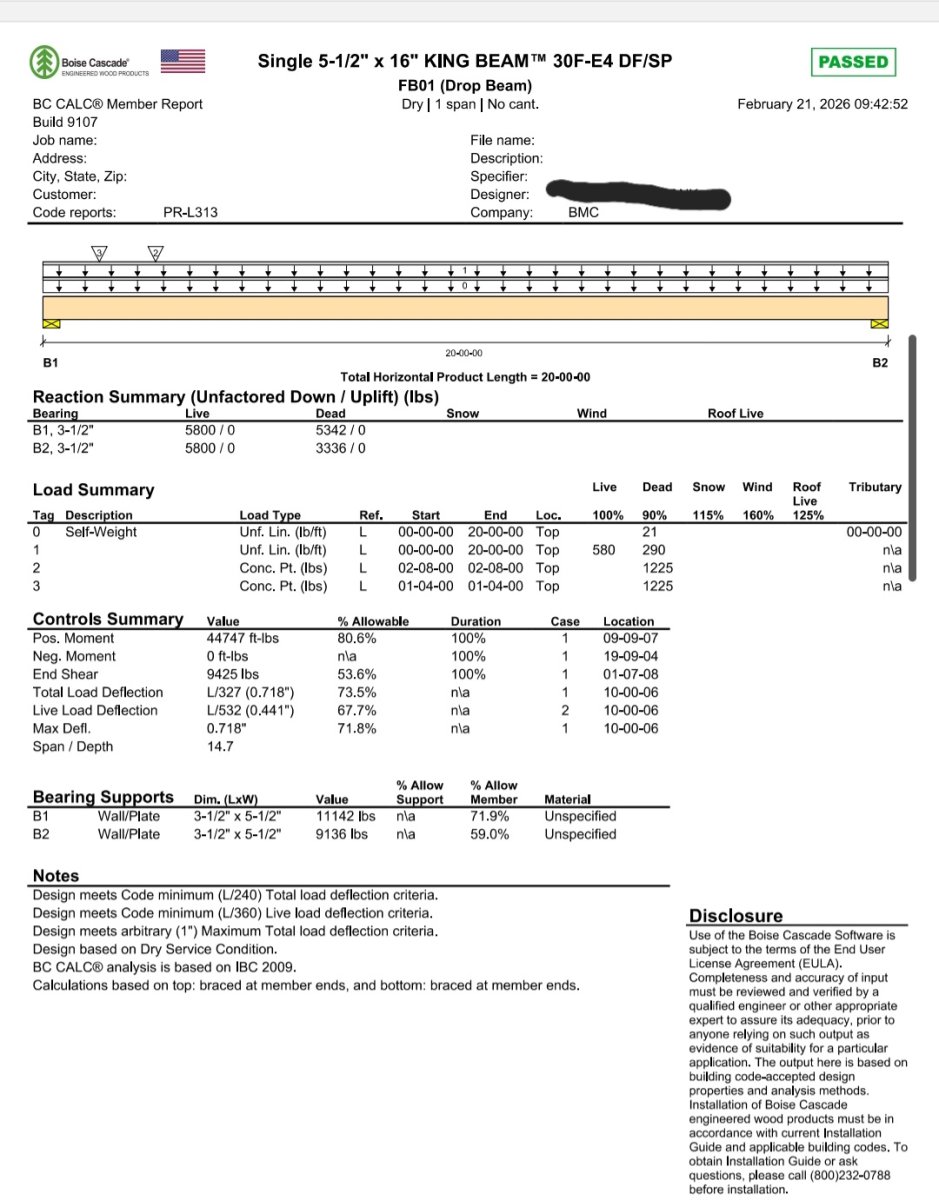

This is what he gave me.



[cba191]

I picked up what will become a sump and an ATO today.
