3d Printed 7” Filter Basket

[jpas]

I have been wanting to switch to 7” filter cups on my Advanced Acrylics sump, however it uses six 7” filter socks. So the cost would have been on the high side.

Also the outer four sock holes are positioned under the lip of the sump, so installing a deep cup wouldn’t work.

So I decided to print up some shallow baskets that can hold a piece of filter floss. It should be very easy to pull the basket & dump the floss in the garbage and replace it.

Here are some pics.



[RamsReef]

Great Idea



[reeflife3]

how did these work out for you?



[jpas]

These work great so far. I have only printed the one and its in my sump. I need to print the rest of them and see how quickly the floss gets clogged up. I'll actually put one on the printer now! Unfortunately they take 8hours to print.



[ajhudson15]

These work great so far. I have only printed the one and its in my sump. I need to print the rest of them and see how quickly the floss gets clogged up. I'll actually put one on the printer now! Unfortunately they take 8hours to print.

WHAT ARE THEY MADE OF. I HAVE HEARD OF PLA GETTING SOFT IN THE WATER OVER TIME. I have the 4inch cups from redsea but im not crazy about the dimensions so maybe ill make my won.



[jpas]

I printed it in ABS. I guess PLA is a biodegradable, so it might soften up. I wonder what the return nozzles are printed from?



[Rogued_Reefer]

I know this is an old thread but my buddy recently got a 3D printer and I asked him to print me some 7” filter cups but he’s not good at designing… lol anyway you can make those longer to fit more floss in there and share the file?



[ReefRealm]

7" filter basket. I print in PETG. I attached an .STL



[Dom]

I wouldn't mind seeing it installed.



[Gumbies R Us]

7" filter basket. I print in PETG. I attached an .STL

Do you have the stl file?



[ReefRealm]

I did not compress the STL when I posted. Here is a zipped STL.



[ReefRealm]

I wouldn't mind seeing it installed.

I'll try to remember to snap a photo next time I have a chance.



[ReefRealm]

I wouldn't mind seeing it installed.

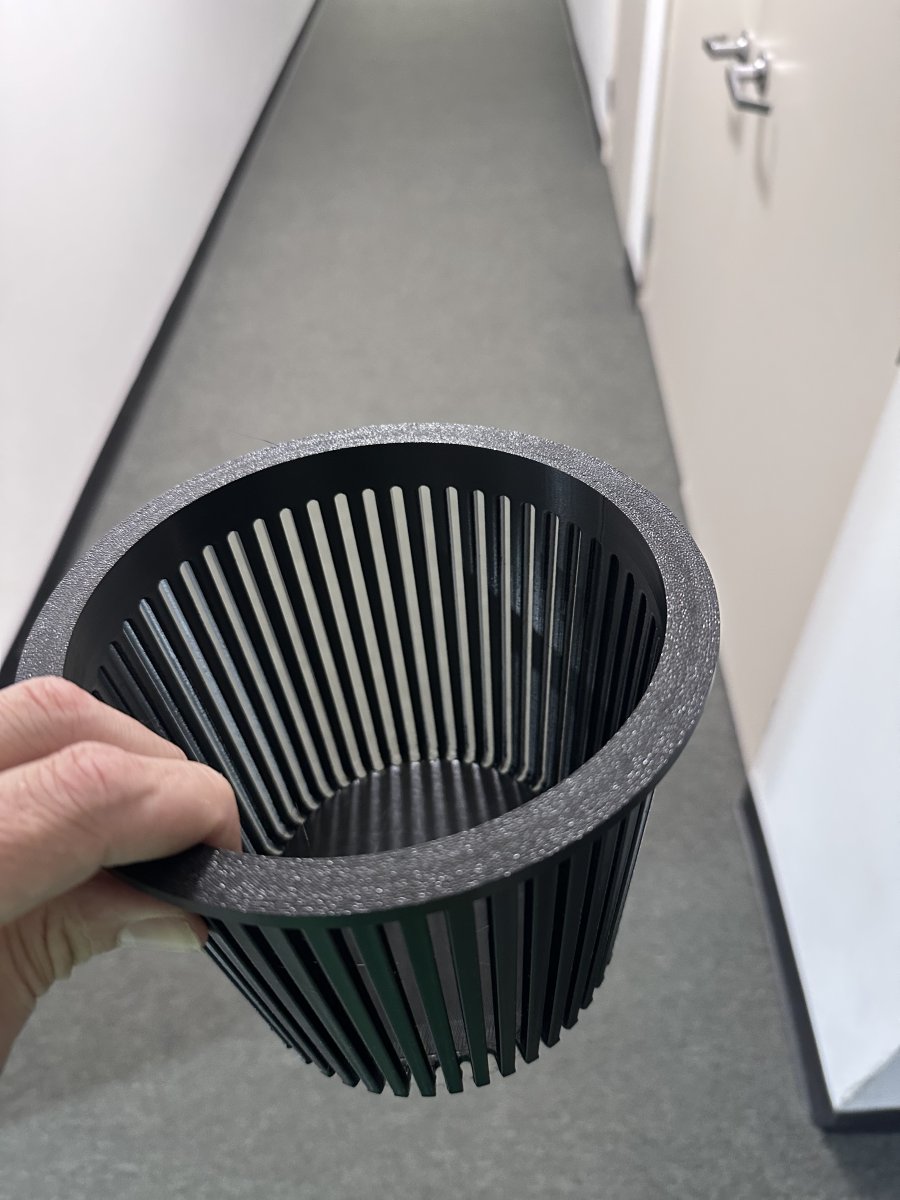

Here are a couple pics of the print and a short video of it in the sump.

I also have a STL of a slightly smaller version of the basket that I needed to make custom for the Waterbox branded sumps.



[ReefRealm]

Here is a video in the sump. I was having issues attaching the video on the previous post.



[charliethetuna]

How can I print these my son has a 3d printer he uses printables site to print..



[charliethetuna]

Here is a video in the sump. I was having issues attaching the video on the previous post.

Can u share ur print file
