90 Gallon Build

iGotJokess

Active Member
View Badges
Joined
Apr 3, 2020
Messages
149
Reaction score
34

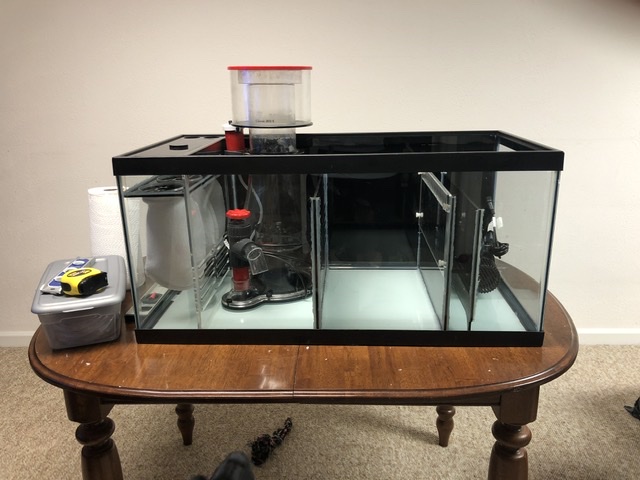

Just here to share my first ever saltwater build. I’ve been in the freshwater hobby for 10+ years and finally decided it’s time to get a little salty. I had a spare 90 gallon (48x18x25) laying around so I decided to start with that. Petco just so happened to be running $1 gallon so i went and grabbed a 40b to start my DIY sump. Had some extra lumber laying around from when I had to brace the floor for my 180, so I decided to build a new stand as well. Went with Exotic Marine Systems for my overflow, got the big guy as I’m sure it’s only a matter of time before i get rid of the stock in my 180 and switch that over as well. Still in the process but here’s a few pics of what i have so far.

AF044BBD-DE5F-4196-BC9A-571FA61D2822.jpeg 6DEF81B4-4D77-4EAB-BA17-5F651A24CC4A.jpeg D8E2B524-8695-46CD-8DC8-554E68B96117.jpeg 79507B4F-1979-448E-99B8-B4DD19FDA967.jpeg E89E08F1-259F-499D-AA42-AF9B16C42CCA.jpeg

Zoanthids
OP
iGotJokess

iGotJokess

Active Member
View Badges
Joined
Apr 3, 2020
Messages
149
Reaction score
34
Quick equipment update on the build.

2x ecotech xr30 G5 blues
Vectra M2 return
2x AI Nero 5’s
Reef Octopus Classic 202-s skimmer
2x BRS 300 watt heaters
Inkbird heating controller
Exotic Marine Systems Overflow
80lbs Nature’s Ocean dryrock

Finishing paint on the custom stand/canopy.
Still need to finalize aquascape and plumb the tank. Got 2 60 gallon barrels locally pretty cheap so I’m getting the water ready. Considering adding a piece of live rock from my LFS store once I’m wet to kickstart the process. Hope to have this up and running within a week. Now need to figure out what to stock

OP
iGotJokess

iGotJokess

Active Member
View Badges
Joined
Apr 3, 2020
Messages
149
Reaction score
34

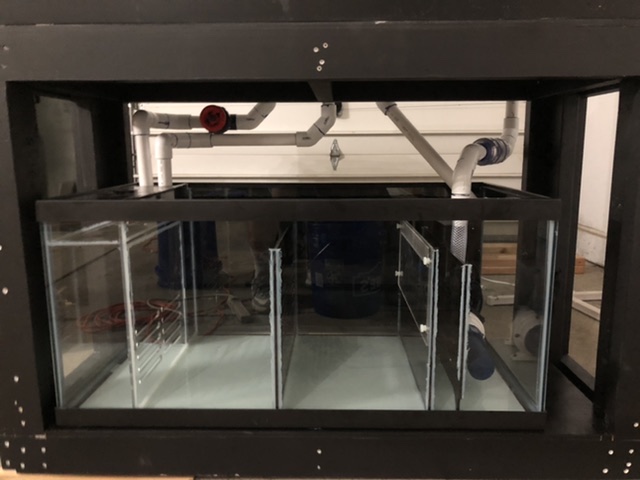

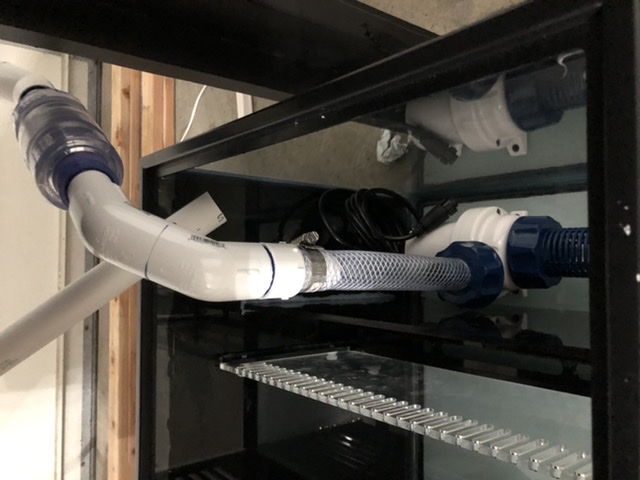

Quick update I’m almost done with the plumbing. Just need to attach return line to pump, and my 2 drain lines to the sump. Should have test water in by tomorrow to see how everything holds.

1E6789DF-9AB5-4616-B4FE-B5A9836518FD.jpeg 6B63E60D-E5D6-418F-B448-AE4CC0DAFF2D.jpeg

Champion Lighting & Supply
OP
iGotJokess

iGotJokess

Active Member
View Badges
Joined
Apr 3, 2020
Messages
149
Reaction score
34
Quick update. Finally got the stand finished and painted, aquascaped and filled with water. Should have the canopy and lights on in a few weeks while I let this cycle. Don’t mind the cords I still have to put them all away I just wanted to make sure everything worked first.

1A5A22D5-BCF2-4D60-BE90-ABFE132D6F6F.jpeg 270719CF-1D6B-45C0-B640-0783B7B7F350.jpeg


DiefsReef

Valuable Member
View Badges
Joined
Jul 7, 2017
Messages
1,352
Reaction score
7,730
Location
ATL
Ready for water

5AB97B20-90D5-4BCE-957E-47A1D7EA2407.jpeg 063267BE-F686-404D-BDD4-1F6D4B27ADD0.jpeg 89D89481-4B5F-4D9A-B7AE-2D88E43CFC1A.jpeg
Everything looks great!
Can I ask where did you get the pipe clamp on the left return line. I've been looking at the local big home centers but have not found any like that. I'm gelous btw, I've been pulling together hardware and building my stands and still do not have water running after 4 months. Getting close but seem s still far to go.

Orphek OR3 reef aquarium LED lighting
OP
iGotJokess

iGotJokess

Active Member
View Badges
Joined
Apr 3, 2020
Messages
149
Reaction score
34
Everything looks great!
Can I ask where did you get the pipe clamp on the left return line. I've been looking at the local big home centers but have not found any like that. I'm gelous btw, I've been pulling together hardware and building my stands and still do not have water running after 4 months. Getting close but seem s still far to go.
I got them from Lowe’s. I ended up putting one on all 4 of the pvc lines. They come separately let me see if i can find them for you. It took me awhile to get mine setup too so don’t feel bad

OP
iGotJokess

iGotJokess

Active Member
View Badges
Joined
Apr 3, 2020
Messages
149
Reaction score
34
Everything looks great!
Can I ask where did you get the pipe clamp on the left return line. I've been looking at the local big home centers but have not found any like that. I'm gelous btw, I've been pulling together hardware and building my stands and still do not have water running after 4 months. Getting close but seem s still far to go.

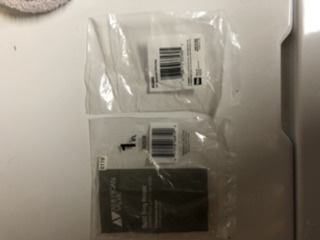

These are what I used. You need a plate and a clamp for each pvc you are looking to secure. They come in different sizes to fit whatever size pvc you have. You’ll also need to buy a 3/8 threaded rod, then cut to size. Pic doesn’t look like it came out that well. Let me know if you can’t read it



DiefsReef

Valuable Member
View Badges
Joined
Jul 7, 2017
Messages
1,352
Reaction score
7,730
Location
ATL

DiefsReef

Valuable Member
View Badges
Joined
Jul 7, 2017
Messages
1,352
Reaction score
7,730
Location
ATL
These are what I used. You need a plate and a clamp for each pvc you are looking to secure. They come in different sizes to fit whatever size pvc you have. You’ll also need to buy a 3/8 threaded rod, then cut to size. Pic doesn’t look like it came out that well. Let me know if you can’t read it

Thats awesome thx for the help! I'll head to Lowes tomorrow and see what they have in stock.
