Yesterday I hooked up a new pm2 module and ORP probe to my apex, everything worked fine for a few hours and all of it sudden I noticed that there was a burnt smell coming from the aquabus ports on the EB8.
Now my display won’t turn on and there are no lights coming out of the base unit, just the regular orange light on the EB8.
I'm out of warranty so I would like to try to fix it myself. I even tried to connect the base unit to another EB8 and it's working.

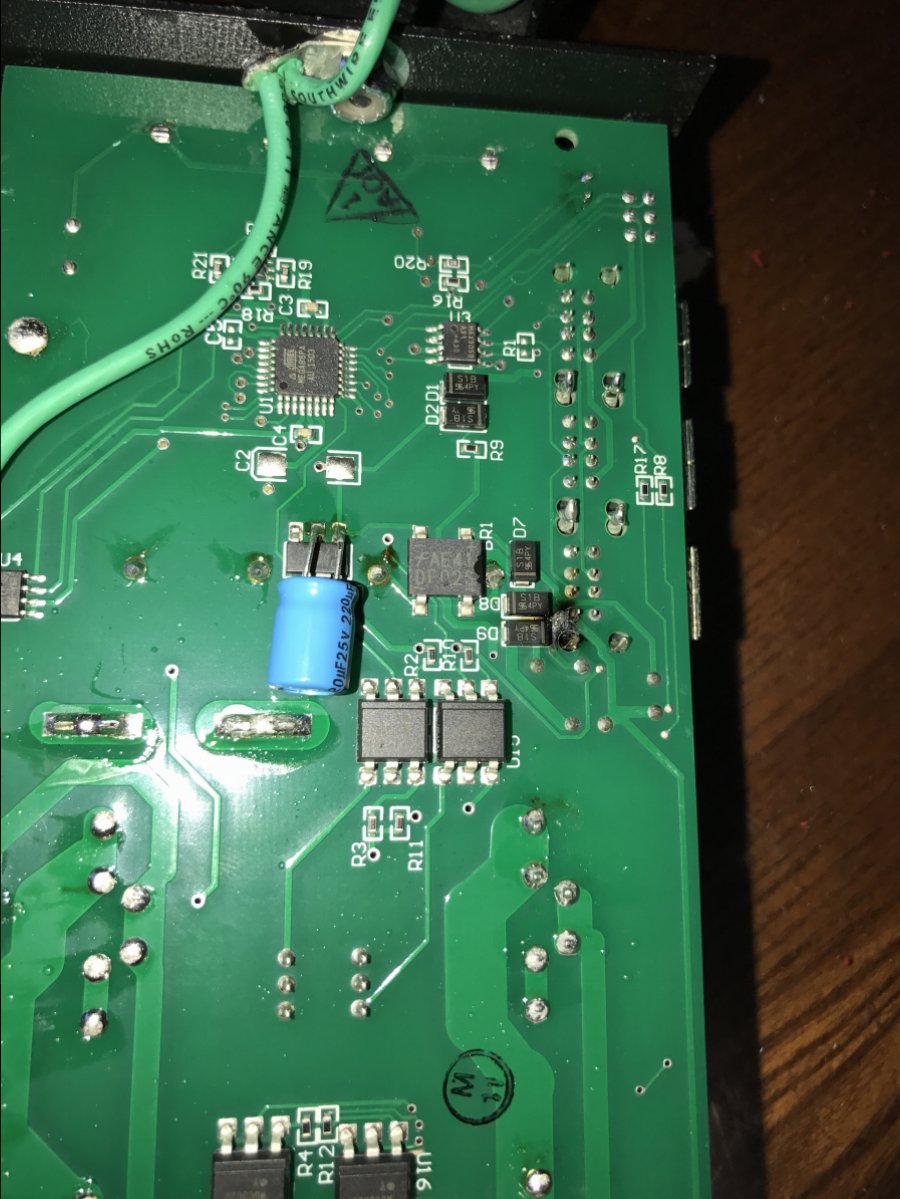

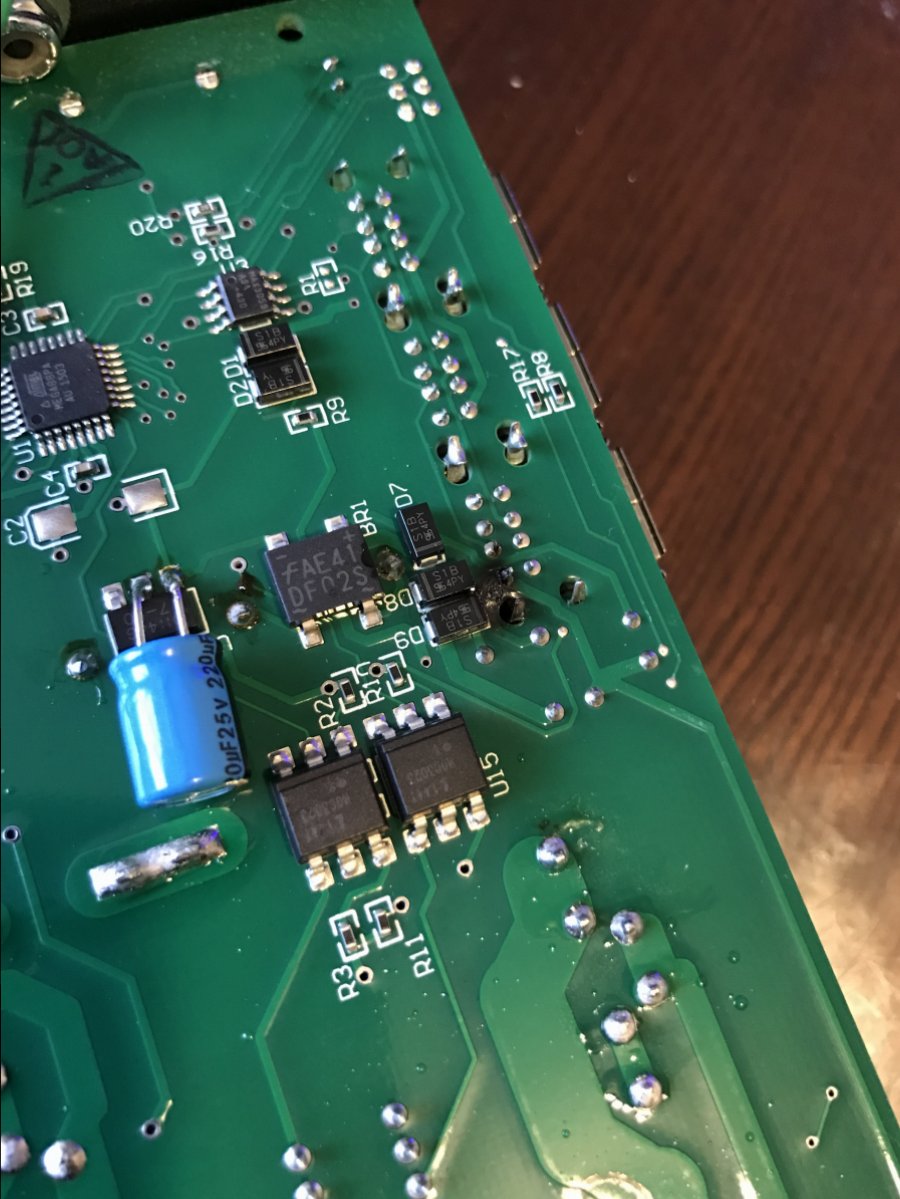

Should I replace the diodes D8-D9 on the back? the tracks look damaged... Also there is a capacitor on the other side of the pcb, and the pad has no solder on it.
I'd appreciate any input.
Now my display won’t turn on and there are no lights coming out of the base unit, just the regular orange light on the EB8.
I'm out of warranty so I would like to try to fix it myself. I even tried to connect the base unit to another EB8 and it's working.
Should I replace the diodes D8-D9 on the back? the tracks look damaged... Also there is a capacitor on the other side of the pcb, and the pad has no solder on it.
I'd appreciate any input.
