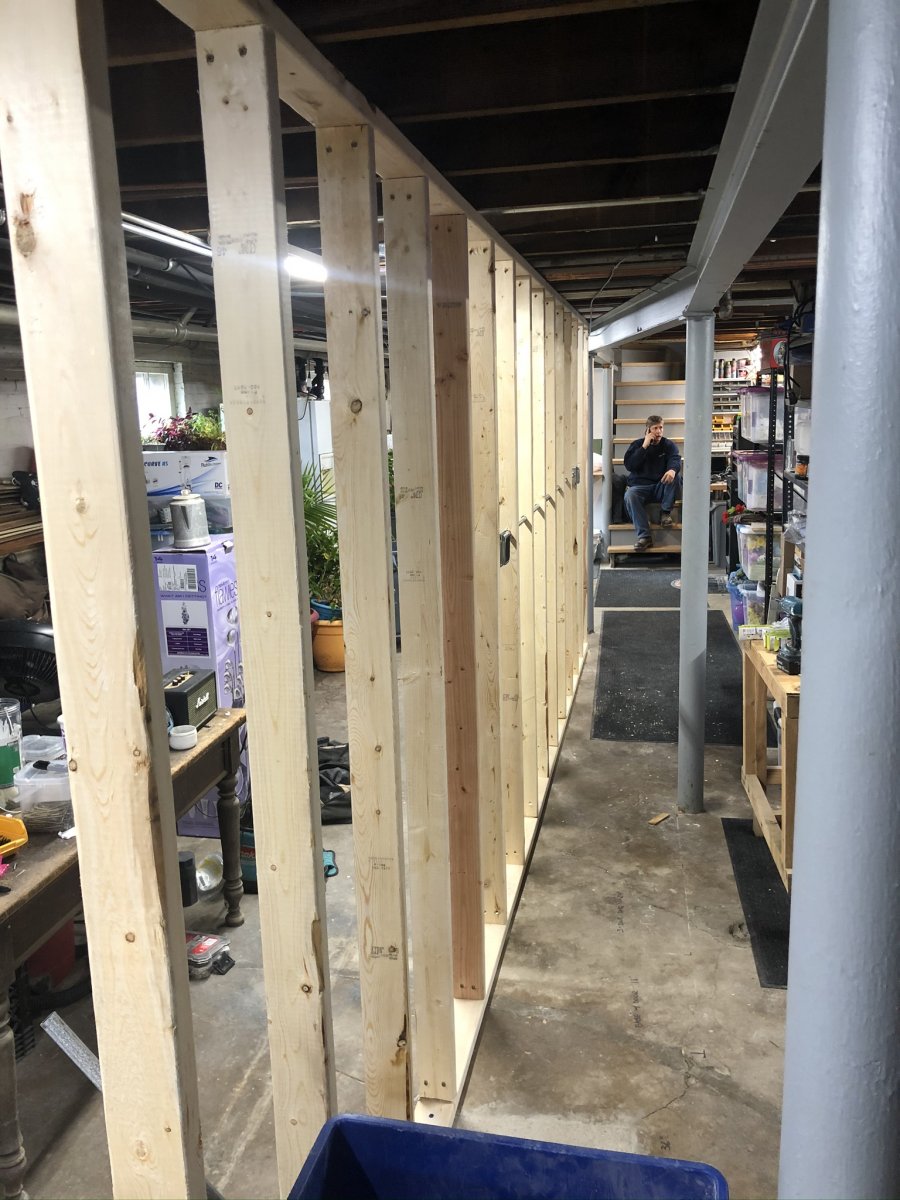

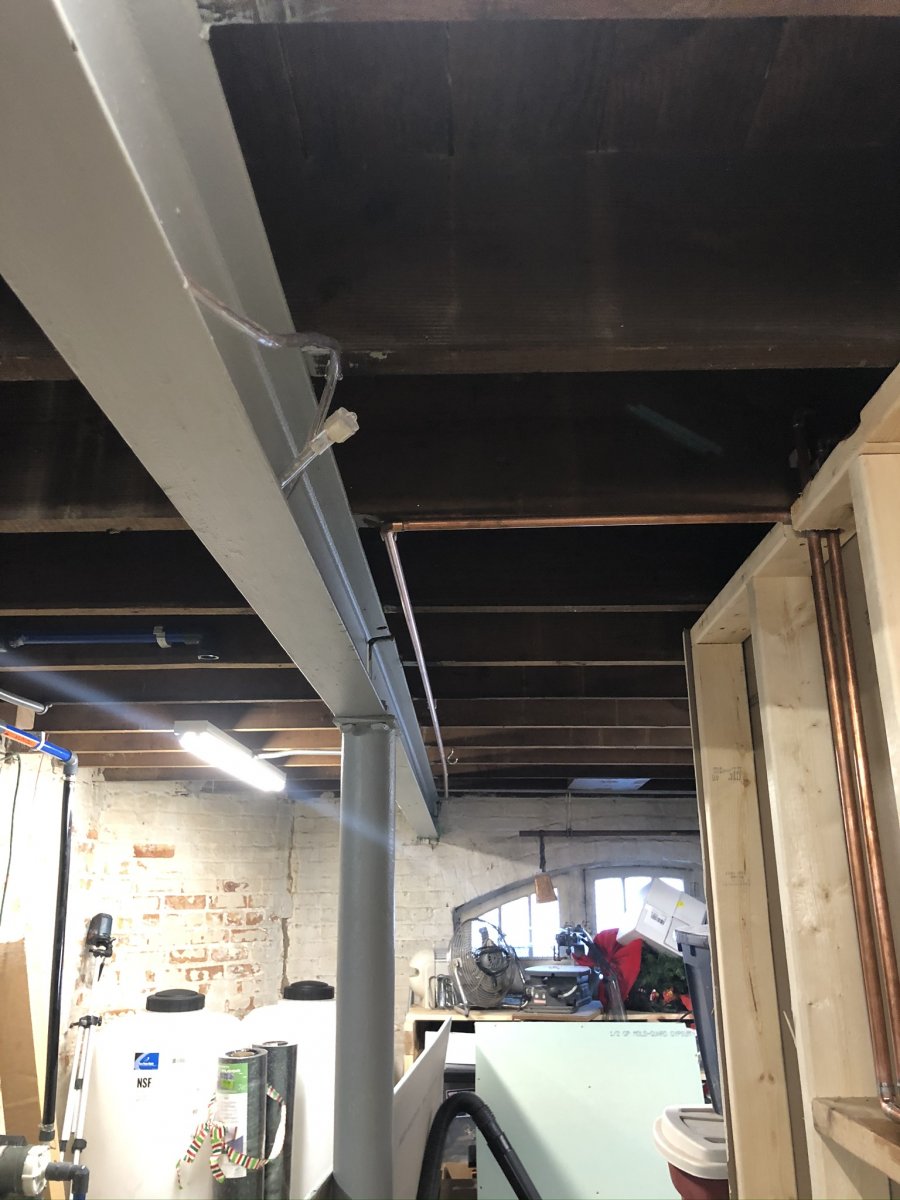

We started end of may with the build.

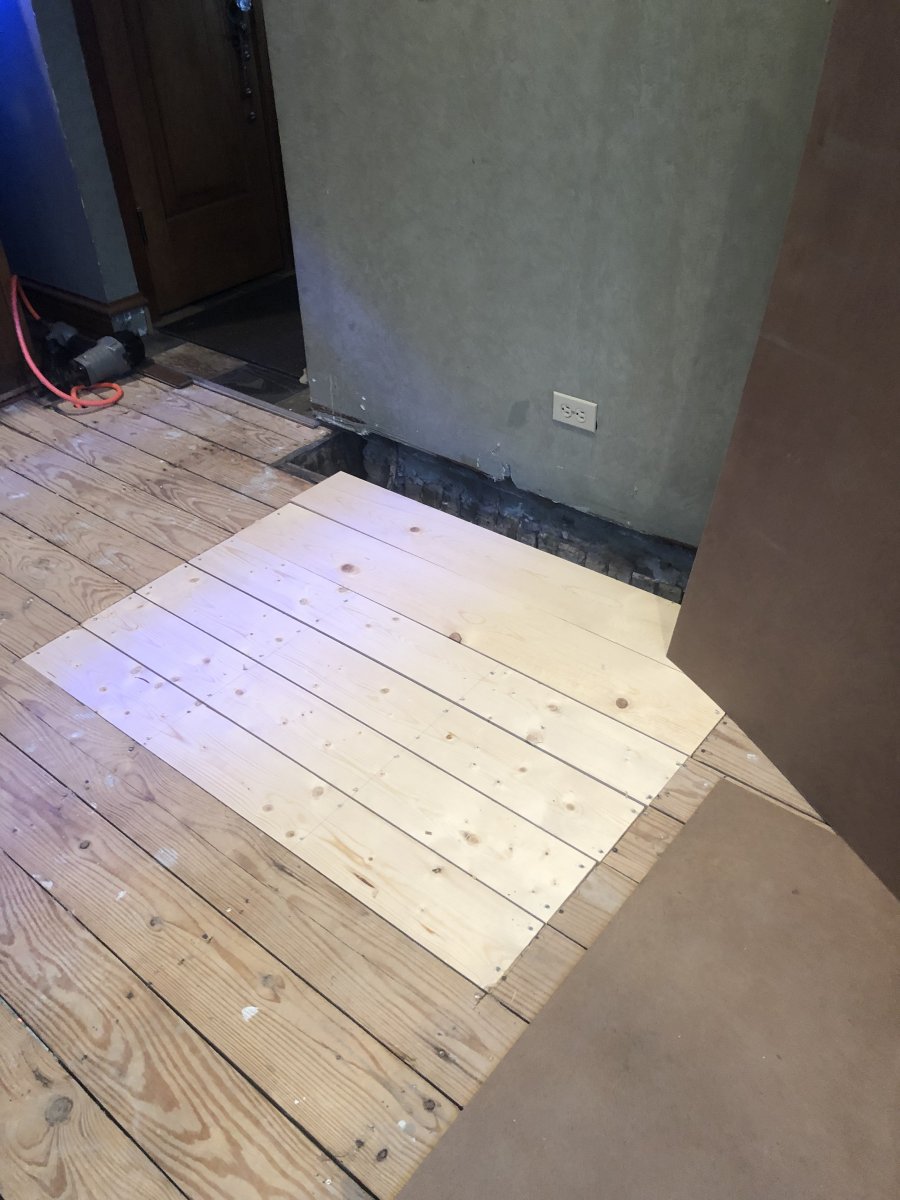

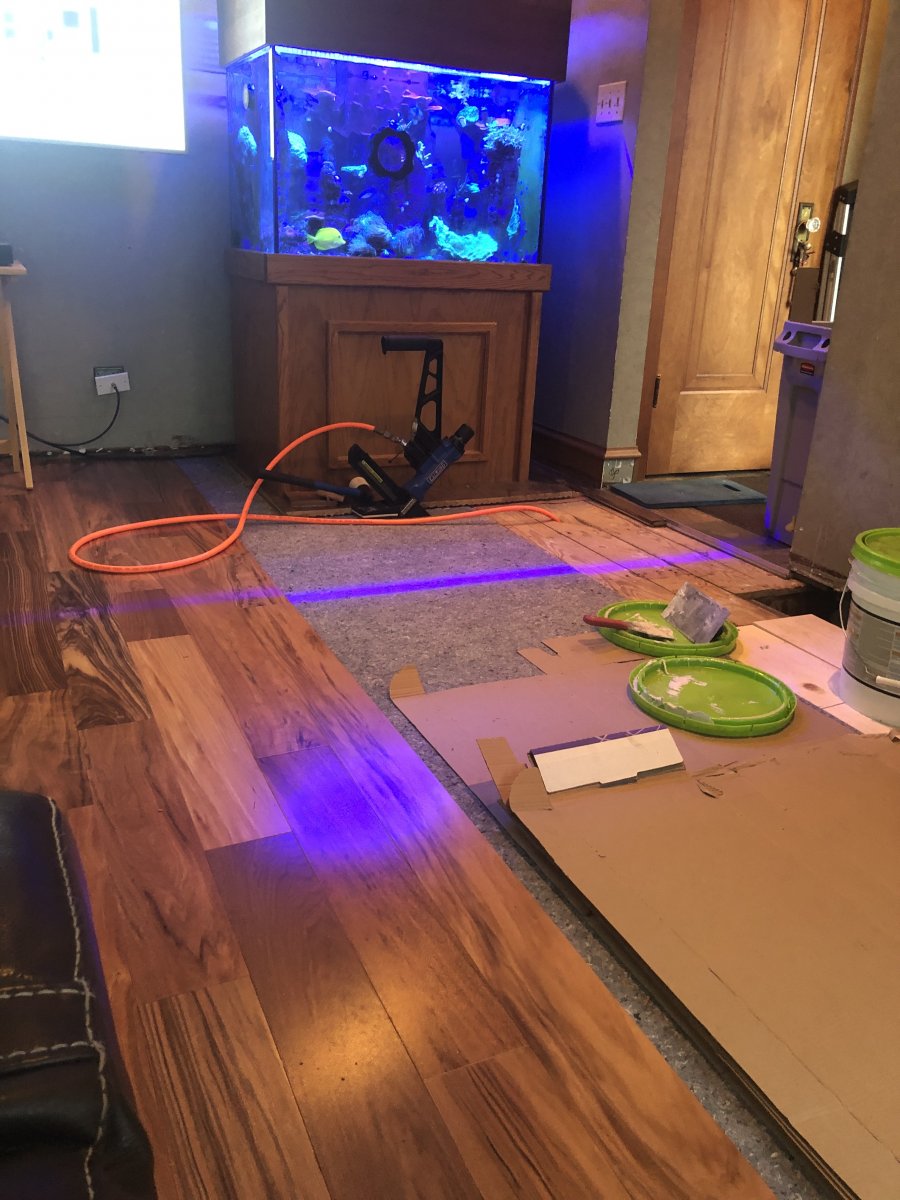

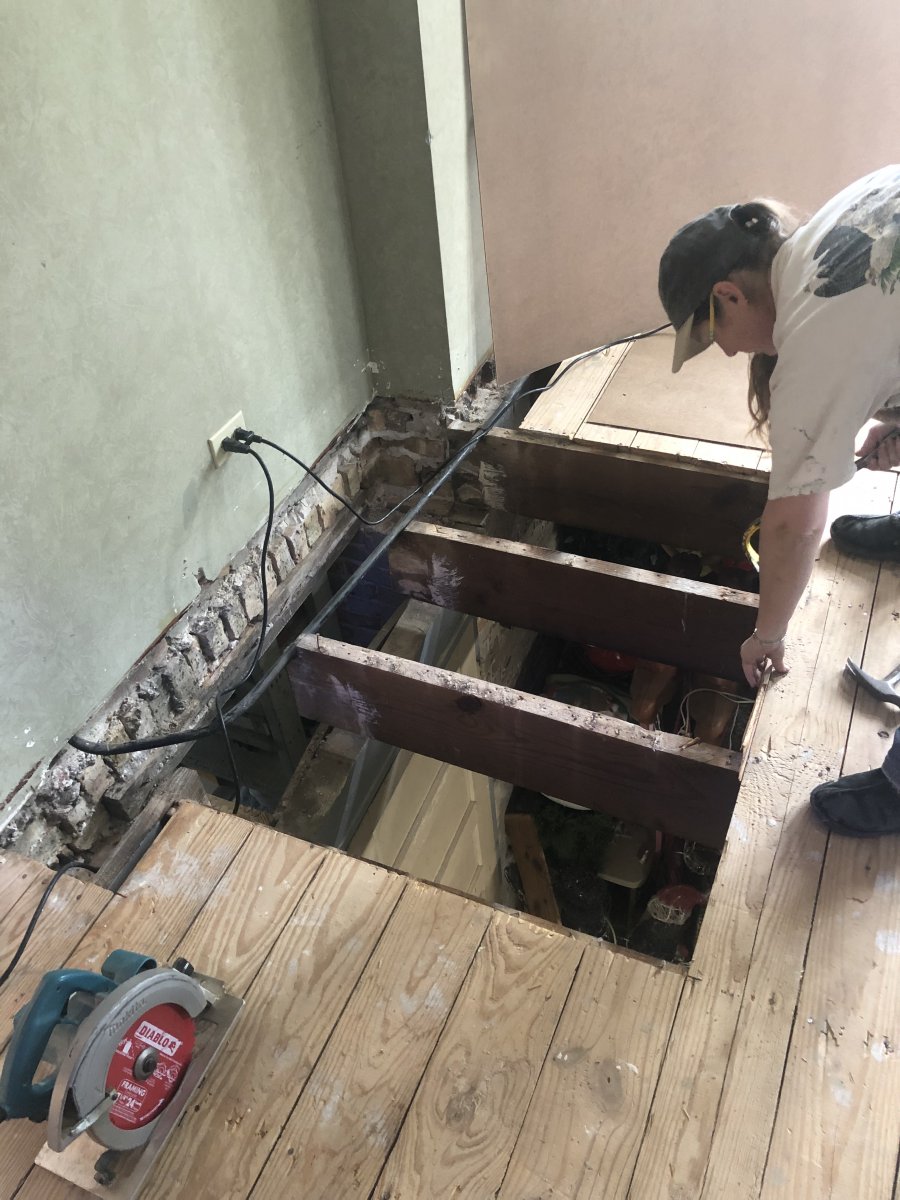

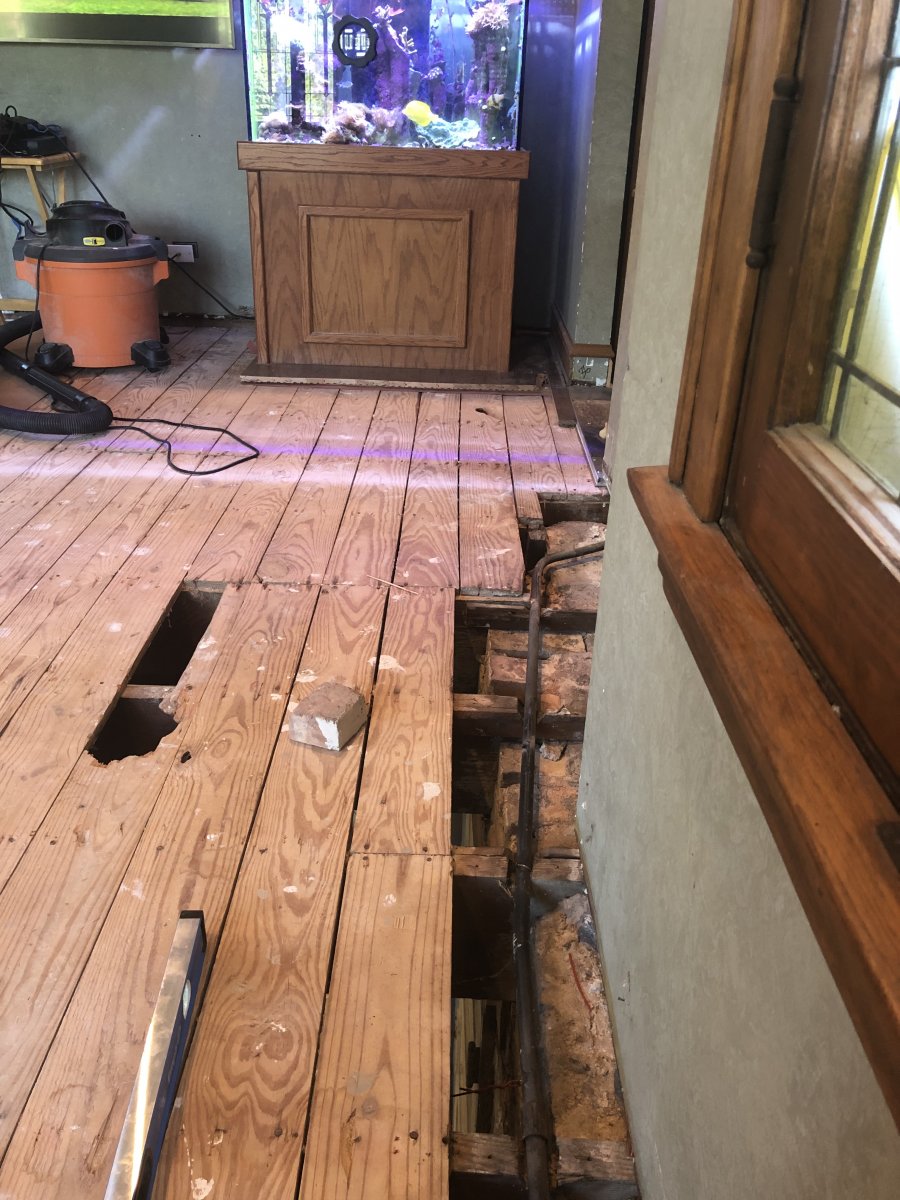

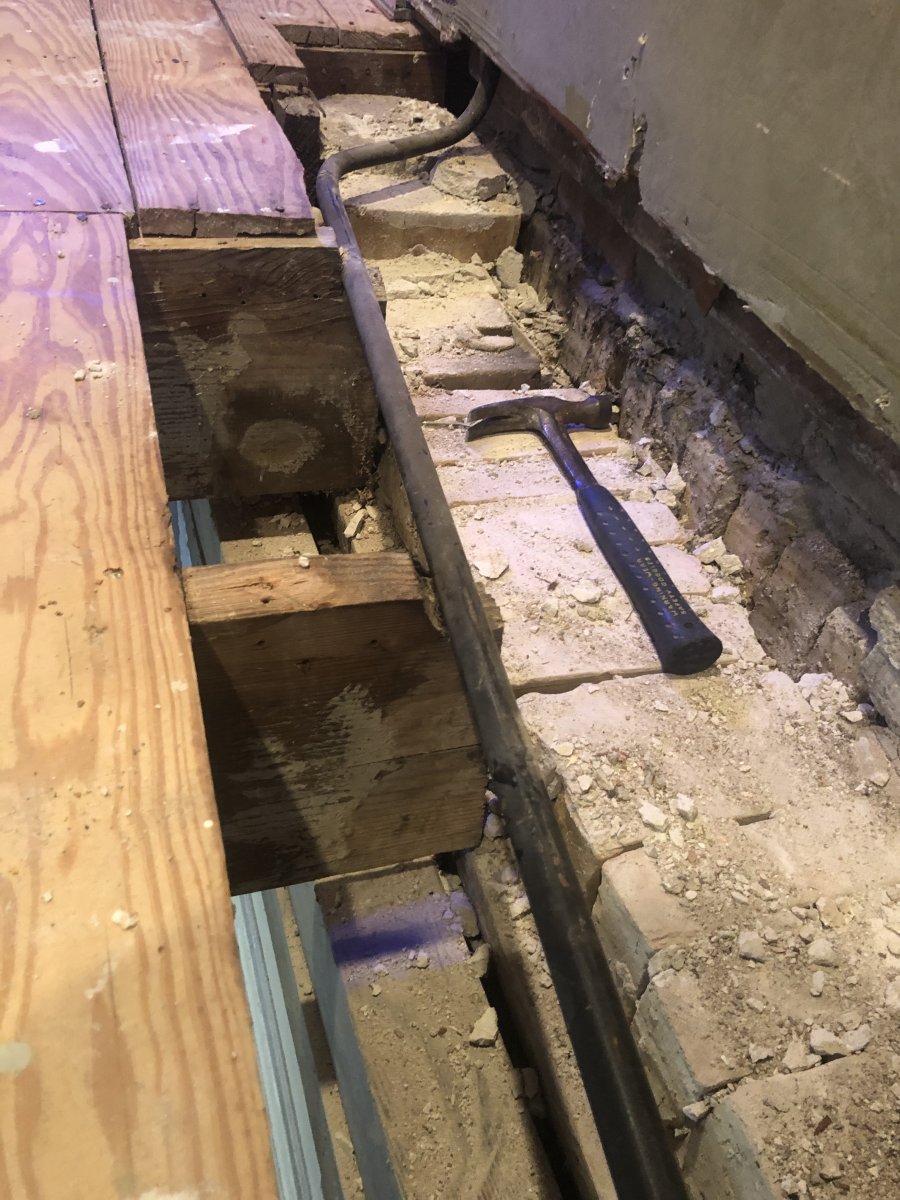

the little lady insisted on a new floor,seeing that we would have to move two tanks. It was challenging at times.
I inserted cured pic.

86102A01-B1F3-47C7-BCDC-93EF9A3C80F3.jpeg 84B447C9-EFD0-4A09-919E-550DED3D1E9B.jpeg 5D60517F-30C1-4A14-833A-5F26BCD0E959.jpeg F1996321-803F-4F45-8FCD-85FB4B527E93.jpeg B921A9A7-960D-4AB1-BF46-BB4D98C6E49E.jpeg EBD9AA8A-265E-4C56-8BE5-45E69041AF3E.jpeg 6A4758FC-A3CB-41A4-8F11-9B30D4D0A731.jpeg B76043EC-01E0-48D7-AB63-08D6D754D00A.jpeg E45AE5F9-F79C-49C9-AFED-10F2B3A873D1.jpeg

Last edited:
Aquarium Specialty - dry goods & marine livestock
OP
SmokenFunny

SmokenFunny

Community Member
View Badges
Joined
Sep 9, 2019
Messages
52
Reaction score
121
Review score
+0 /0 /-0
Location
Chicago

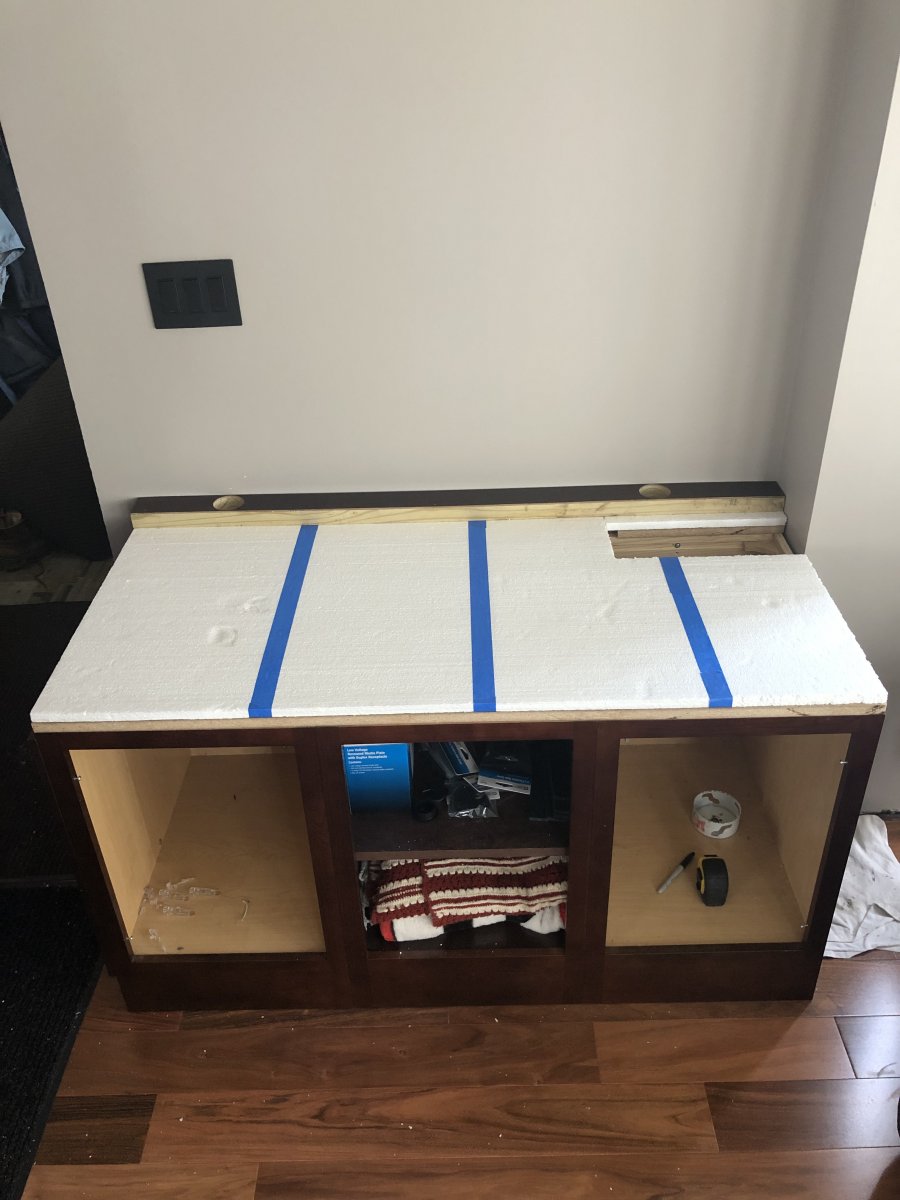

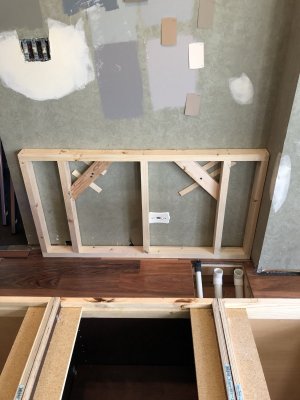

So we used Kraft maid special order cherry cabinets from Home Depot. She screwed them together for an extremely strong base.
Tank is from glass cages :( 56x24x24.
My first tank was from them and was nice. This new one I think Ray Charles did the silicone job.

D88E01E2-1D26-479F-9C21-DAE376D37001.jpeg 7285AADA-F117-4765-B4F9-B936A0AA15D5.jpeg 98BC080B-9A4A-4CDD-B85B-A4A7253BD3AD.jpeg 70969E14-9CE5-4949-B360-9E29EC25A163.jpeg 59C6FED2-86C5-470B-A616-4B451F263199.jpeg 6C718ACF-E423-4BE5-97EE-322A42845901.jpeg

Last edited:

Mastiffsrule

Where ever you go, there you are, so be nice 2 you
View Badges
Joined
Feb 10, 2019
Messages
8,352
Reaction score
33,250
Review score
+0 /0 /-0
Location
Charlotte
Good evening,

Looks Like a greAt build. Floors came out great. i don’t think I saw what we are putting in the tank or what equipment you are going with. Also how bout pics of the other tanks. Lots to see. Also #WelcimetoR2R .

Stop by the meet and greet forum to say hi and for us to say hi if you would like

And keep the pics coming

Top Shelf Aquatics
OP
SmokenFunny

SmokenFunny

Community Member
View Badges
Joined
Sep 9, 2019
Messages
52
Reaction score
121
Review score
+0 /0 /-0
Location
Chicago

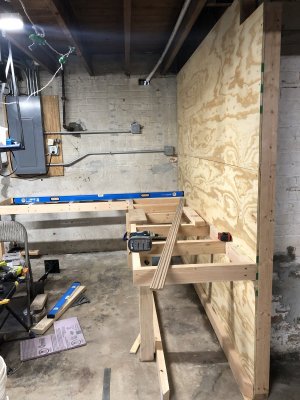

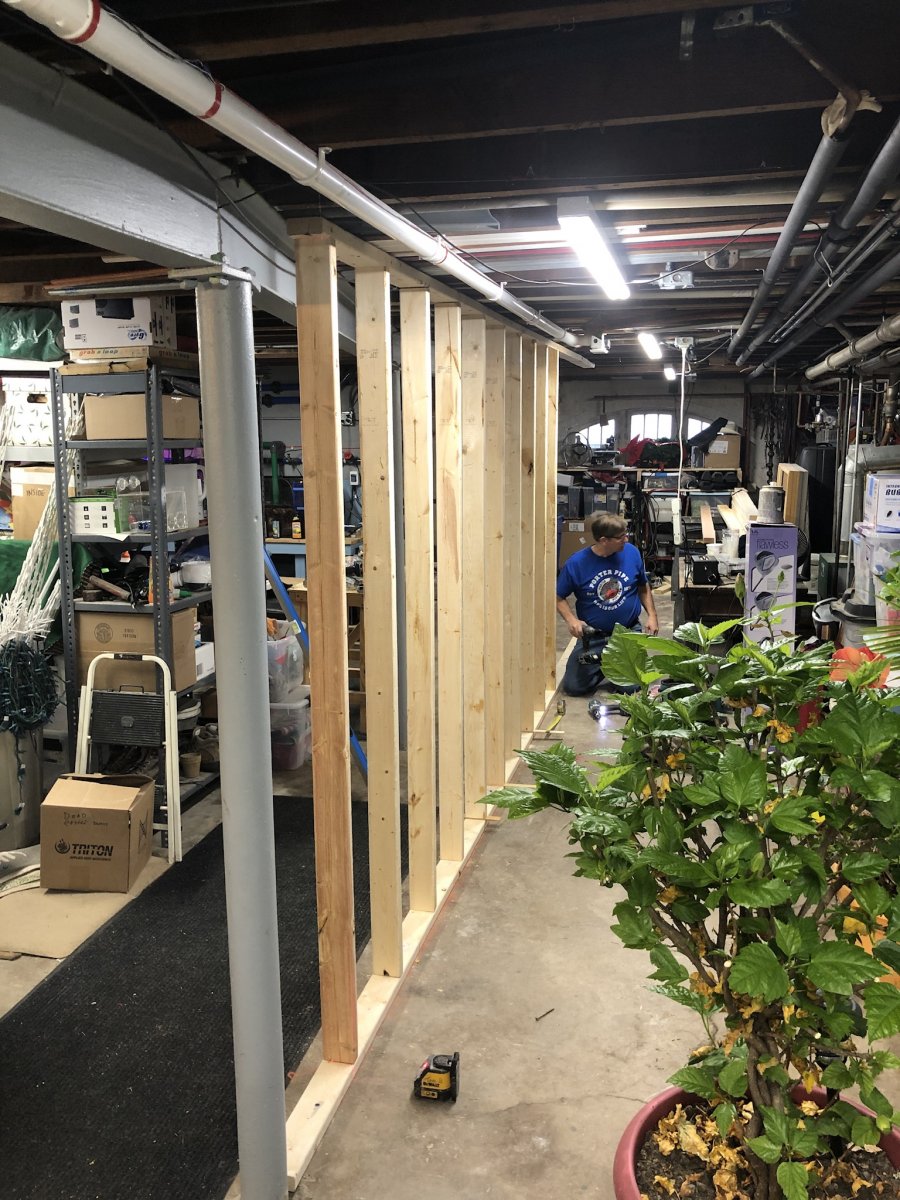

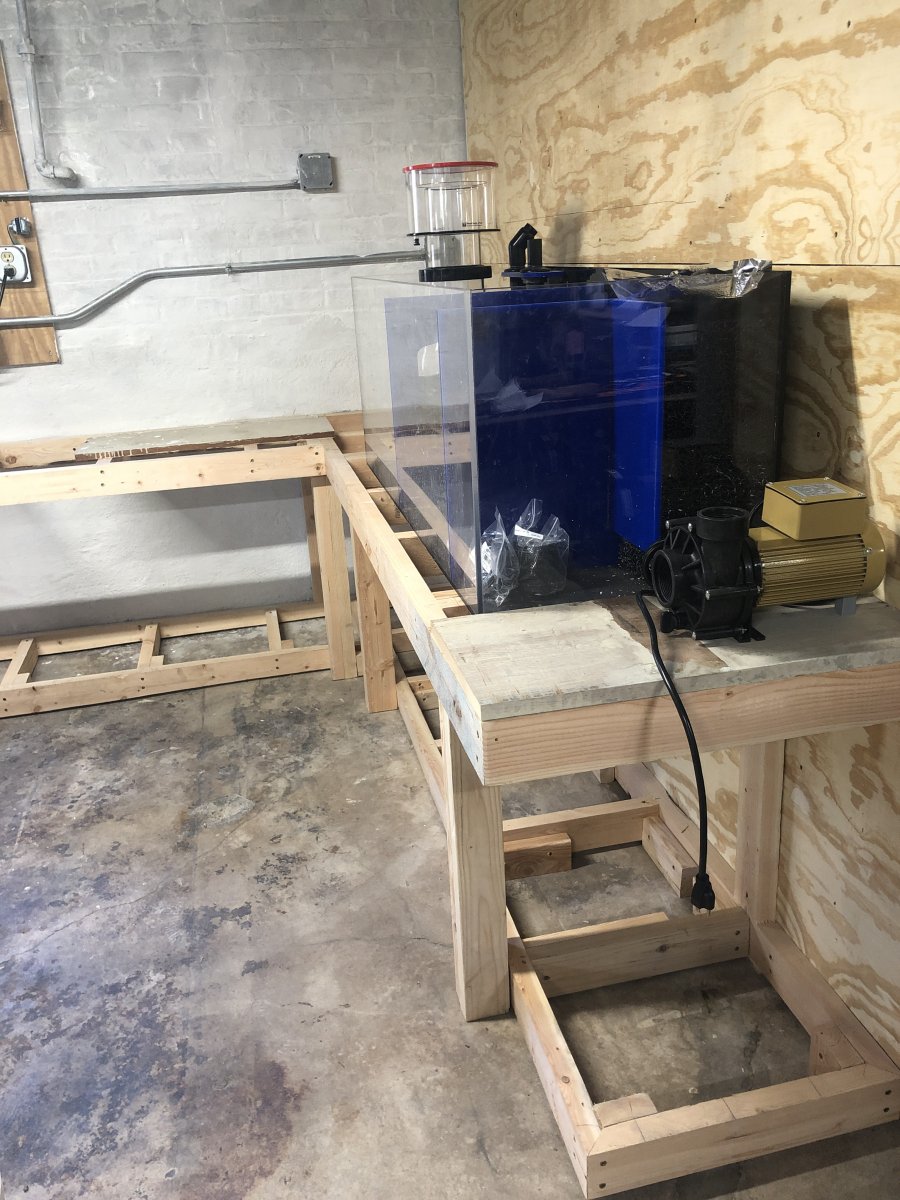

Usually when I do a project with 2x4’s I like to square them up nice and make em smaller to avoid a clunky look.

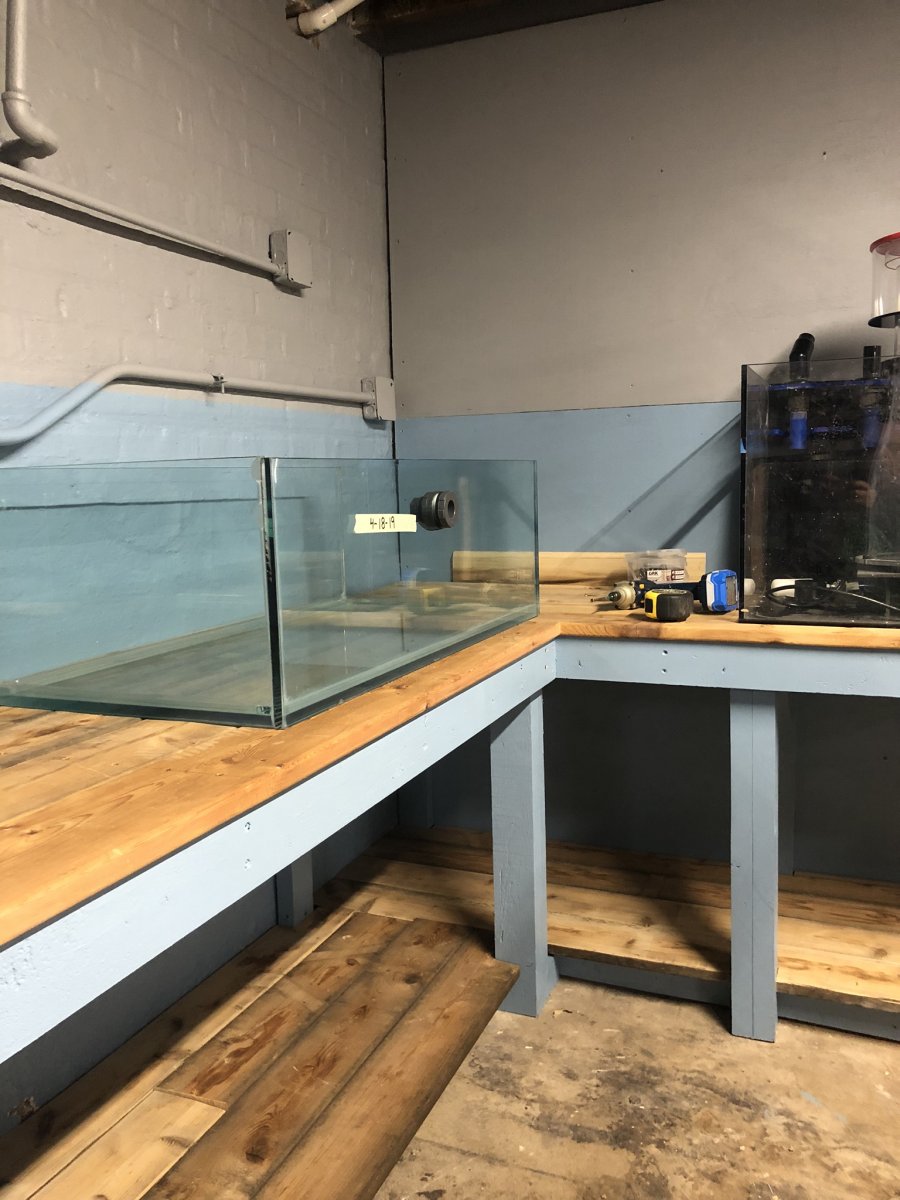

we used reclaimed 5/4 cedar decking for the bench top.

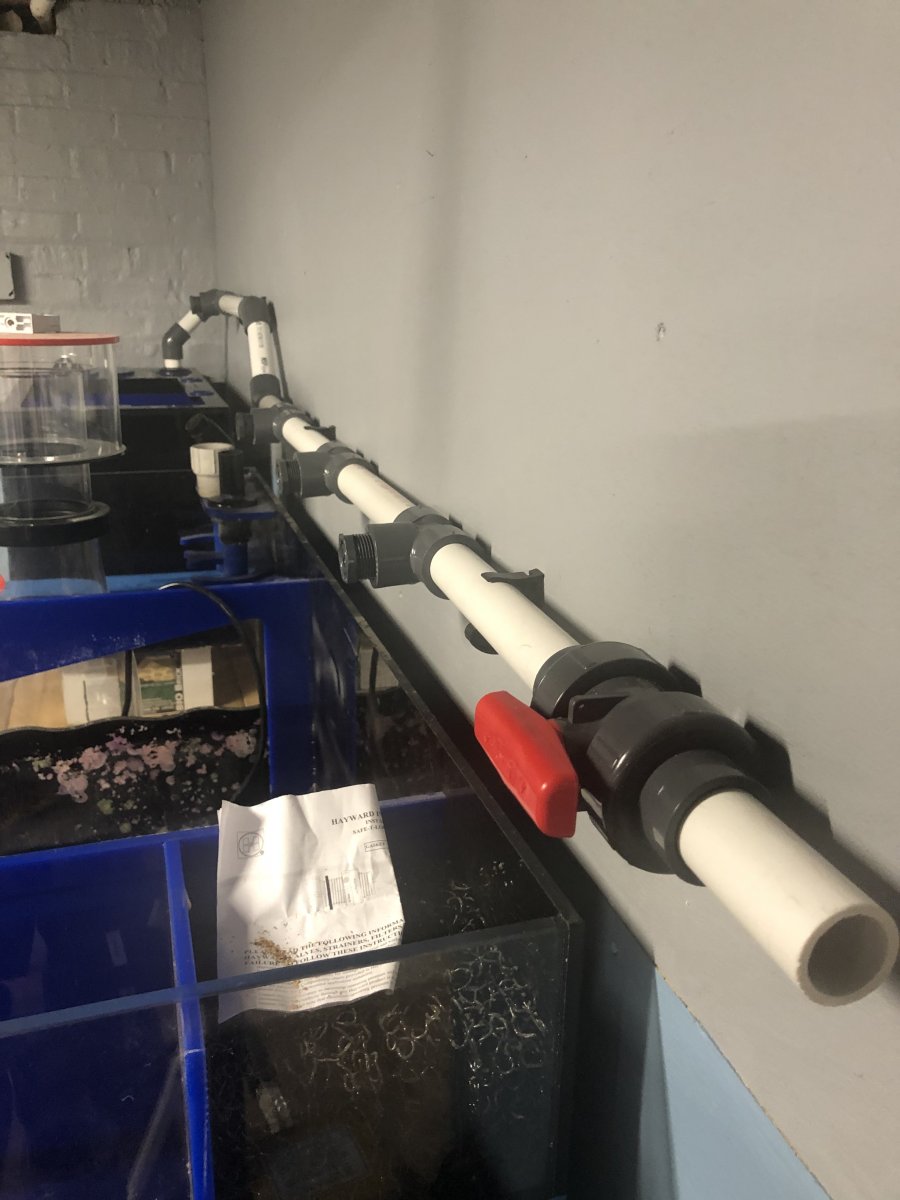

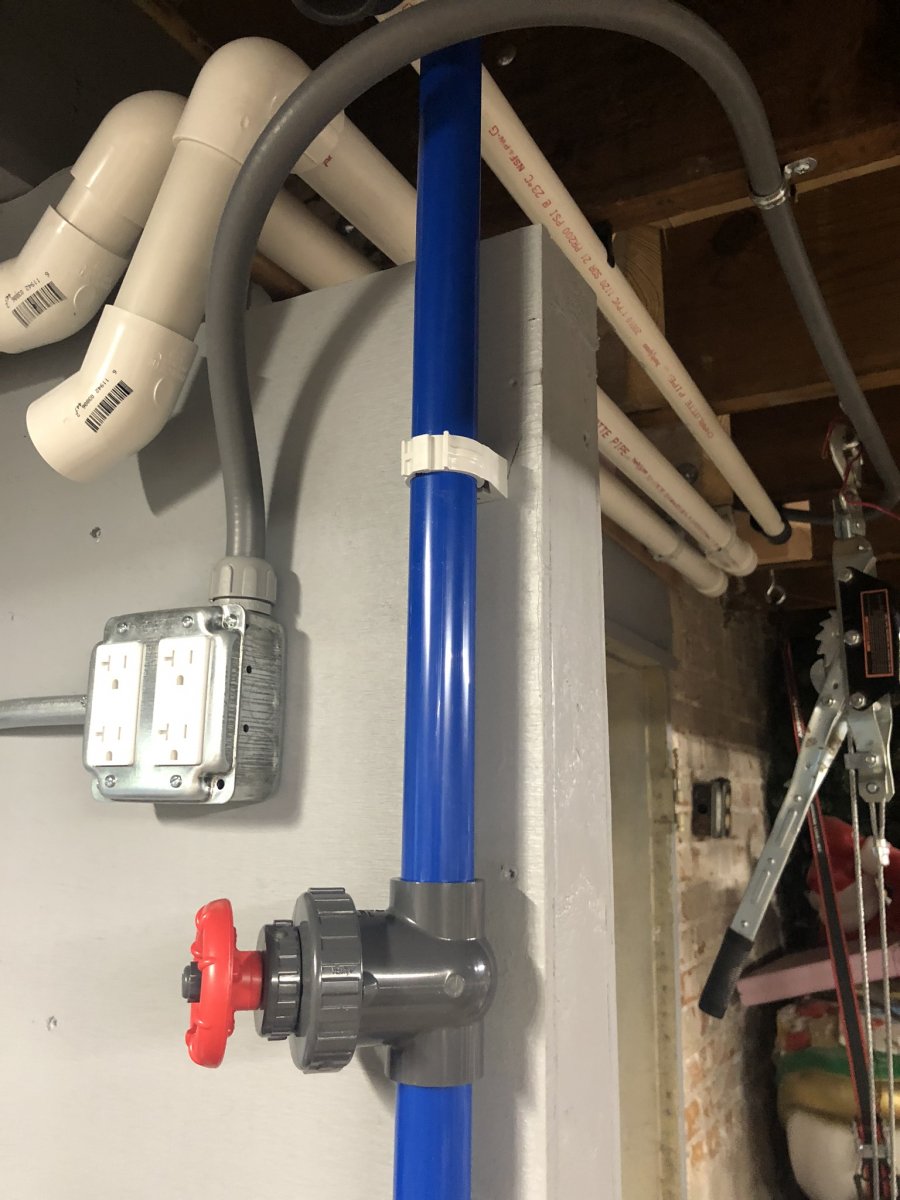

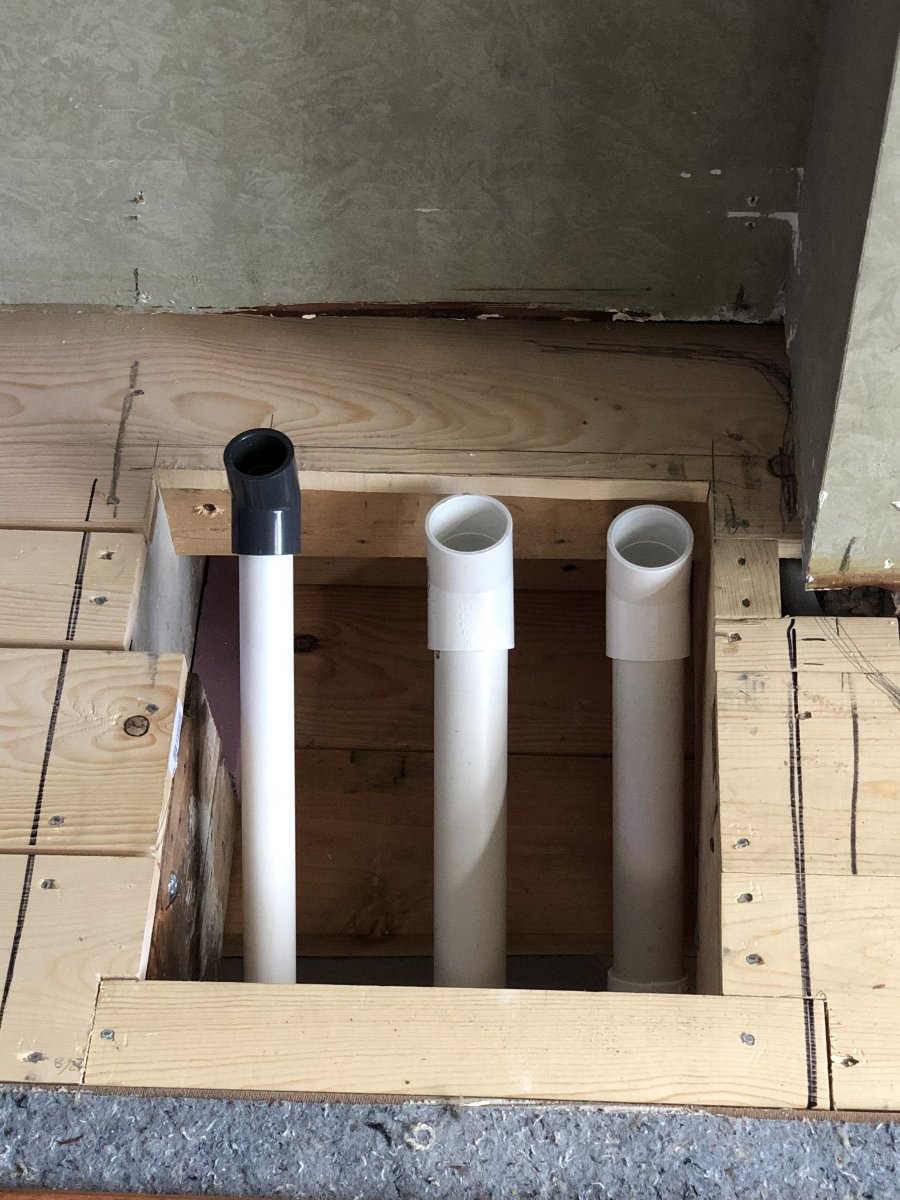

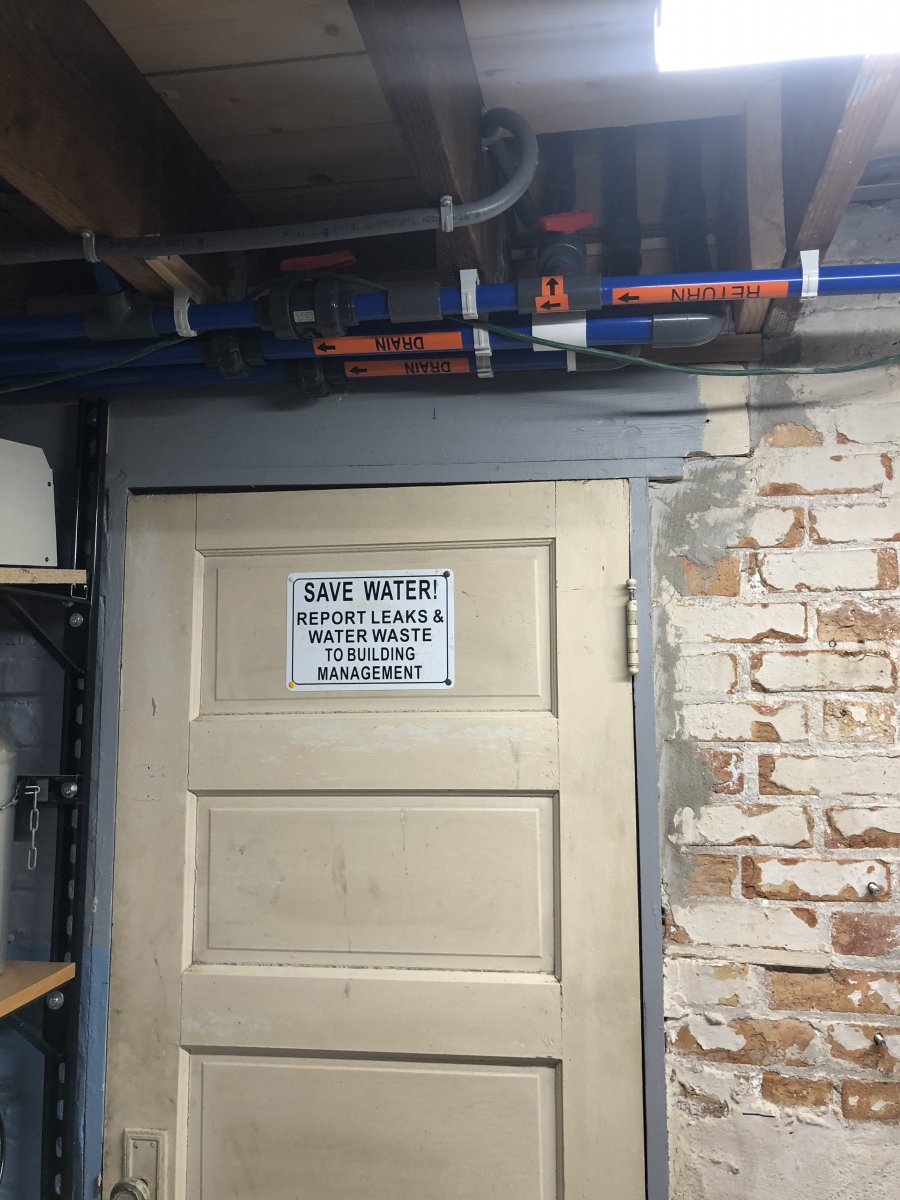

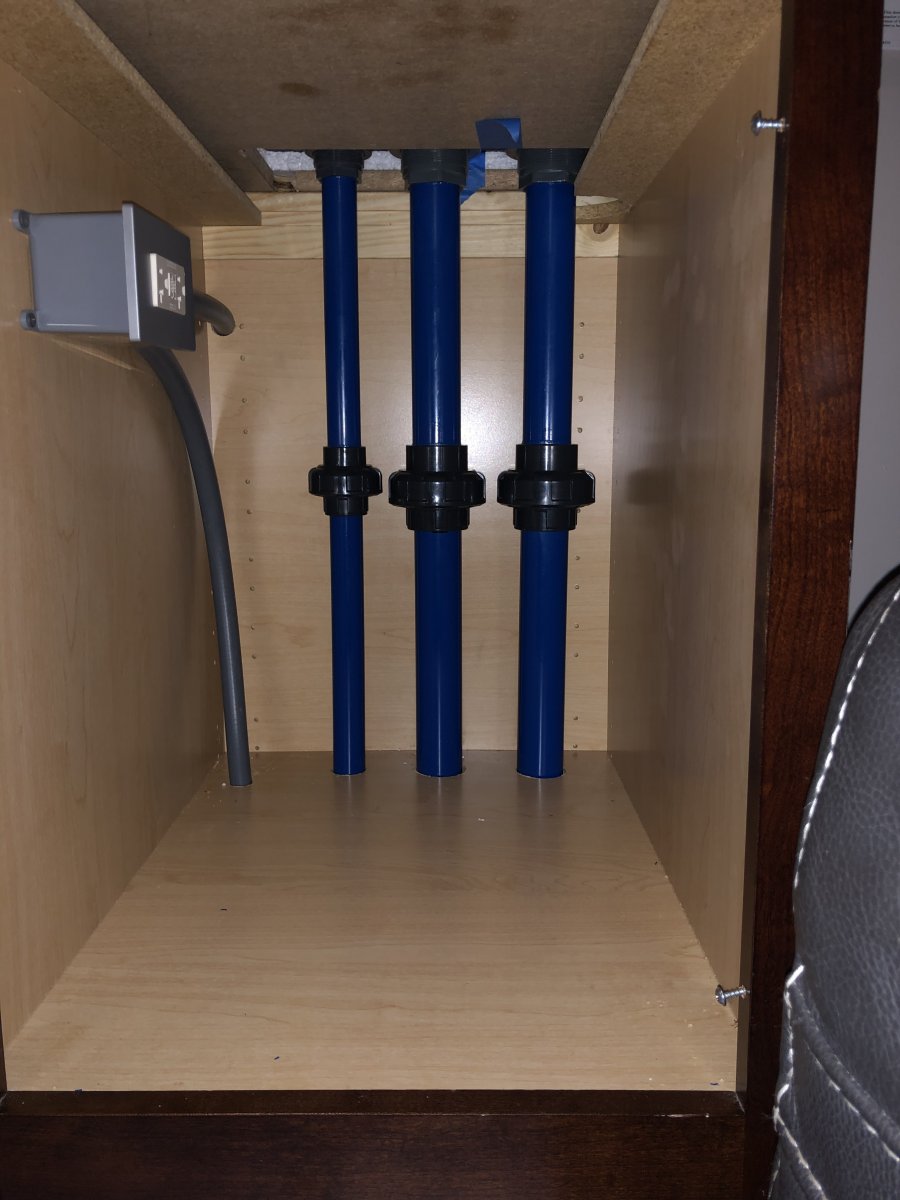

I did all of the piping in white pvc first for layout ideas. I had to redo a bunch of times.

61ECF0D6-EAA1-4677-8FF1-F67DFA219E22.jpeg 3ED46356-CBC4-44D3-9F8E-150FA6CA185F.jpeg 748610C5-08D2-431B-A5E9-58E8FDBA23A6.jpeg C59AAF16-14C5-4BE3-9E81-8E8F9A05A80B.jpeg F79A2A8D-34F9-4E52-B253-CCB7908BDB18.jpeg

OP
SmokenFunny

SmokenFunny

Community Member
View Badges
Joined
Sep 9, 2019
Messages
52
Reaction score
121
Review score
+0 /0 /-0
Location
Chicago

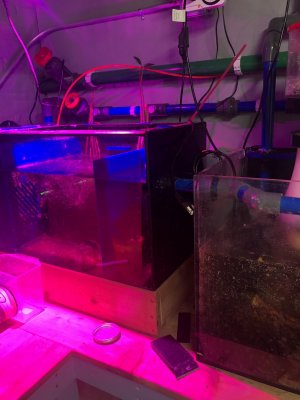

So I decided not to do the frag tank setup and installed a 30 bio cube to match the sump. Its plumbed through the supply and cycles through main compartment in sump. I also run the reactor fire through here to bleed off c02. It works nicely.

373EAB4A-115B-4D34-89C6-8C696584776E.jpeg 9788DDBA-C648-4223-8D88-18B6A385BDAC.jpeg

Top Shelf Aquatics
OP
SmokenFunny

SmokenFunny

Community Member
View Badges
Joined
Sep 9, 2019
Messages
52
Reaction score
121
Review score
+0 /0 /-0
Location
Chicago
Lol keep Working on her!!!

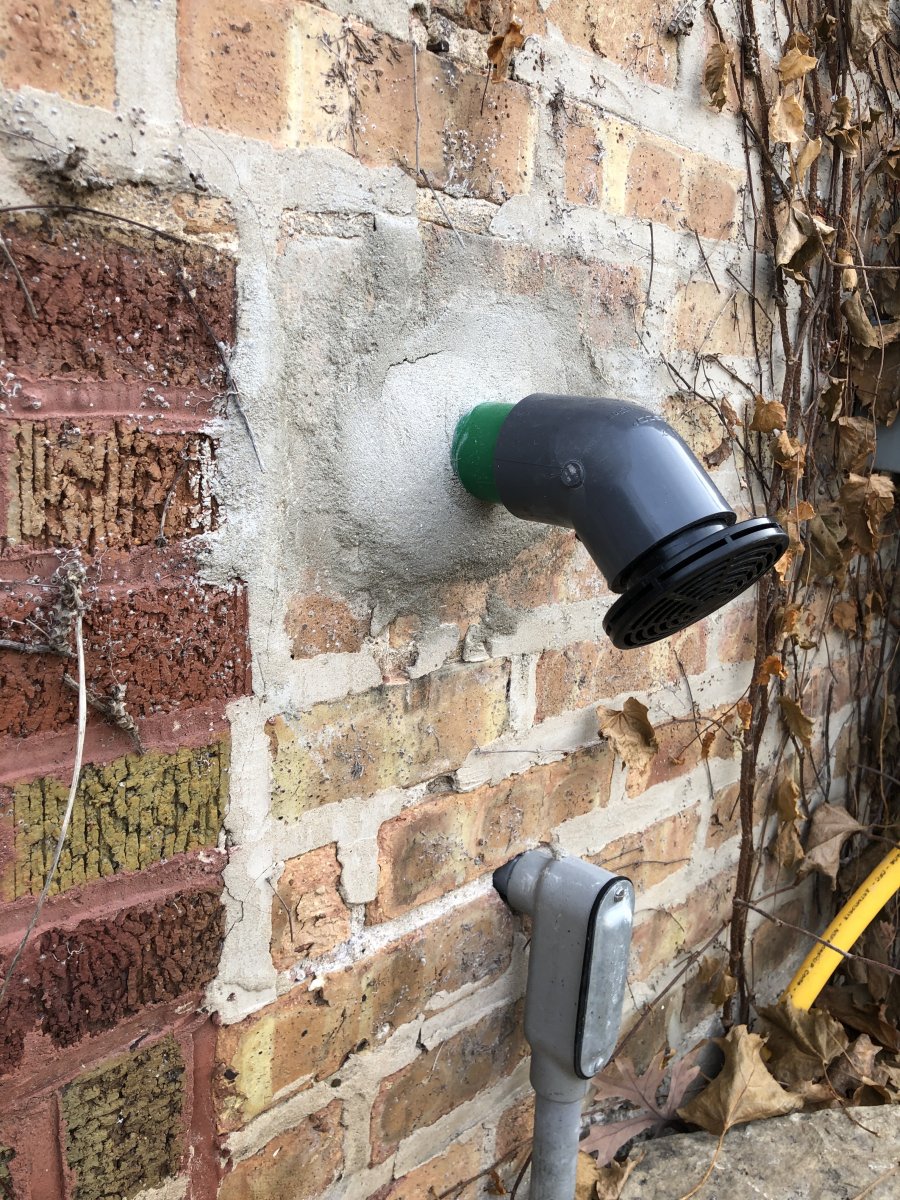

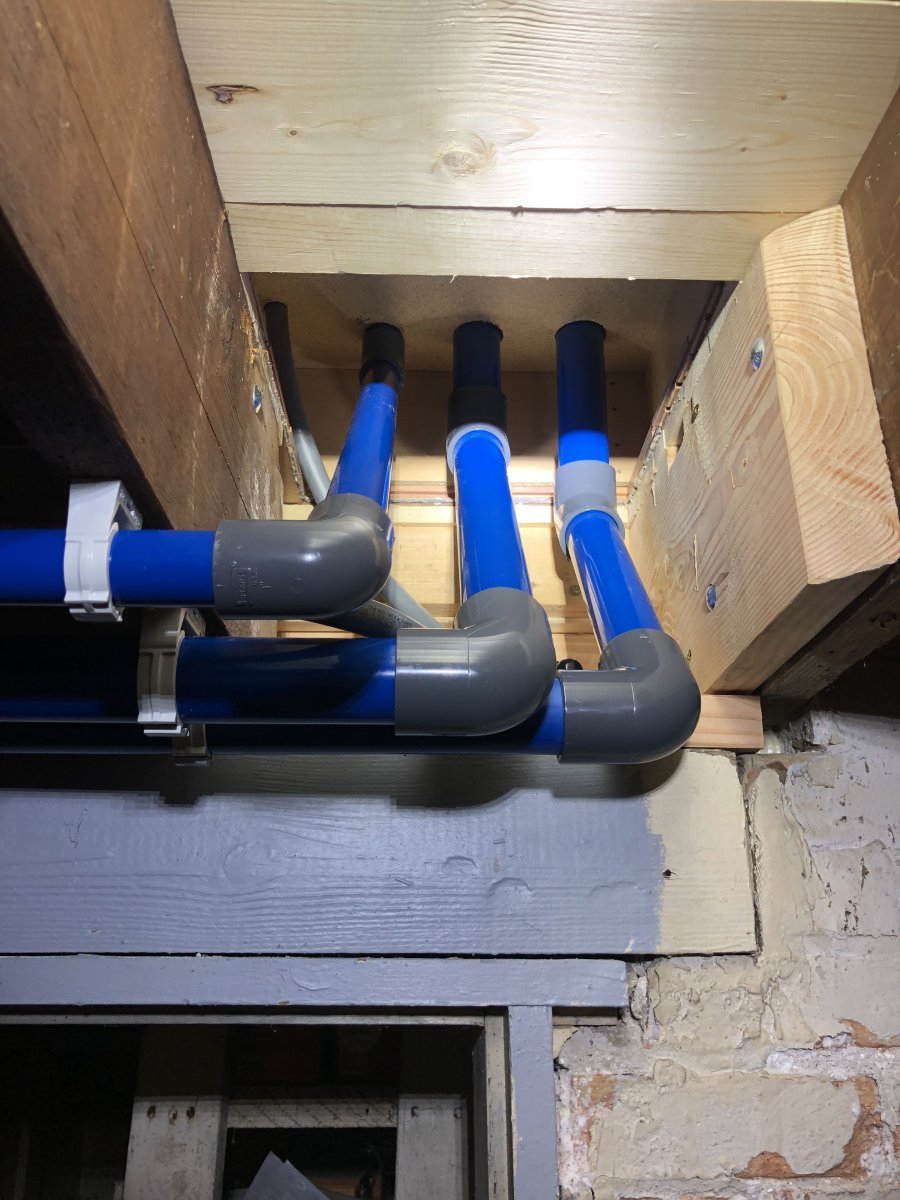

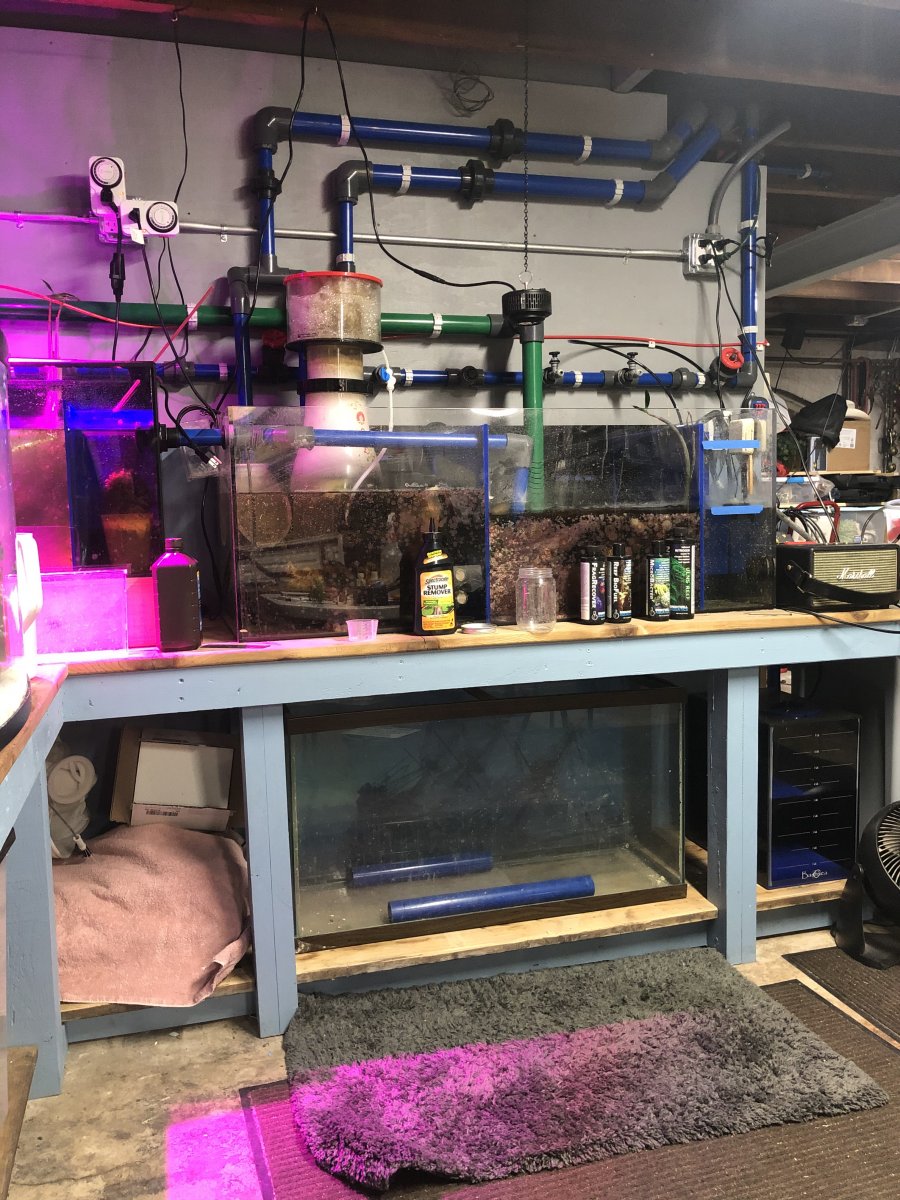

Anyway I originally had the pump next to the sump but had noise and vibration issues so I moved it to the rear and unfortunately had to bury the 1” feed. Oh well. Next we have the 1-1/2 green pipe for fresh air.
the skimmer also pulls outside air.

E8BB2A33-56B7-4B06-B2E5-F16A4424E562.jpeg BD9FCFA8-BD7E-4422-B443-E28F12202E5C.jpeg A3AB1E9F-B334-4B43-8F98-7D2CED64E440.jpeg 79D3B1E2-FB2A-4672-B479-950677521758.jpeg BA99B737-3219-438E-8A30-B6C1B7BAAC95.jpeg image.jpg 8E2FDDB5-08D5-44EC-8540-6A1D363EC39E.jpeg B9F68634-2AF4-4FB2-AB6D-DFF15B424A74.jpeg

Last edited:
OP
SmokenFunny

SmokenFunny

Community Member
View Badges
Joined
Sep 9, 2019
Messages
52
Reaction score
121
Review score
+0 /0 /-0
Location
Chicago
I welded up the bracket at the shop and put some nice 3/8 anchors deep in.
I sandwiched the pump with 6x6 sheet 1/8 aluminum with 3/4 neoprene.
I used the black flexi pipe from my bud Glenn to hook up.
The pump is super quiet now.
Nice alky side shot


OP
SmokenFunny

SmokenFunny

Community Member
View Badges
Joined
Sep 9, 2019
Messages
52
Reaction score
121
Review score
+0 /0 /-0
Location
Chicago

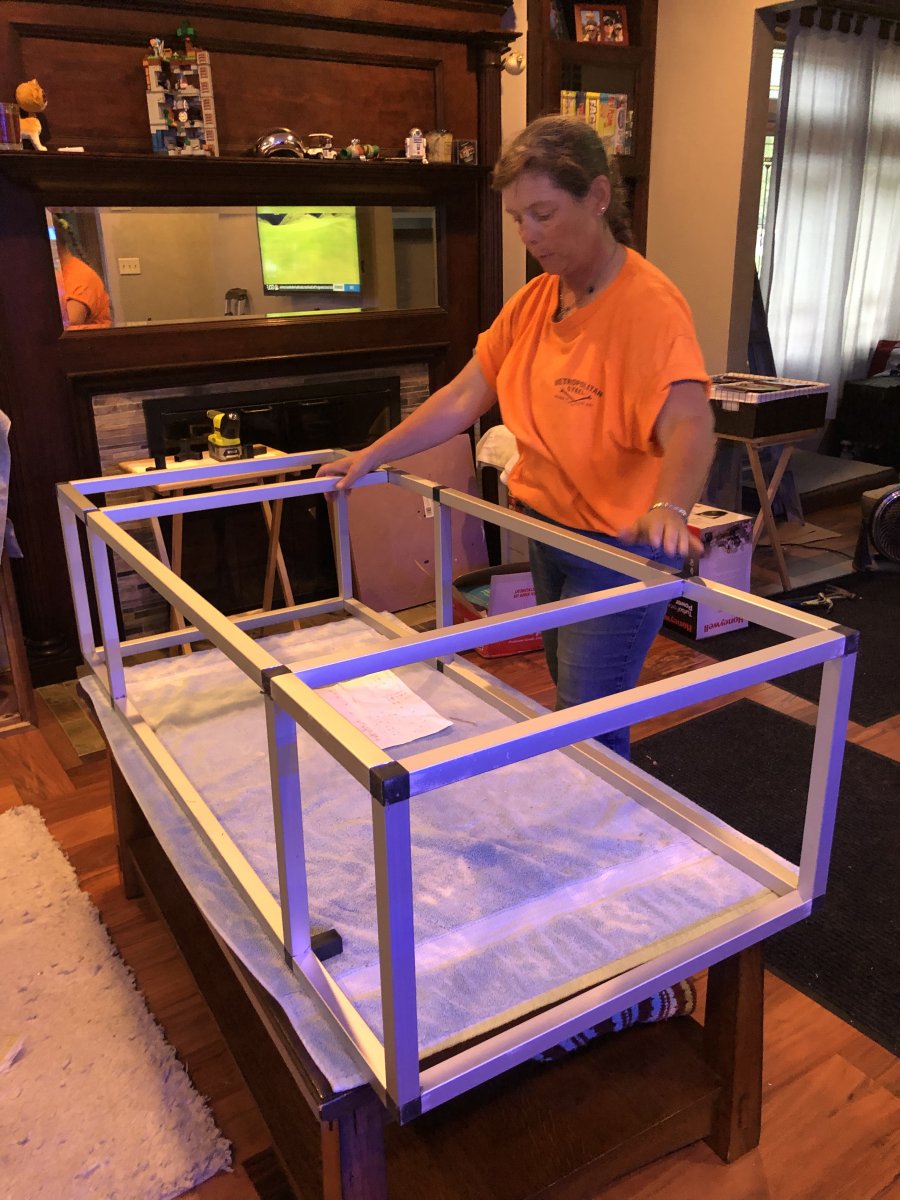

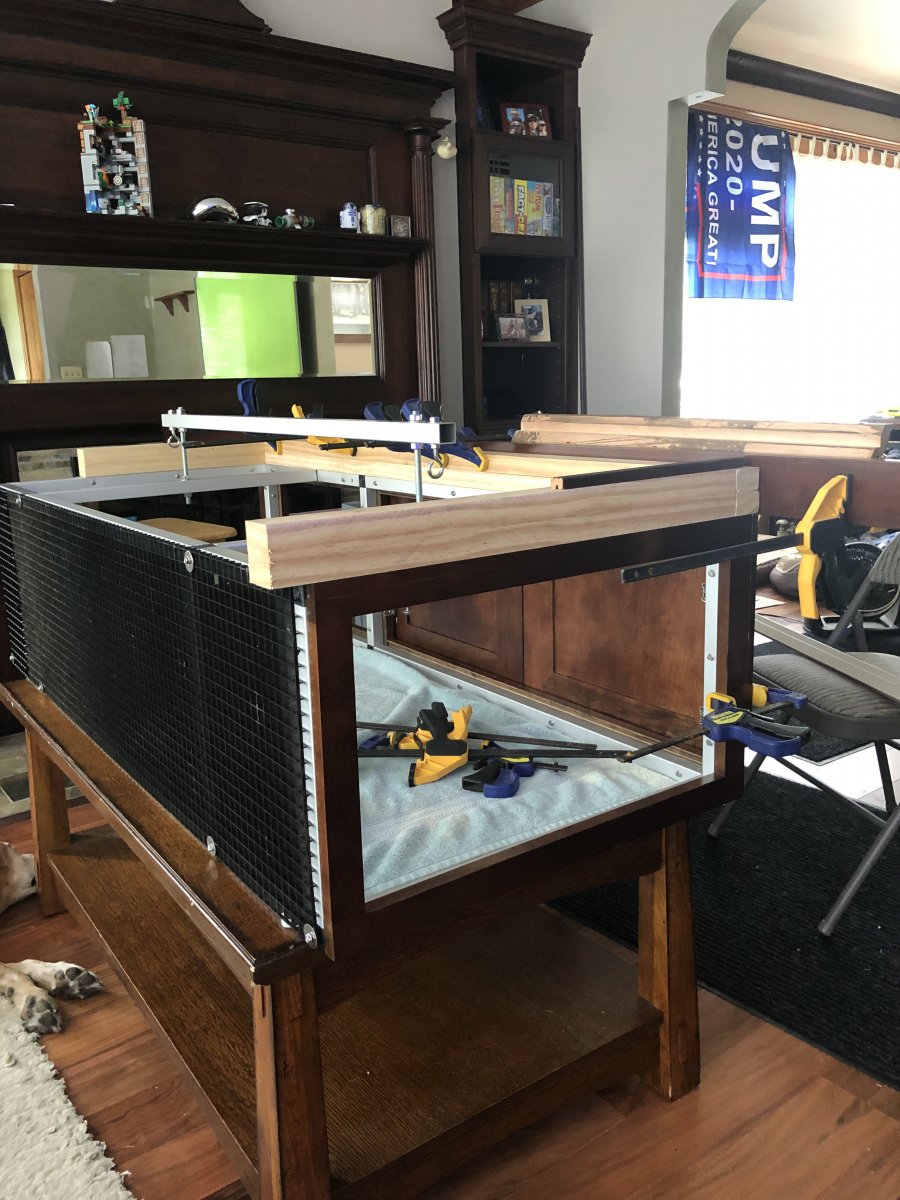

My favorite part of the build,the canopy!

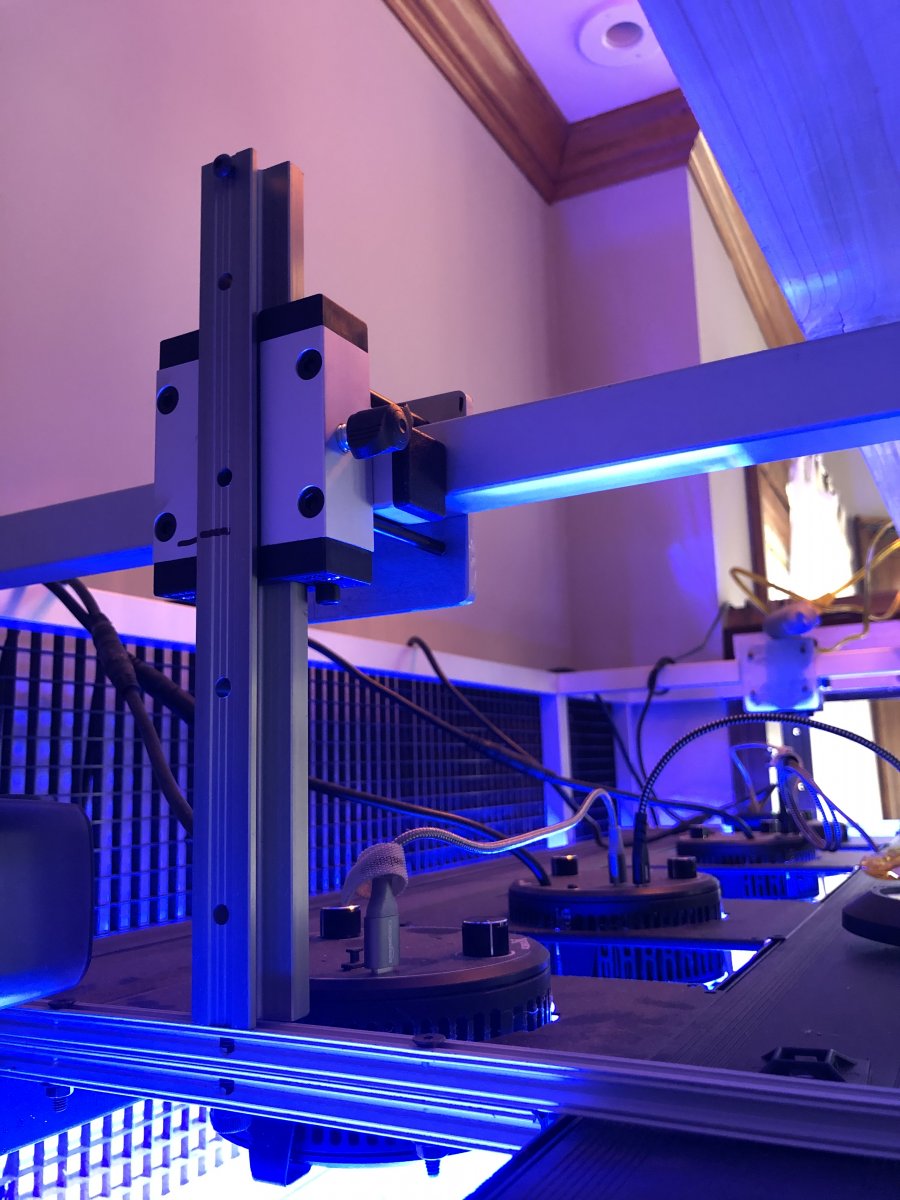

We used “Press to fit framing” from Mcmaster Carr. I cut with my chop saw to precision dimensions, then press the corresponding angles together.
we used 1-1/2 stainless screws for cabinet face fastening.
We put blocking on for the crown moldings. Also screwed the egg crate on for jumpers

D6A0BC98-E317-4CCE-AF90-9CA071F75BDE.jpeg DE0BB899-EE57-4175-978E-64E690C1EB1A.jpeg 4C8EB689-4C2F-468F-BC5A-D469D8541BA2.jpeg

Top Shelf Aquatics
OP
SmokenFunny

SmokenFunny

Community Member
View Badges
Joined
Sep 9, 2019
Messages
52
Reaction score
121
Review score
+0 /0 /-0
Location
Chicago

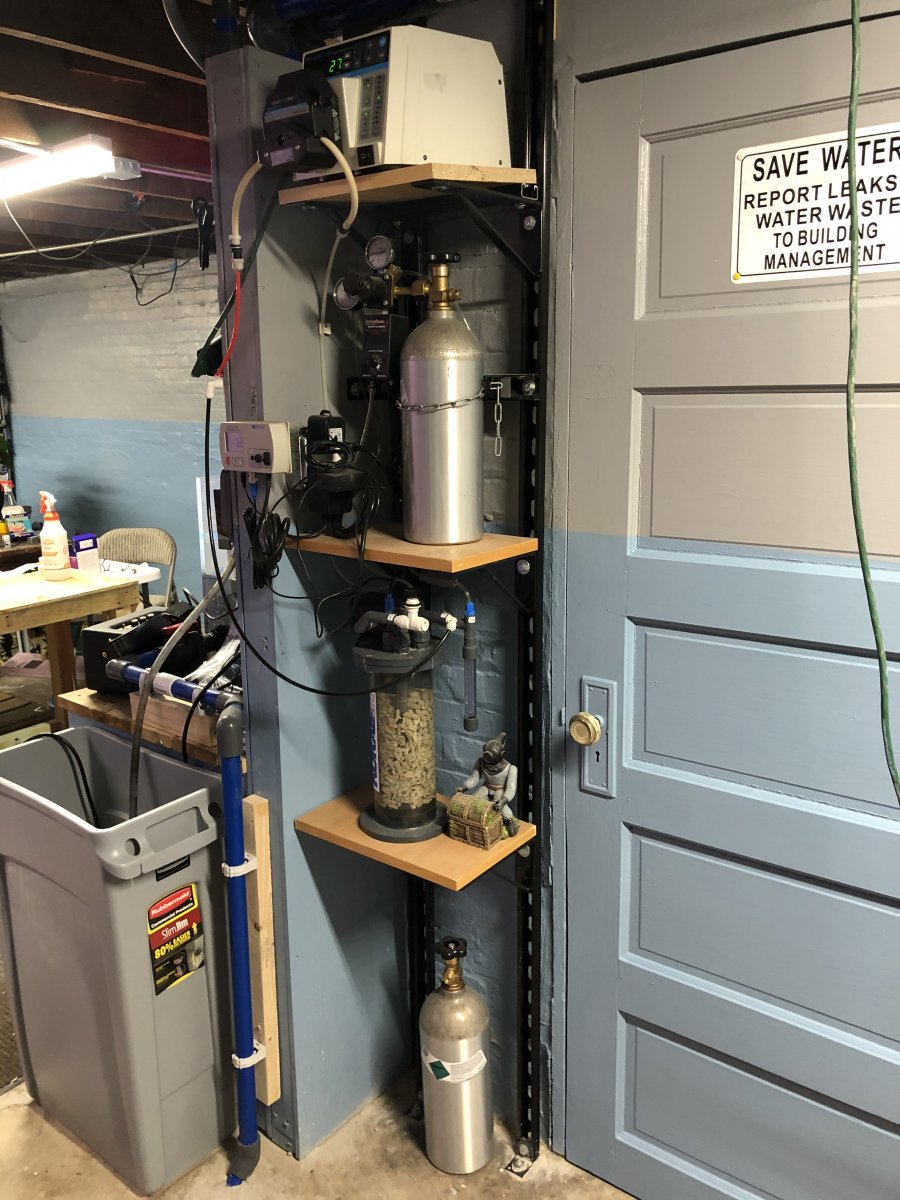

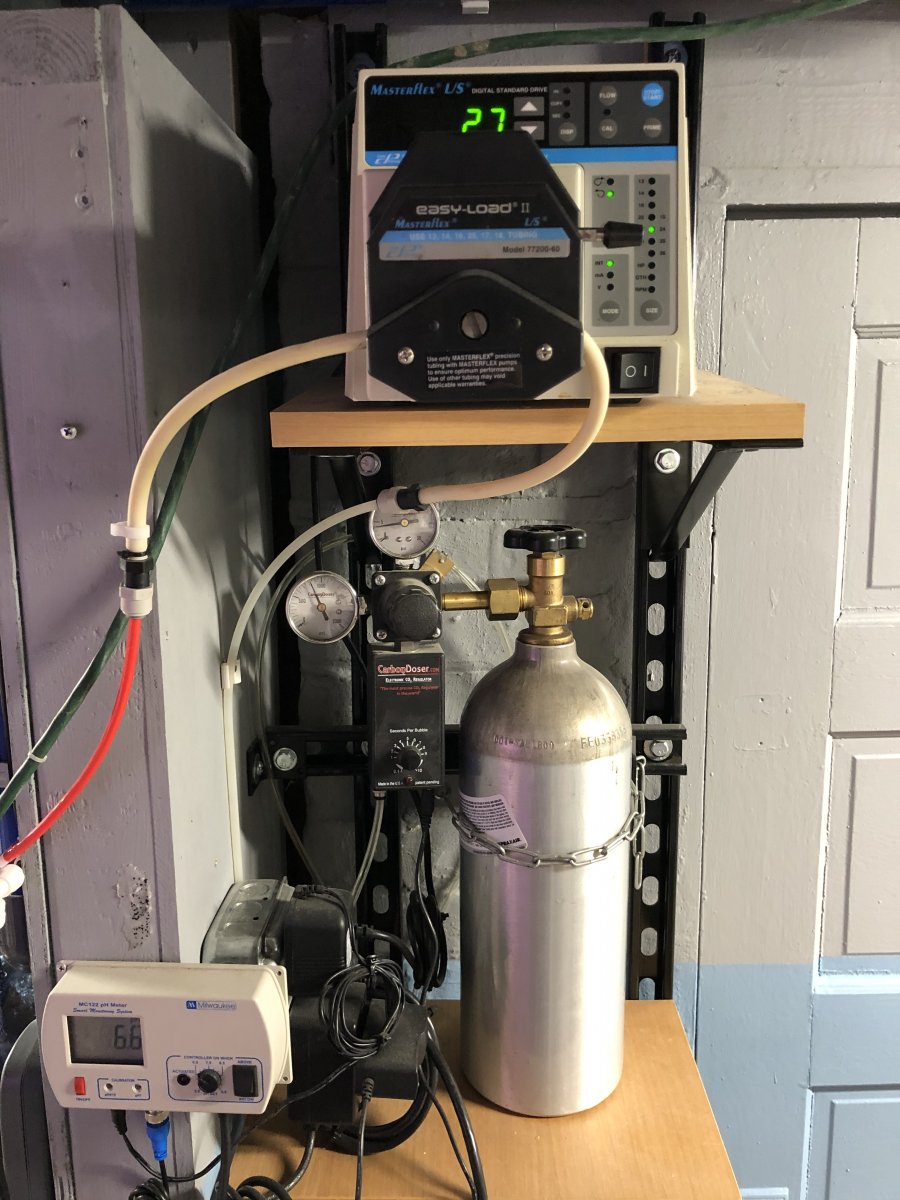

Calcium reactor was fun.

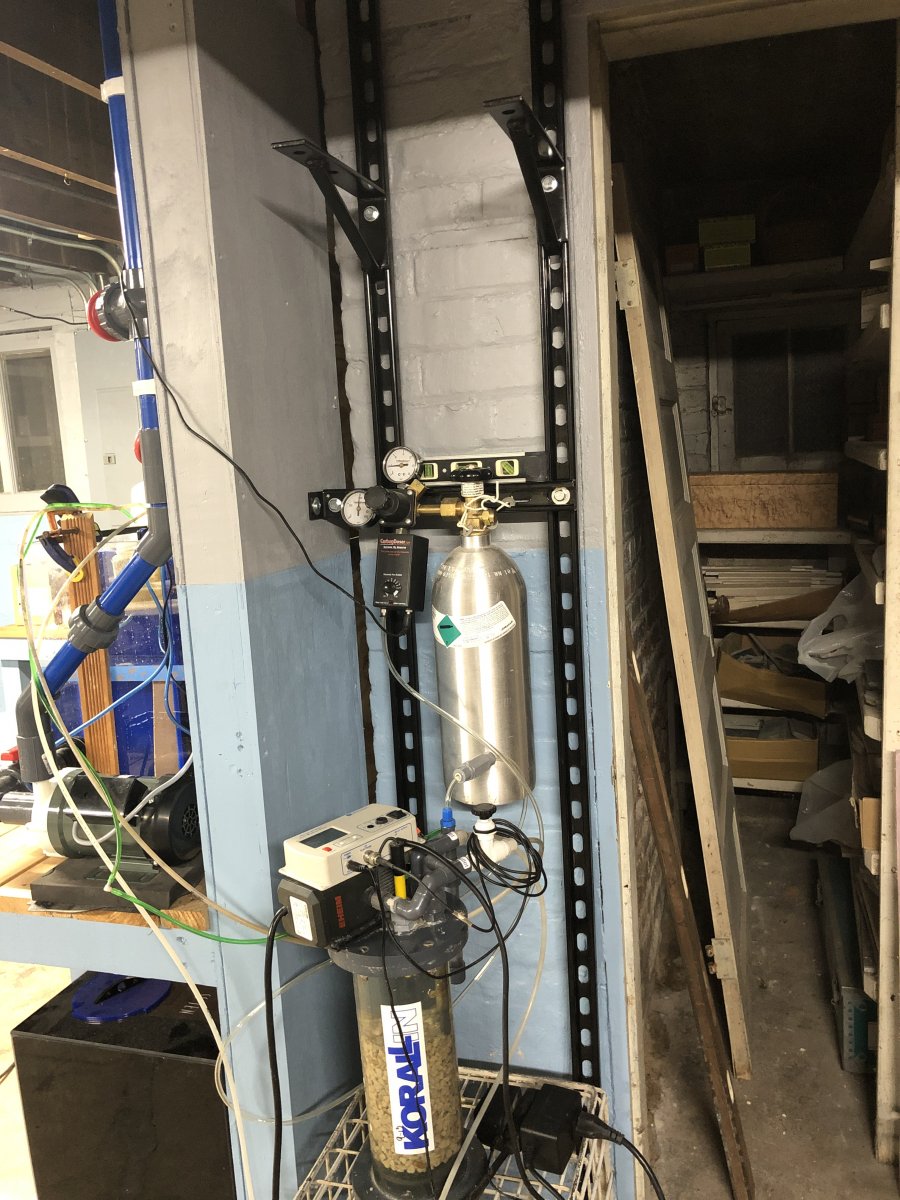

I built a 1” unistrut shelf and anchored.
With the aquarium plants c02 solenoid and masterflex pump it’s super stable and reliable.
I run the fire all the way over to chaeto reactor. I do this mainly to degas the c02 then it flows to main sump up to display.

495FCA48-0F60-46FE-871B-8BB3A90C669F.jpeg 68222B23-ABB0-453E-B57A-64E4A26B6306.jpeg 2DBC40DE-E9A8-4A58-BA2B-62A098A0C605.jpeg 3D47037E-CF41-406D-8B70-DB5945CF2D39.jpeg
