Connecting to return bulkhead with threads (inside/wet side)...

Biff0rz

Active Member
View Badges
Joined
Jul 9, 2020
Messages
286
Reaction score
77
Location
Troy

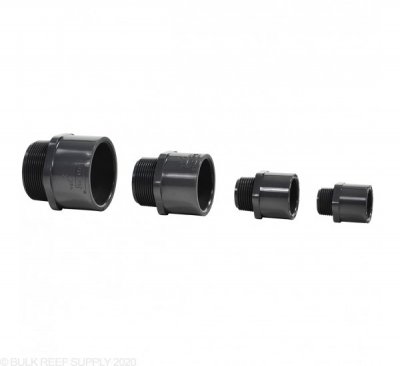

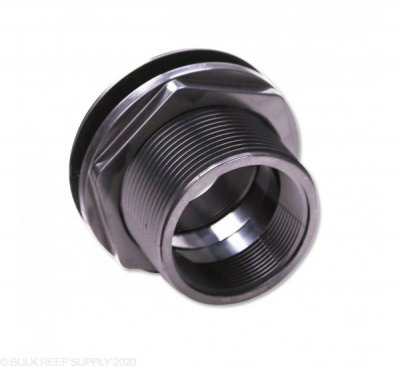

My tank is used and the 3/4" bulkhead is thread x thread (pic attached). I ran my return piping to it and plan to connect to it with a 3/4" male pipe adapter (another pic). I plan to cement the 3/4" pipe to the male pipe adapter. Do I then cement the 3/4" male pipe adapter to the inside of the 3/4" bulkhead? Or should I use something else like plumbing tape? I think I read a lot of people have leaking issues with the thread x thread bulkheads - so I was considering just cementing it.

202957-bulkhead-c.jpg 202540-Schedule-80-Male-Pipe-Adapter-grouped-a_1.jpg


DCR

Active Member
View Badges
Joined
Jan 3, 2018
Messages
240
Reaction score
162
I would suggest using a street elbow to turn down immediately and minimize the bending moment on the bulkhead. I am assuming you are returning on the back side of the tank rather than the bottom. Not sure if they are available in Sch 80 which looks like what you are planning to use. You can certainly cement the threads and it will not leak. If you want to thread it, you should probably use pipe dope instead of Teflon tape. I think there is less chance of it leaking, or splitting the bulkhead because you used too much tape. I have never threaded into the bulkhead except to the flange side which I tend to think is a little stronger but this means you have the extension in the tank.

OP
Biff0rz

Biff0rz

Active Member
View Badges
Joined
Jul 9, 2020
Messages
286
Reaction score
77
Location
Troy
I would suggest using a street elbow to turn down immediately and minimize the bending moment on the bulkhead. I am assuming you are returning on the back side of the tank rather than the bottom. Not sure if they are available in Sch 80 which looks like what you are planning to use. You can certainly cement the threads and it will not leak. If you want to thread it, you should probably use pipe dope instead of Teflon tape. I think there is less chance of it leaking, or splitting the bulkhead because you used too much tape. I have never threaded into the bulkhead except to the flange side which I tend to think is a little stronger but this means you have the extension in the tank.
Nope, this is on the bottom of the tank. Attached is the best pic I have of it. I'll take a better pic tomorrow. Two on the left are drains. The one on the right is the return. I have it all dry fit, nothing is glued (yet).


OP
Biff0rz

Biff0rz

Active Member
View Badges
Joined
Jul 9, 2020
Messages
286
Reaction score
77
Location
Troy
bump again, will be cementing the return pipes soon...


DCR

Active Member
View Badges
Joined
Jan 3, 2018
Messages
240
Reaction score
162
It will work. Just make sure the bulkhead fittings are sealed well (gaskets) since you will not be able to break them apart after the piping is set.

OP
Biff0rz

Biff0rz

Active Member
View Badges
Joined
Jul 9, 2020
Messages
286
Reaction score
77
Location
Troy
It will work. Just make sure the bulkhead fittings are sealed well (gaskets) since you will not be able to break them apart after the piping is set.
Thanks! Yep, bulkheads are for sure sealed. I got those locked down and filled the overflow to test for leaks, it's been leak free for a week.

OP
Biff0rz

Biff0rz

Active Member
View Badges
Joined
Jul 9, 2020
Messages
286
Reaction score
77
Location
Troy

KStatefan

Well-Known Member
View Badges
Joined
Jun 24, 2015
Messages
972
Reaction score
977
Location
MHK

ca1ore

10K Club member
View Badges
Joined
Oct 28, 2014
Messages
11,573
Reaction score
15,863
Location
Stamford, CT
I've moved to solvent weld slip bulkheads. Threads on the ABS ones tend to be a bit loose and can be a pain to seal. Plus, they're cheap if you have to cut one out.


Sharkman89

Community Member
View Badges
Joined
Jul 26, 2020
Messages
58
Reaction score
32
Location
PENNSYLVANIA
The threads on bulk heads are only meant for the nut holding it to the aquarium, just glue a piece of pvc pipe to the inside. Unless you’re using a inside threaded bulkhead

OP
Biff0rz

Biff0rz

Active Member
View Badges
Joined
Jul 9, 2020
Messages
286
Reaction score
77
Location
Troy
The thread sealant worked, woo. Yes, the bulkhead has a threaded inside. This was a used tank so I reused their bulkheads w new seals.

OP
Biff0rz

Biff0rz

Active Member
View Badges
Joined
Jul 9, 2020
Messages
286
Reaction score
77
Location
Troy
Welp, it's still leaking, ***.

Attaching some pics. I applied the thread sealant and it didn't hold very long. So I cleaned it off and tried Teflon tape... Nope.

Is the bulkhead abs?? I may have used the wrong stuff? I think the fitting it pvc sch 80 and maybe the bulkhead is abs?? I'm not sure at this point what to do. I really don't want to pull the bulkhead of possible....

Pictures are of it installed, me uninstalling it halfway to show the Teflon tape on it, fully u installed to show how the tape failed, then the stuff j tried prior to the tape.

Thanks for any help.

IMG_20200820_000953.jpg IMG_20200820_001100.jpg IMG_20200820_001022.jpg IMG_20200820_001257.jpg

OP
Biff0rz

Biff0rz

Active Member
View Badges
Joined
Jul 9, 2020
Messages
286
Reaction score
77
Location
Troy
This is what I purchased to screw into the inside (wet side) of the inner threaded bulkhead (3/4")


OP
Biff0rz

Biff0rz

Active Member
View Badges
Joined
Jul 9, 2020
Messages
286
Reaction score
77
Location
Troy
Right, I think I used the wrong stuff. Just below it on the description it says "for ABS pipe use RectorSeal T plus 2".... Which is the red bottle which you have. Not the yellow. This is what I get for reading too fast and rushing..


TJDSEKULA

Well-Known Member
View Badges
Joined
Apr 20, 2019
Messages
862
Reaction score
1,500
Location
Pocono mountains
Right, I think I used the wrong stuff. Just below it on the description it says "for ABS pipe use RectorSeal T plus 2".... Which is the red bottle which you have. Not the yellow. This is what I get for reading too fast and rushing..
Yepp, happens to the best of us :)
Thankfully it's an easy fix. I watched a plumber I subbed once use the wrong pvc glue to build a whole public water treatment plant (well I didn't personally watch that part) when they released water every connection leaked and/or blew. At least you found this now not with gallons of water everywhere ;)


Rob.bucek

Valuable Member
View Badges
Joined
Apr 23, 2020
Messages
1,031
Reaction score
2,429
Location
Eau Claire
Welp, it's still leaking, ***.

Attaching some pics. I applied the thread sealant and it didn't hold very long. So I cleaned it off and tried Teflon tape... Nope.

Is the bulkhead abs?? I may have used the wrong stuff? I think the fitting it pvc sch 80 and maybe the bulkhead is abs?? I'm not sure at this point what to do. I really don't want to pull the bulkhead of possible....

Pictures are of it installed, me uninstalling it halfway to show the Teflon tape on it, fully u installed to show how the tape failed, then the stuff j tried prior to the tape.

Thanks for any help.

IMG_20200820_000953.jpg IMG_20200820_001100.jpg IMG_20200820_001022.jpg IMG_20200820_001257.jpg
I think you may be conflating standards. ABS and PVC are types of plastic and have nothing to do with the thread types they may or may not be. Typically most schedule 80 threaded fittings conform to the NPT standard. You can Google more information on that (national pipe thread). The common bulkheads sold that are made of ABS plastic should conform to that of NPT as well. However manufacturing tolerances and the difference in material types can lead to less satisfactory results. Usually plumbers putty or a quality pipe tape applied in the correct fashion can result in a leak free joint. However, for peace of mind and as dirt cheap as these bulkheads are I'd recommend getting a slip fitting on your exit side and doing a solvent weld. The end that goes to the inside of your tank can be whatever works for you. Being that the fitting is used you are taking you're chances that the threads may or may not be compromised. This advice is just my opinion based on years of general plumbing experience that has nothing to do with reefing but still applies.
