Help please. ATK Alarm is driving me NUTS

[DuesXX]

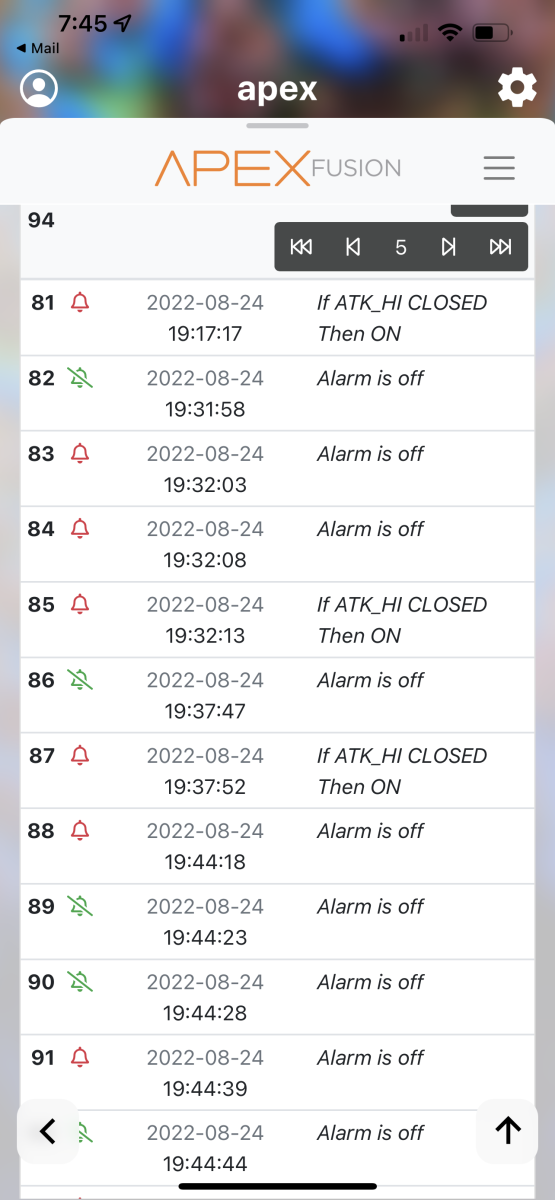

For the life of me I can’t understand why this alarm keeps going off. It doesn’t make any sense to me what it’s saying in the alarm panel. Any help here would be hot.



[DuesXX]

Is it alarming to tell me it’s on?



[ZombieEngineer]

It will do that if an alarm (Almost certainly your ATK high sensor) asserts but is not still in alarm 1 second later when the email/alert is sent.



[DuesXX]

Is there a fix? Did I code it incorrectly?



[ZombieEngineer]

Is there a fix? Did I code it incorrectly?

Depends on when exactly you want to be alerted. I find this approach generally works better with high sump level alarms.

HighSump (virtual outlet)
Set OFF
If ATKhig CLOSED Then ON
If Output ReturnName = OFF Then OFF
Defer 005:00 Then ON

Email
Existing code
If Output HighSump = ON Then ON
Defer 000:10 Then ON
Defer 000:05 Then OFF
