Can you post your program? I got mine working.

Here you go @bdare

Thank you for the help.

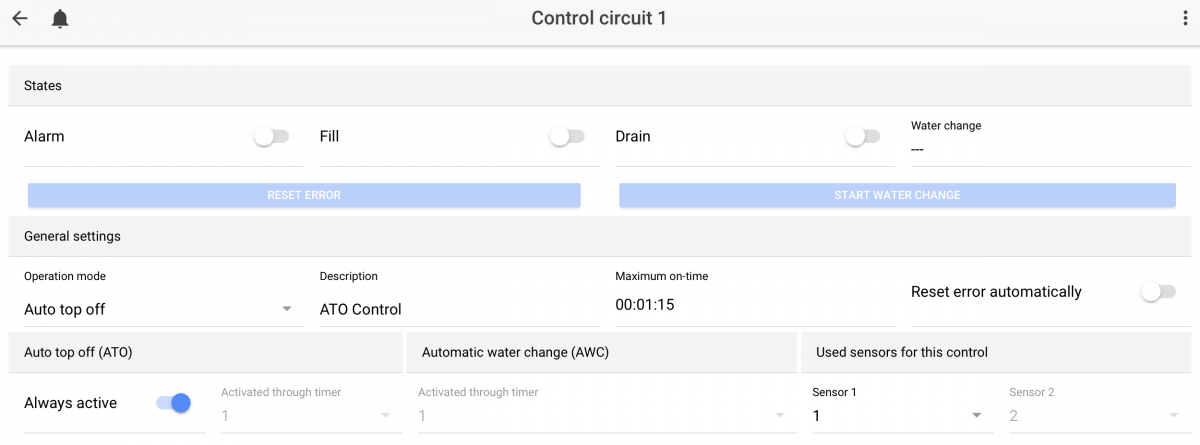

ATO Optical Sensor:

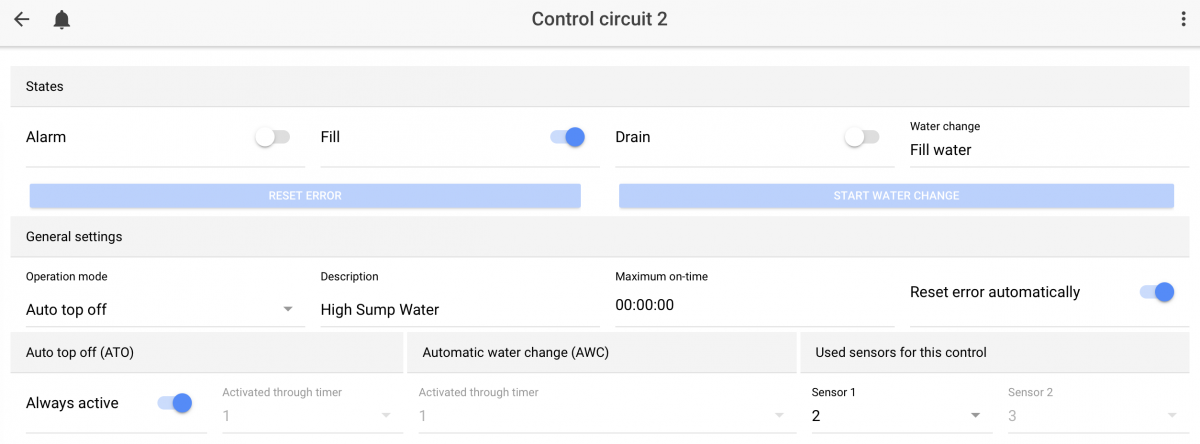

High Sump Float Switch:

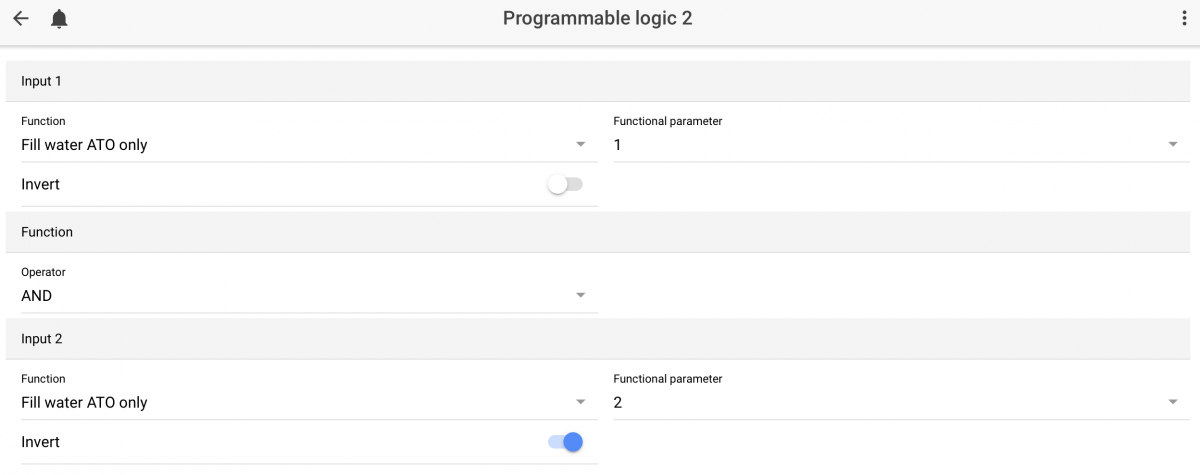

Program Logic:

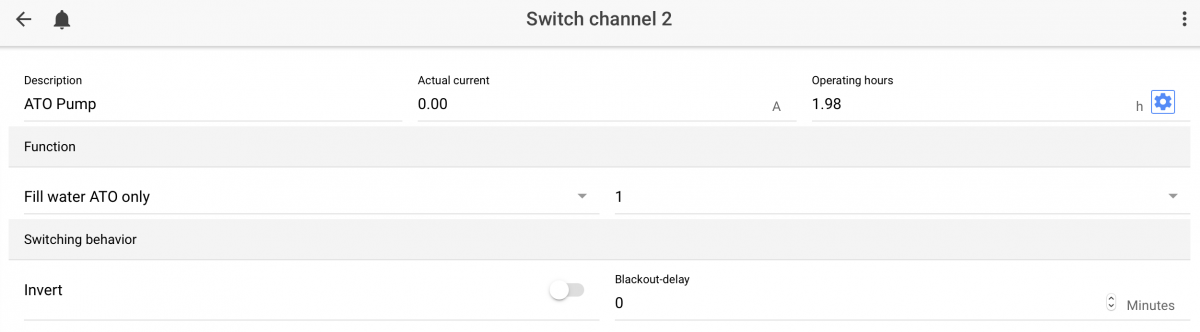

Switch Channel 15:

Socket 2:



[bdare]

Try turning invert off. Ditto thought it was required but it was not.



[Bucknutz]

Try turning invert off. Ditto thought it was required but it was not.

I've shut it off and on 50 times now lol. I have to be missing something but can't find it. Optical sensor has been working as the ATO all week long. If I pull the float switch up manually nothing happens.



[bdare]

I've shut it off and on 50 times now lol. I have to be missing something but can't find it. Optical sensor has been working as the ATO all week long. If I pull the float switch up manually nothing happens.

I'll post my config in a little bit. Watching a movie.



[Ditto]

Does sensor change to X and then - when you push the float sensor up?

Above 5th is activated and 6th is not.



[Bucknutz]

Does sensor change to X and then - when you push the float sensor up?

Above 5th is activated and 6th is not.

Yes they do activate. Float switch is "Sensor 2."



[bdare]

Here is the setup for my high water float switch:

Here is the setup for my optical sensor (Primary ATO)

Program Logic which is assigned to my ATO Pump switch outlet:



[Bucknutz]

Thanks for the help everyone. I figured it out as I didn't have the outlet set to "Programmable logic." I had it set to "Fill water ATO Only." I too had to change the float switch to not be inverted.



[bdare]

Thanks for the help everyone. I figured it out as I didn't have the outlet set to "Programmable logic." I had it set to "Fill water ATO Only." I too had to change the float switch to not be inverted.

Awesome! Glad to hear you figured it out. Next for me will be programming for a Calcium reactor...
