How does this radial flow / static /mbbr all in one filter work ??

[strawberrydreams]

Does anyone have a drawing explaining the water flow course as it goes up and down through the various filters in this Dura-flow all in one radial flow filter ?



[Gumbies R Us]

Bumping your post!



[strawberrydreams]

Bumping your post!

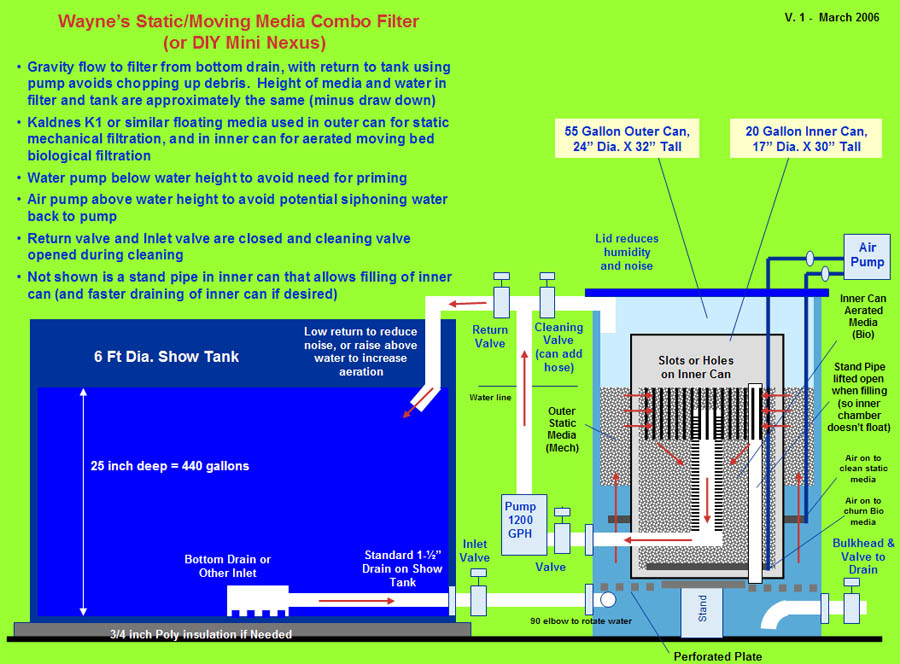

Thanks. I think I found this explanation at the koi pond forum. Pretty sure it’s based on a DiY nexus filter which uses both static and moving K1.

On hindsight might be better to have these filters separate inline instead of all in one , albeit does save space.
