IM Cam-lock control board brackets

[reefiniteasy]

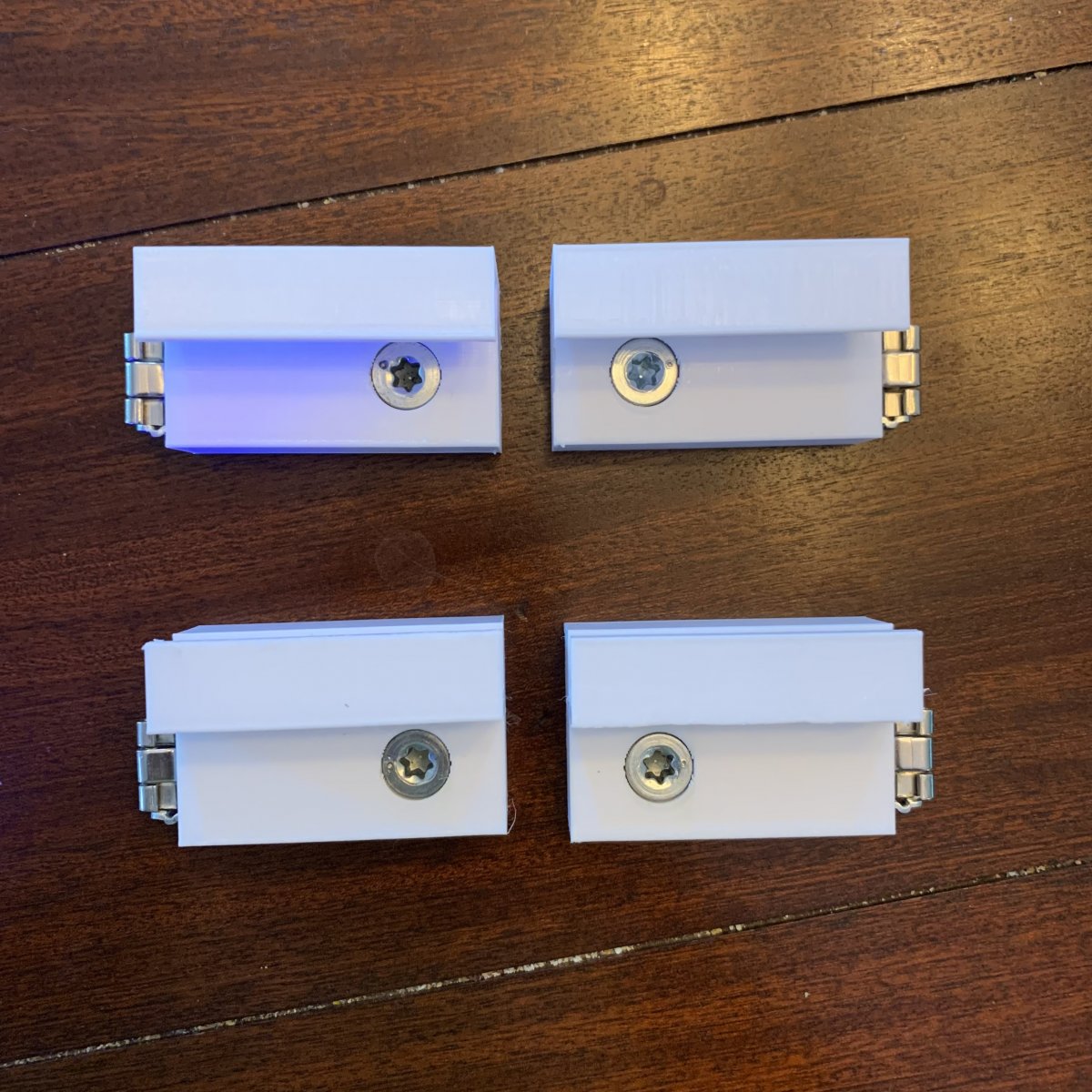

Check out these awesome brackets @Ellery designed and printed for me. I can now easily mount my control board in my APS stand. The brackets were made to fit .5” Starboard. Here is the link in Thingiverse.

IM APS Frame Control Board Mounts by Ellery

Some custom parts needed to add a custom control board to an Innovative Marine Nuvo 40 APS tank stand.It was designed specifically to hold 1/2" thick Starboard and slide onto Innovative Marine Cam Locks.Ideally you would want some wire saver grommets to custom fit through the board as well.2" or...

www.thingiverse.com

I ordered my .5” Starboard from www.boatoutfitters.com



[blaxsun]

These are very slick! Thanks for sharing.



[dangles]

GENIUS. Thank you!



[reefiniteasy]

GENIUS. Thank you!

yeah man! Enjoy! Here is one of my APS stands with a few things mounted.



[SinCityRee4r]

Check out these awesome brackets @Ellery designed and printed for me. I can now easily mount my control board in my APS stand. The brackets were made to fit .5” Starboard. Here is the link in Thingiverse.

IM APS Frame Control Board Mounts by Ellery

Some custom parts needed to add a custom control board to an Innovative Marine Nuvo 40 APS tank stand.It was designed specifically to hold 1/2" thick Starboard and slide onto Innovative Marine Cam Locks.Ideally you would want some wire saver grommets to custom fit through the board as well.2" or...

www.thingiverse.com

I ordered my .5” Starboard from www.boatoutfitters.com

You can now buy sheets of PVC in .5in and .75 made by veranda. Saves you on the shipping cost. 2’ x 4’ pieces $40 and 2’ x 8’ pieces $59 in MA area for 1/2”
