joporeefpro's 1000 gallon TWV build

[joporeefpro]

Bare with me guys this is my first time on a forum... but I have been asked to create a tank build thread for my 1000 gallon TWV tank in my home. the Dimensions are 96 x 42 x 36" running 10 gen 1 radions. There is a 185 gallon custom glass refugium and a custom mrc sump in the basement running a hammerhead pump, with a live backup plumbed in.



[Killer Karma]

Wow, so amazing seeing tanks this size. Welcome to R2R



[joporeefpro]

Here is the day we started construction, I cut out an actual size cutout in the wall we removed to put the tank in to show the enormity of the tank we had just ordered! No big deal the wall only had duct work plumbing and electrical to re route to accommodate the tank!



[Tahoe61]

Beautiful tank.

Welcome to R2R. :-)



[joporeefpro]

photo of the tank at the manufacturer



[RamsReef]

Wow



[joporeefpro]

another shot of the tank being built



[joporeefpro]

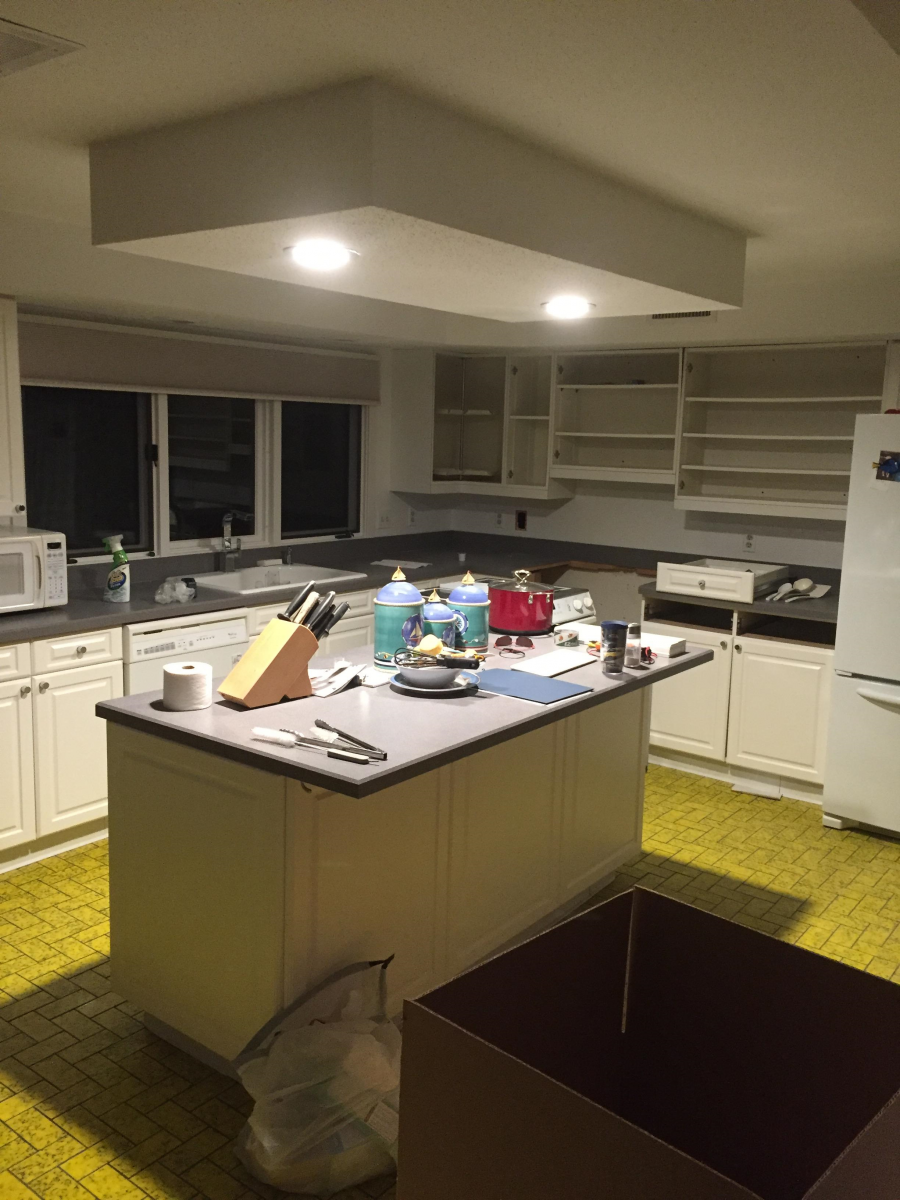

old kitchen



[joporeefpro]

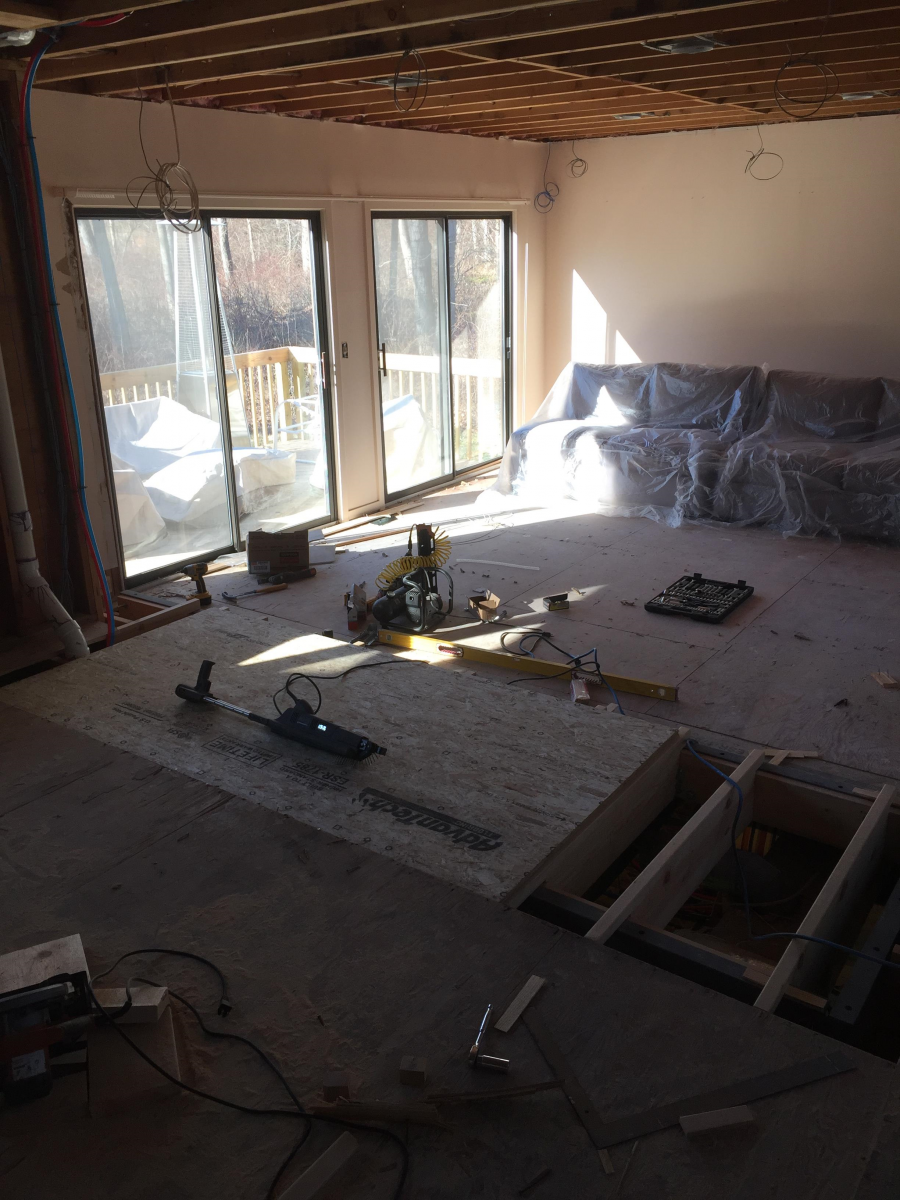

wall removal



[joporeefpro]

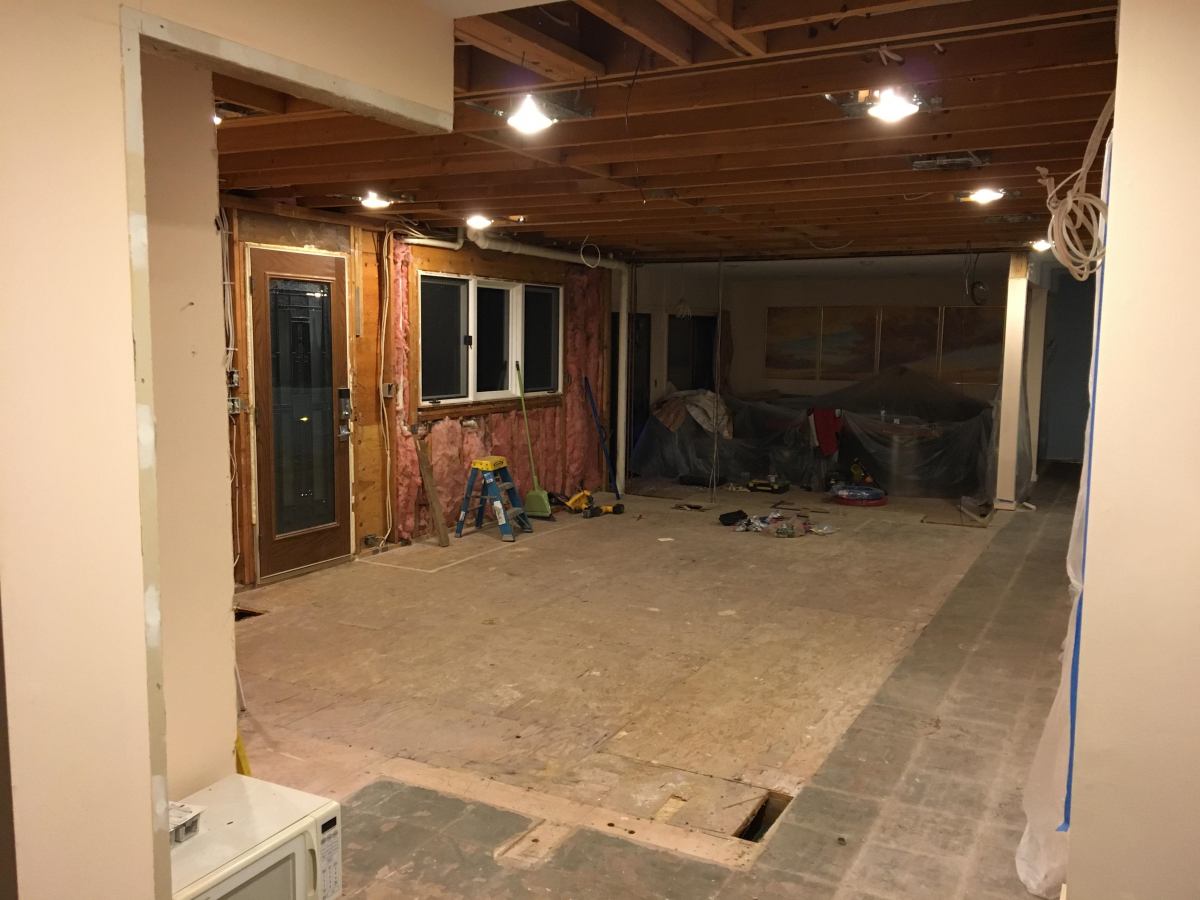

more progress on demo



[joporeefpro]

tank arrival day!



[joporeefpro]

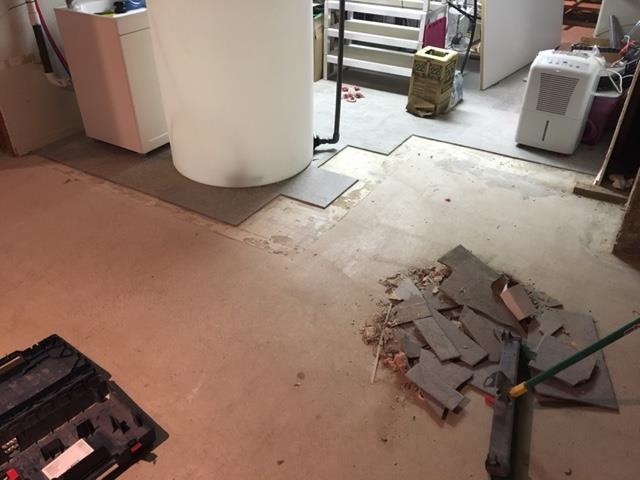

basement demo



[joporeefpro]

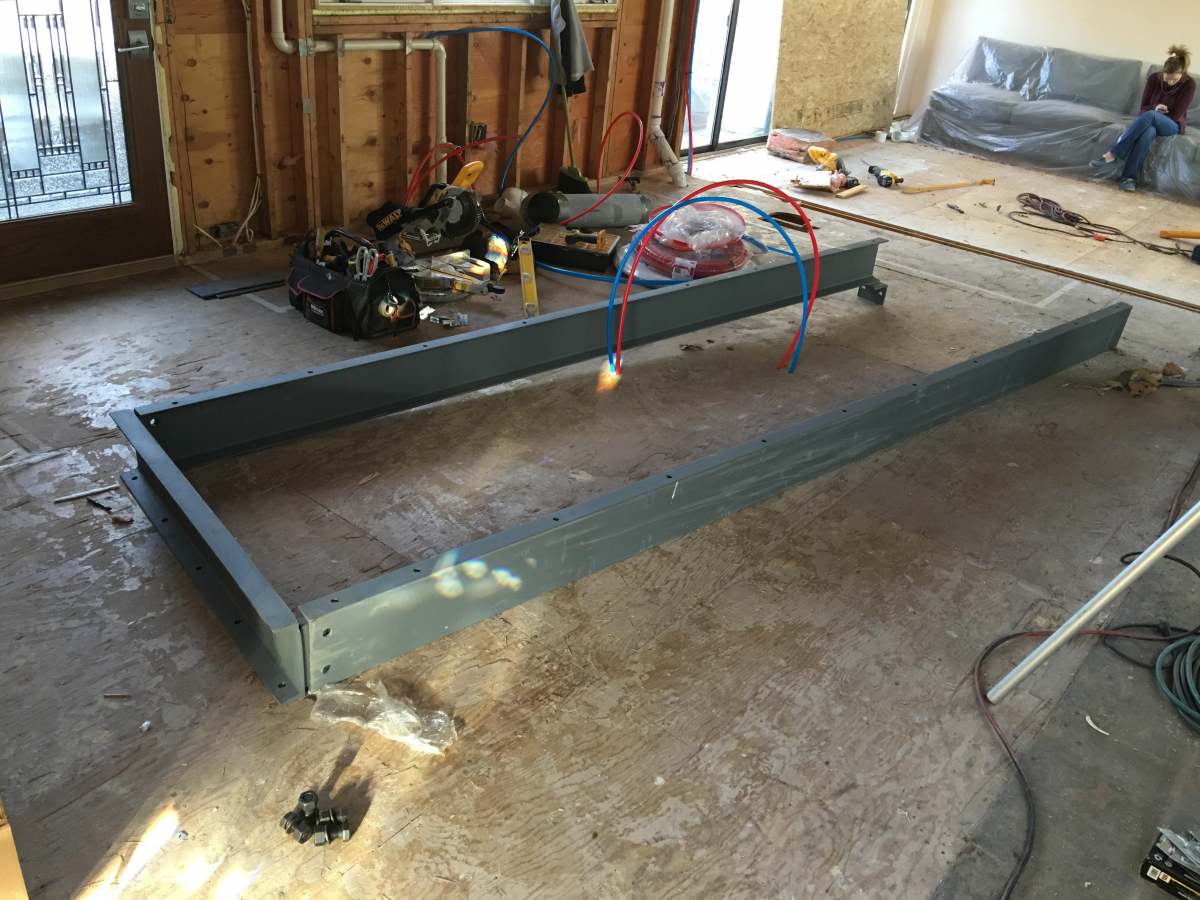

steel support in floor



[joporeefpro]

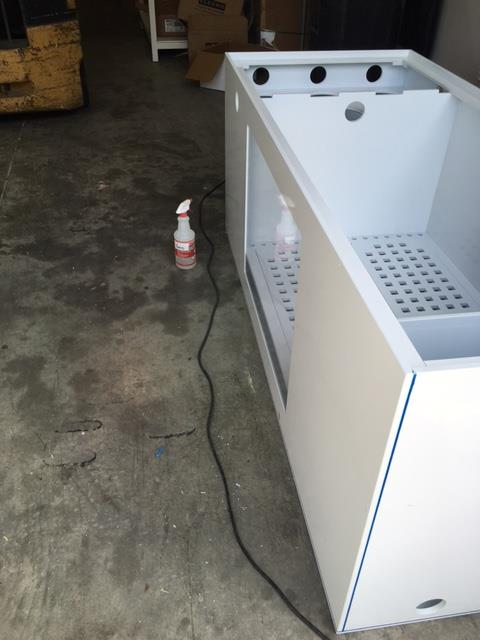

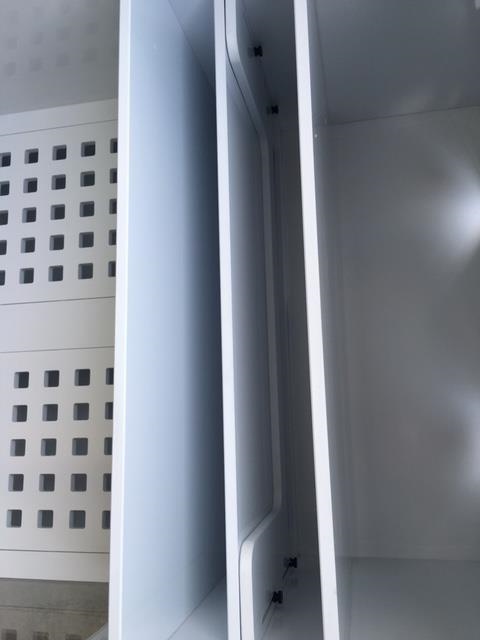

first ever sliding wall for bubble trap in MRC sump so that I can drain the sump to 0 for water change



[joporeefpro]

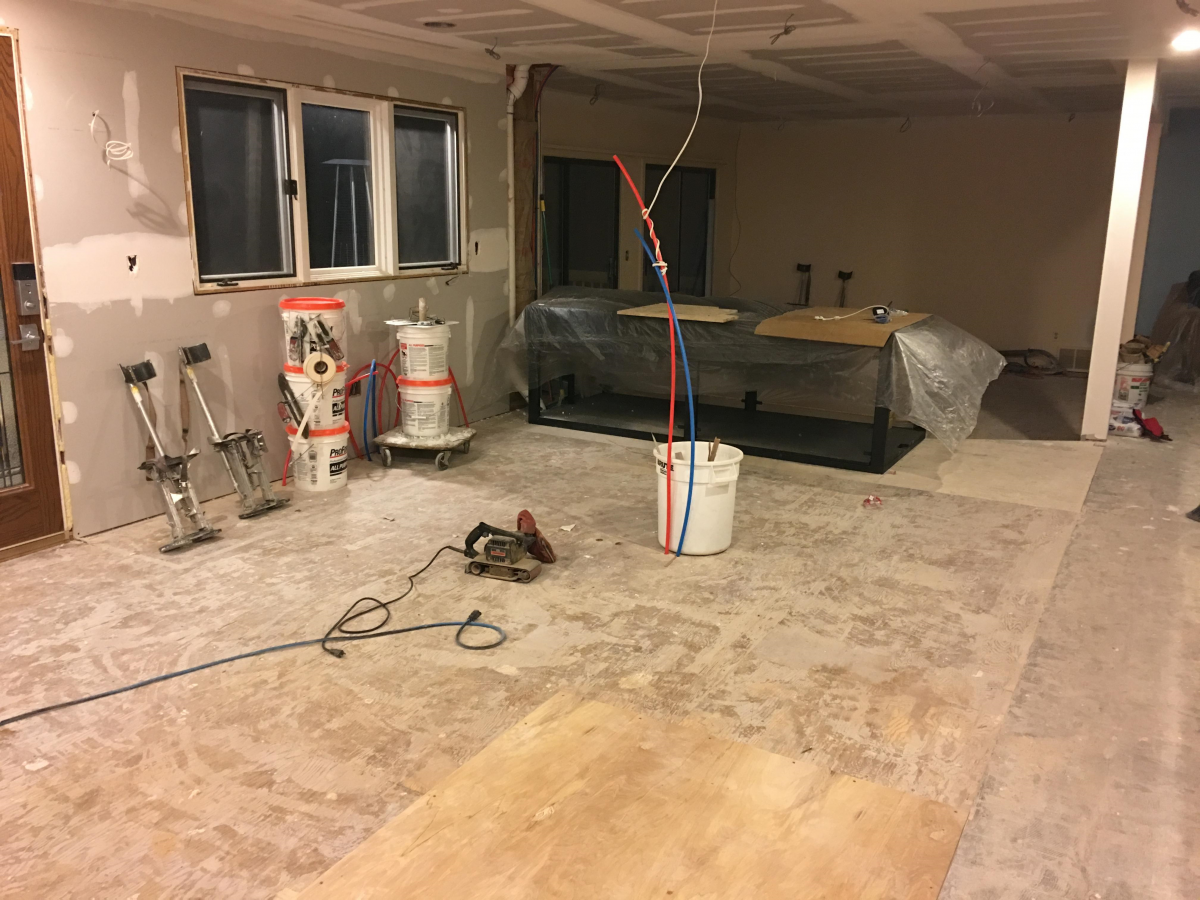

day before tank goes in

View attachment 552802



[joporeefpro]

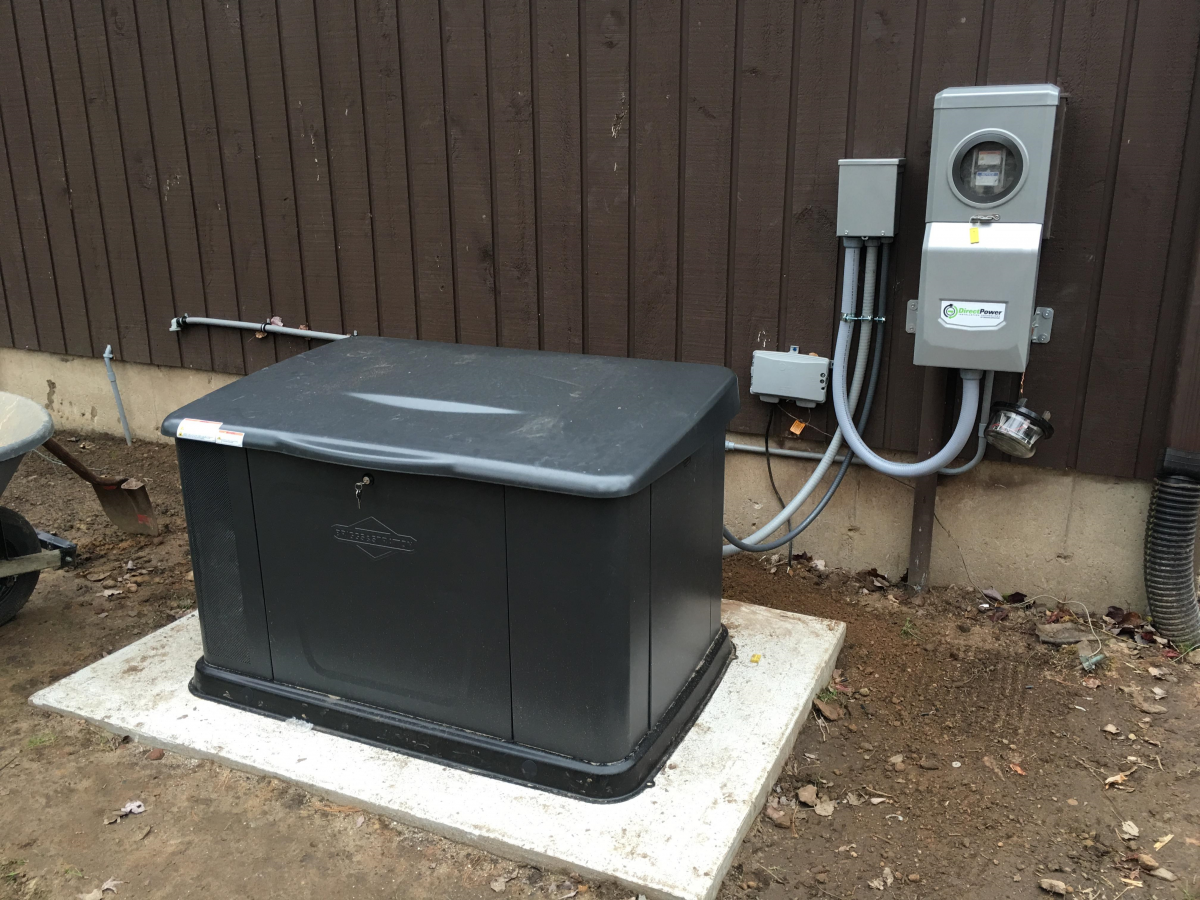

battery backup power and generator

View attachment 552803



[joporeefpro]

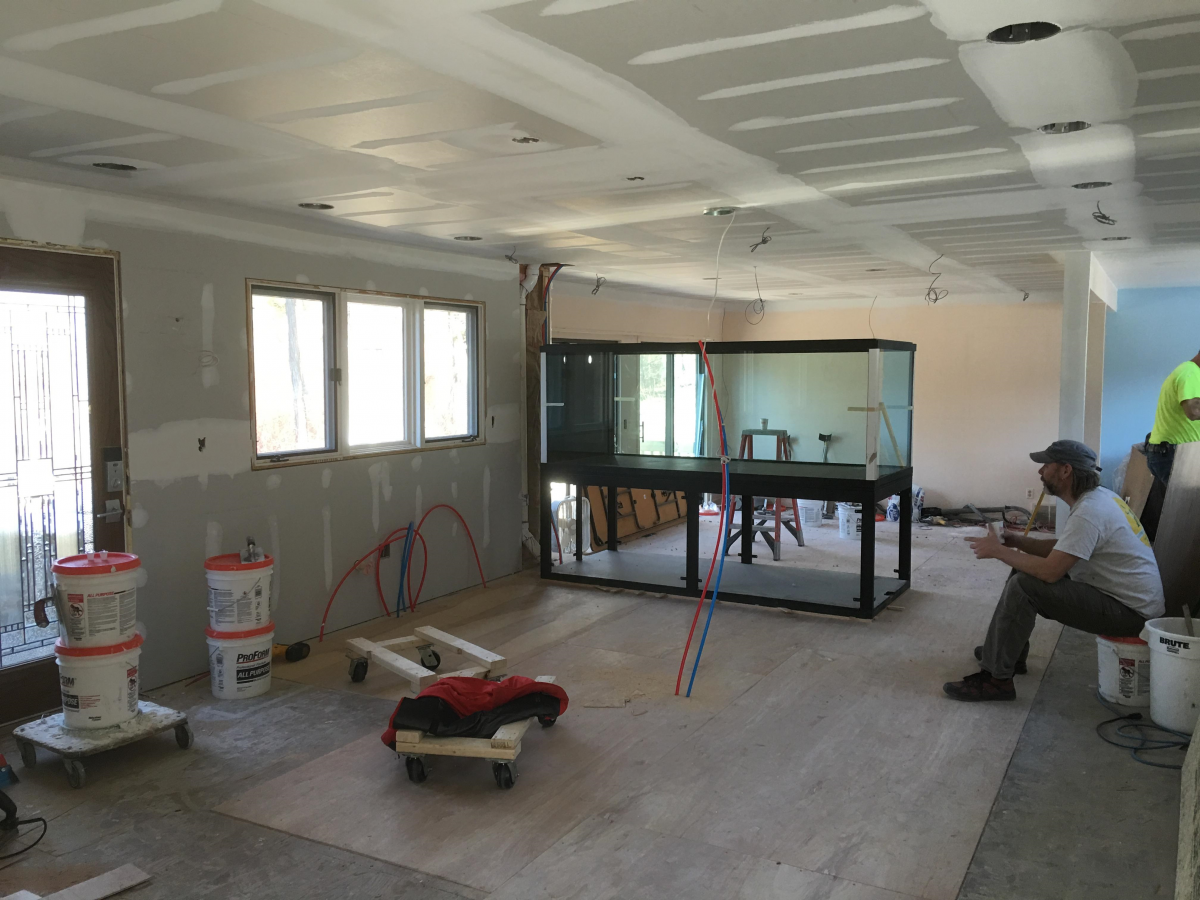

tank is in! 12 people!



[joporeefpro]

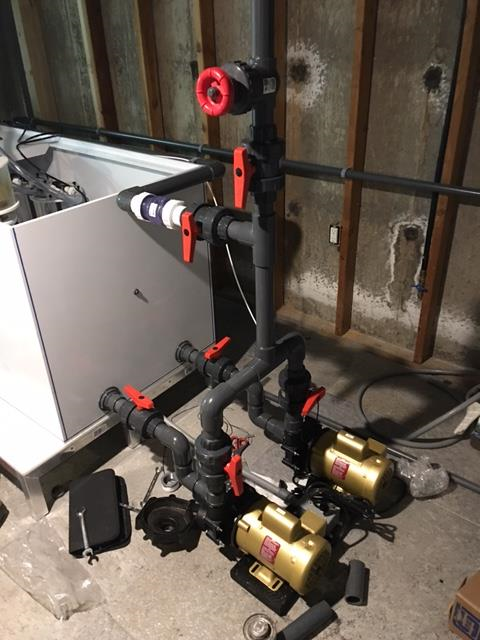

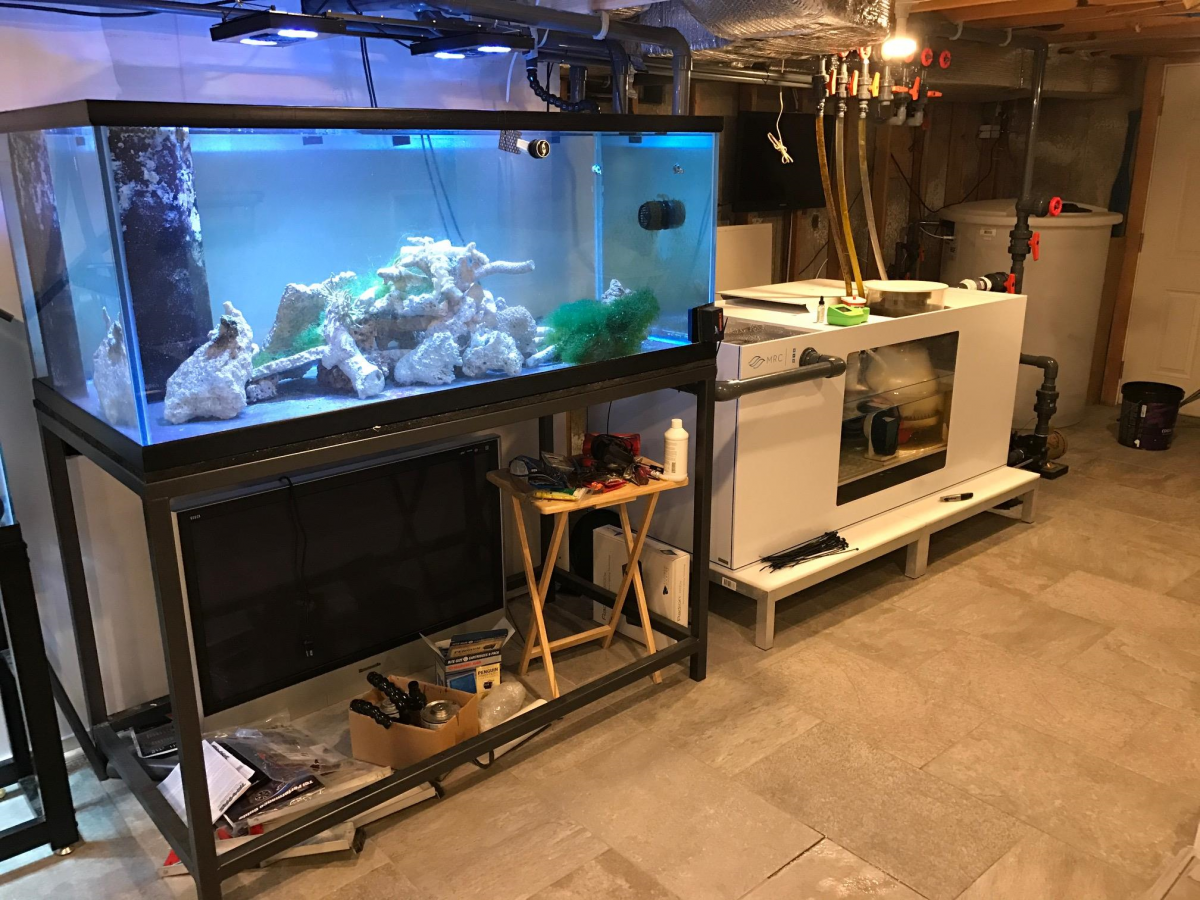

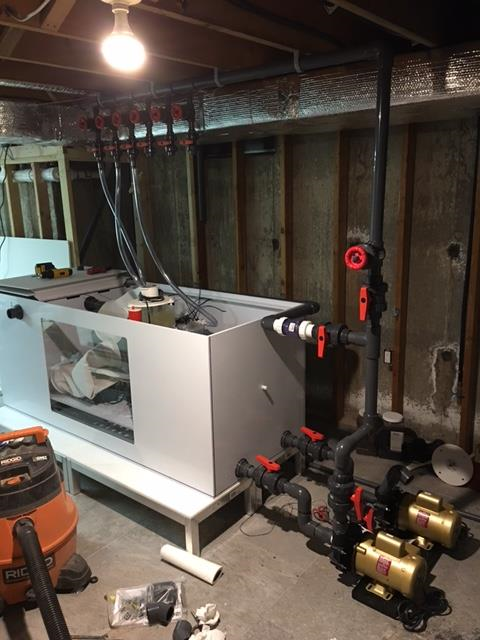

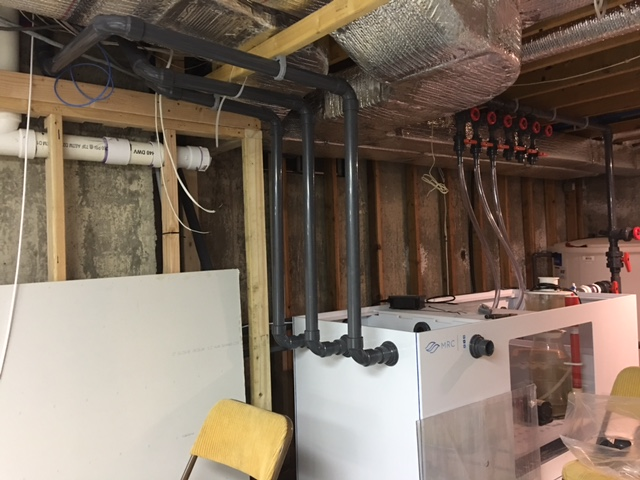

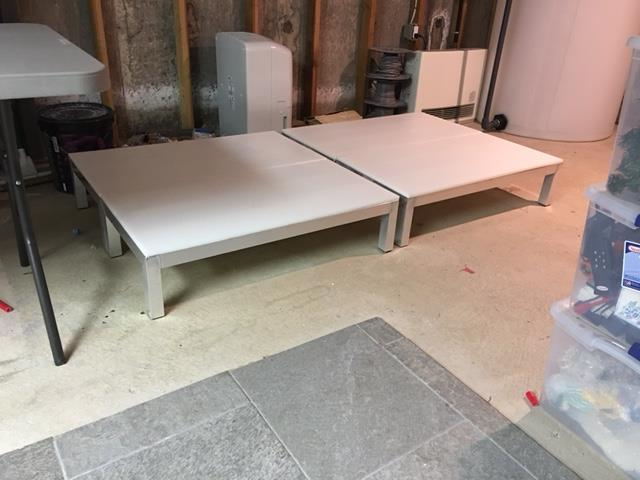

sump and fuge plumbing



[joporeefpro]

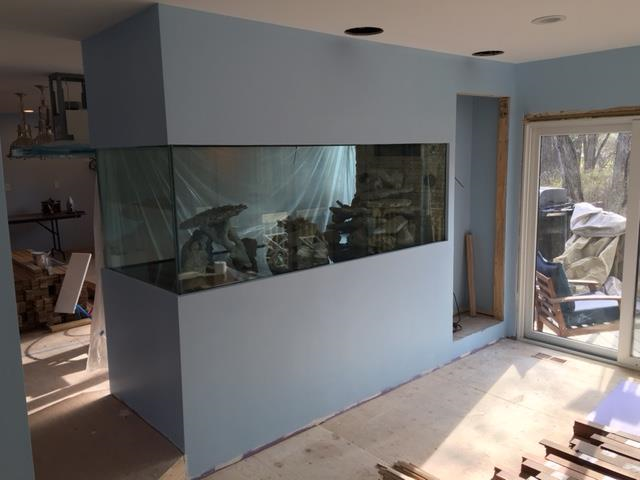

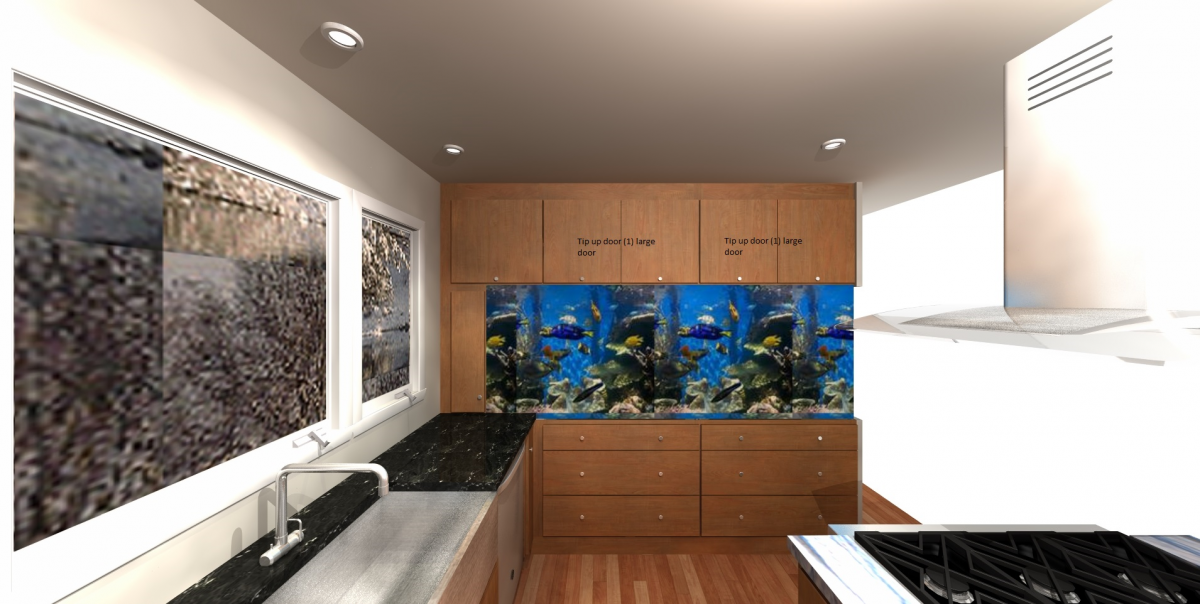

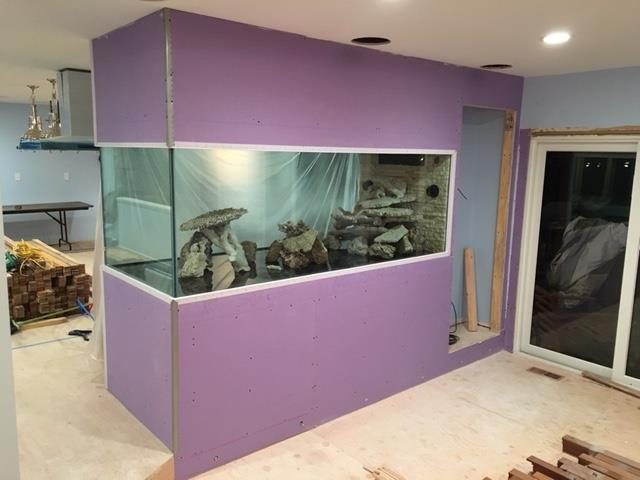

drywall and paint and the concept for the cabinets



[joporeefpro]

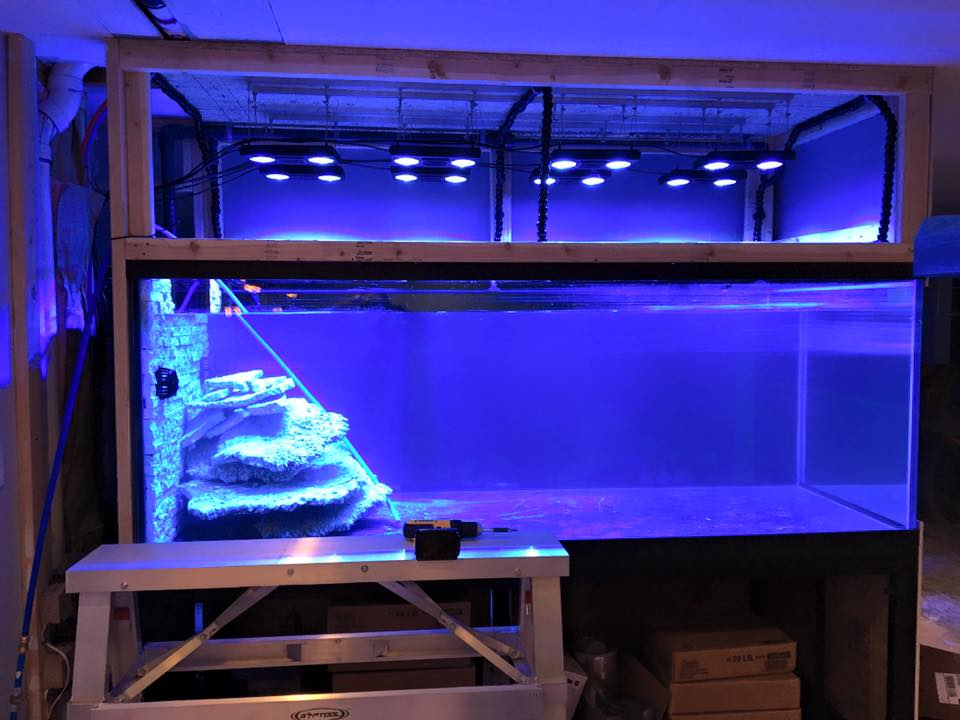

water and plumbing!
