Need help with a 3d printing part

[k2-]

Hi Guys - I got a Panta Rhei - ECM 63 and would like to print a cover mesh to protect smaller fish (or smaller fish in the future). Is anyone willing to work with me on this project?



[TrevorHenryTDH]

Hi Guys - I got a Panta Rhei - ECM 63 and would like to print a cover mesh to protect smaller fish (or smaller fish in the future). Is anyone willing to work with me on this project?

I might be trying to build something soon, Waiting on my new Bambu Labs ;)



[Tony_90744]

Ill give it a try. Ive been printing a bunch of stuff for my new tank.

Wall plate for ro lines going to basement.

Chiller lines that is also going to be in basement. And will also be used for water changes.



[k2-]

Posting the details on this thread to what I am looking for and dimensions etc

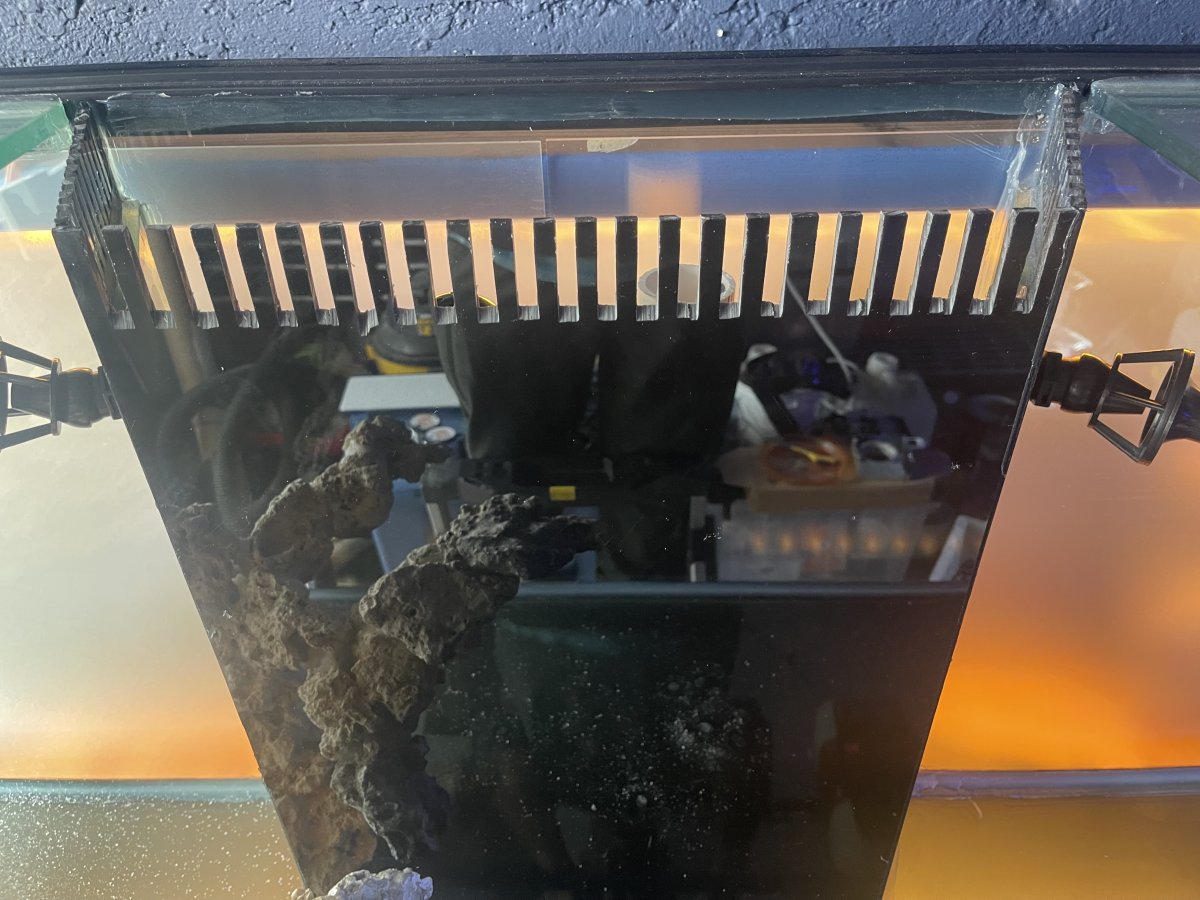

Project 1 - (lid for overflow box)
1) Width is 1/8 of an inch of acrylic for the overflow
2) internal dimension are as following

Back width - 19-1/2
Front width - 15
Depth from front to back - 6-1/4

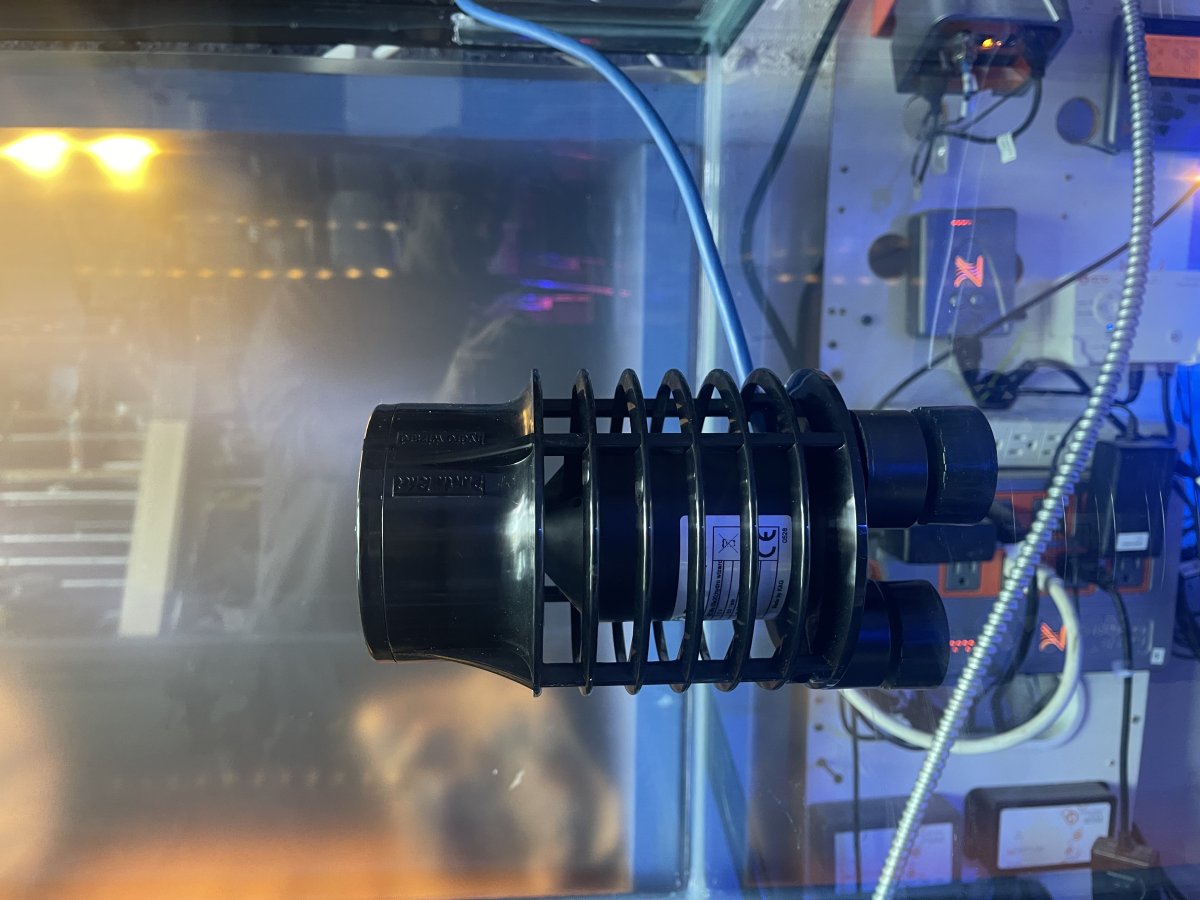

Project 2 - ECM 63 mesh (I am just bouncing off the idea so let me know if you have a better one)

Just like the mesh (or anenome guard) for mp40 , However design of ECM-63 is a little bit different (larger and longer) and also would like bigger mesh size (the one I have for mp40 is very small) - Image of pump and dimensions are includes

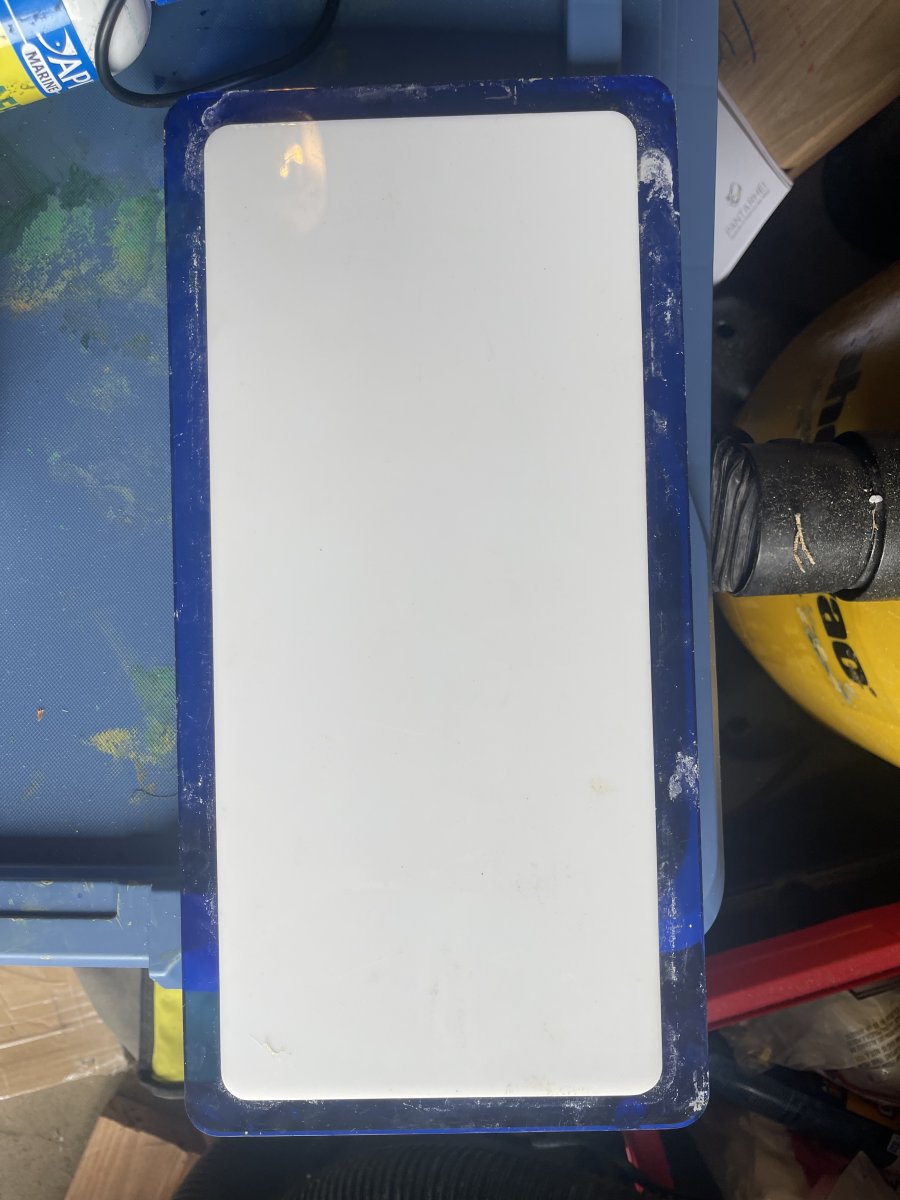

Project 3 - Refigium light box with AI fuge light fits the sump built in refugium box.

Internal dimension - (img 8794) -

Length - 13-1/4
Width - 5-3/4

1/2 inch overhang on all sides so the lid fits the top -

I would like a center hole with some kind of holders for AI fuge light so light can fit in the slot and light up just the refugium and lid can be taken off without touching the light for maintenance and cheto/algae removal.
