Need help with Hydros Dimensions

[Tide2water]

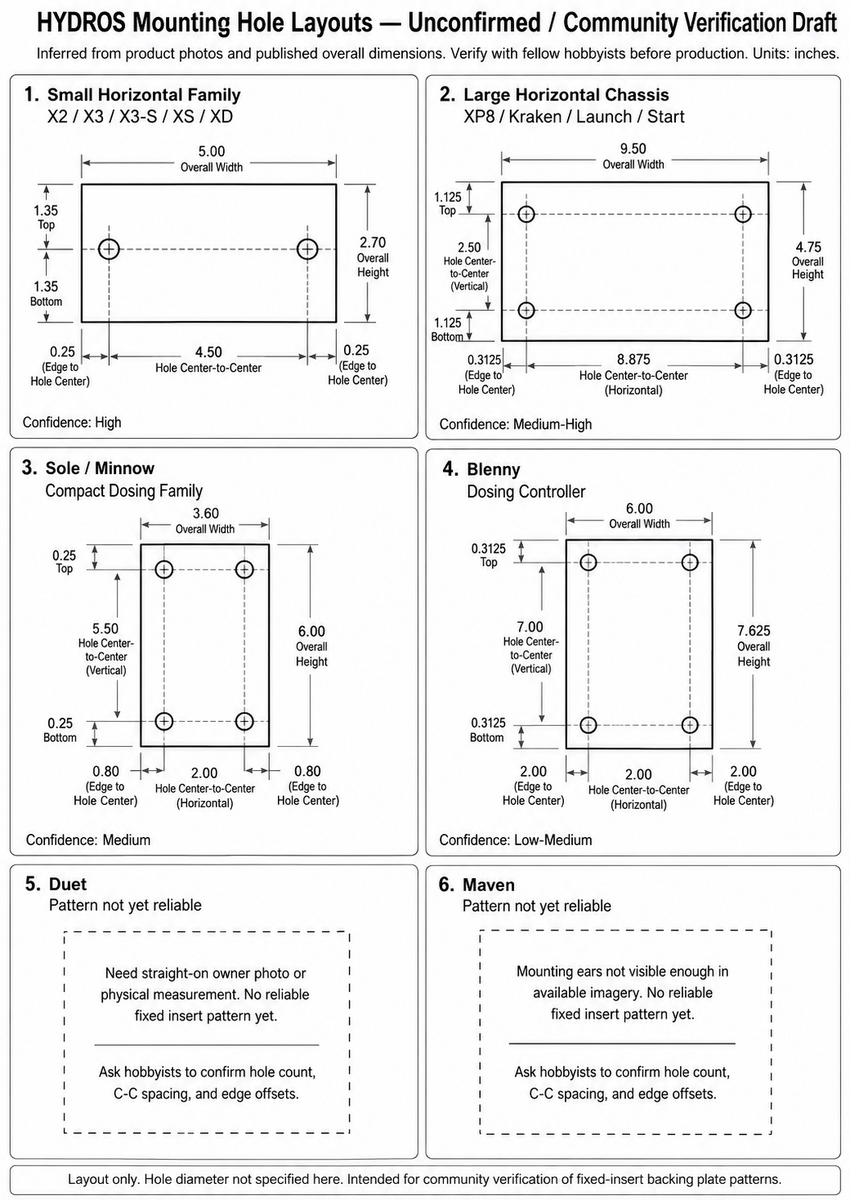

Hey guys! I'm making some accessories for mounting Hydros systems. I'm starting with Honeycomb Storage Wall (HSW). I do not have every Hydros controller and so would appreciate if any of you have them if you could chime in and confirm or deny what ChatGTP was able to come up with for mounting hole spacing.

EDIT: I'm looking for help verifying the position of the holes in the controllers and their spacing.



[danreef55]

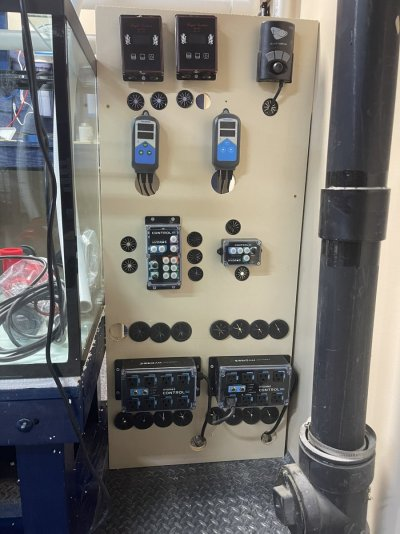

This is not an exhaustive collective but there is still room



[Tide2water]

@danreef55 Can you confirm the hole spacing on the small Hydros controller?



[danreef55]

There is one on top and one on the bottom. I used these for the XP8s Amazon product ASIN B07M9YKLY1 for the controllers these Amazon product ASIN B098PJXRZ6here is some other collective options



[danreef55]

These make things easier to keep things neat and organized.
Amazon product ASIN B0891TSBXC



[Tide2water]

@danreef55 can you measure how far apart the holes are on your XS? That's all I need.



[danreef55]

@danreef55 can you measure how far apart the holes are on your XS? That's all I need.

I am not ignoring just been tied up. Not sure exactly what you are asking. The grommets are 1" and are only approx 1" from the XS.



[Tide2water]

I appreciate the reply, I understand being busy for sure! What I need is just the distance between the mounting holes on the XS controller. Hydros doesn’t publish this and I don’t own one.



[BAMatter]

@Connor At CoralVue @n2585722 any tech help on this one?



[BAMatter]

Post in the FB group if you don’t get the info here



[danreef55]

The holes on the XS are tiny and not at all like the other Hydros equipment. As suggested call Conner



[n2585722]

I think it is 4 3/8" between the holes on the small controller box like the XS. I have an XD I measured since it is not mounted and it is 4 3/8".



[Tide2water]

I think it is 4 3/8" between the holes on the small controller box like the XS. I have an XD I measured since it is not mounted and it is 4 3/8".

Thank you @n2585722 !
