Hi all. I’ve had my fish in a temporary 75 gallon tank since we moved into our new house several years ago. And I’m finally able to build a proper set up and start my build thread. This will be a gradual process, so I will post as progress is made. Hope you enjoy.

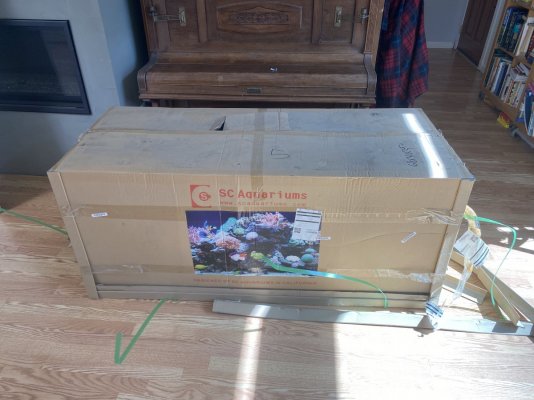

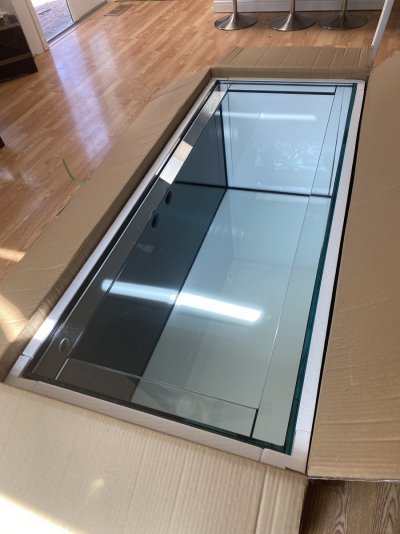

It all started about a month ago when I took delivery of my new 150 gallon EXT tank from SCA.

482A1C78-3398-413E-AE81-08F407A9E93C.jpeg 0F3FBC80-6E2A-40A7-9CD5-B16647640A70.jpeg

Top Shelf Aquatics
OP
V

vpierce3

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Feb 1, 2022
Messages
146
Reaction score
234
Review score
+0 /0 /-0
Location
Placerville
Next I started building the stand. We wanted something like what Red Sea makes. But I didn’t want the Red Sea price tag or their sump system.
I also needed a way to roll the system out when we are ready to put in new floors.
So I started by machining aluminum rollers that are strong enough for the weight but won’t rust or break the bank.


Attachments

  • 269AFBF7-123E-49EF-BEC8-B4ADC040F731.jpeg
    234 KB · Views: 65
  • D63D0FD3-C277-49B1-A21D-EB7F32AAF018.jpeg
    166.7 KB · Views: 62
OP
V

vpierce3

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Feb 1, 2022
Messages
146
Reaction score
234
Review score
+0 /0 /-0
Location
Placerville
The cabinet is all 3/4” furniture grade plywood. The sides are double-walled. And the front top is supported by solid oak laminated to plywood.


Attachments

  • 3D04A4C6-D38A-4B72-B814-D0CE32DA8100.jpeg
    154.1 KB · Views: 71
  • 34337C1F-14A1-4038-8C1A-357A2C11E083.jpeg
    182.1 KB · Views: 61
  • 37A118A5-BC11-4946-8BCA-7DDD62A110AC.jpeg
    213 KB · Views: 57
REEFTIDE
OP
V

vpierce3

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Feb 1, 2022
Messages
146
Reaction score
234
Review score
+0 /0 /-0
Location
Placerville
Next I started finishing the cabinet. I chose a semi-gloss cabinet paint because stupid California doesn’t allow pigmented lacquer any more.


Attachments

  • 68DAE7D0-4374-4DF0-8DAC-0B02223A955A.jpeg
    174.2 KB · Views: 54
  • 03318AEC-4D79-4CB3-ABFF-AC081231A16B.jpeg
    199.2 KB · Views: 52
  • A77BF703-D692-43B6-A010-6206920023E3.jpeg
    127.9 KB · Views: 60
OP
V

vpierce3

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Feb 1, 2022
Messages
146
Reaction score
234
Review score
+0 /0 /-0
Location
Placerville
Next I received my new roller filter. I chose the new Bubble Magus Large Gen 2. The build quality seems very good. I will be posting an unboxing and build video on YouTube when I get a chance.


Attachments

  • 5D5570B9-1FBD-4AA1-A56E-63700E4A1DE2.jpeg
    211.3 KB · Views: 60
  • ED22D04B-069A-4A89-9C3C-AB2C94EFADED.jpeg
    219.5 KB · Views: 79
OP
V

vpierce3

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Feb 1, 2022
Messages
146
Reaction score
234
Review score
+0 /0 /-0
Location
Placerville
Here is the cabinet in my living room. The doors are finished and attached with smooth close European hinges.


Attachments

  • FE8AE8CF-94D7-4409-9445-BF31304C4798.jpeg
    146 KB · Views: 78
  • 29695DA0-59C0-418A-9C71-A9EAF5938A5C.jpeg
    152.2 KB · Views: 91
Never Wash Another Nasty Filter Sock Again!
OP
V

vpierce3

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Feb 1, 2022
Messages
146
Reaction score
234
Review score
+0 /0 /-0
Location
Placerville
The last thing I did was install the weir and overflow box. I chose the 16” model from Modular Marine. The tank from SCA is drilled for another brand….but I was not impressed with their quality; especially for the price.
Anyway, if you email the folks at Modular Marine they will make a overflow for SCA tanks. The precess was easy, the price is reasonable and the quality is top notch.


Attachments

  • 1F0D837B-BFC0-446A-86A3-488113ECA4D0.jpeg
    200.8 KB · Views: 113
  • 9DA5011B-06C7-4E06-9C86-A9485DFE3242.jpeg
    246.4 KB · Views: 103
OP
V

vpierce3

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Feb 1, 2022
Messages
146
Reaction score
234
Review score
+0 /0 /-0
Location
Placerville
Today I was able to get some plumbing done. I can’t believe how prices have gone up.
I also made the full beananimal drain in the overflow.


Attachments

  • E5FE634A-1BE4-47AC-A291-0519C66F7728.jpeg
    138 KB · Views: 104
  • 6CE1850D-9F85-462B-BCF4-D566A26958A3.jpeg
    131.8 KB · Views: 94
OP
V

vpierce3

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Feb 1, 2022
Messages
146
Reaction score
234
Review score
+0 /0 /-0
Location
Placerville
Well I finished enough of the plumbing so that I could fill the tank up with tap water for a leak test. If all is well after 24 hours I can empty it and start refilling with RODI and salt.


Attachments

  • F0005BD2-592E-45FB-8C2F-55ECB3C842F1.jpeg
    71.4 KB · Views: 90
  • 90001ED9-6FE6-40E1-A956-A5A83BC2F8E5.jpeg
    152.3 KB · Views: 83
Coral Mania
OP
V

vpierce3

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Feb 1, 2022
Messages
146
Reaction score
234
Review score
+0 /0 /-0
Location
Placerville
I also made the lighting bar to mount my fixtures to. I bought a length of 5/8” solid 6160 aluminum bar from Metalmart for $22. The bar will be painted black and have thin rubber on the bottom struts so it can just sit on the eurobracing.


Attachments

  • 941F3855-E2B4-4943-A0FC-7246052E775A.jpeg
    281.4 KB · Views: 75
  • 8DD85CE7-5721-4F47-9C94-CDE9BB720E36.jpeg
    151.6 KB · Views: 72
OP
V

vpierce3

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Feb 1, 2022
Messages
146
Reaction score
234
Review score
+0 /0 /-0
Location
Placerville
I started installing the partitions in my sump. The tank is a 40 gallon breeder I got on sale at Petco for $54.
The partitions are 1/4” acrylic because it’s easy. I was going to do all glass but decided I didn’t want the hassle.
Everyone is into tricked out sumps nowadays but I have a more utilitarian view of them.


Attachments

  • E55BBA4F-30E4-4407-B3FF-76410D75F84C.jpeg
    261.6 KB · Views: 68
OP
V

vpierce3

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Feb 1, 2022
Messages
146
Reaction score
234
Review score
+0 /0 /-0
Location
Placerville
I used a new silicon; at least new to me. It’s 100% silicon for plastic an glass. No additives. It’s in the Home Depot back by the glass and plastic sheets.
The bond is surprisingly good. I wouldn’t trust it for a tank or overflow….but it’s certainly good for sump partitions.

Update: It’s ok for glass-plastic but subpar for plastic-plastic.
