Size(the ledlight):21.2*12.7*3.1(cm)/9.34" x 4.72" x 1.18"
Weight(the ledlight):1.8(kg)
Power:140(W)
Input:100-240V 50/60Hz 3.5A
Controller:1 controller can control up to 30 K7V3.
Warranty: 2 years

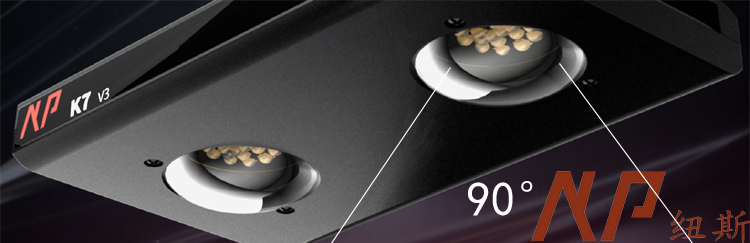

  • The brand new revolutionary noopsyche K7 V3 uses high-power LED copper substrate thermoelectric separation conduction, which greatly increases the life of the LED by having a stronger heat carrying capacity and dissipation.
  • The board uses a high-power single led dense combination mixing effect to make your aquarium look and feel like a real natural reef.
  • The mixing spectrum technology uses the scientific design of thickened concave-convex mirrors to provide uniform light and color without loss of light output efficiency, making the water have a shimmer close to the natural sunlight on your reef.
  • The highest cost performance. A unique advantage of noopsyche is that it has a very high cost performance, you can get excellent coral lighting effects at a very low cost.
Please check for Details



2K7 V3光谱.jpg
140WLamp beads.png
4  140PAR值.jpg

Last edited:
OP
noopsyche

noopsyche

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Aug 27, 2018
Messages
638
Reaction score
1,171
Review score
+0 /0 /-0
K7 V3 Operation Guide

Operation Guidelines​



Machine operation
Notice
When light switch on power,will run auto the mode last set before last power off, including the time have set, program, brightness.


K7 V3 have 3 running mode:
⒈ A+B mode: without controller setting white and blue color
⒉ Manual mode
⒊ Auto mode

H is for connect led with controller R is factory reset

Viewing function: K71 (light), K72 (light), T4 Wave pump ,K7f(fresh water/Aquatic)




A+B mode: LED only without controller

(Please following the order from ① to ⑧)

Indictor
Led Left button
Led right button
(Hold down the button for 3 second then the indictor color change)​
Lighting changes
Green​
①A+B mode, the indictor change to green color.
Red
(Slowly flashing)​
②Press the button, indictor showing red and slowly flashing.③Every press adding 5% brightness, press 20 times going to 100%
White​
Green​
④Press the button (save), the indictor change into green
White​
Blue
(Slowly flashing)​
⑤ Press the button, indictor showing blue and slowly flashing.​
⑥Every press adding 5% brightness, press 20 times going to 100%​
Red​
Green​
⑦ Press the button (save), the indictor change into green​
Red​
Green​
⑧ Hold down the button for 3 second. (SAVE)​
White+red​
(Restart in 3 seconds)​
Press the left and right button at the same time, factory reset.​


Attention: LED factory reset, led cannot be CONTROL BY CONTROLLER.


Operation Guidelines


Time setting "T" 24h/day

Press the “Confirm” button and go into T setting.



08:
00


Change the Hour, press the confirm button, the screen flashing, press the left/right can change the hour, press the confirm button again save the hour setting.


09:
00


Press the right button then go to Minute setting, press the confirm button, the screen flashing, press the left/right can change the minute, press the confirm button again save the minute setting.



09:
30


Hold down the “Confirm” button for 3 seconds, go back to home page, saved.


Multiple lamps linkage (H)

LED indicator color
LED (Left button)
LED (Right button)
*Hold down the button change theindicator’s color​
Red②Press the button the blue indicator light flashes quickly①Hold down the button change into blue indicator.
③When the light indicator flashes quickly,controller linkage <H> mode and press the <confirm> button ,led receive the order, the light indicator stop flashing and turn to blue.


Factory reset (R)

Init…​
M​
A​
R
H
Controller: Find the group you want to factory reset K71/K72/T4/K7f, then go to <R> and <Confirm> until the screen showing <OK> and restart.(Controller factory reset will not cancel the led linkage )



Manual mode (M)

In M mode, it’s feel free to adjust to adjust A/B/C/D/E/F brightness.





E.g. K71 Manual mode <M>



Press the Confirm button then turn right button and go to K71, press the Confirm button again you can see as below shown:

Manual​
M
A​
R​
H


Press the Confirm button, the screen have M. Press the Confirm button again, go to A group’s brightness percentage, press the Confirm button and the brightness percentage flahes, hold down the Left/Right button can change the number(0%-100%).LED following the brightness percentage changes.

A:100%​
B:100%​
C:100%​
D:50%​
E:20%​
F:20%​


Press the Confirm button, go to B group’s brightness percentage,hold down the Left/Right button can change the number(0%-100%)

A:100%​
B:80%​
C:100%​
D:50%​
E:20%​
F:20%​


C/D/E/F brightness use the same way as above.Refer to 2&3 point.



Hold down the Confirm button about 2 seconds, go back to the last page and hold down the Confirm button..(Repeat) Until go back to homepage, saved.



Go to the K71 again, as below shown (Light is running M mode)

Manual
M​
A​
R​
H

Notice: Press the controller k71 button for easy viewing M program.​

Preset program mode (A)​

Preset mode offers three options:SPS 、 LPS、 SPS/LPS,You can turn the button to choose the preset program

User can modify the brightness of the mode according to different creatures.



In preset mode, lamp will operate automatically according to the mode you choose. For example: K71 preset sunlight program for SPS group would be as below:



Press the Confirm button, press the Right button and Confirm, enter to the K71 page.

Manual
M​
A​
R
H


Press the Confirm button, then press the Right button go to A mode and Confirm. Enter to SPS brightness percentage setting. Users can modify the value of the brightness.

Press the <Confirm> button and flash. Hold down Left/Right button to adjust the group 1-8,press the confirm button.

Press the Right button to set time 00:00-23:50. Hold down the Right/Left button can quickly change the hour/minute, press the confirm button again can save the time.

Press the Confirm button then press Right button go to A group, hold down Left/Right button adjust the brightness. LED following the the percentage changes, press the confirm button save the data.

BCDEF can be set by referring to the point 5. After the setting is completed, press and hold the OK button for 2 seconds (save) to exit the setting state of SPS mode and return to the homepage.


SPS group, please refer to the settings below and adjust the settings according to the coral response and personal preference.

Time​
A White​
B Light blue​
C Blue​
D UV​
E Red
(warm)​
F Green
& blue​
1​
8:00​
0%​
0%​
0%​
0%​
0%​
0%​
2​
9:00​
30%​
30%​
30%​
35%​
30%​
30%​
3​
10:00​
50%​
50%​
50%​
50%​
50%​
50%​
4​
11:00​
95%​
95%​
95%​
85%​
95%​
95%​
5​
18:00​
95%​
95%​
95%​
85%​
95%​
95%​
6​
19:00​
50%​
50%​
50%​
50%​
50%​
50%​
7​
20:00​
30%​
30%​
30%​
30%​
30%​
30%​
8​
21:00​
0%​
0%​
0%​
0%​
0%​
0%​


Go to K71 mode again, it’s running SPS manual mode, as below show:

SPS
M​
A​
R​
H


LPS group, please refer to the settings below and adjust the settings according to the coral response and personal preference.

Time​
A White​
B Light blue​
C Blue​
D UV​
E Red​
F Green & blue​
1​
8:00​
0%​
0%​
0%​
0%​
0%​
0%​
2​
9:00​
1%​
10%​
10%​
3%​
0%​
10%​
3​
10:00​
2%​
30%​
30%​
5%​
1%​
30%​
4​
11:00​
5%​
80%​
80%​
10%​
2%​
80%​
5​
18:00​
5%​
80%​
80%​
10%​
2%​
80%​
6​
19:00​
2%​
30%​
30%​
5%​
1%​
30%​
7​
20:00​
1%​
10%​
10%​
3%​
0%​
10%​
8​
21:00​
0%​
0%​
0%​
0%​
0%​
0%​




SPS/LPS group, please refer to the settings below and adjust the settings according to the coral response and personal preference.


Time​
A White​
B Light blue​
C Blue​
D UV​
E Red​
F Green & blue​
1​
8:00​
0%​
0%​
0%​
0%​
0%​
0%​
2​
9:00​
5%​
20%​
20%​
20%​
0%​
20%​
3​
10:00​
10%​
40%​
40%​
40%​
5%​
40%​
4​
11:00​
30%​
90%​
90%​
70%​
20%​
90%​
5​
18:00​
30%​
90%​
90%​
70%​
20%​
90%​
6​
19:00​
20%​
40%​
40%​
40%​
5%​
40%​
7​
20:00​
5%​
20%​
20%​
20%​
0%​
20%​
8​
21:00​
0%​
0%​
0%​
0%​
0%​
0%​


Tips:
1. Please do not increase the brightness in sudden, it's harmful for coral and it might cause coral's death.
2. When switching from a weak light to using this luminaire, it is recommended that the initial total brightness is set to 50%


Common Breakdown
1. Time error

SPS_Timer_error SPS time setting erro

LPS_Timer_error LPS time setting erro

HLPS_Timer_error SPS/LPS time setting erro

Time setiing problem
Wrong setting:
turn on the lights at 8:00pm and turn off the lights at 8:00am.

Time​
A White​
B Light blue​
C Blue​
D UV​
E Red​
F Green & blue​
1​
20:00​
0%​
0%​
0%​
0%​
0%​
0%​
2​
21:00​
5%​
20%​
20%​
20%​
0%​
20%​
3​
22:00​
10%​
40%​
40%​
40%​
5%​
40%​
4​
23:00​
30%​
90%​
90%​
70%​
20%​
90%​
5​
5:00​
30%​
90%​
90%​
70%​
20%​
90%​
6​
6:00​
20%​
40%​
40%​
40%​
5%​
40%​
7​
7:00​
5%​
20%​
20%​
20%​
0%​
20%​
8​
8:00​
0%​
0%​
0%​
0%​
0%​
0%​


Correct setting: turn on the lights at 8:00pm and turn off the lights at 8:00am.

Time​
A White​
B Light blue​
C Blue​
D UV​
E Red​
F Green & blue​
1​
5:00​
30%​
90%​
90%​
70%​
20%​
90%​
2​
6:00​
20%​
40%​
40%​
40%​
5%​
40%​
3​
7:00​
5%​
20%​
20%​
20%​
0%​
20%​
4​
8:00​
0%​
0%​
0%​
0%​
0%​
0%​
5​
20:00​
0%​
0%​
0%​
0%​
0%​
0%​
6​
21:00​
5%​
20%​
20%​
20%​
0%​
20%​
7​
22:00​
10%​
40%​
40%​
40%​
5%​
40%​
8​
23:00​
30%​
90%​
90%​
70%​
20%​
90%​

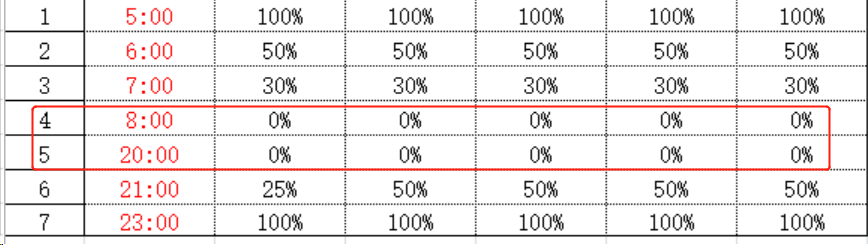

1-8 group, time setting order need from earliest to the latest, 00:00 is the earliest time. (00:00-23:50)

The time over 23:50 please refer to above seeting: turn on the lights at 8:00pm and turn off the lights at 8:00am to change the brightness of the light to switch the light on and off.

After auto setting, why it still brightness on night?
Wrong setting: Turn off the light still working.

Time​
A White​
B Light blue​
C Blue​
D UV​
E Red​
F Green & blue​
1​
8:00​
2%​
8%​
10%​
2%​
0%​
0%​
2​
9:00​
5%​
20%​
20%​
20%​
0%​
20%​
3​
10:00​
10%​
40%​
40%​
40%​
5%​
40%​
4​
12:00​
30%​
90%​
90%​
70%​
20%​
90%​
5​
18:00​
30%​
90%​
90%​
70%​
20%​
90%​
6​
19:00​
20%​
40%​
40%​
40%​
15%​
40%​
7​
20:00​
5%​
20%​
20%​
20%​
10%​
20%​
8​
21:00​
0%​
0%​
0%​
0%​
0%​
0%​


Correct setting: Turn off the light and stop working until get to the time turn on the light.

Time​
A White​
B Light blue​
C Blue​
D UV​
E Red​
F Green & blue​
1​
8:00​
0%​
0%​
0%​
0%​
0%​
0%​
2​
9:00​
5%​
20%​
20%​
20%​
0%​
20%​
3​
10:00​
10%​
40%​
40%​
40%​
5%​
40%​
4​
12:00​
30%​
90%​
90%​
70%​
20%​
90%​
5​
18:00​
30%​
90%​
90%​
70%​
20%​
90%​
6​
19:00​
20%​
40%​
40%​
40%​
15%​
40%​
7​
20:00​
5%​
20%​
20%​
20%​
10%​
20%​
8​
21:00​
0%​
0%​
0%​
0%​
0%​
0%​


Light turn on and turn off depend on the percentage you set. It will turn off the light on 21:00pm, and then it will start brightness one minutes later and increasing bright, up to the percentage at 9:00am.
2. Keep the same power for a time period from 12pm to 18pm. Before 12pm&after 18pm have different brightness, because it slowly increase power& slowly loosing power.



Size: 212*127*31mm
Power Consumption: 140W
Universal Input Range: 100-240V 50/60Hz 2.5A
warranty: 2 years

Last edited:

NDIrish

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Jun 27, 2019
Messages
512
Reaction score
699
Review score
+0 /0 /-0
Location
Jackson

Size(the ledlight):21.2*12.7*3.1(cm)/9.34" x 4.72" x 1.18"
Weight(the ledlight):1.8(kg)
Power:140(W)
Input:100-240V 50/60Hz 3.5A
Controller:1 controller can control up to 30 K7V3.
Warranty: 2 years
  • The brand new revolutionary noopsyche K7 V3 uses high-power LED copper substrate thermoelectric separation conduction, which greatly increases the life of the LED by having a stronger heat carrying capacity and dissipation.
  • The board uses a high-power single led dense combination mixing effect to make your aquarium look and feel like a real natural reef.
  • The mixing spectrum technology uses the scientific design of thickened concave-convex mirrors to provide uniform light and color without loss of light output efficiency, making the water have a shimmer close to the natural sunlight on your reef.
  • The highest cost performance. A unique advantage of noopsyche is that it has a very high cost performance, you can get excellent coral lighting effects at a very low cost.
Please check for Details



2K7 V3光谱.jpg
140WLamp beads.png
4  140PAR值.jpg

How many lights would you recommend for 60" long. Tank has a black brace in center. SPS/Soft coral.


BroccoliFarmer

2500 Club Member
Review score
+0 /0 /-0
View Badges
Joined
Jan 13, 2021
Messages
3,238
Reaction score
5,618
Review score
+0 /0 /-0
Location
Medford
How many lights would you recommend for 60" long. Tank has a black brace in center. SPS/Soft coral.
They indicated in another forum 3 x 140ws for that size tank. The center brace would be a shadowing issue though.

OP
noopsyche

noopsyche

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Aug 27, 2018
Messages
638
Reaction score
1,171
Review score
+0 /0 /-0
How do you recommend mounting these lights, parallel to length of the tank or perpendicular to the length?
(Tank is 18" wide).
parallel to length of the tank. If the width is over 24", it is recommended to be perpendicular to the length


Toys For Kids Drive

Untitled-2 copy.jpg

What prizes are you most excited to possibly win?

  • CADE Aquarium

    Votes: 58 54.7%
  • Turbo's Aquatics GC

    Votes: 11 10.4%
  • Tunze Pumps

    Votes: 25 23.6%
  • SBB Corals GC

    Votes: 17 16.0%
  • AquaticLife Light

    Votes: 12 11.3%
  • Orphek Light

    Votes: 33 31.1%
  • Living Reef Orlando GC

    Votes: 18 17.0%
  • Southwest Aquaculture GC

    Votes: 7 6.6%
  • Top Shelf Aquatics GC

    Votes: 28 26.4%
  • Avast Marine GC

    Votes: 13 12.3%
  • Noopsyche Light and GC

    Votes: 17 16.0%
  • Aquatic Reef Design GC

    Votes: 8 7.5%
  • Tropic Marin Lab Test Kit

    Votes: 13 12.3%
  • Reef Diaper Kits

    Votes: 8 7.5%
Kessil
Top
