Peristaltic feed pump for a CaRx

Discussion in 'Geo's Reef' started by solitude127, Oct 25, 2017.

  1. DogueDeBordeaux

    DogueDeBordeaux Active Member

    Joined:
    Mar 24, 2012
    Messages:
    125
    Likes Received:
    11
    Location:
    NC
    I have a masterflex 7523-60 that makes a squeaking noise just like a brush motor, and it's brushless.
    I have one running now that has brushes that sounds like an air pump, not bad though. I actually just turned on the 7523-60, and it's quiet. I know in a few weeks the squeak will be back. If it was in a fish room, basement, or under a stand you may not be able to hear it.

    Maybe I need to just look into a repair shop local. These masterflex pumps are so dependable running non stop same ml/min month after month.

    If I had to use another mj1200, or tee of main return for feed pump I would just buy a doser for 2 part.


  2. NeverlosT

    NeverlosT SPS nut Build Thread Contributor

    Joined:
    Feb 28, 2011
    Messages:
    698
    Likes Received:
    297
    Location:
    San Luis Obispo, California
    Dogue I hear ya. A fix that has worked for me on the masterflex is removing the housing, removing the front cover from the motor gearbox, putting some wheel bearing grease in there (I have heard you need to use synthetic but I didnt have any), and then putting some wheel bearing grease on the rollerbearings. Then reassemble and the squeak has been gone for a month now.

    I think that it is the rollerbearing that gets squeaky (the bearing that has little pins that roll along and guide the output shaft).

  3. BigJohnny

    BigJohnny Valuable Member

    Joined:
    Aug 27, 2015
    Messages:
    3,663
    Likes Received:
    2,224
    Location:
    North Carolina
    Sorry forgot to ask, will do

  4. BigJohnny

    BigJohnny Valuable Member

    Joined:
    Aug 27, 2015
    Messages:
    3,663
    Likes Received:
    2,224
    Location:
    North Carolina
    Let us know how it goes, do you live in europe?

  5. DogueDeBordeaux

    DogueDeBordeaux Active Member

    Joined:
    Mar 24, 2012
    Messages:
    125
    Likes Received:
    11
    Location:
    NC
  6. bubblemytip

    bubblemytip Active Member Build Thread Contributor

    Joined:
    Jan 4, 2017
    Messages:
    293
    Likes Received:
    271
    Location:
    New Zealand
    I have an IKS for my kalk dosing. Have ordered another for my calcium reactor. The instructions that come with it are in german but are easily run through an OCR and then google-translate. :)

    There are some reefs on the zeovit forum that have used the IKS with great success for years:

    http://www.zeovit.com/forums/showthread.php?t=30300

    http://www.zeovit.com/forums/showthread.php?p=332110

    G. Alexander also used one on his reef and it proved reliable:

    http://www.zeovit.com/forums/showthread.php?p=334967

  7. BigJohnny

    BigJohnny Valuable Member

    Joined:
    Aug 27, 2015
    Messages:
    3,663
    Likes Received:
    2,224
    Location:
    North Carolina
    Do they ship to US? Where did you purchase?

  8. bubblemytip

    bubblemytip Active Member Build Thread Contributor

    Joined:
    Jan 4, 2017
    Messages:
    293
    Likes Received:
    271
    Location:
    New Zealand
    Pretty sure they ship to the USA. They ship to New Zealand, which is even further away. Ordered from Aquaristikshop.com

  9. BigJohnny

    BigJohnny Valuable Member

    Joined:
    Aug 27, 2015
    Messages:
    3,663
    Likes Received:
    2,224
    Location:
    North Carolina
    Great thanks.

  10. bubblemytip

    bubblemytip Active Member Build Thread Contributor

    Joined:
    Jan 4, 2017
    Messages:
    293
    Likes Received:
    271
    Location:
    New Zealand

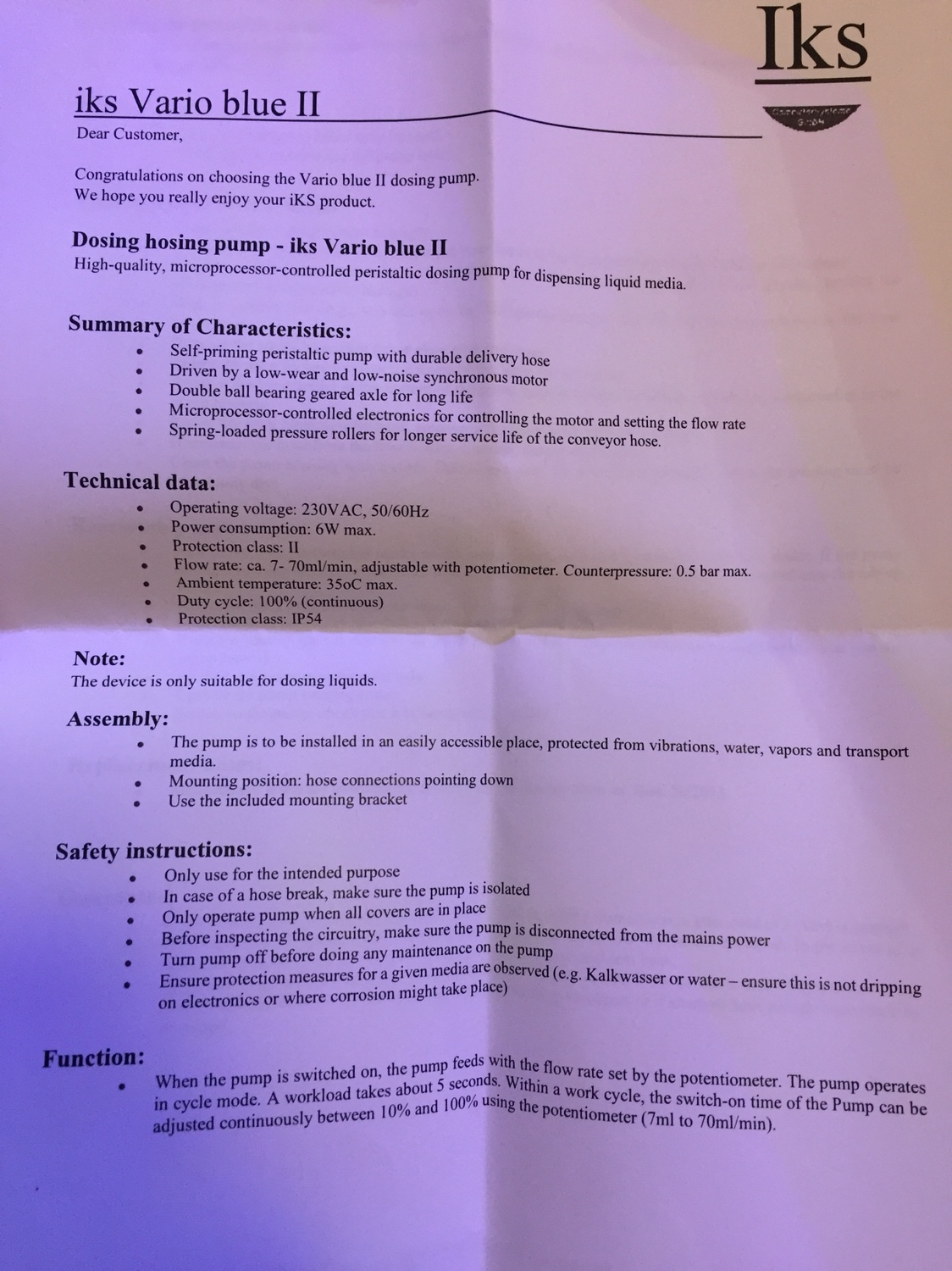

    Here are the IKS instructions translated from German to English (by me):

    [​IMG]

    And here’s the inside workings so the motor can be looked up if you want. Just received it today. :)

    [​IMG]

    bubbaque and BigJohnny like this.
  11. bubbaque

    bubbaque Never enough SPS R2R Supporter R2R Excellence Award Reef Tank 365 Build Thread Contributor

    Joined:
    Apr 6, 2016
    Messages:
    4,929
    Likes Received:
    11,266
    Location:
    Central Florida
    How loud does it seem to be when ran near the max speed?

  12. authentic

    authentic Well-Known Member

    Joined:
    Sep 20, 2012
    Messages:
    874
    Likes Received:
    483
    Location:
    coral springs florida
    are you using a step up converter?how long has it been running

  13. bubblemytip

    bubblemytip Active Member Build Thread Contributor

    Joined:
    Jan 4, 2017
    Messages:
    293
    Likes Received:
    271
    Location:
    New Zealand
    At max speed, it's not too loud. Everyone will have different preferences/situations, though. I can't hear it when the TV is on. It's much quieter than the GHL doser 2.1 I used to run. Can barely hear it over my sump noise. I am only running it at 1L/hr at the moment but did prime my reactor with it running full speed and it was fine. It's more of a bass noise than a squeak. Hard to describe. I might have to do a video of it working.

    The one I have been using for kalk has been operating for two years without fault and without needing to replace the tubing. I only received the one for my calcium reactor yesterday. Others have reported it running continuously for 2-3 years without needing a tubing replacement.

    I am in New Zealand, and we use 220-240v, so no converter needed.

    bubbaque likes this.
  14. authentic

    authentic Well-Known Member

    Joined:
    Sep 20, 2012
    Messages:
    874
    Likes Received:
    483
    Location:
    coral springs florida
    Bump on updates for pumps available in usa

  15. boozeman27

    boozeman27 Active Member R2R Supporter Partner Member 2019

    Joined:
    Apr 3, 2017
    Messages:
    430
    Likes Received:
    361
    Location:
    Indiana
    Hey @bubblemytip, any updated information on this IKS pump for your CRx?

  16. bubblemytip

    bubblemytip Active Member Build Thread Contributor

    Joined:
    Jan 4, 2017
    Messages:
    293
    Likes Received:
    271
    Location:
    New Zealand
    What would you like to know? :)

    It has been running non-stop without fault since I installed it. It is best installed in a cabinet, but its noise is not bothersome to me even though I don't have it inside a cabinet.

    And the one I was using for kalk dosing is still going strong 2 years later. No complaints. I have a bunch of spare tubing and rollers, but I haven't yet had to replace them on either pump.

  17. boozeman27

    boozeman27 Active Member R2R Supporter Partner Member 2019

    Joined:
    Apr 3, 2017
    Messages:
    430
    Likes Received:
    361
    Location:
    Indiana
    Wow that seems like a pretty good endorsement. I think I might have to order one. I currently have a skimz CM157 CRx. This reactor only has a single pump for both feed and circulation. I am hoping that pulling the effluent out with the IKS will stabilize the output. Not really sure if it will work well with my “unique” CRx. If it doesn’t,I might switch to a Geo612 or 618. But that system uses 3 pumps (a feed, a circ, and the IKS). Thanks for the info!

    bubblemytip likes this.
  18. bubblemytip

    bubblemytip Active Member Build Thread Contributor

    Joined:
    Jan 4, 2017
    Messages:
    293
    Likes Received:
    271
    Location:
    New Zealand
    I don't think you'll need a feed pump with a Geo from what I have seen. The peristaltic pump is the feed pump.

  19. gcarroll

    gcarroll Valuable Member R2R Supporter R2R Excellence Award Build Thread Contributor

    Joined:
    Jan 13, 2009
    Messages:
    1,888
    Likes Received:
    3,098
    Location:
    Orange, CA
    Last edited: Jun 12, 2018
    Rick.45cal, boozeman27 and ndrwater like this.
  20. boozeman27

    boozeman27 Active Member R2R Supporter Partner Member 2019

    Joined:
    Apr 3, 2017
    Messages:
    430
    Likes Received:
    361
    Location:
    Indiana
    Thank you!
