Rebuild skimmer

[HappyFm]

My tank is using a skimmer designed based on the Lifereef model, with a 15cm diameter and 40cm height.

To be honest, its efficiency is almost ridiculous. Combined with my existing filtration system, NP levels always stay below 0.5-0.1, even during periods when I experimented with completely removing mechanical filtration.

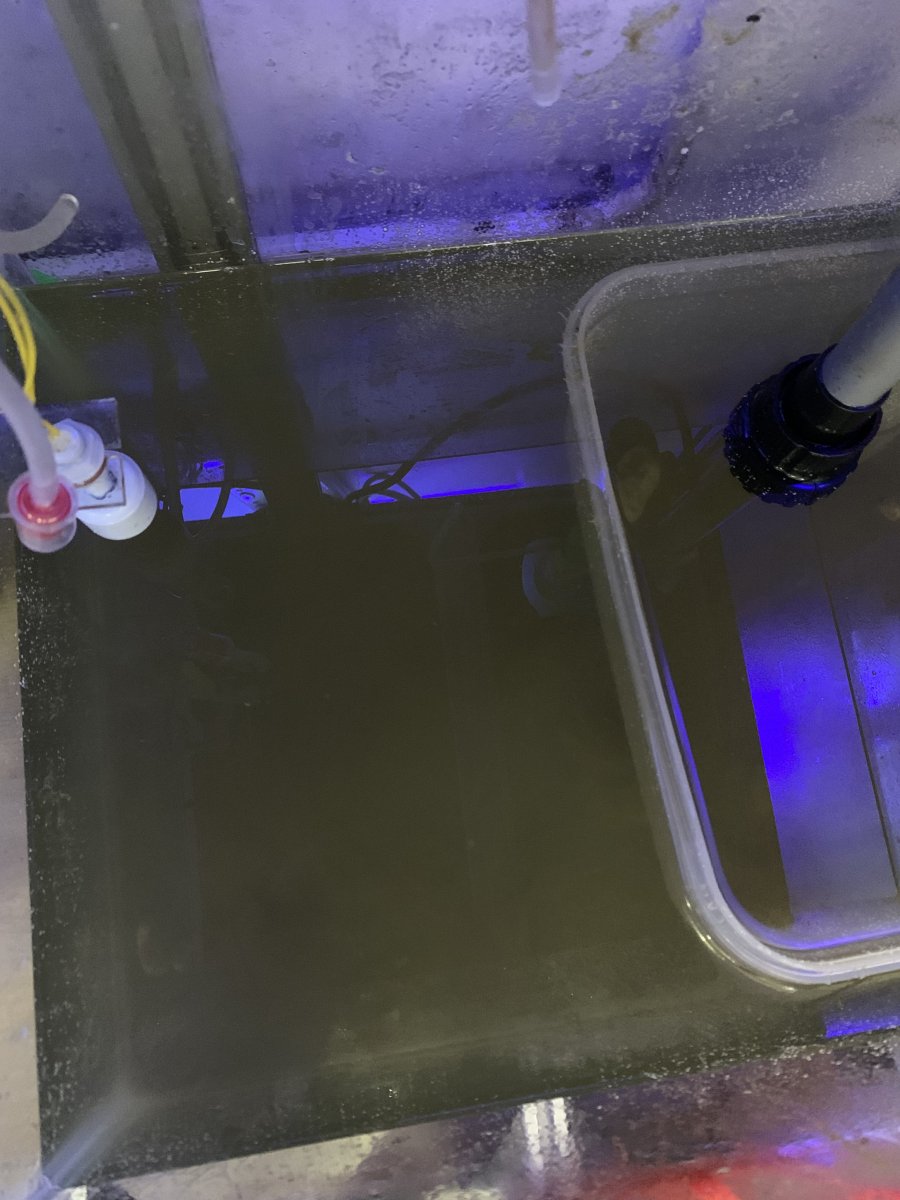

Here is the state of my sump after two months without mechanical filtration.

Here’s my old skimmer.


Due to several limitations (mainly aesthetic concerns), I decided to redesign my skimmer.



[HappyFm]

Starting with the design:

• A 3D-printed vortex water pump to increase contact time.
• A stepped structure to create a vortex while preventing air from escaping into the outlet.
• A smooth reaction chamber with all pipes placed externally.


Practical limitation: Only one

• Foam escapes if the screws are not tightened properly.

Solution:

• Replace the screw mechanism with a locking clip.
• Add an inner ridge to block foam from escaping through the connection groove.

  But I'm too lazy to redo it :)



[HappyFm]

Actual Cost:

• 3D printing: 1.57$
• Reaction chamber: A plastic flower vase (3.92$) with a 12cm wide opening, 11cm base, and 30cm height—perfect size.
• Venturi: 1.18$ (knockoff)
• Drain valve: 3.92$ (China)
• Pipes, glue, etc.: 3.92$

Total: 14.5$

Performance: Nothing to complain about, except it's a bit noisy. The collection cup is made of soft plastic, which vibrates and creates noise.


(Once again, too lazy to redo it )



[HappyFm]

Result :



[HappyFm]

.



[ryo243]

Bro, give some more pics of the results after installing the new base??



[HappyFm]



[HappyFm]

I continue to make improvements. The previous version was still too large for my tank.

• I will reduce the size of the reaction chamber (from 110mm to 100mm)
• I will reposition the venturi horizontally to improve the air-mixing efficiency
• I will redesign the air intake head to make it easier to disassemble and clean



[HappyFm]

Success
