Replacement tank frames

[33delia]

I picked up an old 125g tank but previous owner painted the frame white and not well. I want to replace it. Any suggestions on where i can get a replacement top and bottom frame. The tank is 18x72



[Crabs McJones]

I've heard nothing but good things about this site, might help
https://www.aquariumframeswholesale.com/



[Grill]

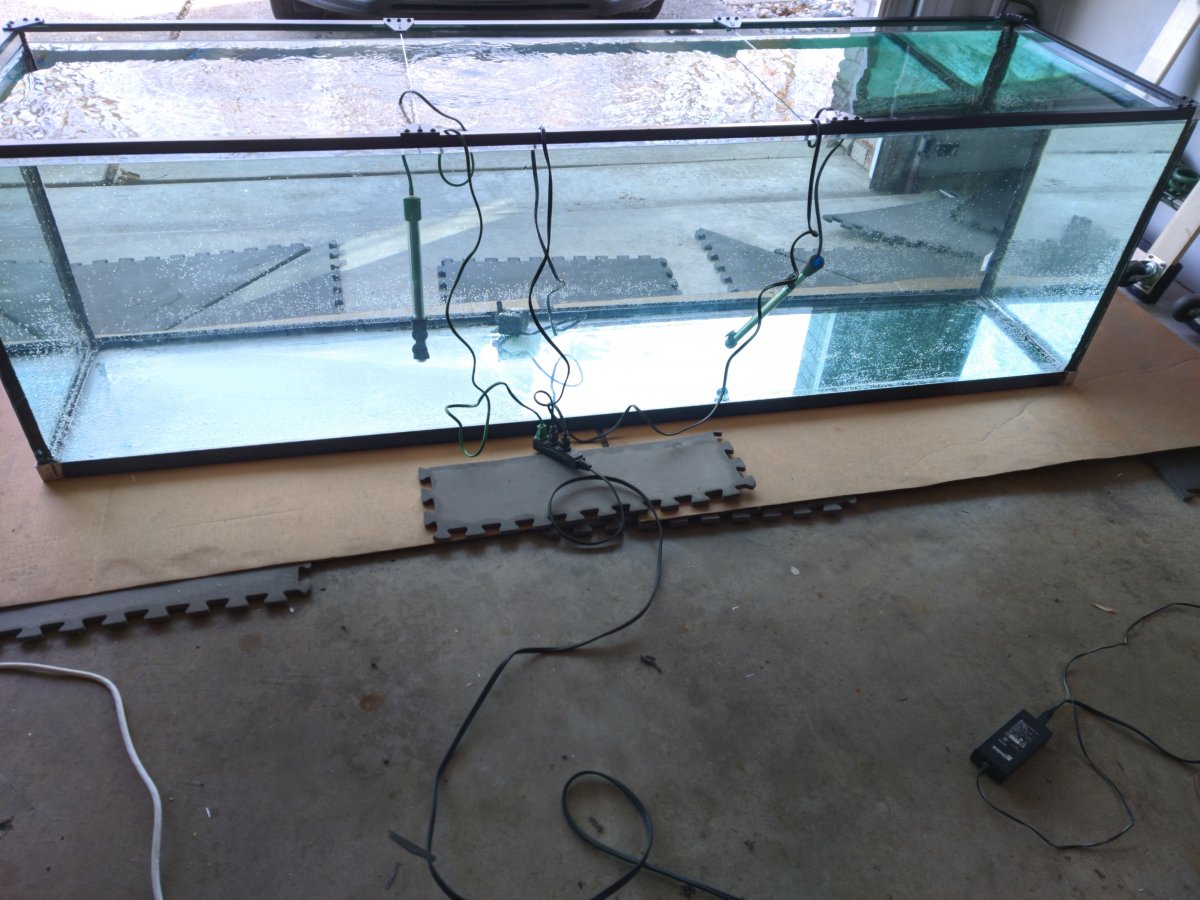

I've done several tanks and use aluminum angles. Home Depot - aluminum angles They have 1/8th & 1/16th thickness. I recommend 1/8th for the bottom depending on your stand. If you have an Ace Hardware near you check with them first, I found a couple stores that had the 8ft. angles on close-out for $2.00 each!!! Here is a 7ft. 210 I finished a couple months back. I'm working on another 210 now.



[Bigbluefish]

I've done several tanks and use aluminum angles. Home Depot - aluminum angles They have 1/8th & 1/16th thickness. I recommend 1/8th for the bottom depending on your stand. If you have an Ace Hardware near you check with them first, I found a couple stores that had the 8ft. angles on close-out for $2.00 each!!! Here is a 7ft. 210 I finished a couple months back. I'm working on another 210 now.

Grill, what did you use for the cross beams on your tank frame?



[Grill]

Grill, what did you use for the cross beams on your tank frame?

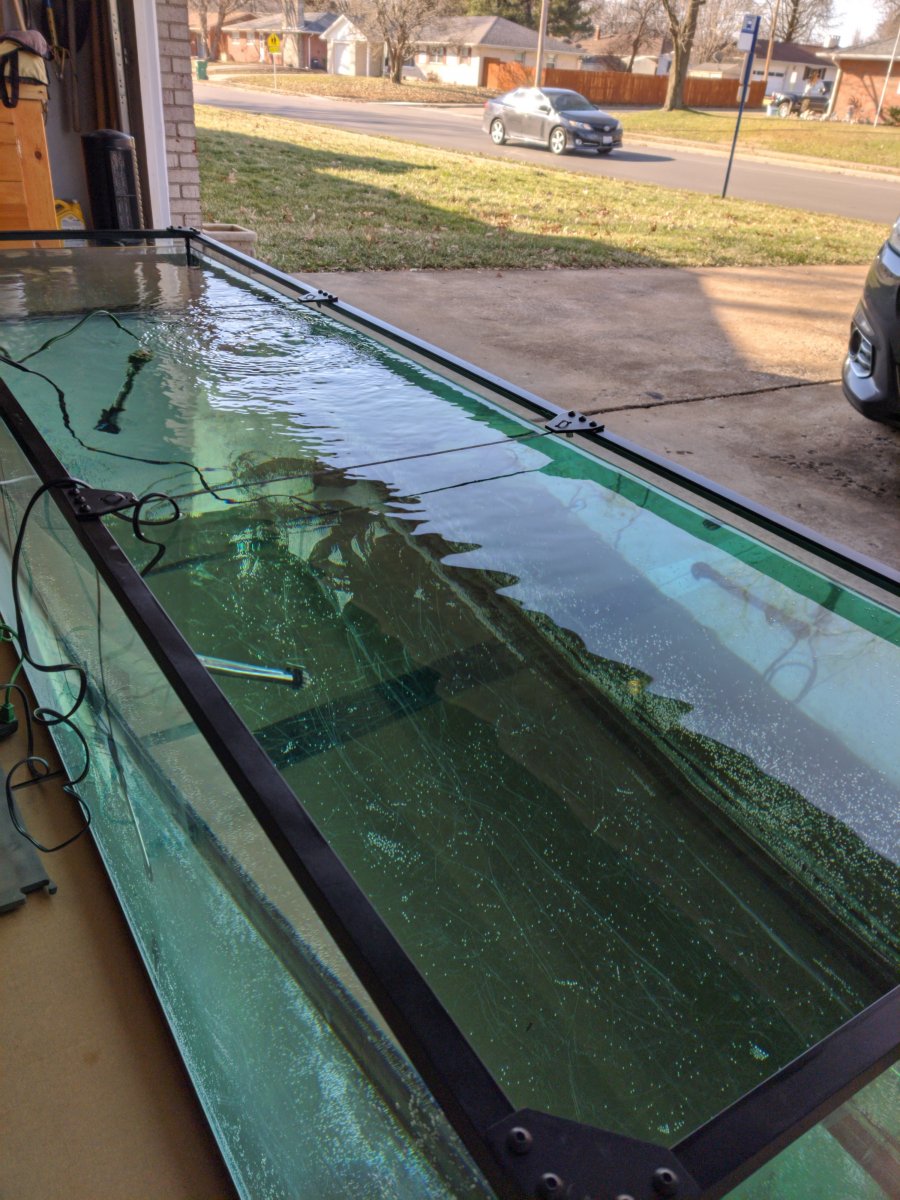

Here are a couple tanks I've done showing the braces. Any questions let me know... Bracing Help



[STEVIE60]

I picked up an old 125g tank but previous owner painted the frame white and not well. I want to replace it. Any suggestions on where i can get a replacement top and bottom frame. The tank is 18x72

What type of screws and brackets did you use for the corners?



[snake61047]

Here are a couple tanks I've done showing the braces. Any questions let me know... Bracing Help

I would also love to know what Hardware you used since I'm a fabricator and that looks amazing



[All_talk]

I've heard nothing but good things about this site, might help
https://www.aquariumframeswholesale.com/

I have bought replacement frames from Over the Edge for a 90gal tank. They look like they came from the same molds are the originals and good customer service as well. The shipping is a good part of the total cost though.

BTW, I love the look of Grill's aluminum frames.



[Grill]

I would also love to know what Hardware you used since I'm a fabricator and that looks amazing

Home Depot - Aluminum Angle Bar they come in different thickness. 2 in. x 96 in I remember Ace Hardware had them on clearance for $4-5 each so I loaded up on them.

Here's a past build with a few more details. 210g build
