will this sump design work?

[Chadster]

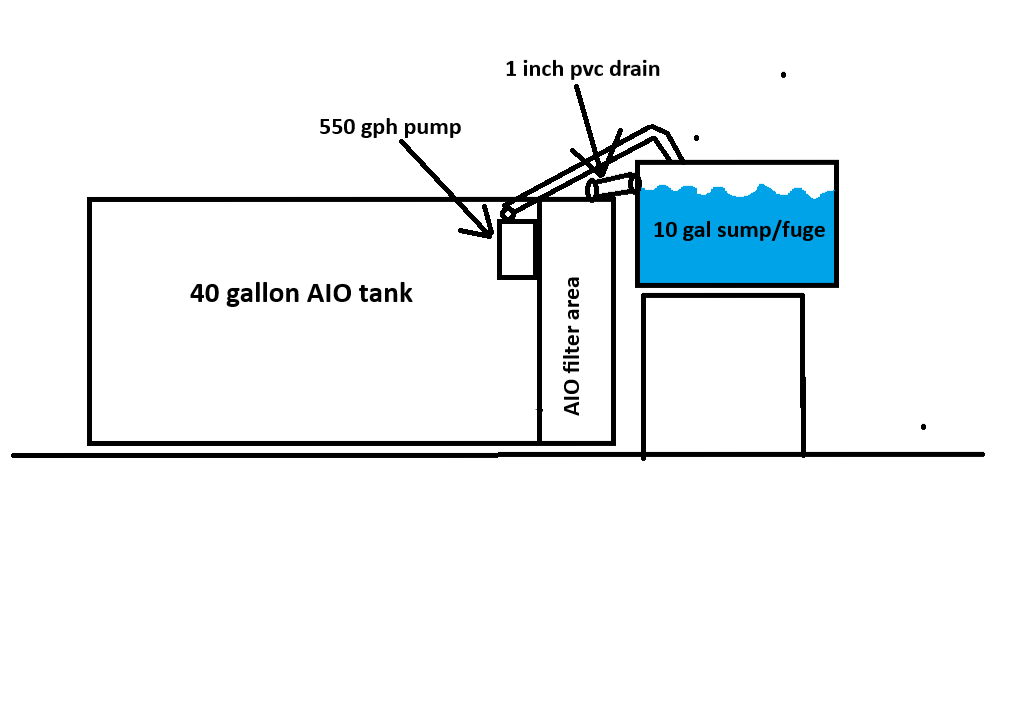

I have a 40g AIO im trying to add a sump to. It has been running for a few years now and i cant drill holes in it to add a sump. Will i have any issues if i put the sump above my tank? I built a 10 gallon sump/fuge and have it drilled towards the top to accept a 1in pvc pipe for overflow. I believe a 1in pvc can flow 600gph without any pressure added. i also have a 550gph pump that i will put in my display to run to the sump. Being how this will be my first sump i want to make sure im not overlooking anything. please refer to my highly detailed schematics lol. Also where should i put the 550gph pump and where should i run my 1in pvc overflow to? in the aio's filter department or the display itself?



[twentyleagues]

Should work. Pump in display return to display. Just make sure its high enough over the tank to drain properly. Also I dont know what pump you are actually using see if you can find something that is 200-300 gph after head pressure. You may or may not get a head/flow chart with the pump or be able to find it online. You can also calculate it with a couple buckets by timing how long it takes to move a gallon from one bucket to the other at different heights above the pump. I am guessing you are trying to incorporate a fuge maybe a skimmer, either way 4-6x flow is more than enough too much and its less effective.
