Apex Controller Help

[arichmond1003]

I’m in need for some advise on setting up the Apex ATK Kit V2 to my Apex Classic. I’m running the latest firmware/webpages update but when I go through the ATK Task configuration in Fusion it won’t let me go past step 2 with an alert to ensure the FMM firmware module is up to date.
Suggestions?



[SuncrestReef]

1. Open the Classic Dashboard
2. Click on Configuration....Module Setup
3. Select your FMM from the dropdown list
4. Select the Update Firmware option
5. Click the Submit Module Change button

Then go back to Fusion and run the ATK Setup task again.

See my ATK Tutorial so you have a solid understanding of how it's designed to work, what each line of program code does, and a list of troubleshooting steps if needed:
https://www.reef2reef.com/ams/neptu...torials-part-3-automatic-top-off-kit-atk.692/



[arichmond1003]

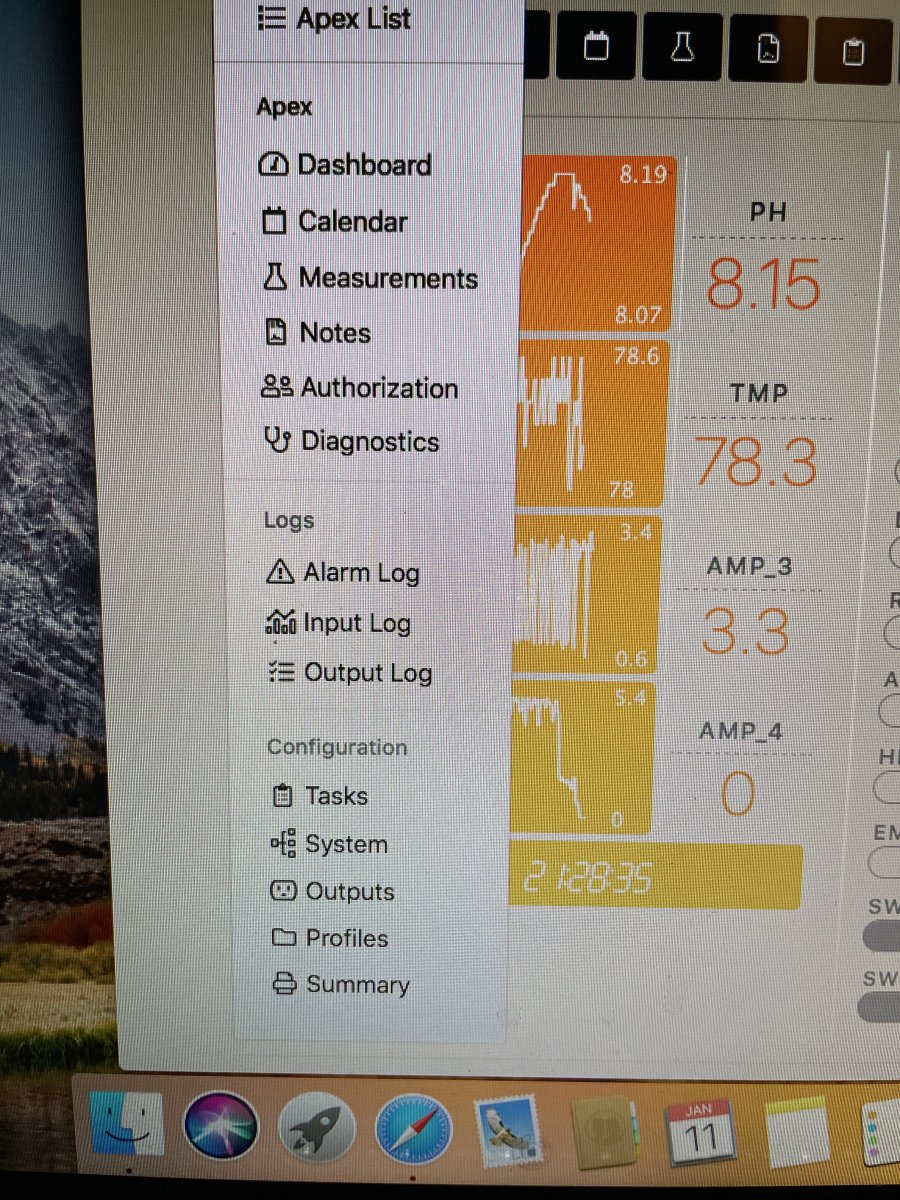

Ok this might sound stupid.... but I open up the drop down and I don’t have an option for module setup.

or am I in the wrong spot



[robbyg]

What do have under configuration then System.
You should see the connected devices.



[SuncrestReef]

The Apex Classic has limited features from within the Fusion interface. Step 1 in my instructions said to open the Classic Dashboard, which is not the same as Fusion. Follow the instructions here to access the Classic Dashboard:

https://support.neptunesystems.com/...17576-how-to-access-your-classic-dashboard-pc
