Im new to the apex game. Im trying to create a push button for a feed mode. I created a virtual outlet that is tied to the push button:
For every piece of equipment at the bottom I placed:
If Output FeedMode = ON Then OFF
Defer 00:10 Then ON
That works as intended Im sure theres a better way to do it, but it works. Now I have another button that I would like to use as an estop. I did the same thing, Created a virtual outlet called estop. I then placed: If Output ESTOP = ON Then OFF at the bottom over every piece of equipment. When I release the estop button the equipment does not turn back on.

Sample of return pump:
Fallback ON
Set ON
If Output FeedMode = ON Then OFF
Defer 00:10 Then ON
If Output ESTOP = ON Then OFF

What am I doing wrong?

Top Shelf Aquatics
Top Shelf Aquatics

((FORDTECH))

Well-Known Member
View Badges
Joined
Jan 23, 2020
Messages
623
Reaction score
342

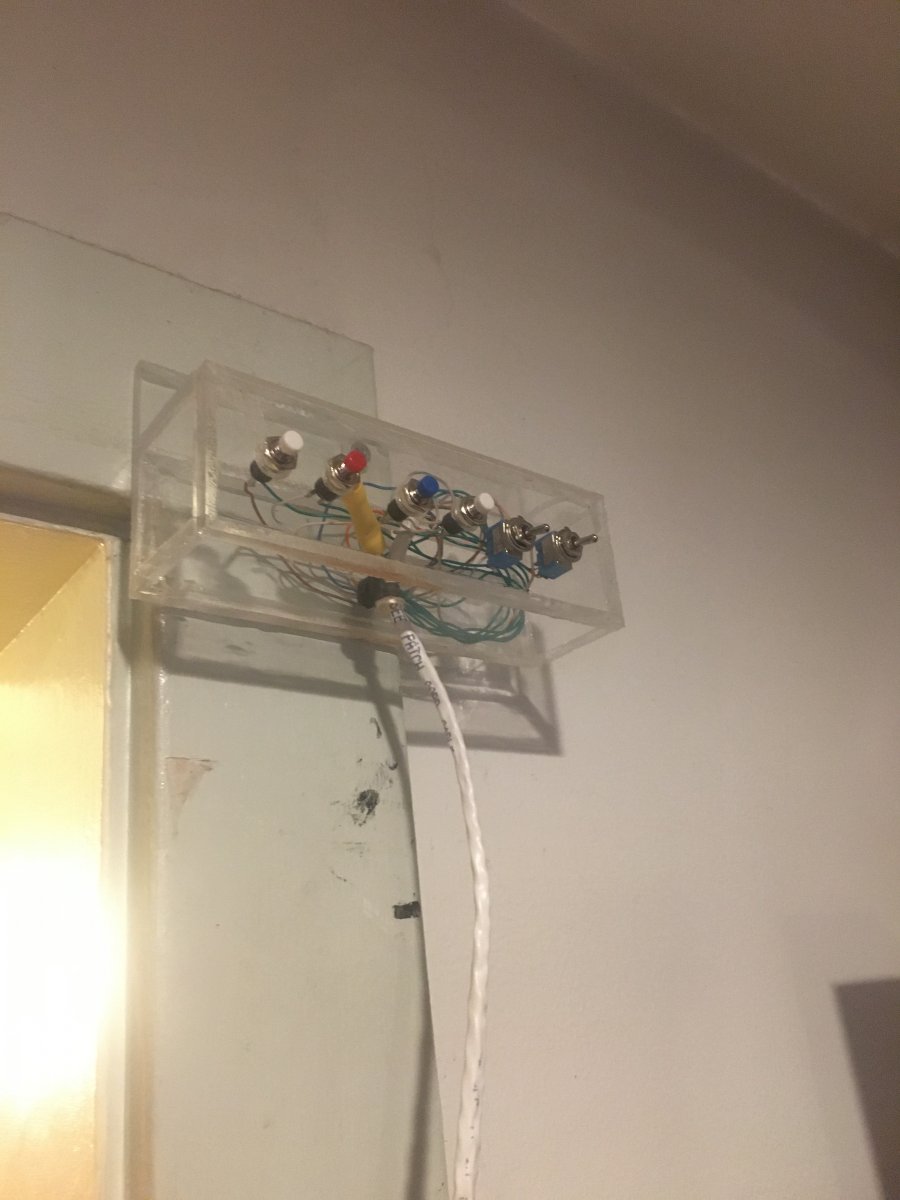

I use this and it works when I press feed a on my phone and when I press button on my wall


OP
Omgitsjoe

Omgitsjoe

Active Member
View Badges
Joined
Aug 17, 2019
Messages
237
Reaction score
534
Location
Georgia
the programming for the feed works fine. Mine is similar to yours. The problem is the estop button. I think its picking up the defer time that I was trying to use for feeding button.


((FORDTECH))

Well-Known Member
View Badges
Joined
Jan 23, 2020
Messages
623
Reaction score
342
So you need virtual outlet to be like mine and your eshops to be like my advanced settings

OP
Omgitsjoe

Omgitsjoe

Active Member
View Badges
Joined
Aug 17, 2019
Messages
237
Reaction score
534
Location
Georgia
Programming for my virtual outlet:
Set OFF
If BLULT OPEN Then ON
Defer 010:00 Then ON
Programming for the return pump:
Fallback ON
Set ON
If Output FeedMode = ON Then OFF
If Output ESTOP = ON Then OFF

Now when I press the feed button. Nothing happens
